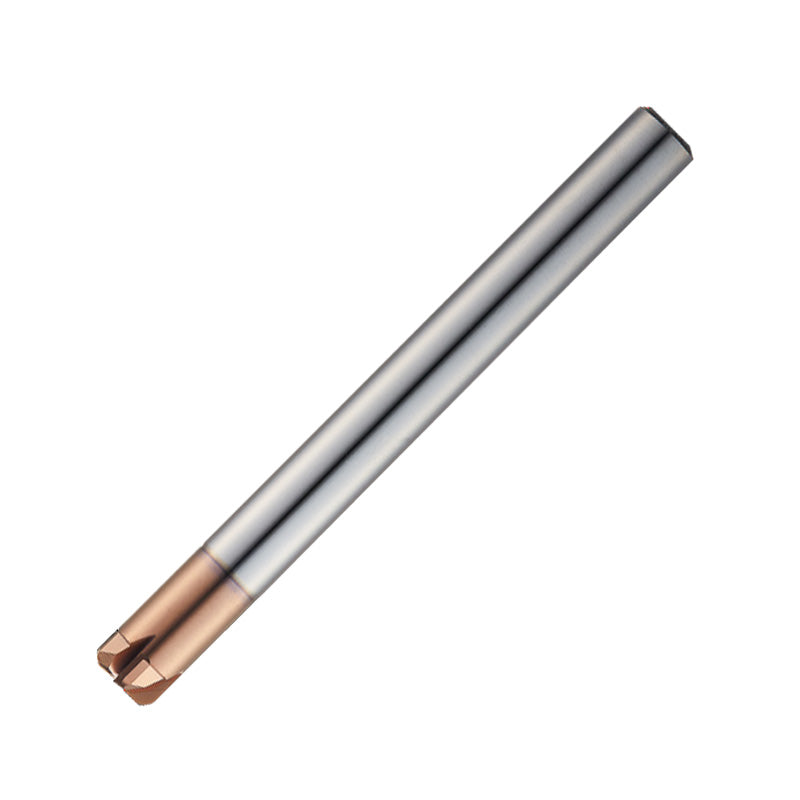

Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length - 6mm x 60mm x R1.5

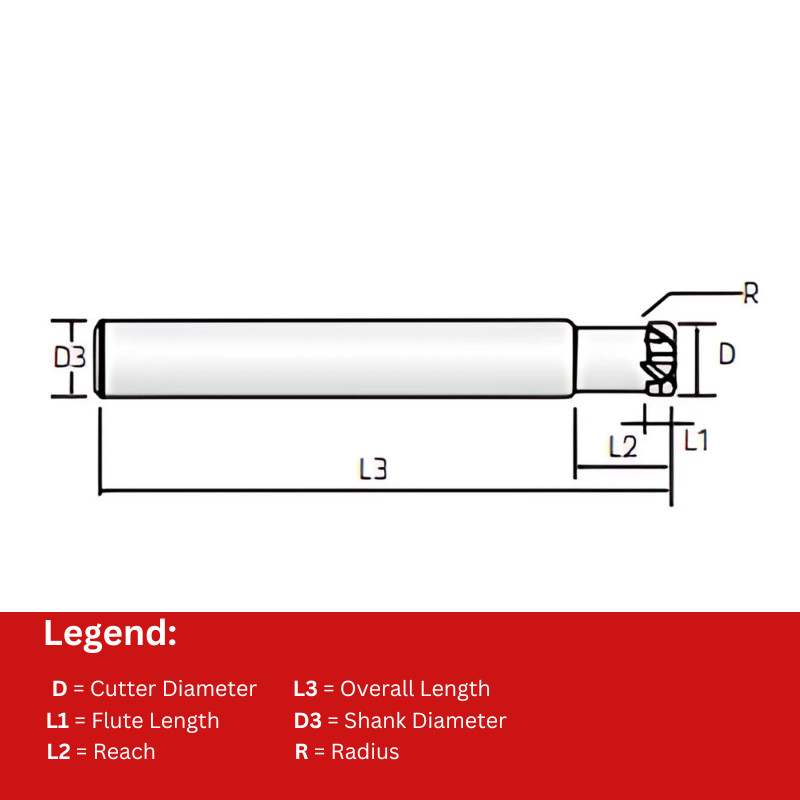

| Cutter Diameter | 6 |
| Number of Flutes | 4 |
| Flute Length | 2.5 |
| Overall Length | 60 |
| Shank Diameter | 6 |
| Reach | 12 |
Learn more about Klarna
Widin Carbide Corner Radius End Mill is a high-precision cutting tool designed for demanding milling tasks. Engineered for stability, it features a straight flute and an R1.5 corner radius to deliver crisp, accurate holes and clean edges in precision machining.
- Size: 6 mm diameter, 60 mm overall length, suitable for shallow to mid-depth pockets and slots
- Flute Configuration: 4 flutes for efficient chip evacuation and rigidity
- Corner Radius: R1.5 for smooth, rounded corners and reduced stress concentration
- Cutting Geometry: Straight flute design enhances stability and minimizes corner damage
- Cutting Edge: Back Draft Type edge to minimize chatter and tool movement
- Material: Carbide for exceptional hardness, wear resistance, and long tool life
In practice, this end mill excels at producing precise, repeatable results with excellent surface finish. The straight flute and back draft cutting edge work together to dampen vibrations, reduce chatter, and maintain tight tolerances—even during demanding milling operations. Its robust carbide construction makes it a reliable choice for precision work where corner integrity matters and consistent performance is essential.
| Cutter Diameter | 6 |
| Number of Flutes | 4 |
| Flute Length | 2.5 |
| Overall Length | 60 |
| Shank Diameter | 6 |
| Reach | 12 |
| Corner Radius | 1.5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length (ZSPM4)
View full collection →You are viewing ESPM4060-15. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| ESPM4030-05 | 3 | 4 | 1.2 | 50 | 6 | 8 | 0.5 | £11.91 | 5 days | View |
| ESPM4040-05 | 4 | 4 | 1.5 | 50 | 6 | 10 | 0.5 | £29.78 | 5 days | |
| ESPM4060-05 | 6 | 4 | 2.5 | 60 | 6 | 12 | 0.5 | £33.56 | 5 days | |
| ESPM4060-10 | 6 | 4 | 2.5 | 60 | 6 | 12 | 1 | £33.56 | 5 days | |
| ESPM4060-15L | 6 | 4 | 2.5 | 90 | 6 | 12 | 1.5 | £39.75 | 5 days | |
| ESPM4060-15 Viewing | 6 | 4 | 2.5 | 60 | 6 | 12 | 1.5 | £33.56 | 5 days | |
| ESPM4080-10 | 8 | 4 | 3.5 | 60 | 8 | 16 | 1 | £43.52 | 5 days | |
| ESPM4080-20 | 8 | 4 | 3.5 | 60 | 8 | 16 | 2 | £17.40 | In Stock | |
| ESPM4080-20L | 8 | 4 | 3.5 | 100 | 8 | 16 | 2 | £53.20 | 5 days | |
| ESPM4100-10 | 10 | 4 | 4 | 70 | 10 | 20 | 1 | £61.32 | 5 days | |
| ESPM4100-20 | 10 | 4 | 4 | 70 | 10 | 20 | 2 | £61.32 | In Stock | |
| ESPM4100-20L | 10 | 4 | 4 | 100 | 10 | 20 | 2 | £29.68 | 5 days | View |
| ESPM4120-20 | 12 | 4 | 5 | 80 | 12 | 25 | 2 | £89.13 | 5 days | |
| ESPM4120-30 | 12 | 4 | 5 | 80 | 12 | 25 | 3 | £89.13 | 5 days | |
| ESPM4120-30L | 12 | 4 | 5 | 110 | 12 | 25 | 3 | £100.27 | 5 days |
