Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length - 6mm x 60mm x R0.5

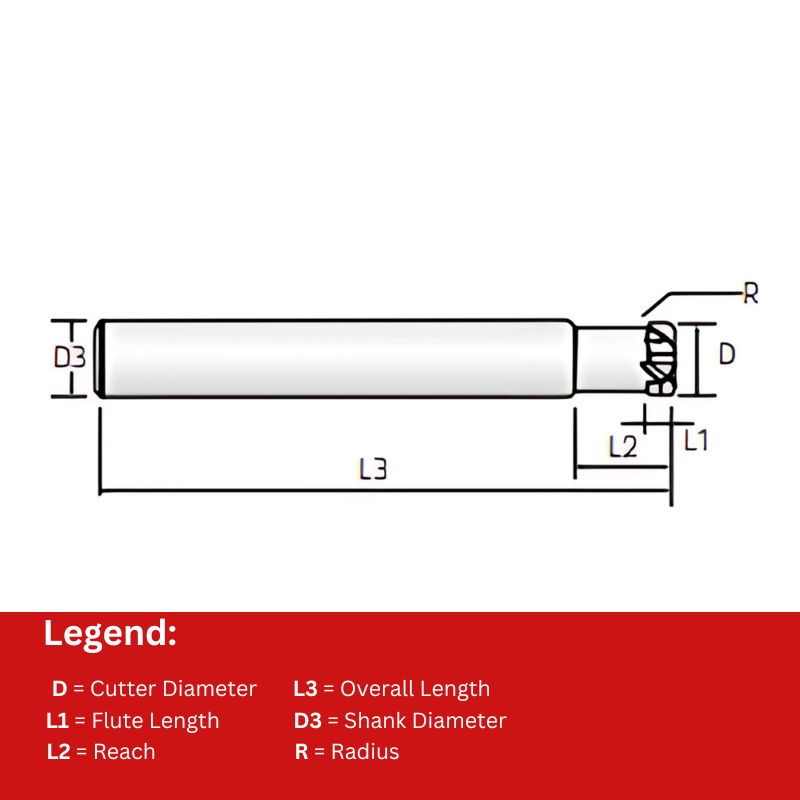

| Cutter Diameter | 6 |
| Number of Flutes | 4 |
| Flute Length | 2.5 |
| Overall Length | 60 |
| Shank Diameter | 6 |
| Reach | 12 |
Learn more about Klarna

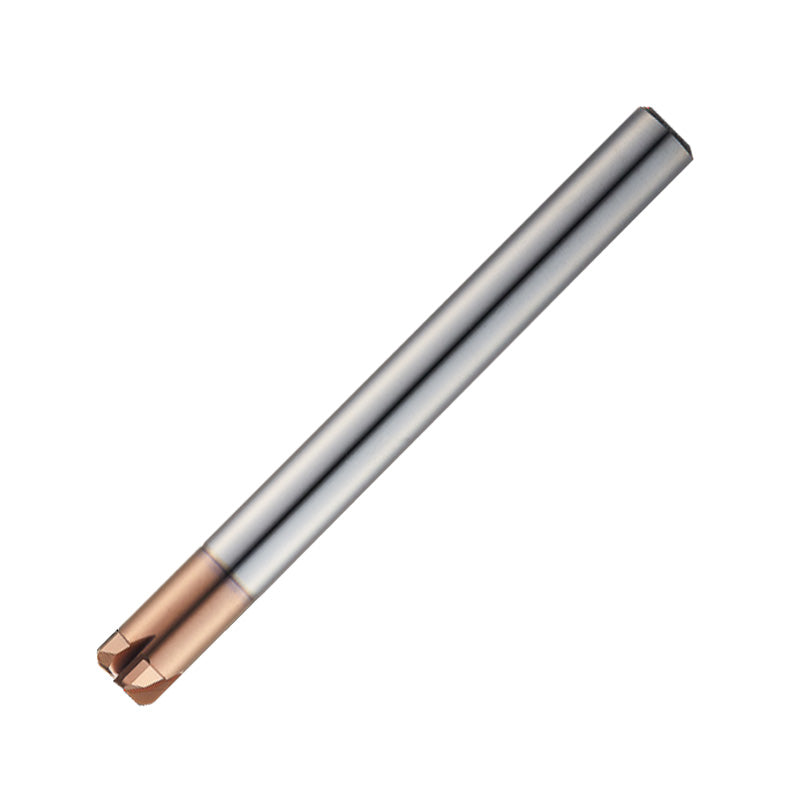

The Widin Carbide Corner Radius End Mill is a high-precision milling tool built for professionals seeking reliable radii and clean finishes in demanding machining tasks. With a 6 mm diameter, 60 mm overall length, a 4-flute configuration, and a 0.5 mm corner radius, it delivers consistent performance in precision milling applications.
- Diameter: 6 mm
- Overall Length: 60 mm
- Flute Count: 4-flute design
- Cutting Edge Radius: Corner radius of R0.5
- Flute Type: Straight flute for rigidity and stable cutting
- Edge Design: Back Draft cutting edge to minimize chattering and movement
- Material: Carbide for durability and precision
This end mill is engineered to enhance stability and control, helping you achieve clean radii and accurate dimensions with each pass. The straight flute configuration reduces deflection under load, while the back draft edge design dampens vibrations, contributing to smoother cuts and better surface finishes. Its compact, stub-length form increases rigidity during high-precision work, making it suitable for precision pocketing, contouring, and finishing operations where tight tolerances matter.
| Cutter Diameter | 6 |
| Number of Flutes | 4 |
| Flute Length | 2.5 |
| Overall Length | 60 |
| Shank Diameter | 6 |
| Reach | 12 |
| Corner Radius | 0.5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length (ZSPM4)
View full collection →You are viewing ESPM4060-05. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| ESPM4030-05 | 3 | 4 | 1.2 | 50 | 6 | 8 | 0.5 | £11.91 | 5 days | View |
| ESPM4040-05 | 4 | 4 | 1.5 | 50 | 6 | 10 | 0.5 | £29.78 | 5 days | |
| ESPM4060-05 Viewing | 6 | 4 | 2.5 | 60 | 6 | 12 | 0.5 | £33.56 | 5 days | |
| ESPM4060-10 | 6 | 4 | 2.5 | 60 | 6 | 12 | 1 | £33.56 | 5 days | |
| ESPM4060-15L | 6 | 4 | 2.5 | 90 | 6 | 12 | 1.5 | £39.75 | 5 days | |
| ESPM4060-15 | 6 | 4 | 2.5 | 60 | 6 | 12 | 1.5 | £33.56 | 5 days | |
| ESPM4080-10 | 8 | 4 | 3.5 | 60 | 8 | 16 | 1 | £43.52 | 5 days | |
| ESPM4080-20 | 8 | 4 | 3.5 | 60 | 8 | 16 | 2 | £17.40 | In Stock | |
| ESPM4080-20L | 8 | 4 | 3.5 | 100 | 8 | 16 | 2 | £53.20 | 5 days | |
| ESPM4100-10 | 10 | 4 | 4 | 70 | 10 | 20 | 1 | £61.32 | 5 days | |
| ESPM4100-20 | 10 | 4 | 4 | 70 | 10 | 20 | 2 | £61.32 | In Stock | |
| ESPM4100-20L | 10 | 4 | 4 | 100 | 10 | 20 | 2 | £29.68 | 5 days | View |
| ESPM4120-20 | 12 | 4 | 5 | 80 | 12 | 25 | 2 | £89.13 | 5 days | |
| ESPM4120-30 | 12 | 4 | 5 | 80 | 12 | 25 | 3 | £89.13 | 5 days | |
| ESPM4120-30L | 12 | 4 | 5 | 110 | 12 | 25 | 3 | £100.27 | 5 days |
