Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length - 8mm x 60mm x R1.0

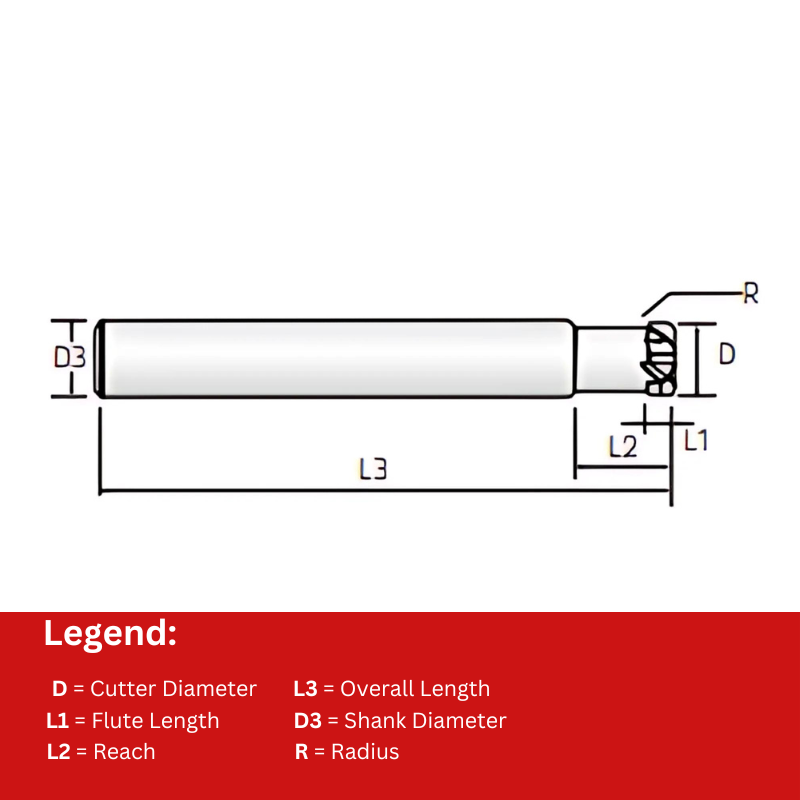

| Cutter Diameter | 8 |
| Number of Flutes | 4 |
| Flute Length | 3.5 |
| Overall Length | 60 |
| Shank Diameter | 8 |
| Reach | 16 |
Learn more about Klarna

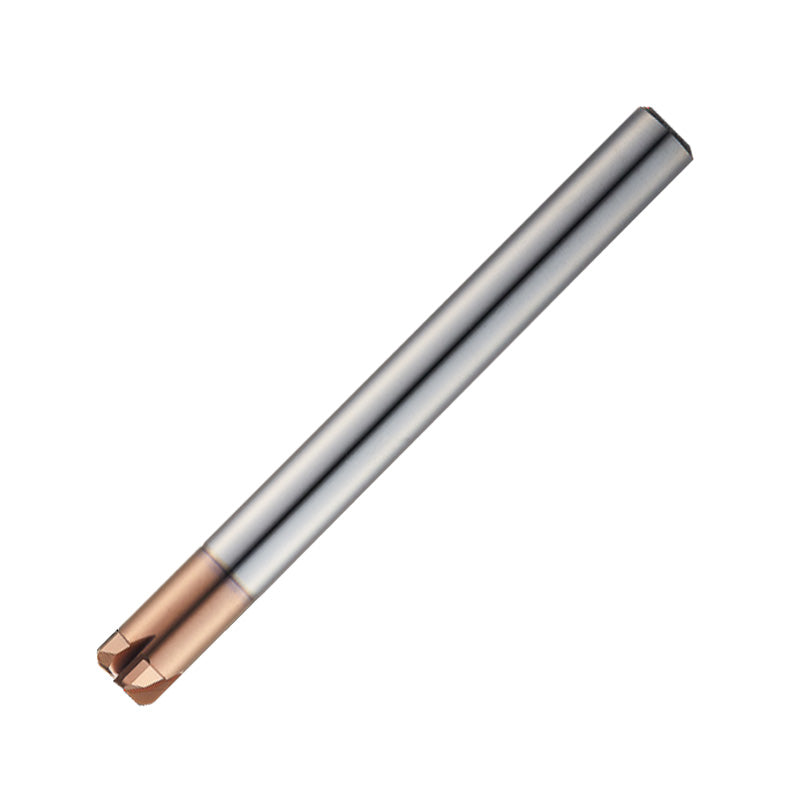

Widin Carbide Corner Radius End Mill is a high-performance cutting tool designed for precision machining tasks. Built for professionals who demand clean corners, tight tolerances, and reliable stability, this 4-flute end mill delivers consistent, accurate results.
- Diameter: 8 mm
- Overall Length: 60 mm
- Flute Count: 4-flute
- Length Type: Stub cut length
- Corner Radius: R1.0
- Material: Carbide
- Flute Design: Straight flute for enhanced rigidity
- Edge Design: Back Draft cutting edge to reduce chattering and movement
Designed to deliver stable, clean cuts, this end mill minimizes corner damage and provides predictable performance across multiple passes. The straight flute configuration enhances rigidity during aggressive milling, while the Back Draft cutting edge helps maintain smooth engagement with the workpiece, resulting in fewer vibrations and a more controlled cut. The combination supports precise pocketing, profiling, and contouring with fewer tool deflections and chatter.
| Cutter Diameter | 8 |
| Number of Flutes | 4 |
| Flute Length | 3.5 |
| Overall Length | 60 |
| Shank Diameter | 8 |
| Reach | 16 |
| Corner Radius | 1 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length (ZSPM4)
View full collection →You are viewing ESPM4080-10. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| ESPM4030-05 | 3 | 4 | 1.2 | 50 | 6 | 8 | 0.5 | £11.91 | 5 days | View |
| ESPM4040-05 | 4 | 4 | 1.5 | 50 | 6 | 10 | 0.5 | £29.78 | 5 days | |
| ESPM4060-05 | 6 | 4 | 2.5 | 60 | 6 | 12 | 0.5 | £33.56 | 5 days | |
| ESPM4060-10 | 6 | 4 | 2.5 | 60 | 6 | 12 | 1 | £33.56 | 5 days | |
| ESPM4060-15L | 6 | 4 | 2.5 | 90 | 6 | 12 | 1.5 | £39.75 | 5 days | |
| ESPM4060-15 | 6 | 4 | 2.5 | 60 | 6 | 12 | 1.5 | £33.56 | 5 days | |
| ESPM4080-10 Viewing | 8 | 4 | 3.5 | 60 | 8 | 16 | 1 | £43.52 | 5 days | |
| ESPM4080-20 | 8 | 4 | 3.5 | 60 | 8 | 16 | 2 | £17.40 | In Stock | |
| ESPM4080-20L | 8 | 4 | 3.5 | 100 | 8 | 16 | 2 | £53.20 | 5 days | |
| ESPM4100-10 | 10 | 4 | 4 | 70 | 10 | 20 | 1 | £61.32 | 5 days | |
| ESPM4100-20 | 10 | 4 | 4 | 70 | 10 | 20 | 2 | £61.32 | In Stock | |
| ESPM4100-20L | 10 | 4 | 4 | 100 | 10 | 20 | 2 | £29.68 | 5 days | View |
| ESPM4120-20 | 12 | 4 | 5 | 80 | 12 | 25 | 2 | £89.13 | 5 days | |
| ESPM4120-30 | 12 | 4 | 5 | 80 | 12 | 25 | 3 | £89.13 | 5 days | |
| ESPM4120-30L | 12 | 4 | 5 | 110 | 12 | 25 | 3 | £100.27 | 5 days |
