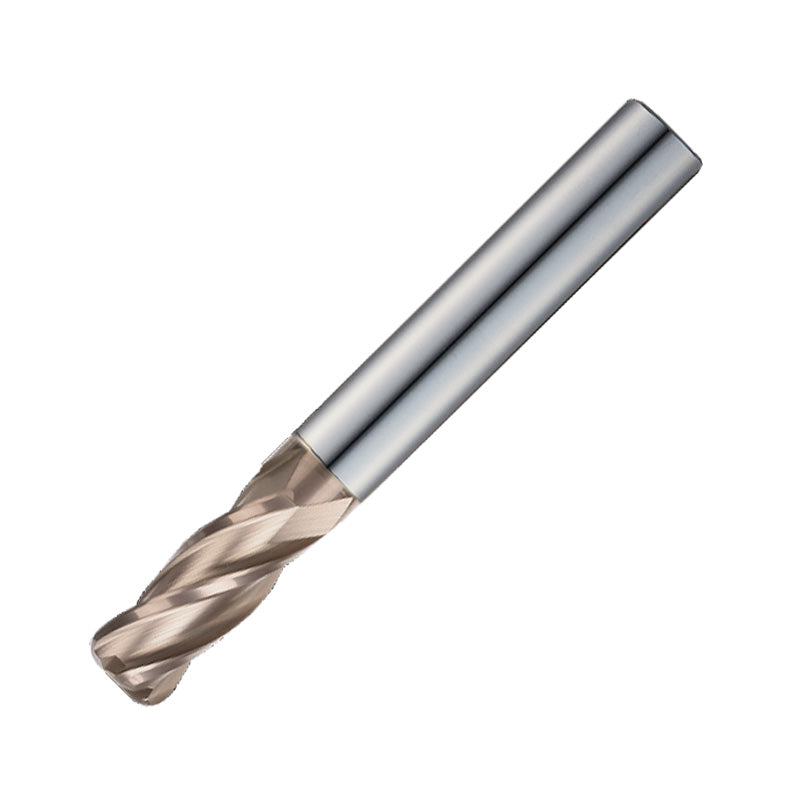

Widin Carbide Corner Radius End Mill For Mold & Die
4 Flute Multi Purpose (WR504)
A versatile end mill designed specifically for mold and die machining applications. With its 4 flutes and variable index geometry, it offers superior chip evacuation and excellent machinability, ensuring efficient and precise cutting performance. The end mill's multi-purpose design allows it to handle various materials and machining tasks with ease. It is particularly effective in mold and die machining, where precision and high-quality surface finishes are essential. The tool is available in different corner radius sizes, providing extended customer choice and versatility to meet specific machining requirements.
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| UR50403002 | 3 | 4 | 8 | 60 | 6 | 0.2 | £34.57 | 5 days |
|
| UR50403003 | 3 | 4 | 8 | 60 | 6 | 0.3 |
£15.21 |
In Stock |
|
| UR50403005 | 3 | 4 | 8 | 60 | 6 | 0.5 | £34.57 | 5 days |
|
| UR50404002 | 4 | 4 | 10 | 70 | 6 | 0.2 |
£15.52 |
In Stock |
|
| UR50404003 | 4 | 4 | 10 | 70 | 6 | 0.3 | £35.27 | 5 days |
|
| UR50404005 | 4 | 4 | 10 | 70 | 6 | 0.5 | £35.27 | 5 days |
|
| UR50404010 | 4 | 4 | 10 | 70 | 6 | 1 | £35.27 | 5 days |
|
| UR50405003 | 5 | 4 | 13 | 90 | 6 | 0.3 |
£17.20 |
In Stock |
|
| UR50405003060 | 5 | 4 | 13 | 60 | 6 | 0.3 | £34.57 | 5 days |
|
| UR50405005 | 5 | 4 | 13 | 90 | 6 | 0.5 |
£17.20 |
In Stock |
|
| UR50405005060 | 5 | 4 | 13 | 60 | 6 | 0.5 |
£15.21 |
In Stock |
|
| UR50406003 | 6 | 4 | 15 | 90 | 6 | 0.3 | £39.11 | 5 days |
|
| UR50406003060 | 6 | 4 | 15 | 60 | 6 | 0.3 | £34.57 | 5 days |
|
| UR50406005 | 6 | 4 | 15 | 90 | 6 | 0.5 |
£17.20 |
In Stock |
|
| UR50406005060 | 6 | 4 | 15 | 60 | 6 | 0.5 |
£15.21 |
In Stock |
|
| UR50406010 | 6 | 4 | 15 | 90 | 6 | 1 | £39.11 | 5 days |
|
| UR50406010060 | 6 | 4 | 15 | 60 | 6 | 1 |
£15.21 |
In Stock |
|
| UR50408005 | 8 | 4 | 20 | 100 | 8 | 0.5 |
£29.18 |
In Stock |
|
| UR50408003 | 8 | 4 | 20 | 100 | 8 | 0.3 |
£29.18 |
In Stock |
|
| UR50408003070 | 8 | 4 | 20 | 70 | 8 | 0.3 |
£25.92 |
In Stock |
|
| UR50408005070 | 8 | 4 | 20 | 70 | 8 | 0.5 |
£25.92 |
In Stock |
|
| UR50408010 | 8 | 4 | 20 | 100 | 8 | 1 |
£29.18 |
In Stock |
|
| UR50408010070 | 8 | 4 | 20 | 70 | 8 | 1 |
£25.92 |
In Stock |
|
| UR50410003 | 10 | 4 | 25 | 100 | 10 | 0.3 |
£38.63 |
In Stock |
|
| UR50410003075 | 10 | 4 | 25 | 75 | 10 | 0.3 |
£35.09 |
In Stock |
|
| UR50410005 | 10 | 4 | 25 | 100 | 10 | 0.5 |
£38.63 |
In Stock |
|
| UR50410005075 | 10 | 4 | 25 | 75 | 10 | 0.5 | £79.74 | 5 days |
|
| UR50410010075 | 10 | 4 | 25 | 75 | 10 | 1 |
£35.09 |
In Stock |
|
| UR50412003 | 12 | 4 | 30 | 110 | 12 | 0.3 |
£57.77 |
In Stock |
|
| UR50412003080 | 12 | 4 | 30 | 80 | 12 | 0.3 |
£51.49 |
In Stock |
|
| UR50410010 | 10 | 4 | 25 | 100 | 10 | 1 |
£38.63 |
In Stock |
|
| UR50412005 | 12 | 4 | 30 | 110 | 12 | 0.5 | £131.31 | 5 days |
|
| UR50412010 | 12 | 4 | 30 | 110 | 12 | 1 | £131.31 | 5 days |
|
| UR50412005080 | 12 | 4 | 30 | 80 | 12 | 0.5 |
£51.49 |
In Stock |
|
| UR50416005 | 16 | 4 | 32 | 150 | 16 | 0.5 | £389.60 | 5 days |
|
| UR50416005100 | 16 | 4 | 32 | 100 | 16 | 0.5 | £324.61 | 5 days |
|
| UR50412010080 | 12 | 4 | 30 | 80 | 12 | 1 | £117.04 | 5 days |
|
| UR50416010 | 16 | 4 | 32 | 150 | 16 | 1 | £389.60 | 5 days |
|
| UR50416010100 | 16 | 4 | 32 | 100 | 16 | 1 | £324.61 | 5 days |
|
| UR50416015 | 16 | 4 | 32 | 150 | 16 | 1.5 | £389.60 | 5 days |
|
| UR50416020 | 16 | 4 | 32 | 150 | 16 | 2 | £389.60 | 5 days |
|
| UR50416020100 | 16 | 4 | 32 | 100 | 16 | 2 | £324.61 | 5 days |
|
| UR50416015100 | 16 | 4 | 32 | 100 | 16 | 1.5 | £324.61 | 5 days |
|
| UR50420005 | 20 | 4 | 38 | 150 | 20 | 0.5 | £543.69 | 5 days |
|
| UR50420010 | 20 | 4 | 38 | 150 | 20 | 1 | £543.69 | 5 days |
|
| UR50420005100 | 20 | 4 | 38 | 100 | 20 | 0.5 | £453.26 | 5 days |
|
| UR50420010100 | 20 | 4 | 38 | 100 | 20 | 1 | £453.26 | 5 days |
|
| UR50420015100 | 20 | 4 | 38 | 100 | 20 | 1.5 | £453.26 | 5 days |
|
| UR50420020 | 20 | 4 | 38 | 150 | 20 | 2 | £543.69 | 5 days |
|
| UR50420015 | 20 | 4 | 38 | 150 | 20 | 1.5 | £543.69 | 5 days |
|
| UR50420020100 | 20 | 4 | 38 | 100 | 20 | 2 |
£199.43 |
In Stock |
|
No products match your filters.
