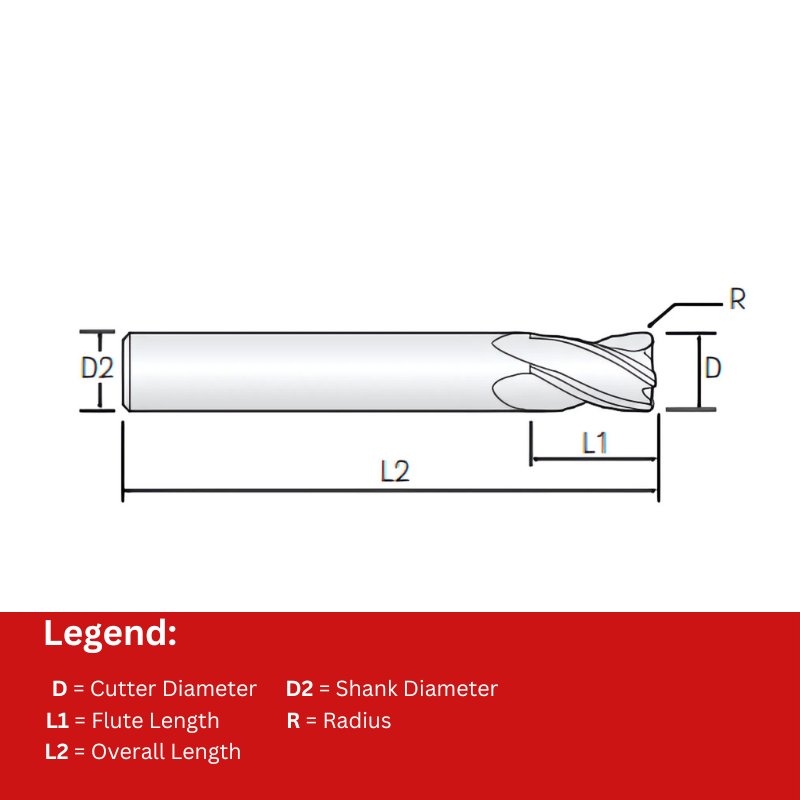

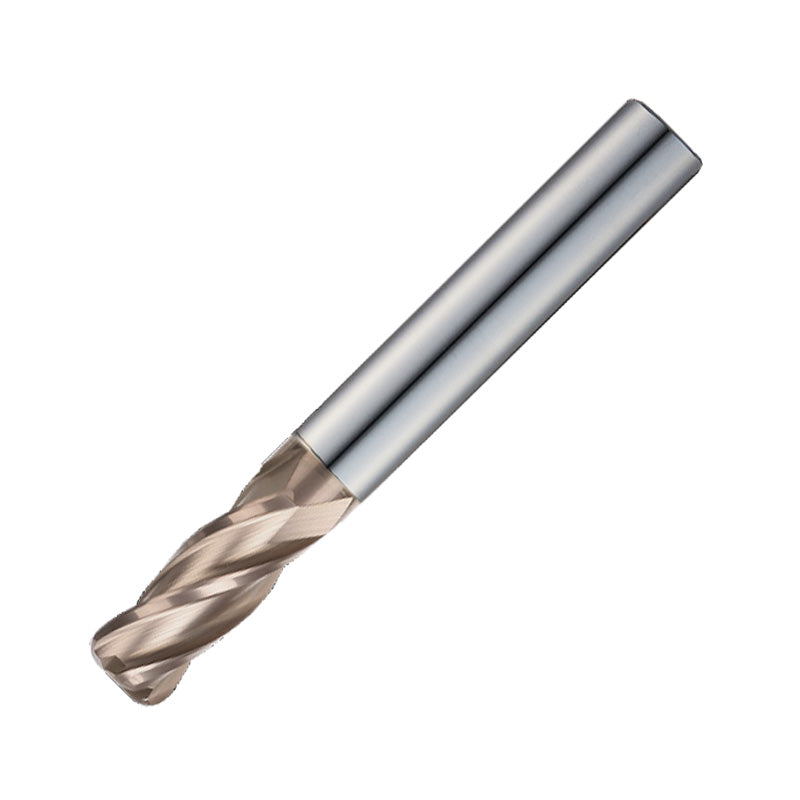

Widin Carbide Corner Radius End Mill For Mold & Die - 4 Flute Multi Purpose - 12mmx 80mm x R1
| Cutter Diameter | 12 |
| Number of Flutes | 4 |
| Flute Length | 30 |
| Overall Length | 80 |
Learn more about Klarna
Description
Widin Carbide Corner Radius End Mill is a 12 mm diameter, 80 mm overall length carbide cutting tool designed for mold and die machining. It features an R1 corner radius and a 4-flute, variable index design to deliver efficient chip evacuation, reliable machinability, and a clean, high-quality finish across a range of materials. Corner radii options are available to meet specific part geometry and production needs.
- 4-Flute design for efficient material removal: The 4 cutting edges share the cutting load, enhancing rigidity, speeding chip evacuation, and delivering smooth cuts that improve surface finish and reduce cycle times.
- Variable index geometry for smooth cutting: Staggered tooth spacing minimizes vibration and chatter, helping you achieve tighter tolerances and consistent finishes even on harder materials.
- 12 mm x 80 mm size with R1 corner radius: Provides a balanced combination of reach and precise corner finishing, enabling clean radii in mold cavities while maintaining tool rigidity for reliable performance.
This end mill is built to support demanding mold and die work, delivering repeatable results, reducing rework, and helping you complete projects faster. The multi-purpose design makes it suitable for a range of materials and tasks, while the available corner radii options let you tailor the tool to your specific part geometry and production needs.
Part Numbers
- Protool Part Number
- UR50412010080
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Mold & Die - 4 Flute Multi Purpose (WR504)
View full collection →You are viewing UR50412010080. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| UR50403002 | 3 | 4 | 8 | 60 | 6 | 0.2 | £34.25 | 5 days | |
| UR50403003 | 3 | 4 | 8 | 60 | 6 | 0.3 | £34.25 | In Stock | |
| UR50403005 | 3 | 4 | 8 | 60 | 6 | 0.5 | £34.25 | 5 days | |
| UR50404002 | 4 | 4 | 10 | 70 | 6 | 0.2 | £34.95 | In Stock | |
| UR50404003 | 4 | 4 | 10 | 70 | 6 | 0.3 | £34.95 | 5 days | |
| UR50404005 | 4 | 4 | 10 | 70 | 6 | 0.5 | £34.95 | 5 days | |
| UR50404010 | 4 | 4 | 10 | 70 | 6 | 1 | £34.95 | 5 days | |
| UR50405003 | 5 | 4 | 13 | 90 | 6 | 0.3 | £38.75 | In Stock | |
| UR50405003060 | 5 | 4 | 13 | 60 | 6 | 0.3 | £34.25 | 5 days | |
| UR50405005 | 5 | 4 | 13 | 90 | 6 | 0.5 | £38.75 | In Stock | |
| UR50405005060 | 5 | 4 | 13 | 60 | 6 | 0.5 | £34.25 | In Stock | |
| UR50406003 | 6 | 4 | 15 | 90 | 6 | 0.3 | £38.75 | 5 days | |
| UR50406003060 | 6 | 4 | 15 | 60 | 6 | 0.3 | £34.25 | 5 days | |
| UR50406005 | 6 | 4 | 15 | 90 | 6 | 0.5 | £38.75 | In Stock | |
| UR50406005060 | 6 | 4 | 15 | 60 | 6 | 0.5 | £34.25 | In Stock | |
| UR50406010 | 6 | 4 | 15 | 90 | 6 | 1 | £38.75 | 5 days | |
| UR50406010060 | 6 | 4 | 15 | 60 | 6 | 1 | £34.25 | In Stock | |
| UR50408005 | 8 | 4 | 20 | 100 | 8 | 0.5 | £67.45 | In Stock | |
| UR50408003 | 8 | 4 | 20 | 100 | 8 | 0.3 | £67.45 | In Stock | |
| UR50408003070 | 8 | 4 | 20 | 70 | 8 | 0.3 | £59.93 | In Stock | |
| UR50408005070 | 8 | 4 | 20 | 70 | 8 | 0.5 | £59.93 | In Stock | |
| UR50408010 | 8 | 4 | 20 | 100 | 8 | 1 | £67.45 | In Stock | |
| UR50408010070 | 8 | 4 | 20 | 70 | 8 | 1 | £59.93 | In Stock | |
| UR50410003 | 10 | 4 | 25 | 100 | 10 | 0.3 | £93.20 | In Stock | |
| UR50410003075 | 10 | 4 | 25 | 75 | 10 | 0.3 | £84.65 | In Stock | |
| UR50410005 | 10 | 4 | 25 | 100 | 10 | 0.5 | £93.20 | In Stock | |
| UR50410005075 | 10 | 4 | 25 | 75 | 10 | 0.5 | £84.65 | 5 days | |
| UR50410010075 | 10 | 4 | 25 | 75 | 10 | 1 | £84.65 | In Stock | |
| UR50412003 | 12 | 4 | 30 | 110 | 12 | 0.3 | £145.20 | In Stock | |
| UR50412003080 | 12 | 4 | 30 | 80 | 12 | 0.3 | £129.43 | In Stock | |
| UR50410010 | 10 | 4 | 25 | 100 | 10 | 1 | £93.20 | In Stock | |
| UR50412005 | 12 | 4 | 30 | 110 | 12 | 0.5 | £145.20 | 5 days | |
| UR50412010 | 12 | 4 | 30 | 110 | 12 | 1 | £145.20 | 5 days | |
| UR50412005080 | 12 | 4 | 30 | 80 | 12 | 0.5 | £129.43 | In Stock | |
| UR50416005 | 16 | 4 | 32 | 150 | 16 | 0.5 | £448.05 | 5 days | |
| UR50416005100 | 16 | 4 | 32 | 100 | 16 | 0.5 | £373.30 | 5 days | |
| UR50412010080 Viewing | 12 | 4 | 30 | 80 | 12 | 1 | £129.43 | 5 days | |
| UR50416010 | 16 | 4 | 32 | 150 | 16 | 1 | £448.05 | 5 days | |
| UR50416010100 | 16 | 4 | 32 | 100 | 16 | 1 | £373.30 | 5 days | |
| UR50416015 | 16 | 4 | 32 | 150 | 16 | 1.5 | £448.05 | 5 days | |
| UR50416020 | 16 | 4 | 32 | 150 | 16 | 2 | £448.05 | 5 days | |
| UR50416020100 | 16 | 4 | 32 | 100 | 16 | 2 | £373.30 | 5 days | |
| UR50416015100 | 16 | 4 | 32 | 100 | 16 | 1.5 | £373.30 | 5 days | |
| UR50420005 | 20 | 4 | 38 | 150 | 20 | 0.5 | £625.25 | 5 days | |
| UR50420010 | 20 | 4 | 38 | 150 | 20 | 1 | £625.25 | 5 days | |
| UR50420005100 | 20 | 4 | 38 | 100 | 20 | 0.5 | £521.25 | 5 days | |
| UR50420010100 | 20 | 4 | 38 | 100 | 20 | 1 | £521.25 | 5 days | |
| UR50420015100 | 20 | 4 | 38 | 100 | 20 | 1.5 | £521.25 | 5 days | |
| UR50420020 | 20 | 4 | 38 | 150 | 20 | 2 | £625.25 | 5 days | |
| UR50420015 | 20 | 4 | 38 | 150 | 20 | 1.5 | £625.25 | 5 days | |
| UR50420020100 | 20 | 4 | 38 | 100 | 20 | 2 | £521.25 | In Stock |
