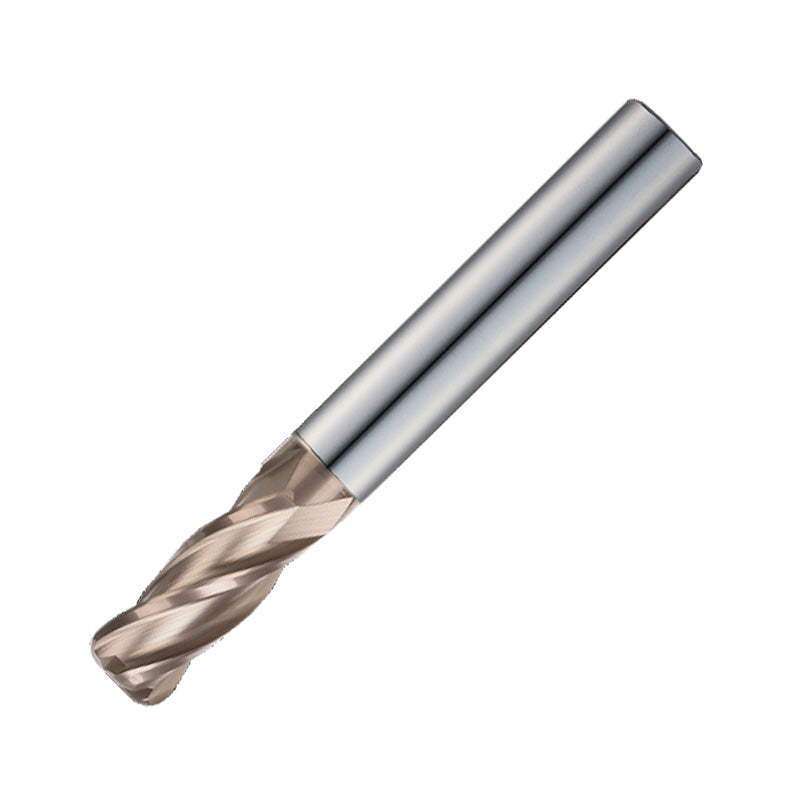

Widin Carbide Corner Radius End Mill For Mold & Die - 4 Flute Multi Purpose - 20mmx 100mm x R0.5

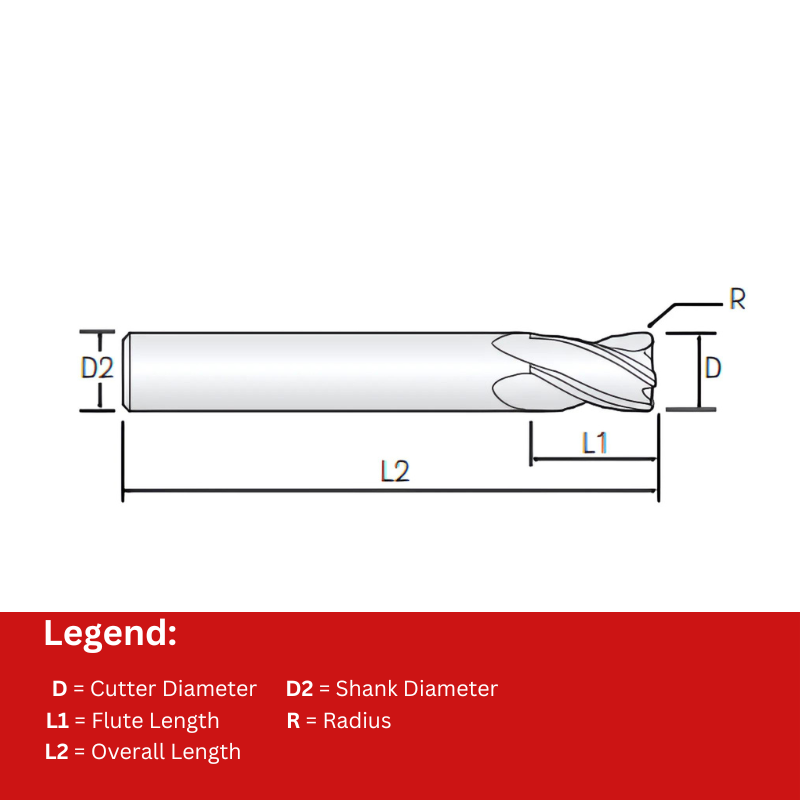

| Cutter Diameter | 20 |
| Number of Flutes | 4 |
| Flute Length | 38 |
| Overall Length | 100 |
Learn more about Klarna
Description
The Widin Carbide Corner Radius End Mill is a high-performance cutting tool designed specifically for mold and die applications. With a 20 mm diameter, 100 mm length, four flutes, and carbide construction, it delivers efficient material removal and precise finishes in challenging molds and dies.
This multi-purpose end mill is built to handle a range of materials and tasks—from roughing pockets to finishing walls—while offering corner radius options (including R0.5) to match your cavity geometry. Its generous reach and robust shank make it a reliable choice for deep molds and intricate features.
- 4-Flute carbide design for efficient cutting: Four flutes provide strong material removal and stable cutting, improving chip evacuation and surface finish while reducing chatter.
- Corner radius versatility: Available in multiple radii (including R0.5) to match mold geometries, enabling precise corners and cleaner pocket walls.
- Long reach with rigid construction: 100 mm overall length with a sturdy shank minimizes deflection and maintains accuracy in deep cavities and demanding mold features.
Designed to streamline mold and die workflows, this end mill helps you complete precision features faster with fewer passes, consistent finishes, and reduced rework. The carbide geometry and chip-friendly design preserve tool life while delivering reliable performance across a range of materials, making it a dependable core tool for machinists, toolmakers, and shop floors focused on quality and efficiency.
Part Numbers
- Protool Part Number
- UR50420005100
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Mold & Die - 4 Flute Multi Purpose (WR504)
View full collection →You are viewing UR50420005100. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| UR50403002 | 3 | 4 | 8 | 60 | 6 | 0.2 | £34.25 | 5 days | |
| UR50403003 | 3 | 4 | 8 | 60 | 6 | 0.3 | £34.25 | In Stock | |
| UR50403005 | 3 | 4 | 8 | 60 | 6 | 0.5 | £34.25 | 5 days | |
| UR50404002 | 4 | 4 | 10 | 70 | 6 | 0.2 | £34.95 | In Stock | |
| UR50404003 | 4 | 4 | 10 | 70 | 6 | 0.3 | £34.95 | 5 days | |
| UR50404005 | 4 | 4 | 10 | 70 | 6 | 0.5 | £34.95 | 5 days | |
| UR50404010 | 4 | 4 | 10 | 70 | 6 | 1 | £34.95 | 5 days | |
| UR50405003 | 5 | 4 | 13 | 90 | 6 | 0.3 | £38.75 | In Stock | |
| UR50405003060 | 5 | 4 | 13 | 60 | 6 | 0.3 | £34.25 | 5 days | |
| UR50405005 | 5 | 4 | 13 | 90 | 6 | 0.5 | £38.75 | In Stock | |
| UR50405005060 | 5 | 4 | 13 | 60 | 6 | 0.5 | £34.25 | In Stock | |
| UR50406003 | 6 | 4 | 15 | 90 | 6 | 0.3 | £38.75 | 5 days | |
| UR50406003060 | 6 | 4 | 15 | 60 | 6 | 0.3 | £34.25 | 5 days | |
| UR50406005 | 6 | 4 | 15 | 90 | 6 | 0.5 | £38.75 | In Stock | |
| UR50406005060 | 6 | 4 | 15 | 60 | 6 | 0.5 | £34.25 | In Stock | |
| UR50406010 | 6 | 4 | 15 | 90 | 6 | 1 | £38.75 | 5 days | |
| UR50406010060 | 6 | 4 | 15 | 60 | 6 | 1 | £34.25 | In Stock | |
| UR50408005 | 8 | 4 | 20 | 100 | 8 | 0.5 | £67.45 | In Stock | |
| UR50408003 | 8 | 4 | 20 | 100 | 8 | 0.3 | £67.45 | In Stock | |
| UR50408003070 | 8 | 4 | 20 | 70 | 8 | 0.3 | £59.93 | In Stock | |
| UR50408005070 | 8 | 4 | 20 | 70 | 8 | 0.5 | £59.93 | In Stock | |
| UR50408010 | 8 | 4 | 20 | 100 | 8 | 1 | £67.45 | In Stock | |
| UR50408010070 | 8 | 4 | 20 | 70 | 8 | 1 | £59.93 | In Stock | |
| UR50410003 | 10 | 4 | 25 | 100 | 10 | 0.3 | £93.20 | In Stock | |
| UR50410003075 | 10 | 4 | 25 | 75 | 10 | 0.3 | £84.65 | In Stock | |
| UR50410005 | 10 | 4 | 25 | 100 | 10 | 0.5 | £93.20 | In Stock | |
| UR50410005075 | 10 | 4 | 25 | 75 | 10 | 0.5 | £84.65 | 5 days | |
| UR50410010075 | 10 | 4 | 25 | 75 | 10 | 1 | £84.65 | In Stock | |
| UR50412003 | 12 | 4 | 30 | 110 | 12 | 0.3 | £145.20 | In Stock | |
| UR50412003080 | 12 | 4 | 30 | 80 | 12 | 0.3 | £129.43 | In Stock | |
| UR50410010 | 10 | 4 | 25 | 100 | 10 | 1 | £93.20 | In Stock | |
| UR50412005 | 12 | 4 | 30 | 110 | 12 | 0.5 | £145.20 | 5 days | |
| UR50412010 | 12 | 4 | 30 | 110 | 12 | 1 | £145.20 | 5 days | |
| UR50412005080 | 12 | 4 | 30 | 80 | 12 | 0.5 | £129.43 | In Stock | |
| UR50416005 | 16 | 4 | 32 | 150 | 16 | 0.5 | £448.05 | 5 days | |
| UR50416005100 | 16 | 4 | 32 | 100 | 16 | 0.5 | £373.30 | 5 days | |
| UR50412010080 | 12 | 4 | 30 | 80 | 12 | 1 | £129.43 | 5 days | |
| UR50416010 | 16 | 4 | 32 | 150 | 16 | 1 | £448.05 | 5 days | |
| UR50416010100 | 16 | 4 | 32 | 100 | 16 | 1 | £373.30 | 5 days | |
| UR50416015 | 16 | 4 | 32 | 150 | 16 | 1.5 | £448.05 | 5 days | |
| UR50416020 | 16 | 4 | 32 | 150 | 16 | 2 | £448.05 | 5 days | |
| UR50416020100 | 16 | 4 | 32 | 100 | 16 | 2 | £373.30 | 5 days | |
| UR50416015100 | 16 | 4 | 32 | 100 | 16 | 1.5 | £373.30 | 5 days | |
| UR50420005 | 20 | 4 | 38 | 150 | 20 | 0.5 | £625.25 | 5 days | |
| UR50420010 | 20 | 4 | 38 | 150 | 20 | 1 | £625.25 | 5 days | |
| UR50420005100 Viewing | 20 | 4 | 38 | 100 | 20 | 0.5 | £521.25 | 5 days | |
| UR50420010100 | 20 | 4 | 38 | 100 | 20 | 1 | £521.25 | 5 days | |
| UR50420015100 | 20 | 4 | 38 | 100 | 20 | 1.5 | £521.25 | 5 days | |
| UR50420020 | 20 | 4 | 38 | 150 | 20 | 2 | £625.25 | 5 days | |
| UR50420015 | 20 | 4 | 38 | 150 | 20 | 1.5 | £625.25 | 5 days | |
| UR50420020100 | 20 | 4 | 38 | 100 | 20 | 2 | £521.25 | In Stock |
