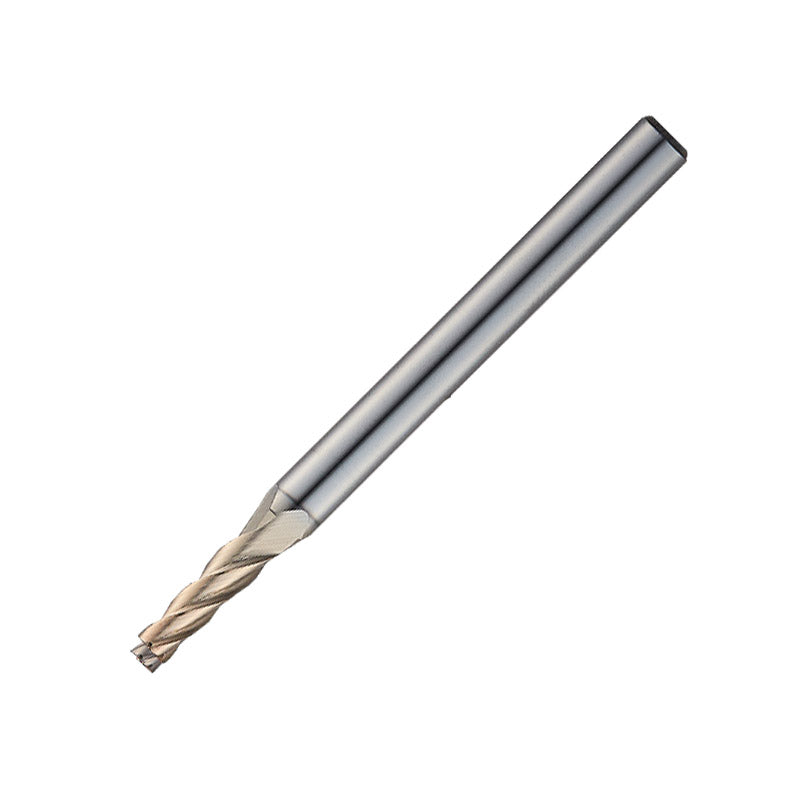

Widin Carbide Corner Radius End Mill For Mold & Die - 4 Flute Tapered Neck - 0.8mmx 4mm x R0.1 x 1

Widin Carbide Corner Radius End Mill For Mold & Die - 4 Flute Tapered Neck (WTR504)


From
£33.74
View Products
Need Help?
Contact Sales

With a 4-flute tapered neck design is a versatile tool specifically engineered for machining sloped surfaces with varying taper angles. Its unique design allows for precise and efficient cutting operations on inclined surfaces, making it an ideal choice for mold and die applications where complex geometries and sloped profiles are involved. The tapered neck provides enhanced tool stability and rigidity, ensuring accurate and smooth machining even on challenging surfaces. With its four flutes, the end mill delivers excellent chip evacuation, preventing chip clogging and promoting efficient material removal.


Product SKU Cutter Diameter Number of Flutes Flute Length Overall Length Shank Diameter Corner Radius Taper Angle Price Stock
UTR504008010104 0.8 4 4 45 4 0.1 £39.30 0
UTR504008010106 0.8 4 6 45 4 0.1 £39.30 0
UTR504008010108 0.8 4 8 45 4 0.1 £39.30 0
UTR5040080101504 0.8 4 4 45 4 0.1 1.5° £39.30 0
UTR5040080101506 0.8 4 6 45 4 0.1 1.5° £39.30 0
UTR5040080101508 0.8 4 8 45 4 0.1 1.5° £39.30 0
UTR504008020104 0.8 4 4 45 4 0.2 £39.30 0
UTR504008020106 0.8 4 6 45 4 0.2 £39.30 0
UTR504008020108 0.8 4 8 45 4 0.2 £39.30 0
UTR5040080201504 0.8 4 4 45 4 0.2 1.5° £39.30 0
UTR5040080201506 0.8 4 6 45 4 0.2 1.5° £39.30 0
UTR5040080201508 0.8 4 8 45 4 0.2 1.5° £39.30 0
UTR504010010104 1 4 4 50 4 0.1 £33.74 0
UTR504010010106 1 4 6 50 4 0.1 £33.74 0
UTR504010010108 1 4 8 50 4 0.1 £33.74 0
UTR504010010112 1 4 12 50 4 0.1 £33.74 0
UTR504010010110 1 4 10 50 4 0.1 £33.74 0
UTR5040100101508 1 4 8 50 4 0.1 1.5° £33.74 0
UTR5040100101506 1 4 6 50 4 0.1 1.5° £33.74 0
UTR5040100101504 1 4 4 50 4 0.1 1.5° £33.74 0
UTR5040100101512 1 4 12 50 4 0.1 1.5° £33.74 0
UTR5040100101510 1 4 10 50 4 0.1 1.5° £33.74 0
UTR504010010204 1 4 4 50 4 0.1 £33.74 0
UTR504010010206 1 4 6 50 4 0.1 £33.74 0
UTR504010010208 1 4 8 50 4 0.1 £33.74 0
UTR504010010210 1 4 10 50 4 0.1 £33.74 0
UTR504010010212 1 4 12 50 4 0.1 £33.74 0
UTR504010010310 1 4 10 50 4 0.1 £33.74 0
UTR504010010306 1 4 6 50 4 0.1 £33.74 0
UTR504010010308 1 4 8 50 4 0.1 £33.74 0
UTR504010010312 1 4 12 50 4 0.1 £33.74 0
UTR504010020104 1 4 4 50 4 0.2 £33.74 0
UTR504010020106 1 4 6 50 4 0.2 £33.74 0
UTR504010020108 1 4 8 50 4 0.2 £33.74 0
UTR504010020110 1 4 10 50 4 0.2 £33.74 0
UTR504010010304 1 4 4 50 4 0.1 £33.74 0
UTR504010020112 1 4 12 50 4 0.2 £33.74 0
UTR5040100201504 1 4 4 50 4 0.2 1.5° £33.74 0
UTR5040100201508 1 4 8 50 4 0.2 1.5° £33.74 0
UTR5040100201506 1 4 6 50 4 0.2 1.5° £33.74 0
UTR5040100201510 1 4 10 50 4 0.2 1.5° £33.74 0
UTR504010020206 1 4 6 50 4 0.2 £33.74 0
UTR504010020210 1 4 10 50 4 0.2 £33.74 0
UTR5040100201512 1 4 12 50 4 0.2 1.5° £33.74 0
UTR504010020212 1 4 12 50 4 0.2 £33.74 0
UTR504010020204 1 4 4 50 4 0.2 £33.74 0
UTR504010020208 1 4 8 50 4 0.2 £33.74 0
UTR504010020304 1 4 4 50 4 0.2 £33.74 0
UTR504010020308 1 4 8 50 4 0.2 £33.74 0
UTR504010020306 1 4 6 50 4 0.2 £33.74 0
UTR504010020310 1 4 10 50 4 0.2 £33.74 0
UTR504010020312 1 4 12 50 4 0.2 £33.74 0
UTR504010030104 1 4 4 50 4 0.3 £33.74 0
UTR504010030106 1 4 6 50 4 0.3 £33.74 0
UTR504010030108 1 4 8 50 4 0.3 £33.74 0
UTR504010030110 1 4 10 50 4 0.3 £33.74 0
UTR504010030112 1 4 12 50 4 0.3 £33.74 0
UTR5040100301504 1 4 4 50 4 0.3 1.5° £33.74 0
UTR5040100301506 1 4 6 50 4 0.3 1.5° £33.74 0
UTR5040100301508 1 4 8 50 4 0.3 1.5° £33.74 0
UTR5040100301512 1 4 12 50 4 0.3 1.5° £33.74 0
UTR5040100301510 1 4 10 50 4 0.3 1.5° £33.74 0
UTR504010030206 1 4 6 50 4 0.3 £33.74 0
UTR504010030204 1 4 4 50 4 0.3 £33.74 0
UTR504010030208 1 4 8 50 4 0.3 £33.74 0
UTR504010030210 1 4 10 50 4 0.3 £33.74 0
UTR504010030212 1 4 12 50 4 0.3 £33.74 0
UTR504010030304 1 4 4 50 4 0.3 £33.74 0
UTR504010030306 1 4 6 50 4 0.3 £33.74 0
UTR504010030308 1 4 8 50 4 0.3 £33.74 0
UTR504010030310 1 4 10 50 4 0.3 £33.74 0
UTR504012010106 1.2 4 6 50 4 0.1 £33.74 0
UTR504010030312 1 4 12 50 4 0.3 £33.74 0
UTR504012010110 1.2 4 10 50 4 0.1 £33.74 0
UTR504012010206 1.2 4 6 50 4 0.1 £33.74 0
UTR504012010108 1.2 4 8 50 4 0.1 £33.74 0
UTR504012010210 1.2 4 10 50 4 0.1 £33.74 0
UTR504012010112 1.2 4 12 50 4 0.1 £33.74 0
UTR504012010208 1.2 4 8 50 4 0.1 £33.74 0
UTR504012010212 1.2 4 12 50 4 0.1 £33.74 0
UTR504012010306 1.2 4 6 50 4 0.1 33° £33.74 0
UTR504012010308 1.2 4 8 50 4 0.1 £33.74 0
UTR504012010310 1.2 4 10 50 4 0.1 £33.74 0
UTR504012010312 1.2 4 12 50 4 0.1 £33.74 0
UTR504012020106 1.2 4 6 50 4 0.2 £33.74 0
UTR504012020108 1.2 4 8 50 4 0.2 £33.74 0
UTR504012020110 1.2 4 10 50 4 0.2 £33.74 0
UTR504012020112 1.2 4 12 50 4 0.2 £33.74 0
UTR504012020208 1.2 4 8 50 4 0.2 £33.74 0
UTR504012020210 1.2 4 10 50 4 0.2 £33.74 0
UTR504012020306 1.2 4 6 50 4 0.2 £33.74 0
UTR504012020212 1.2 4 12 50 4 0.2 £33.74 0
UTR504012020206 1.2 4 6 50 4 0.2 £33.74 0
UTR504012020308 1.2 4 8 50 4 0.2 £33.74 0
UTR504012020310 1.2 4 10 50 4 0.2 £33.74 0
UTR504012020312 1.2 4 12 50 4 0.2 £33.74 0
UTR504012030106 1.2 4 6 50 4 0.3 £33.74 0
UTR504012030108 1.2 4 8 50 4 0.3 £33.74 0
UTR504012030110 1.2 4 10 50 4 0.3 £33.74 0
UTR504012030112 1.2 4 12 50 4 0.3 £33.74 0
UTR504012030206 1.2 4 6 50 4 0.3 £33.74 0
UTR504012030212 1.2 4 12 50 4 0.3 £33.74 0
UTR504012030208 1.2 4 8 50 4 0.3 £33.74 0
UTR504012030210 1.2 4 10 50 4 0.3 £33.74 0
UTR504012030306 1.2 4 6 50 4 0.3 £33.74 0
UTR504012030310 1.2 4 10 50 4 0.3 £33.74 0
UTR504012030308 1.2 4 8 50 4 0.3 £33.74 0
UTR504012030312 1.2 4 12 50 4 0.3 £33.74 0
UTR504015010106 1.5 4 6 50 4 0.1 £33.74 0
UTR504015010108 1.5 4 8 50 4 0.1 £33.74 0
UTR504015010110 1.5 4 10 50 4 0.1 £33.74 0
UTR504015010112 1.5 4 12 50 4 0.1 £33.74 0
UTR504015010116 1.5 4 16 50 4 0.1 £33.74 0
UTR504015010206 1.5 4 6 50 4 0.1 £33.74 0
UTR504015010120 1.5 4 20 60 4 0.1 £35.02 0
UTR504015010210 1.5 4 10 50 4 0.1 £33.74 0
UTR504015010212 1.5 4 12 50 4 0.1 £33.74 0
UTR504015010208 1.5 4 8 50 4 0.1 £33.74 0
UTR504015010216 1.5 4 16 50 4 0.1 £33.74 0
UTR504015010220 1.5 4 20 60 4 0.1 £35.02 0
UTR504015010306 1.5 4 6 50 4 0.1 £33.74 0
UTR504015010308 1.5 4 8 50 4 0.1 £33.74 0
UTR504015010310 1.5 4 10 50 4 0.1 £33.74 0
UTR504015010316 1.5 4 16 50 4 0.1 £33.74 0
UTR504015010312 1.5 4 12 50 4 0.1 £33.74 0
UTR504015010320 1.5 4 20 60 4 0.1 £35.02 0
UTR504015020106 1.5 4 6 50 4 0.2 £33.74 0
UTR504015020108 1.5 4 8 50 4 0.2 £33.74 0
UTR504015020110 1.5 4 10 50 4 0.2 £33.74 0
UTR504015020112 1.5 4 12 50 4 0.2 £33.74 0
UTR504015020116 1.5 4 16 50 4 0.2 £33.74 0
UTR504015020206 1.5 4 6 50 4 0.2 £33.74 0
UTR504015020120 1.5 4 20 60 4 0.2 £35.02 0
UTR504015020208 1.5 4 8 50 4 0.2 £33.74 0
UTR504015020210 1.5 4 10 50 4 0.2 £33.74 0
UTR504015020212 1.5 4 12 50 4 0.2 £33.74 0
UTR504015020216 1.5 4 16 50 4 0.2 £33.74 0
UTR504015020220 1.5 4 20 60 4 0.2 £35.02 0
UTR504015020306 1.5 4 6 50 4 0.2 £33.74 0
UTR504015020308 1.5 4 8 50 4 0.2 £33.74 0
UTR504015020310 1.5 4 10 50 4 0.2 £33.74 0
UTR504015020316 1.5 4 16 50 4 0.2 £33.74 0
UTR504015030106 1.5 4 6 50 4 0.3 £33.74 0
UTR504015020312 1.5 4 12 50 4 0.2 £33.74 0
UTR504015020320 1.5 4 20 60 4 0.2 £35.02 0
UTR504015030110 1.5 4 10 50 4 0.3 £33.74 0
UTR504015030108 1.5 4 8 50 4 0.3 £33.74 0
UTR504015030116 1.5 4 16 50 4 0.3 £33.74 0
UTR504015030112 1.5 4 12 50 4 0.3 £33.74 0
UTR504015030120 1.5 4 20 60 4 0.3 £35.02 0
UTR504015030208 1.5 4 8 50 4 0.3 £33.74 0
UTR504015030206 1.5 4 6 50 4 0.3 £33.74 0
UTR504015030210 1.5 4 10 50 4 0.3 £33.74 0
UTR504015030212 1.5 4 12 50 4 0.3 £33.74 0
UTR504015030216 1.5 4 16 50 4 0.3 £33.74 0
UTR504015030220 1.5 4 20 60 4 0.3 £35.02 0
UTR504015030306 1.5 4 6 50 4 0.3 £33.74 0
UTR504015030308 1.5 4 8 50 4 0.3 £33.74 0
UTR504015030310 1.5 4 10 50 4 0.3 £33.74 0
UTR504015030316 1.5 4 16 50 4 0.3 £33.74 0
UTR504015030312 1.5 4 12 50 4 0.3 £33.74 0
UTR504015030320 1.5 4 20 60 4 0.3 £35.02 0
UTR504020010108 2 4 8 50 4 0.1 £33.74 0
UTR504020010110 2 4 10 50 4 0.1 £33.74 0
UTR504020010112 2 4 12 50 4 0.1 £33.74 0
UTR504020010116 2 4 16 50 4 0.1 £33.74 0
UTR504020010120 2 4 20 60 4 0.1 £35.02 0
UTR504020010125 2 4 25 60 4 0.1 £35.02 0
UTR504020010210 2 4 10 50 4 0.1 £33.74 0
UTR504020010208 2 4 8 50 4 0.1 £33.74 0
UTR504020010212 2 4 12 50 4 0.1 £33.74 0
UTR504020010220 2 4 20 60 4 0.1 £35.02 0
UTR504020010216 2 4 16 50 4 0.1 £33.74 0
UTR504020010308 2 4 8 50 4 0.1 £33.74 0
UTR504020010312 2 4 12 50 4 0.1 £33.74 0
UTR504020010225 2 4 25 60 4 0.1 £35.02 0
UTR504020010316 2 4 16 50 4 0.1 £33.74 0
UTR504020010310 2 4 10 50 4 0.1 £33.74 0
UTR504020010320 2 4 20 60 6 0.1 £38.02 0
UTR504020010325 2 4 25 60 6 0.1 £38.02 0
UTR504020020110 2 4 10 50 4 0.2 £33.74 0
UTR504020020108 2 4 8 50 4 0.2 £33.74 0
UTR504020020112 2 4 12 50 4 0.2 £33.74 0
UTR504020020120 2 4 20 60 4 0.2 £35.02 0
UTR504020020116 2 4 16 50 4 0.2 £33.74 0
UTR504020020208 2 4 8 50 4 0.2 £33.74 0
UTR504020020125 2 4 25 60 4 0.2 £35.02 0
UTR504020020210 2 4 10 50 4 0.2 £33.74 0
UTR504020020212 2 4 12 50 4 0.2 £33.74 0
UTR504020020225 2 4 25 60 4 0.2 £35.02 0
UTR504020020216 2 4 16 50 4 0.2 £33.74 0
UTR504020020308 2 4 8 50 4 0.2 £33.74 0
UTR504020020312 2 4 12 50 4 0.2 £33.74 0
UTR504020020310 2 4 10 50 4 0.2 £33.74 0
UTR504020020316 2 4 16 50 4 0.2 £33.74 0
UTR504020020220 2 4 20 60 4 0.2 £35.02 0
UTR504020020320 2 4 20 60 6 0.2 £38.02 0
UTR504020020325 2 4 25 60 6 0.2 £38.02 0
UTR504020030108 2 4 8 50 4 0.3 £33.74 0
UTR504020030110 2 4 10 50 4 0.3 £33.74 0
UTR504020030112 2 4 12 50 4 0.3 £33.74 0
UTR504020030116 2 4 16 50 4 0.3 £33.74 0
UTR504020030208 2 4 8 50 4 0.3 £33.74 0
UTR504020030125 2 4 25 60 4 0.3 £35.02 0
UTR504020030120 2 4 20 60 4 0.3 £35.02 0
UTR504020030210 2 4 10 50 4 0.3 £33.74 0
UTR504020030212 2 4 12 50 4 0.3 £33.74 0
UTR504020030216 2 4 16 50 4 0.3 £33.74 0
UTR504020030220 2 4 20 60 4 0.3 £35.02 0
UTR504020030225 2 4 25 60 4 0.3 £35.02 0
UTR504020030308 2 4 8 50 4 0.3 £33.74 0
UTR504020030310 2 4 10 50 4 0.3 £33.74 0
UTR504020030312 2 4 12 50 4 0.3 £33.74 0
UTR504020030316 2 4 16 50 4 0.3 £33.74 0
UTR504020030320 2 4 20 60 6 0.3 £38.02 0
UTR504020030325 2 4 25 60 6 0.3 £38.02 0
UTR504025010110 2.5 4 10 50 4 0.1 £33.74 0
UTR504025010116 2.5 4 16 50 4 0.1 £33.74 0
UTR504025010112 2.5 4 12 50 4 0.1 £33.74 0
UTR504025010120 2.5 4 20 60 4 0.1 £35.02 0
UTR504025010125 2.5 4 25 60 4 0.1 £35.02 0
UTR504025010210 2.5 4 10 50 4 0.1 £33.74 0
UTR504025010130 2.5 4 30 60 4 0.1 £37.22 0
UTR504025010212 2.5 4 12 50 4 0.1 £33.74 0
UTR504025010220 2.5 4 20 60 4 0.1 £35.02 0
UTR504025010216 2.5 4 16 50 4 0.1 £33.74 0
UTR504025010230 2.5 4 30 60 6 0.1 £40.11 0
UTR504025010225 2.5 4 25 60 6 0.1 £38.02 0
UTR504025010310 2.5 4 10 50 4 0.1 £33.74 0
UTR504025010312 2.5 4 12 50 4 0.1 £33.74 0
UTR504025010316 2.5 4 16 50 6 0.1 £36.76 0
UTR504025010325 2.5 4 25 60 4 0.1 £38.02 0
UTR504025010320 2.5 4 20 60 6 0.1 £38.02 0
UTR504025010330 2.5 4 30 60 6 0.1 £40.11 0
UTR504025020110 2.5 4 10 50 4 0.2 £33.74 0
UTR504025020112 2.5 4 12 50 4 0.2 £33.74 0
UTR504025020116 2.5 4 16 50 4 0.2 £33.74 0
UTR504025020125 2.5 4 25 60 4 0.2 £35.02 0
UTR504025020130 2.5 4 30 60 4 0.2 £37.22 0
UTR504025020120 2.5 4 20 60 4 0.2 £35.02 0
UTR504025020210 2.5 4 10 50 4 0.2 £33.74 0
UTR504025020216 2.5 4 16 50 4 0.2 £33.74 0
UTR504025020212 2.5 4 12 50 4 0.2 £33.74 0
UTR504025020220 2.5 4 20 60 4 0.2 £35.02 0
UTR504025020225 2.5 4 25 60 6 0.2 £38.02 0
UTR504025020230 2.5 4 30 60 6 0.2 £40.11 0
UTR504025020310 2.5 4 10 50 4 0.2 £33.74 0
UTR504025020312 2.5 4 12 50 4 0.2 £33.74 0
UTR504025020316 2.5 4 16 50 6 0.2 £36.76 0
UTR504025020320 2.5 4 20 60 6 0.2 £38.02 0
UTR504025020325 2.5 4 25 60 6 0.2 £38.02 0
UTR504025020330 2.5 4 30 60 6 0.2 £40.11 0
UTR504025030110 2.5 4 10 50 4 0.3 £33.74 0
UTR504025030120 2.5 4 20 60 4 0.3 £35.02 0
UTR504025030112 2.5 4 12 50 4 0.3 £33.74 0
UTR504025030125 2.5 4 25 60 4 0.3 £35.02 0
UTR504025030116 2.5 4 16 50 4 0.3 £33.74 0
UTR504025030210 2.5 4 10 50 4 0.3 £33.74 0
UTR504025030130 2.5 4 30 60 4 0.3 £37.22 0
UTR504025030212 2.5 4 12 50 4 0.3 £33.74 0
UTR504025030216 2.5 4 16 50 4 0.3 £33.74 0
UTR504025030225 2.5 4 25 60 6 0.3 £38.02 0
UTR504025030220 2.5 4
