Widin Carbide Corner Radius End Mill For Mold & Die - 4 Flute Tapered Neck - 1mm x4mm x R0.1 x 2

Widin Carbide Corner Radius End Mill For Mold & Die - 4 Flute Tapered Neck - 1mm x4mm x R0.1 x 2

£33.74

UTR504010010204

Availability: 5 days subject to availability

With a 4-flute tapered neck design is a versatile tool specifically engineered for machining sloped surfaces with varying taper angles. Its unique design allows for precise and efficient cutting operations on inclined surfaces, making it an ideal choice for mold and die applications where complex geometries and sloped profiles are involved. The tapered neck provides enhanced tool stability and rigidity, ensuring accurate and smooth machining even on challenging surfaces. With its four flutes, the end mill delivers excellent chip evacuation, preventing chip clogging and promoting efficient material removal.

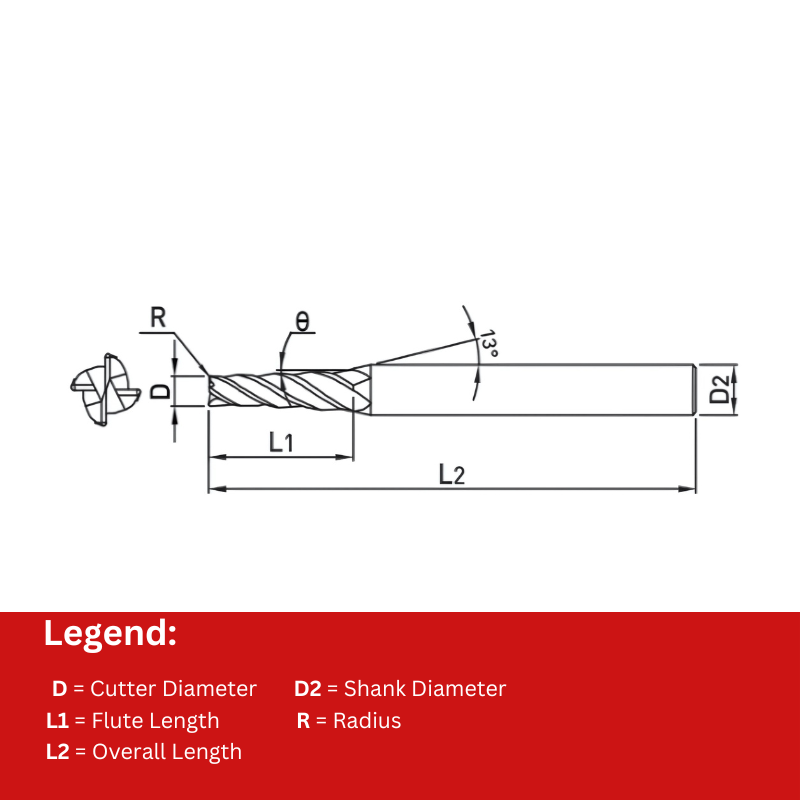

Cutter Diameter 1
Number of Flutes 4
Flute Length 4
Overall Length 50
Shank Diameter 4
Corner Radius 0.1
Taper Angle

Steel
Cast Iron

With a 4-flute tapered neck design is a versatile tool specifically engineered for machining sloped surfaces with varying taper angles. Its unique design allows for precise and efficient cutting operations on inclined surfaces, making it an ideal choice for mold and die applications where complex geometries and sloped profiles are involved. The tapered neck provides enhanced tool stability and rigidity, ensuring accurate and smooth machining even on challenging surfaces. With its four flutes, the end mill delivers excellent chip evacuation, preventing chip clogging and promoting efficient material removal.

Cutter Diameter 1
Number of Flutes 4
Flute Length 4
Overall Length 50
Shank Diameter 4
Corner Radius 0.1
Taper Angle

Steel
Cast Iron
