Widin Carbide Corner Radius End Mill For Mold & Die - 4 Flute Tapered Neck - 2mm x25mm x R0.2 x 1

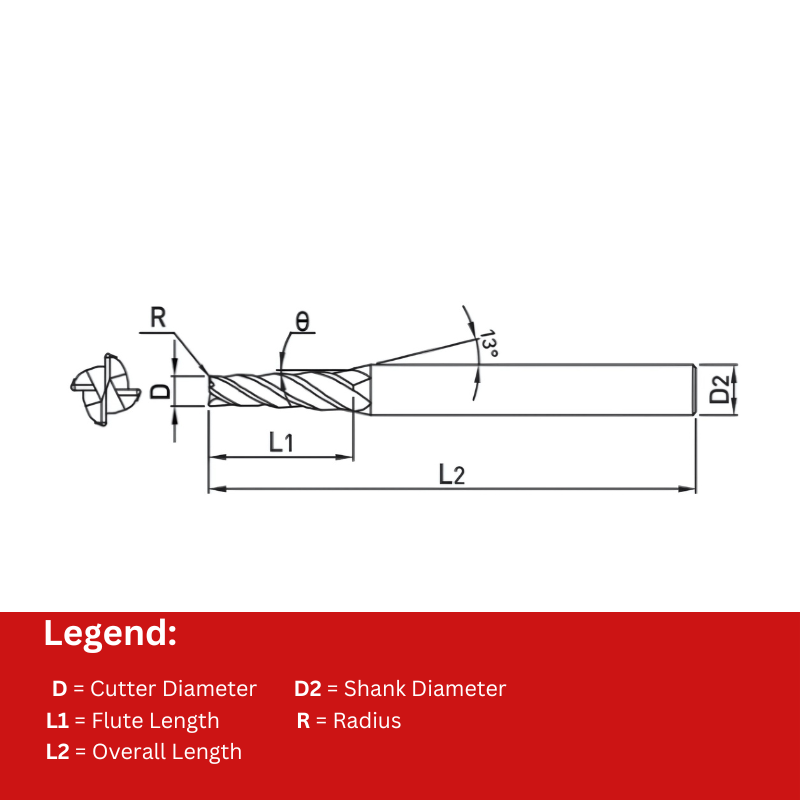

Widin Carbide Corner Radius End Mill is a precision cutting tool designed for mold and die work, where slopes and complex geometries demand accuracy. This end mill features a 2 mm diameter, 25 mm overall length, a corner radius of 0.2 mm, and a four-flute design with a tapered neck. It excels at machining sloped surfaces and varying taper angles, delivering consistent, repeatable results on challenging profiles.

The tapered neck design increases rigidity and stability during cutting, helping you maintain precise engagement on inclined surfaces. Four flutes support efficient material removal and robust cutting performance, even in tough mold and die materials.

• Tapered neck for enhanced stability: The tapered neck increases rigidity and minimizes deflection when cutting slopes, delivering straighter, more accurate profiles on inclined surfaces.
• Four-flute design for efficient chip evacuation: Additional flutes improve cutting action, heat management, and chip removal, reducing clogging and improving surface finish on complex geometries.
• Precise 0.2 mm corner radius for smooth, reliable edges: The tight corner radius enables clean radii on intricate contours and distributes cutting stresses for longer tool life.

Using this end mill in your shop helps you achieve consistent, high-quality finishes on angled features, reduces downtime from chip packing thanks to the four-flute design, and provides reliable, long-lasting performance in demanding mold-and-die applications. The combination of carbide hardness, a rigid tapered neck, and precise corner radii gives you confidence to tackle complex geometries while maintaining tight tolerances and efficient throughput.
