Widin Carbide Corner Radius End Mill For Mold & Die - 4 Flute Tapered Neck - 1.5mmx 6mm x R0.2 x 1

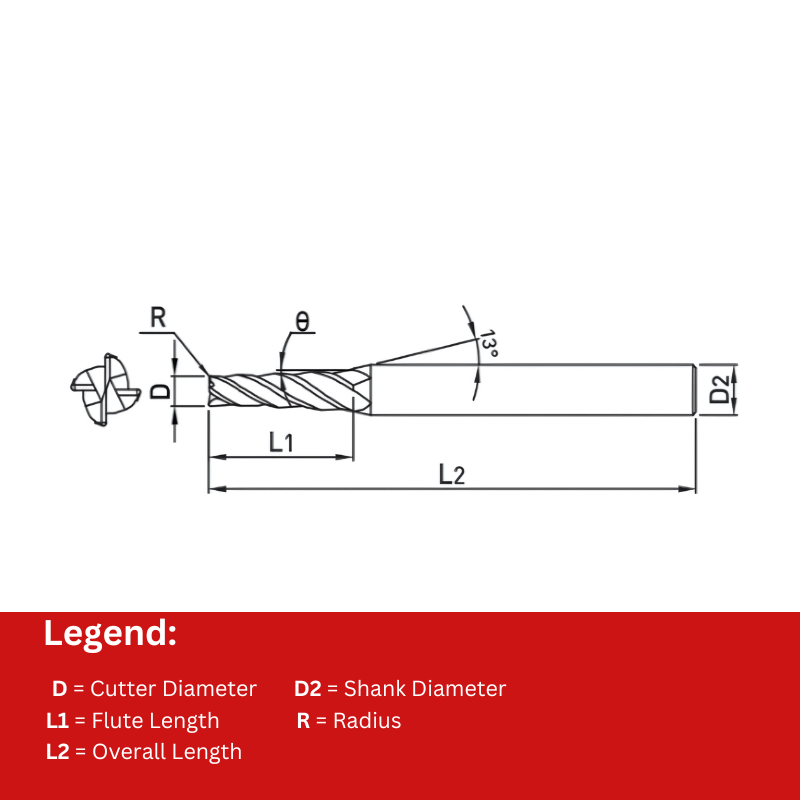

The Widin Carbide Corner Radius End Mill is a precision cutting tool designed for mold and die work. It features a 4-flute tapered neck that excels at machining sloped surfaces with varying taper angles, delivering accurate, efficient material removal for complex geometries. The dimensions include a compact 1.5 mm cutting diameter and 6 mm length, with a precise 0.2 mm corner radius to create clean, durable radii on inclined profiles.

Designed for engineers, machinists, and hobbyists alike, this end mill provides reliable performance on challenging geometries, helping you achieve consistent results on molds and dies without unnecessary setup changes.

• Corner Radius for Smooth Sloped Surfaces: The 0.2 mm radius delivers clean transitions on angled features, strengthens corners, and reduces the risk of gouging, yielding a reliable finish on mold cavities and die surfaces.
• Tapered Neck for Rigidity and Control: The tapered neck increases stiffness along the cutting length, minimizing deflection when cutting inclined geometries and delivering steadier, more accurate results.
• Four Flutes for Efficient Chip Evacuation: The four-flute design enhances chip clearance and reduces clogging, enabling smoother cuts and faster material removal with dependable finish quality.

With its carbide construction and optimized geometry, this end mill supports consistent performance across multiple passes, helping you achieve precise radii and smooth surfaces while reducing rework and downtime. Its stability and efficient chip evacuation keep mold and die projects on schedule, delivering reliable results batch after batch.
