Threading, Tiny Tools and Swiss line
Carmex Precision Tools Thread Turning, Thread Milling and Tiny Tools.
7,412 Carmex tools, delivered across the UK: thread turning inserts and holders, solid carbide and indexable thread mills, Tiny Tools and Mini Tools for small bores, Swiss Line tools for sliding head lathes, grooving, chamfering and threading taps.
Carmex Tool Wizard
Answer three questions about your job and get the exact Carmex thread mill and cutting data for it.
The Carmex range
Shop Carmex by Tool
Every Carmex product we stock is in one of these ranges. Start with the job: turning a thread, milling it, or machining a small bore.

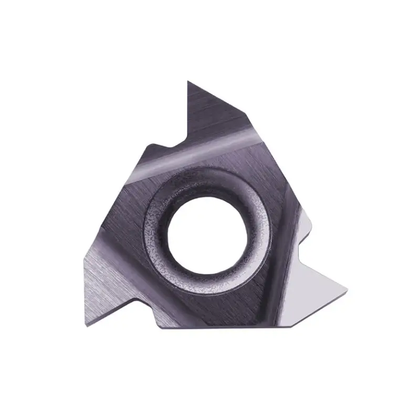

1,050External Thread Turning Inserts
ISO metric, UN, Whitworth, BSPT, NPT, trapez, ACME and more for external threads.
Shop external inserts
1,169Internal Thread Turning Inserts
Inserts for internal threads in metric, UN, Whitworth, pipe, trapez and other forms.
Shop internal inserts
341Holders, Kits & Spares
Thread turning toolholders and boring bars for Carmex inserts, plus kits, anvils, screws and keys.
Shop holders and spares
789Solid Carbide Thread Mills
Mini type, full profile, through coolant, hard material, aluminium and multifunction thread mills.
Shop solid thread mills
734Indexable Thread Mills
SR thread mill inserts and holders, CMT vertical multi-insert tools and Spiral Mill inserts and holders.
Shop indexable thread mills
400Tiny Tools: Threading
Threading inserts for small internal threads, partial and full profile.
Shop Tiny Tools threading
777Tiny Tools: Grooving

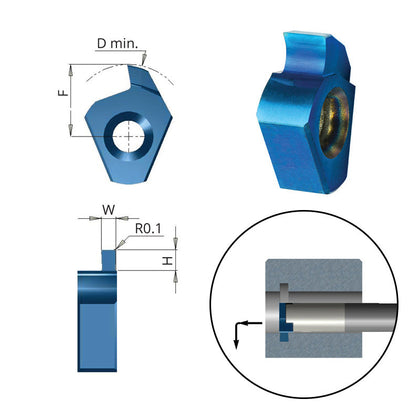

Grooving inserts for small bores, faces and back grooves.
Shop Tiny Tools grooving

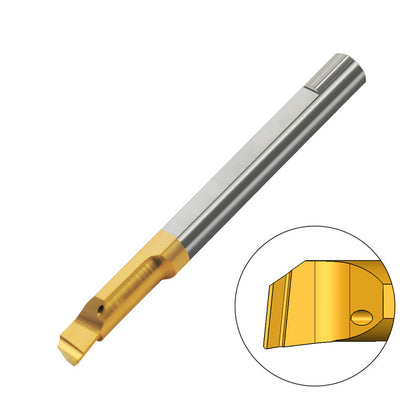

1,071Tiny Tools: Boring & Profiling
Boring, profiling and turning inserts for small bores.
Shop Tiny Tools boring
83Tiny Tool Holders & Kits
Holders and kits for Carmex Tiny Tools inserts.
Shop holders and kits
145Mini Tools
Small indexable carbide inserts and holders for boring, profiling, grooving and threading in small bores.
Shop Mini Tools

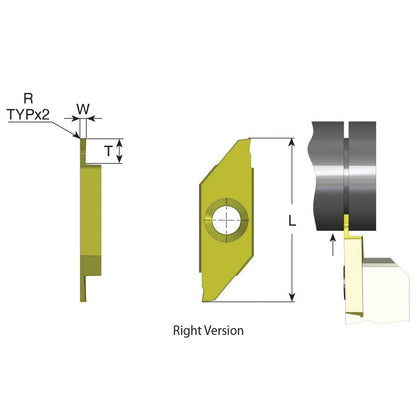

444Swiss Line
Inserts and toolholders for Swiss-type lathes: turning, grooving, parting and threading.
Shop Swiss Line

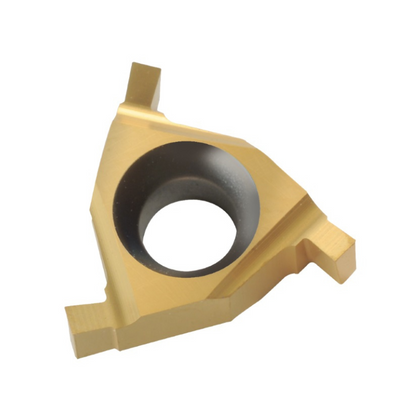

40Grooving & Parting Off
Carmex grooving and parting off inserts, holders and kits.
Shop grooving

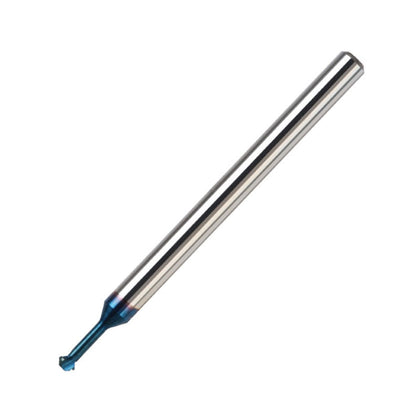

140Chamfer, Deburring & Groove Milling
Chamfer cutters, countersinks, corner rounding, multifunction mills, groove mills and end mills.
Shop chamfer and groove mills

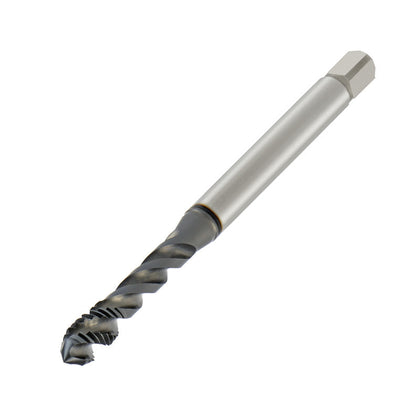

229Threading Taps
Carmex threading taps for internal threads.
Shop threading tapsMore from Carmex: the Carmex Tool Wizard, our Tiny Tools guide, Mini Tools and all thread mills from every brand.
Find your thread mill
Carmex Solid Carbide Thread Mills by Series
The series code starts every Carmex thread mill part number. Pick the series, then the thread form. The number shows how many sizes we list.
| Series | Type | Thread forms |
|---|---|---|
| MTS | Mini type, for small threads | |
| MTSB | Mini type with internal coolant bore | |
| MTI | Mini type, internal and partial profile | |
| MT | Full profile | |
| MTB | With through coolant | |
| MTZ | Internal coolant through the flutes | |
| MTQ | Relieved neck and internal coolant bore | |
| FMT | Fast thread mills with internal coolant bore | |
| AMT | For aluminium | |
| MTSH | Mini type for hard materials up to 62 HRC | |
| FSH | Mini type for hard materials up to 65 HRC | |
| MTH | For hard materials up to 62 HRC | |
| DMTH | 3 in 1 multifunction for hard materials | |
| DMT | With or without coolant | |
| MTD | MT Drill |
Choosing a tool
Choose a Carmex Threading Tool in Four Steps
Answer these and the range above will point you to the right tool.
- 1
Turn or Mill?
Thread turning suits threads on a lathe. Thread milling cuts the thread on a machining centre, and one thread mill covers many diameters in the same pitch.
- 2
Thread Form
Read the thread off the drawing: ISO metric, UN, Whitworth, BSPT, NPT, trapez or another form.
- 3
Internal or External
Choose internal or external inserts. For thread mills, check the series: some cut internal threads only.
- 4
Small Bore?
For bores too small for standard tools, use Tiny Tools or Mini Tools.
Questions
Carmex Tools: Common Questions
Thread turning or thread milling?
Thread turning cuts the thread on a lathe with a single-point insert. Thread milling cuts it on a machining centre with a rotating tool, and one thread mill can cut any diameter above its own size in the same pitch.
What is the Carmex Tool Wizard?
The Carmex Tool Wizard asks three questions about your threading job and gives you the Carmex thread mill and cutting data for it.
What are Carmex Tiny Tools?
Tiny Tools are small solid carbide inserts for boring, grooving, profiling and threading in very small bores. They clamp into Tiny Tool holders.
Which Carmex thread mill grades do you stock?
Most of our Carmex solid carbide thread mills are in the core grades MT7, MT8 and MT11. Check the grade on each product.
Can I buy Carmex tools in the UK?
Yes. Protool supplies the Carmex range on this page across the UK, with free next day delivery on orders over £50 ex VAT and same day dispatch on orders placed by 4.30pm.
Not Sure Which Tool You Need?
Send us the thread callout, the material and the machine, or a Carmex part number, and we will find the right tool. Everything here ships from Kent.
