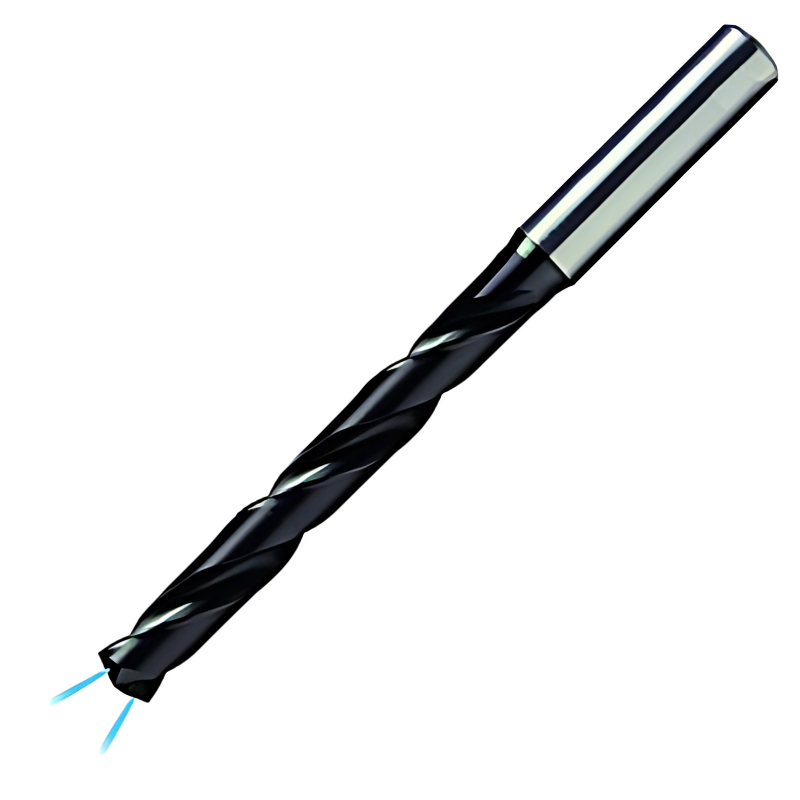

OSG Carbide Drill 3XD - WD1 Coated Oil Hole Drilling - Through Coolant - 3.17 (1/8)
SKU:OSG-30210317
The OSG Carbide Drill 3XD with WD1 coating is a precision solid carbide drill designed for through-coolant oil-hole applications. Sized at 3.17 mm (1/8 in) diameter, it’s built for professionals ...
Read more ↓
Material Compatibility
P
K
H
Specification
Download Cutting Data
| Drill Diameter | 3.17 (1/8) |
| Flute Length | 20 |
| Overall Length | 60 |
| Shank Diameter | 6 |
| Coated | Coated |
| Coolant | YES |
£45.42
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The OSG Carbide Drill 3XD with WD1 coating is a precision solid carbide drill designed for through-coolant oil-hole applications. Sized at 3.17 mm (1/8 in) diameter, it’s built for professionals across engineering, fabrication, and hobbyist shops who need reliable, consistent hole quality in a range of materials.
With a 3XD length-to-diameter geometry and an oil-hole through-coolant channel, it delivers steady drilling performance, better chip evacuation, and extended tool life even in tough alloys.
- WD1 coating for extended tool life: The WD1 coating reduces wear and lowers friction, helping the drill stay sharp longer and resist heat build-up in demanding drilling jobs.
- Oil-hole through-coolant for efficient cooling and chip evacuation: Integrated oil holes and through-coolant flow deliver lubrication where it’s needed, cool the cutting edge, and flush chips out of the hole for cleaner, more precise results.
- 3XD geometry for stability and precision: The 3XD length-to-diameter ratio provides rigid guidance and reduced deflection, producing consistent hole diameters across a variety of materials—from hard alloys to softer metals.
This drill is designed to boost productivity by delivering reliable, repeatable performance with less downtime. Its combination of WD1 wear resistance, through-coolant capability, and 3XD geometry helps you achieve clean, accurate holes, longer tool life, and better overall workflow in both high-volume production and shop-fit tasks.
| Drill Diameter | 3.17 (1/8) |
| Flute Length | 20 |
| Overall Length | 60 |
| Shank Diameter | 6 |
| Coated | Coated |
| Coolant | YES |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: OSG Carbide Drill 3XD - WD1 Coated Oil Hole Drilling - Through Coolant
View full collection →You are viewing OSG-30210317. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-30210300 | 3.00 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210310 | 3.10 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210317 Viewing | 3.17 (1/8) | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210320 | 3.20 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210330 | 3.30 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210340 | 3.40 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210350 | 3.50 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210357 | 3.57 (9/64) | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210360 | 3.60 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210370 | 3.70 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210380 | 3.80 | 24 | 66 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210390 | 3.90 | 24 | 66 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210397 | 3.97 (5/32) | 24 | 66 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210400 | 4.00 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210410 | 4.10 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210420 | 4.20 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210430 | 4.30 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210437 | 4.37 (11/64) | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210440 | 4.40 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210450 | 4.50 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210460 | 4.60 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210465 | 4.65 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210470 | 4.70 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210476 | 4.76 (3/16) | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210480 | 4.80 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210490 | 4.90 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210500 | 5.00 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210510 | 5.10 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210516 | 5.16 (13/64) | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210520 | 5.20 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210530 | 5.30 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210540 | 5.40 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210550 | 5.50 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210555 | 5.55 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210556 | 5.56 (7/32) | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210560 | 5.60 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210570 | 5.70 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210580 | 5.80 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210590 | 5.90 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210595 | 5.95 (15/64) | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210600 | 6.00 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210610 | 6.10 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210620 | 6.20 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210630 | 6.30 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210635 | 6.35 (1/4) | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210640 | 6.40 (1/4) | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210650 | 6.50 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210660 | 6.60 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210670 | 6.70 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210675 | 6.75 (17/64) | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210680 | 6.80 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210690 | 6.90 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210700 | 7.00 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210710 | 7.10 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210714 | 7.14 (9/32) | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210720 | 7.20 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210730 | 7.30 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210740 | 7.40 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210750 | 7.50 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210754 | 7.54 (19/64) | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210760 | 7.60 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210770 | 7.70 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210780 | 7.80 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210790 | 7.90 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210794 | 7.94 (5/16) | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210800 | 8.00 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210810 | 8.10 | 41 | 79 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210820 | 8.20 | 41 | 79 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210830 | 8.30 | 41 | 79 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210833 | 8.33 (21/64) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210840 | 8.40 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210850 | 8.50 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210860 | 8.60 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210870 | 8.70 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210873 | 8.73 (11/32) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210880 | 8.80 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210890 | 8.90 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210900 | 9.00 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210910 | 9.10 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210913 | 9.13 (23/64) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210920 | 9.20 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210930 | 9.30 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210940 | 9.40 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210950 | 9.50 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210952 | 9.52 (3/8) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210960 | 9.60 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210970 | 9.70 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210980 | 9.80 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210990 | 9.90 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210992 | 9.92 (25/64) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30211000 | 10.00 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30211010 | 10.10 | 47 | 89 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211020 | 10.20 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211030 | 10.30 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211032 | 10.32 (13/32) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211040 | 10.40 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211050 | 10.50 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211060 | 10.60 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211070 | 10.70 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211072 | 10.72 (27/64) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211080 | 10.80 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211090 | 10.90 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211100 | 11.00 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211110 | 11.10 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211111 | 11.11 (7/16) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211120 | 11.20 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211130 | 11.30 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211140 | 11.40 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211150 | 11.50 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211151 | 11.51 (29/64) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211160 | 11.60 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211170 | 11.70 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211180 | 11.80 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211190 | 11.90 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211191 | 11.91 (15/32) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211200 | 12.00 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211230 | 12.3 (31/64) | 60 | 107 | 12 | Coated | YES | £134.76 | 1-2 days | |
| OSG-30211250 | 12.50 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211270 | 12.7 (1/2) | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211300 | 13.00 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211350 | 13.50 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211370 | 13.70 | 60 | 107 | 14 | Coated | YES | £145.99 | 1-2 days | |
| OSG-30211400 | 14.00 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211429 | 14.29 (9/16) | 65 | 115 | 14 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211450 | 14.50 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211470 | 14.70 | 65 | 115 | 16 | Coated | YES | £212.60 | 1-2 days | |
| OSG-30211500 | 15.00 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211550 | 15.50 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211570 | 15.70 | 65 | 115 | 16 | Coated | YES | £212.60 | 1-2 days | |
| OSG-30211587 | 15.87 (5/8) | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211600 | 16.00 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211650 | 16.50 | 65 | 115 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211700 | 17.00 | 73 | 123 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211750 | 17.50 | 73 | 123 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211800 | 18.00 | 73 | 123 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211850 | 18.50 | 73 | 123 | 20 | Coated | YES | £357.58 | 1-2 days | |
| OSG-30211900 | 19.00 | 79 | 131 | 20 | Coated | YES | £357.58 | 1-2 days | |
| OSG-30211950 | 19.50 | 79 | 131 | 20 | Coated | YES | £357.58 | 1-2 days | |
| OSG-30212000 | 20.00 | 79 | 131 | 20 | Coated | YES | £357.58 | 1-2 days |
No products match your filters.
