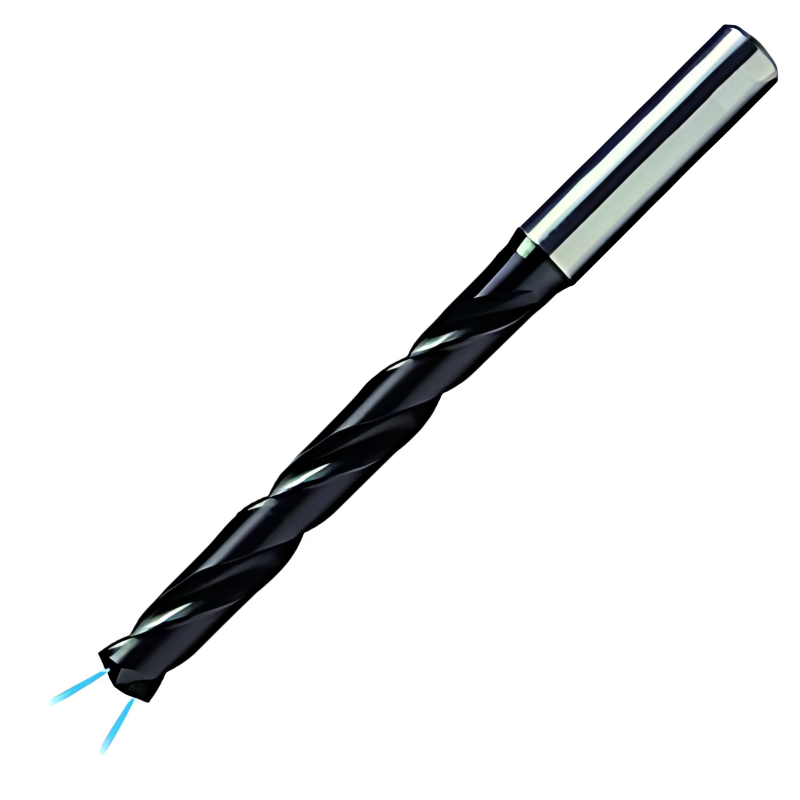

OSG Carbide Drill 3XD - WD1 Coated Oil Hole Drilling - Through Coolant - 5.4mm
SKU:OSG-30210540
The OSG Carbide Drill 3XD is a 5.4 mm diameter solid carbide drill designed for through-coolant oil hole drilling. With a 3XD length-to-diameter ratio, it delivers precise, repeatable holes across...
Read more ↓
Material Compatibility
P
K
H
Specifications at a glance
View all specifications ↓
Download Cutting Data
| Drill Diameter | 5.40 |
| Flute Length | 28 |
| Overall Length | 66 |
| Shank Diameter | 6 |
£48.69
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Description
The OSG Carbide Drill 3XD is a 5.4 mm diameter solid carbide drill designed for through-coolant oil hole drilling. With a 3XD length-to-diameter ratio, it delivers precise, repeatable holes across a wide range of materials—from hard alloys to softer workpieces. The WD1 coating adds exceptional wear resistance, helping the tool last longer between changes.
Through-coolant design channels coolant directly to the cutting edge for efficient chip evacuation and temperature control. This combination maintains cutting performance during deeper holes, reduces the risk of thermal damage, and supports cleaner hole entry and better surface finish.
- WD1 Coating for Extended Tool Life: The wear-resistant coating minimizes edge wear and helps the drill stay sharp over long runs, reducing tool changes and delivering consistent hole size.
- Through-Coolant Oil Hole for Direct Cooling: The through-coolant design directs coolant to the cutting zone for efficient chip removal, lower temperatures, and stable performance in deep holes.
- 3XD Geometry for Precision and Rigidity: The 3XD length-to-diameter ratio provides stiffness to resist deflection and chatter, yielding straighter, more accurate holes in challenging materials.
With these design features, the drill helps you reduce downtime, maintain consistent hole quality, and extend tool life. You can expect reliable performance across production runs and varied materials, enabling faster cycles and improved overall efficiency in your workflows.
Part Numbers
- Protool Part Number
- OSG-30210540
- Brand
- OSG
- Category
- Drill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Ask our technical team about this tool
Full Range: OSG Carbide Drill 3XD - WD1 Coated Oil Hole Drilling - Through Coolant
View full collection →You are viewing OSG-30210540. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-30210300 | 3.00 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210310 | 3.10 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210317 | 3.17 (1/8) | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210320 | 3.20 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210330 | 3.30 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210340 | 3.40 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210350 | 3.50 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210357 | 3.57 (9/64) | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210360 | 3.60 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210370 | 3.70 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210380 | 3.80 | 24 | 66 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210390 | 3.90 | 24 | 66 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210397 | 3.97 (5/32) | 24 | 66 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210400 | 4.00 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210410 | 4.10 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210420 | 4.20 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210430 | 4.30 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210437 | 4.37 (11/64) | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210440 | 4.40 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210450 | 4.50 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210460 | 4.60 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210465 | 4.65 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210470 | 4.70 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210476 | 4.76 (3/16) | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210480 | 4.80 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210490 | 4.90 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210500 | 5.00 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210510 | 5.10 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210516 | 5.16 (13/64) | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210520 | 5.20 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210530 | 5.30 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210540 Viewing | 5.40 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210550 | 5.50 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210555 | 5.55 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210556 | 5.56 (7/32) | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210560 | 5.60 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210570 | 5.70 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210580 | 5.80 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210590 | 5.90 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210595 | 5.95 (15/64) | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210600 | 6.00 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210610 | 6.10 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210620 | 6.20 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210630 | 6.30 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210635 | 6.35 (1/4) | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210640 | 6.40 (1/4) | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210650 | 6.50 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210660 | 6.60 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210670 | 6.70 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210675 | 6.75 (17/64) | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210680 | 6.80 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210690 | 6.90 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210700 | 7.00 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210710 | 7.10 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210714 | 7.14 (9/32) | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210720 | 7.20 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210730 | 7.30 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210740 | 7.40 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210750 | 7.50 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210754 | 7.54 (19/64) | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210760 | 7.60 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210770 | 7.70 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210780 | 7.80 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210790 | 7.90 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210794 | 7.94 (5/16) | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210800 | 8.00 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210810 | 8.10 | 41 | 79 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210820 | 8.20 | 41 | 79 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210830 | 8.30 | 41 | 79 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210833 | 8.33 (21/64) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210840 | 8.40 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210850 | 8.50 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210860 | 8.60 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210870 | 8.70 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210873 | 8.73 (11/32) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210880 | 8.80 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210890 | 8.90 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210900 | 9.00 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210910 | 9.10 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210913 | 9.13 (23/64) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210920 | 9.20 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210930 | 9.30 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210940 | 9.40 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210950 | 9.50 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210952 | 9.52 (3/8) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210960 | 9.60 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210970 | 9.70 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210980 | 9.80 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210990 | 9.90 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210992 | 9.92 (25/64) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30211000 | 10.00 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30211010 | 10.10 | 47 | 89 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211020 | 10.20 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211030 | 10.30 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211032 | 10.32 (13/32) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211040 | 10.40 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211050 | 10.50 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211060 | 10.60 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211070 | 10.70 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211072 | 10.72 (27/64) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211080 | 10.80 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211090 | 10.90 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211100 | 11.00 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211110 | 11.10 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211111 | 11.11 (7/16) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211120 | 11.20 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211130 | 11.30 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211140 | 11.40 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211150 | 11.50 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211151 | 11.51 (29/64) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211160 | 11.60 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211170 | 11.70 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211180 | 11.80 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211190 | 11.90 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211191 | 11.91 (15/32) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211200 | 12.00 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211230 | 12.3 (31/64) | 60 | 107 | 12 | Coated | YES | £134.76 | 1-2 days | |
| OSG-30211250 | 12.50 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211270 | 12.7 (1/2) | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211300 | 13.00 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211350 | 13.50 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211370 | 13.70 | 60 | 107 | 14 | Coated | YES | £145.99 | 1-2 days | |
| OSG-30211400 | 14.00 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211429 | 14.29 (9/16) | 65 | 115 | 14 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211450 | 14.50 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211470 | 14.70 | 65 | 115 | 16 | Coated | YES | £212.60 | 1-2 days | |
| OSG-30211500 | 15.00 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211550 | 15.50 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211570 | 15.70 | 65 | 115 | 16 | Coated | YES | £212.60 | 1-2 days | |
| OSG-30211587 | 15.87 (5/8) | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211600 | 16.00 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211650 | 16.50 | 65 | 115 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211700 | 17.00 | 73 | 123 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211750 | 17.50 | 73 | 123 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211800 | 18.00 | 73 | 123 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211850 | 18.50 | 73 | 123 | 20 | Coated | YES | £357.58 | 1-2 days | |
| OSG-30211900 | 19.00 | 79 | 131 | 20 | Coated | YES | £357.58 | 1-2 days | |
| OSG-30211950 | 19.50 | 79 | 131 | 20 | Coated | YES | £357.58 | 1-2 days | |
| OSG-30212000 | 20.00 | 79 | 131 | 20 | Coated | YES | £357.58 | 1-2 days |
No products match your filters.
