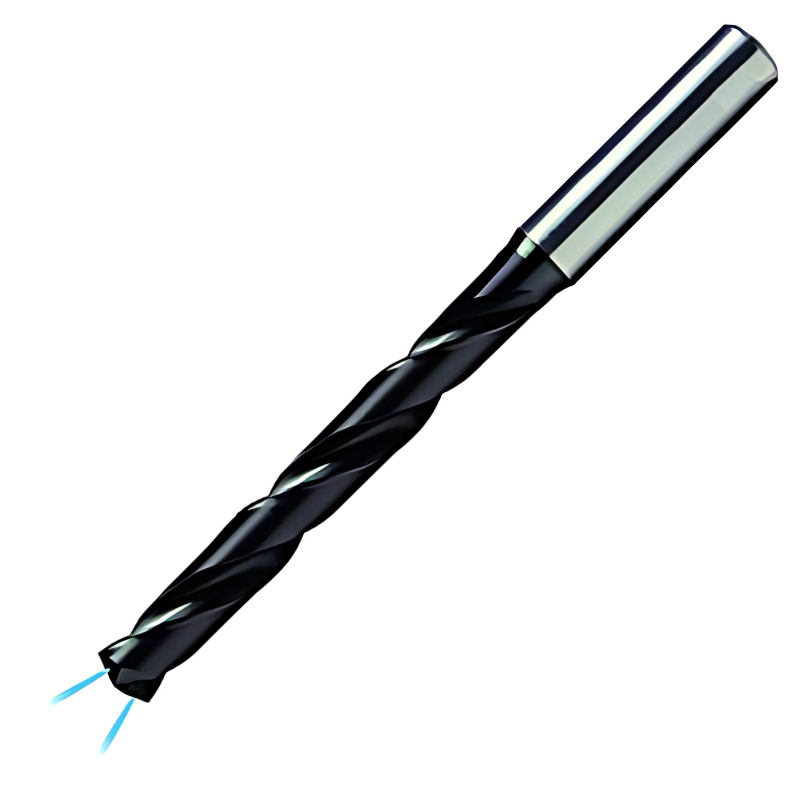

OSG Carbide Drill 3XD - WD1 Coated Oil Hole Drilling - Through Coolant - 14.29 (9/16)
SKU:OSG-30211429
The OSG Carbide Drill 3XD is a solid carbide drill engineered for through-coolant applications with an oil-hole design. With WD1 coating for wear resistance and a 3XD length-to-diameter ratio, it ...
Read more ↓
Material Compatibility
P
K
H
Specification
Download Cutting Data
| Drill Diameter | 14.29 (9/16) |
| Flute Length | 65 |
| Overall Length | 115 |
| Shank Diameter | 14 |
| Coated | Coated |
| Coolant | YES |
£212.08
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The OSG Carbide Drill 3XD is a solid carbide drill engineered for through-coolant applications with an oil-hole design. With WD1 coating for wear resistance and a 3XD length-to-diameter ratio, it delivers precise, reliable drilling across hard alloys and softer materials. The 9/16" diameter (14.29 mm) version is built for demanding machining tasks where consistency matters.
- WD1 Coating for Wear Resistance: The WD1 coating helps maintain a sharp cutting edge longer, resulting in extended tool life and more consistent hole quality over time.
- Through-Coolant with Oil Hole Design: Integrated coolant/provide-through channels improve chip evacuation and temperature control, helping prevent built-up edge and enabling smoother drilling in challenging materials.
- 3XD Length-to-Diameter Ratio for Stable Precision: The 3XD geometry provides a longer reach without sacrificing rigidity, delivering accurate holes and reliable performance in deeper drilling applications.
In practice, this drill supports dependable results, longer tool life, and reduced interruptions in production. The combination of wear resistance, efficient cooling, and balanced geometry helps you achieve consistent holes, faster setups, and fewer reworks across a range of materials.
| Drill Diameter | 14.29 (9/16) |
| Flute Length | 65 |
| Overall Length | 115 |
| Shank Diameter | 14 |
| Coated | Coated |
| Coolant | YES |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: OSG Carbide Drill 3XD - WD1 Coated Oil Hole Drilling - Through Coolant
View full collection →You are viewing OSG-30211429. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-30210300 | 3.00 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210310 | 3.10 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210317 | 3.17 (1/8) | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210320 | 3.20 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210330 | 3.30 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210340 | 3.40 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210350 | 3.50 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210357 | 3.57 (9/64) | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210360 | 3.60 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210370 | 3.70 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210380 | 3.80 | 24 | 66 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210390 | 3.90 | 24 | 66 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210397 | 3.97 (5/32) | 24 | 66 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210400 | 4.00 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210410 | 4.10 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210420 | 4.20 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210430 | 4.30 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210437 | 4.37 (11/64) | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210440 | 4.40 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210450 | 4.50 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210460 | 4.60 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210465 | 4.65 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210470 | 4.70 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210476 | 4.76 (3/16) | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210480 | 4.80 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210490 | 4.90 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210500 | 5.00 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210510 | 5.10 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210516 | 5.16 (13/64) | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210520 | 5.20 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210530 | 5.30 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210540 | 5.40 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210550 | 5.50 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210555 | 5.55 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210556 | 5.56 (7/32) | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210560 | 5.60 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210570 | 5.70 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210580 | 5.80 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210590 | 5.90 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210595 | 5.95 (15/64) | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210600 | 6.00 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210610 | 6.10 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210620 | 6.20 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210630 | 6.30 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210635 | 6.35 (1/4) | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210640 | 6.40 (1/4) | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210650 | 6.50 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210660 | 6.60 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210670 | 6.70 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210675 | 6.75 (17/64) | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210680 | 6.80 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210690 | 6.90 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210700 | 7.00 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210710 | 7.10 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210714 | 7.14 (9/32) | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210720 | 7.20 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210730 | 7.30 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210740 | 7.40 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210750 | 7.50 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210754 | 7.54 (19/64) | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210760 | 7.60 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210770 | 7.70 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210780 | 7.80 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210790 | 7.90 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210794 | 7.94 (5/16) | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210800 | 8.00 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210810 | 8.10 | 41 | 79 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210820 | 8.20 | 41 | 79 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210830 | 8.30 | 41 | 79 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210833 | 8.33 (21/64) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210840 | 8.40 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210850 | 8.50 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210860 | 8.60 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210870 | 8.70 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210873 | 8.73 (11/32) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210880 | 8.80 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210890 | 8.90 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210900 | 9.00 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210910 | 9.10 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210913 | 9.13 (23/64) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210920 | 9.20 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210930 | 9.30 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210940 | 9.40 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210950 | 9.50 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210952 | 9.52 (3/8) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210960 | 9.60 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210970 | 9.70 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210980 | 9.80 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210990 | 9.90 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210992 | 9.92 (25/64) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30211000 | 10.00 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30211010 | 10.10 | 47 | 89 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211020 | 10.20 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211030 | 10.30 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211032 | 10.32 (13/32) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211040 | 10.40 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211050 | 10.50 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211060 | 10.60 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211070 | 10.70 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211072 | 10.72 (27/64) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211080 | 10.80 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211090 | 10.90 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211100 | 11.00 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211110 | 11.10 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211111 | 11.11 (7/16) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211120 | 11.20 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211130 | 11.30 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211140 | 11.40 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211150 | 11.50 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211151 | 11.51 (29/64) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211160 | 11.60 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211170 | 11.70 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211180 | 11.80 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211190 | 11.90 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211191 | 11.91 (15/32) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211200 | 12.00 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211230 | 12.3 (31/64) | 60 | 107 | 12 | Coated | YES | £134.76 | 1-2 days | |
| OSG-30211250 | 12.50 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211270 | 12.7 (1/2) | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211300 | 13.00 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211350 | 13.50 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211370 | 13.70 | 60 | 107 | 14 | Coated | YES | £145.99 | 1-2 days | |
| OSG-30211400 | 14.00 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211429 Viewing | 14.29 (9/16) | 65 | 115 | 14 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211450 | 14.50 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211470 | 14.70 | 65 | 115 | 16 | Coated | YES | £212.60 | 1-2 days | |
| OSG-30211500 | 15.00 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211550 | 15.50 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211570 | 15.70 | 65 | 115 | 16 | Coated | YES | £212.60 | 1-2 days | |
| OSG-30211587 | 15.87 (5/8) | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211600 | 16.00 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211650 | 16.50 | 65 | 115 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211700 | 17.00 | 73 | 123 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211750 | 17.50 | 73 | 123 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211800 | 18.00 | 73 | 123 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211850 | 18.50 | 73 | 123 | 20 | Coated | YES | £357.58 | 1-2 days | |
| OSG-30211900 | 19.00 | 79 | 131 | 20 | Coated | YES | £357.58 | 1-2 days | |
| OSG-30211950 | 19.50 | 79 | 131 | 20 | Coated | YES | £357.58 | 1-2 days | |
| OSG-30212000 | 20.00 | 79 | 131 | 20 | Coated | YES | £357.58 | 1-2 days |
No products match your filters.
