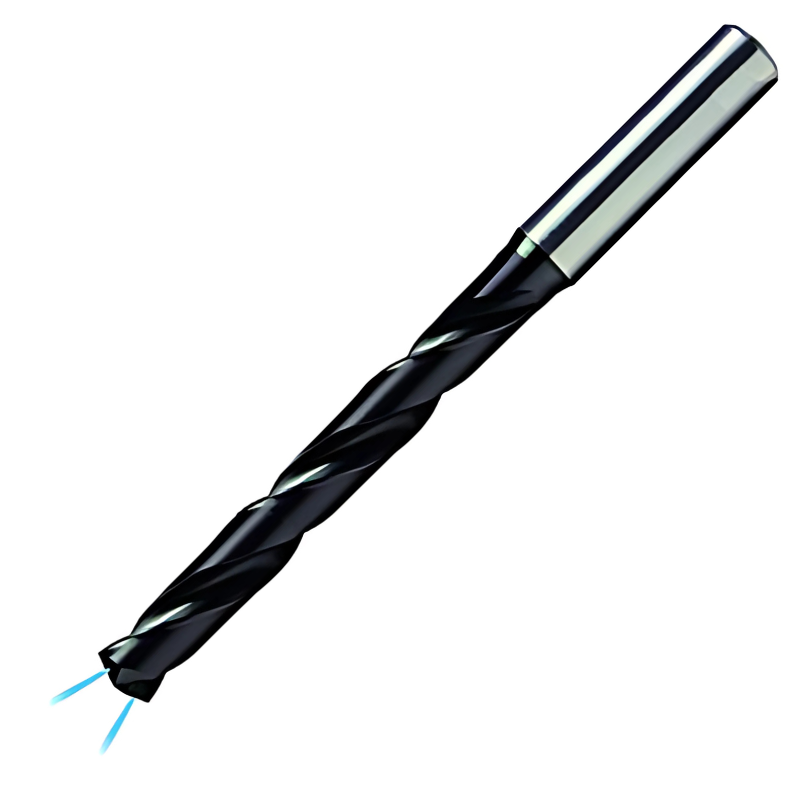

OSG Carbide Drill 3XD - WD1 Coated Oil Hole Drilling - Through Coolant - 4.7mm
SKU:OSG-30210470
The OSG Carbide Drill 3XD with WD1 coating is a high-precision solid carbide drill built for through-coolant oil-hole drilling. It’s ideal for engineers, machinists, and shops that demand reliabl...
Read more ↓
Material Compatibility
P
K
H
Specification
Download Cutting Data
| Drill Diameter | 4.70 |
| Flute Length | 24 |
| Overall Length | 66 |
| Shank Diameter | 6 |
| Coated | Coated |
| Coolant | YES |
£48.69
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The OSG Carbide Drill 3XD with WD1 coating is a high-precision solid carbide drill built for through-coolant oil-hole drilling. It’s ideal for engineers, machinists, and shops that demand reliable hole quality across metals. With a 4.7 mm diameter and a 3XD length-to-diameter ratio, it delivers rigid, accurate performance even in deeper holes.
WD1 coating provides exceptional wear resistance, while the through-coolant oil-hole design directs coolant to the cutting edge for efficient chip evacuation and temperature control. This combination extends tool life and delivers consistent drilling performance on both tough alloys and softer materials.
- WD1-coated carbide for extended tool life: The wear-resistant WD1 coating reduces edge degradation, helping you complete more holes between changes and maintain consistent hole size.
- Through-coolant oil-hole design for cooling and chip evacuation: Coolant travels through the drill into the cutting zone, sharpening heat management and letting chips clear quickly for cleaner holes.
- 3XD geometry for precise, stable drilling: The 3XD length-to-diameter ratio provides rigidity and minimizes deflection, delivering accurate hole position and straightness in challenging materials.
With these features, the OSG 3XD WD1 carbide drill delivers reliable, repeatable hole quality, minimizes downtime from wear and overheating, and supports faster, more efficient drilling workflows. It’s a dependable choice for production runs, assemblies, and precision projects that require clean, accurate through-holes and long tool life.
| Drill Diameter | 4.70 |
| Flute Length | 24 |
| Overall Length | 66 |
| Shank Diameter | 6 |
| Coated | Coated |
| Coolant | YES |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: OSG Carbide Drill 3XD - WD1 Coated Oil Hole Drilling - Through Coolant
View full collection →You are viewing OSG-30210470. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-30210300 | 3.00 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210310 | 3.10 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210317 | 3.17 (1/8) | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210320 | 3.20 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210330 | 3.30 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210340 | 3.40 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210350 | 3.50 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210357 | 3.57 (9/64) | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210360 | 3.60 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210370 | 3.70 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210380 | 3.80 | 24 | 66 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210390 | 3.90 | 24 | 66 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210397 | 3.97 (5/32) | 24 | 66 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210400 | 4.00 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210410 | 4.10 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210420 | 4.20 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210430 | 4.30 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210437 | 4.37 (11/64) | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210440 | 4.40 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210450 | 4.50 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210460 | 4.60 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210465 | 4.65 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210470 Viewing | 4.70 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210476 | 4.76 (3/16) | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210480 | 4.80 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210490 | 4.90 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210500 | 5.00 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210510 | 5.10 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210516 | 5.16 (13/64) | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210520 | 5.20 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210530 | 5.30 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210540 | 5.40 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210550 | 5.50 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210555 | 5.55 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210556 | 5.56 (7/32) | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210560 | 5.60 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210570 | 5.70 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210580 | 5.80 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210590 | 5.90 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210595 | 5.95 (15/64) | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210600 | 6.00 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210610 | 6.10 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210620 | 6.20 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210630 | 6.30 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210635 | 6.35 (1/4) | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210640 | 6.40 (1/4) | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210650 | 6.50 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210660 | 6.60 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210670 | 6.70 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210675 | 6.75 (17/64) | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210680 | 6.80 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210690 | 6.90 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210700 | 7.00 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210710 | 7.10 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210714 | 7.14 (9/32) | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210720 | 7.20 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210730 | 7.30 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210740 | 7.40 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210750 | 7.50 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210754 | 7.54 (19/64) | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210760 | 7.60 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210770 | 7.70 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210780 | 7.80 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210790 | 7.90 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210794 | 7.94 (5/16) | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210800 | 8.00 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210810 | 8.10 | 41 | 79 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210820 | 8.20 | 41 | 79 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210830 | 8.30 | 41 | 79 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210833 | 8.33 (21/64) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210840 | 8.40 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210850 | 8.50 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210860 | 8.60 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210870 | 8.70 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210873 | 8.73 (11/32) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210880 | 8.80 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210890 | 8.90 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210900 | 9.00 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210910 | 9.10 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210913 | 9.13 (23/64) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210920 | 9.20 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210930 | 9.30 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210940 | 9.40 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210950 | 9.50 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210952 | 9.52 (3/8) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210960 | 9.60 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210970 | 9.70 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210980 | 9.80 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210990 | 9.90 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210992 | 9.92 (25/64) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30211000 | 10.00 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30211010 | 10.10 | 47 | 89 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211020 | 10.20 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211030 | 10.30 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211032 | 10.32 (13/32) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211040 | 10.40 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211050 | 10.50 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211060 | 10.60 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211070 | 10.70 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211072 | 10.72 (27/64) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211080 | 10.80 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211090 | 10.90 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211100 | 11.00 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211110 | 11.10 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211111 | 11.11 (7/16) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211120 | 11.20 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211130 | 11.30 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211140 | 11.40 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211150 | 11.50 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211151 | 11.51 (29/64) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211160 | 11.60 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211170 | 11.70 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211180 | 11.80 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211190 | 11.90 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211191 | 11.91 (15/32) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211200 | 12.00 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211230 | 12.3 (31/64) | 60 | 107 | 12 | Coated | YES | £134.76 | 1-2 days | |
| OSG-30211250 | 12.50 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211270 | 12.7 (1/2) | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211300 | 13.00 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211350 | 13.50 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211370 | 13.70 | 60 | 107 | 14 | Coated | YES | £145.99 | 1-2 days | |
| OSG-30211400 | 14.00 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211429 | 14.29 (9/16) | 65 | 115 | 14 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211450 | 14.50 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211470 | 14.70 | 65 | 115 | 16 | Coated | YES | £212.60 | 1-2 days | |
| OSG-30211500 | 15.00 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211550 | 15.50 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211570 | 15.70 | 65 | 115 | 16 | Coated | YES | £212.60 | 1-2 days | |
| OSG-30211587 | 15.87 (5/8) | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211600 | 16.00 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211650 | 16.50 | 65 | 115 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211700 | 17.00 | 73 | 123 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211750 | 17.50 | 73 | 123 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211800 | 18.00 | 73 | 123 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211850 | 18.50 | 73 | 123 | 20 | Coated | YES | £357.58 | 1-2 days | |
| OSG-30211900 | 19.00 | 79 | 131 | 20 | Coated | YES | £357.58 | 1-2 days | |
| OSG-30211950 | 19.50 | 79 | 131 | 20 | Coated | YES | £357.58 | 1-2 days | |
| OSG-30212000 | 20.00 | 79 | 131 | 20 | Coated | YES | £357.58 | 1-2 days |
No products match your filters.
