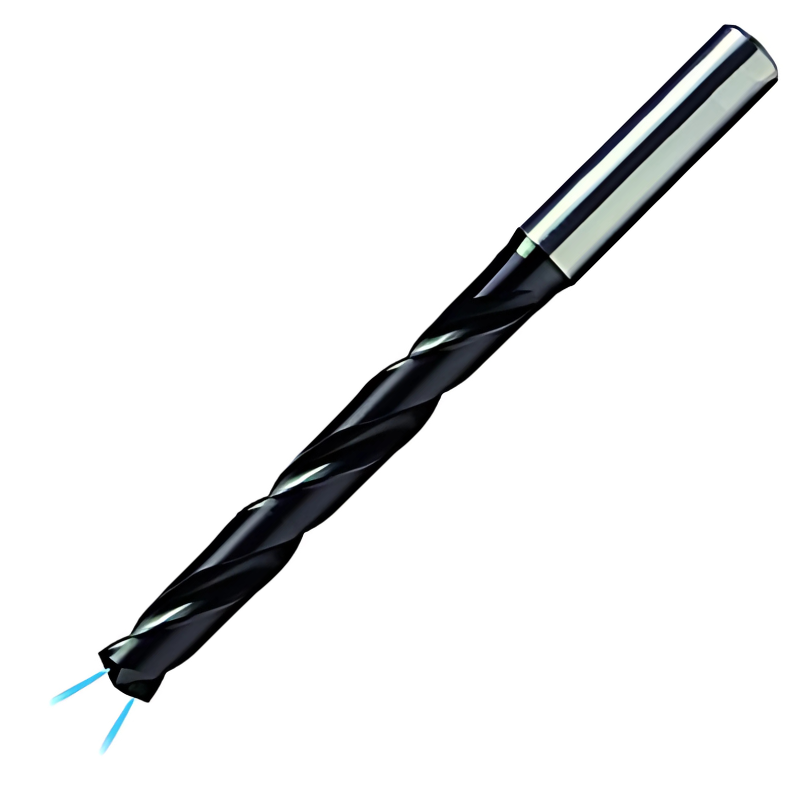

OSG Carbide Drill 3XD - WD1 Coated Oil Hole Drilling - Through Coolant - 7.7mm
| Drill Diameter | 7.70 |
| Flute Length | 41 |
| Overall Length | 79 |
| Shank Diameter | 8 |
Learn more about Klarna
Description
The OSG Carbide Drill 3XD with WD1 coating is a through-coolant solid carbide drill designed for precise hole-making in metalworking. With a 7.7 mm diameter, it handles a wide range of materials—from tough alloys to softer metals—delivering consistent results in both production runs and prototypes.
Built around a 3XD length-to-diameter ratio, this drill delivers deep, straight holes with stable rigidity. The integrated oil-hole and through-coolant capability optimize chip evacuation and temperature control, helping you maintain cutting performance at higher speeds and feeds. The WD1 coating enhances wear resistance, extending tool life in demanding machining environments.
- Through-coolant oil hole design: Improves cooling and chip evacuation at the point of cut, reducing heat build-up and enabling cleaner holes and longer tool life.
- 3XD deep-hole capability: Provides deeper holes in a single pass with strong rigidity, minimizing chatter and preserving hole accuracy across a range of materials.
- WD1 coated carbide: Delivers superior wear resistance and heat tolerance, helping the drill stand up to tough jobs and deliver consistent performance over time.
This drill supports efficient, reliable drilling across demanding applications, helping you reduce downtime, maintain tight tolerances, and achieve repeatable results from setup to finished part. Whether in high-volume production or specialized projects, the OSG Carbide Drill 3XD WD1 through-coolant solution offers dependable performance and long-term value.
Part Numbers
- Protool Part Number
- OSG-30210770
- Brand
- OSG
- Category
- Drill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: OSG Carbide Drill 3XD - WD1 Coated Oil Hole Drilling - Through Coolant
View full collection →You are viewing OSG-30210770. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-30210300 | 3.00 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210310 | 3.10 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210317 | 3.17 (1/8) | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210320 | 3.20 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210330 | 3.30 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210340 | 3.40 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210350 | 3.50 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210357 | 3.57 (9/64) | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210360 | 3.60 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210370 | 3.70 | 20 | 60 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210380 | 3.80 | 24 | 66 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210390 | 3.90 | 24 | 66 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210397 | 3.97 (5/32) | 24 | 66 | 6 | Coated | YES | £45.42 | 1-2 days | |
| OSG-30210400 | 4.00 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210410 | 4.10 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210420 | 4.20 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210430 | 4.30 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210437 | 4.37 (11/64) | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210440 | 4.40 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210450 | 4.50 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210460 | 4.60 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210465 | 4.65 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210470 | 4.70 | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210476 | 4.76 (3/16) | 24 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210480 | 4.80 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210490 | 4.90 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210500 | 5.00 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210510 | 5.10 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210516 | 5.16 (13/64) | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210520 | 5.20 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210530 | 5.30 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210540 | 5.40 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210550 | 5.50 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210555 | 5.55 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210556 | 5.56 (7/32) | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210560 | 5.60 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210570 | 5.70 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210580 | 5.80 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210590 | 5.90 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210595 | 5.95 (15/64) | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210600 | 6.00 | 28 | 66 | 6 | Coated | YES | £48.69 | 1-2 days | |
| OSG-30210610 | 6.10 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210620 | 6.20 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210630 | 6.30 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210635 | 6.35 (1/4) | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210640 | 6.40 (1/4) | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210650 | 6.50 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210660 | 6.60 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210670 | 6.70 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210675 | 6.75 (17/64) | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210680 | 6.80 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210690 | 6.90 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210700 | 7.00 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210710 | 7.10 | 34 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210714 | 7.14 (9/32) | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210720 | 7.20 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210730 | 7.30 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210740 | 7.40 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210750 | 7.50 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210754 | 7.54 (19/64) | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210760 | 7.60 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210770 Viewing | 7.70 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210780 | 7.80 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210790 | 7.90 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210794 | 7.94 (5/16) | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210800 | 8.00 | 41 | 79 | 8 | Coated | YES | £65.88 | 1-2 days | |
| OSG-30210810 | 8.10 | 41 | 79 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210820 | 8.20 | 41 | 79 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210830 | 8.30 | 41 | 79 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210833 | 8.33 (21/64) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210840 | 8.40 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210850 | 8.50 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210860 | 8.60 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210870 | 8.70 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210873 | 8.73 (11/32) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210880 | 8.80 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210890 | 8.90 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210900 | 9.00 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210910 | 9.10 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210913 | 9.13 (23/64) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210920 | 9.20 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210930 | 9.30 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210940 | 9.40 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210950 | 9.50 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210952 | 9.52 (3/8) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210960 | 9.60 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210970 | 9.70 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210980 | 9.80 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210990 | 9.90 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30210992 | 9.92 (25/64) | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30211000 | 10.00 | 47 | 89 | 10 | Coated | YES | £80.11 | 1-2 days | |
| OSG-30211010 | 10.10 | 47 | 89 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211020 | 10.20 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211030 | 10.30 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211032 | 10.32 (13/32) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211040 | 10.40 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211050 | 10.50 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211060 | 10.60 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211070 | 10.70 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211072 | 10.72 (27/64) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211080 | 10.80 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211090 | 10.90 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211100 | 11.00 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211110 | 11.10 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211111 | 11.11 (7/16) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211120 | 11.20 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211130 | 11.30 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211140 | 11.40 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211150 | 11.50 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211151 | 11.51 (29/64) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211160 | 11.60 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211170 | 11.70 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211180 | 11.80 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211190 | 11.90 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211191 | 11.91 (15/32) | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211200 | 12.00 | 55 | 102 | 12 | Coated | YES | £110.62 | 1-2 days | |
| OSG-30211230 | 12.3 (31/64) | 60 | 107 | 12 | Coated | YES | £134.76 | 1-2 days | |
| OSG-30211250 | 12.50 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211270 | 12.7 (1/2) | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211300 | 13.00 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211350 | 13.50 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211370 | 13.70 | 60 | 107 | 14 | Coated | YES | £145.99 | 1-2 days | |
| OSG-30211400 | 14.00 | 60 | 107 | 14 | Coated | YES | £145.64 | 1-2 days | |
| OSG-30211429 | 14.29 (9/16) | 65 | 115 | 14 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211450 | 14.50 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211470 | 14.70 | 65 | 115 | 16 | Coated | YES | £212.60 | 1-2 days | |
| OSG-30211500 | 15.00 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211550 | 15.50 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211570 | 15.70 | 65 | 115 | 16 | Coated | YES | £212.60 | 1-2 days | |
| OSG-30211587 | 15.87 (5/8) | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211600 | 16.00 | 65 | 115 | 16 | Coated | YES | £212.08 | 1-2 days | |
| OSG-30211650 | 16.50 | 65 | 115 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211700 | 17.00 | 73 | 123 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211750 | 17.50 | 73 | 123 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211800 | 18.00 | 73 | 123 | 18 | Coated | YES | £330.87 | 1-2 days | |
| OSG-30211850 | 18.50 | 73 | 123 | 20 | Coated | YES | £357.58 | 1-2 days | |
| OSG-30211900 | 19.00 | 79 | 131 | 20 | Coated | YES | £357.58 | 1-2 days | |
| OSG-30211950 | 19.50 | 79 | 131 | 20 | Coated | YES | £357.58 | 1-2 days | |
| OSG-30212000 | 20.00 | 79 | 131 | 20 | Coated | YES | £357.58 | 1-2 days |
No products match your filters.
