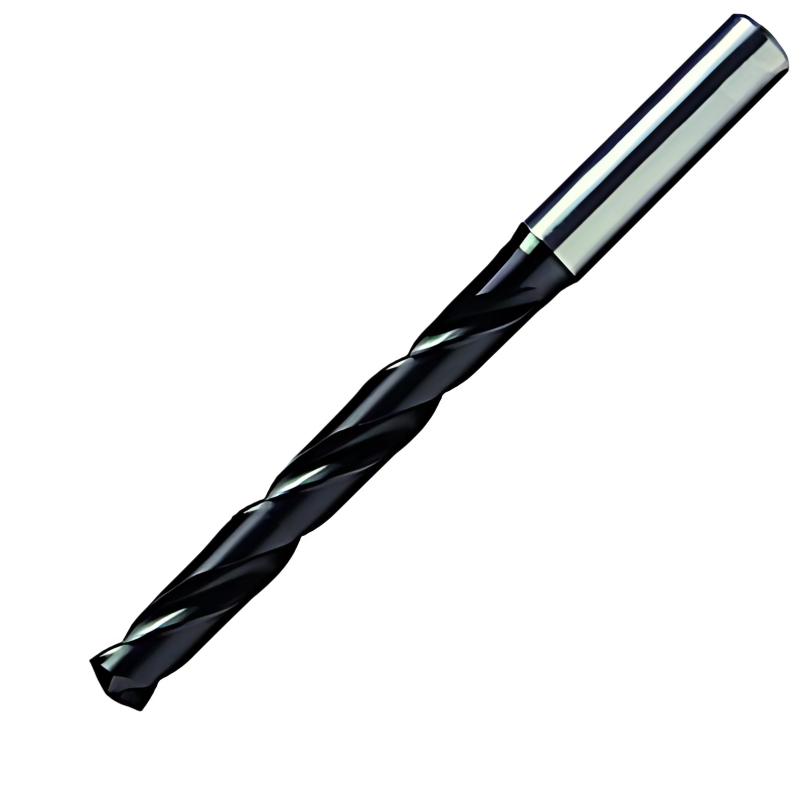

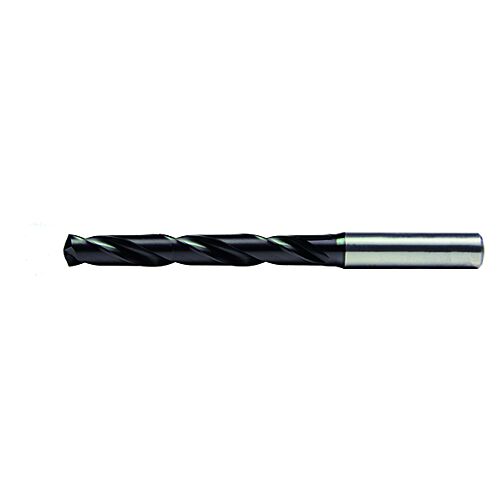

OSG Carbide Drill 5XD - WD1 Coated - Solid - 3.97 (5/32)
SKU:OSG-31200397
The OSG Carbide Drill 5XD, WD1 coated, is a high-performance solid carbide drill designed for precise, repeatable holes in metal, composites, and other common machining materials. With a 5XD leng...
Read more ↓
Material Compatibility
P
K
H
Specifications at a glance
View all specifications ↓
Download Cutting Data
| Drill Diameter | 3.97 (5/32) |
| Flute Length | 36 |
| Overall Length | 74 |
| Shank Diameter | 6 |
£44.86
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Description
The OSG Carbide Drill 5XD, WD1 coated, is a high-performance solid carbide drill designed for precise, repeatable holes in metal, composites, and other common machining materials. With a 5XD length-to-diameter ratio (five times the diameter), it delivers extended reach and rigidity for deep holes, blind-hole drilling, and pocketing tasks—keeping accuracy intact even in tight setups. Size: 5/32 inch (3.97 mm) diameter.
WD1 coating adds durability by reducing wear and heat buildup, so you’ll get longer tool life and fewer tool changes during busy production. Crafted from solid carbide for stiffness and precision, this drill maintains consistent hole size and clean entrances across a range of materials.
- WD1-coated durability: Extends tool life and improves wear resistance, helping you complete more holes between tool changes and reduce downtime.
- 5XD reach with stability: Long, rigid geometry enables deep or blind-hole drilling with minimal deflection and chatter, delivering reliable hole size and concentricity.
- Solid carbide accuracy: Precision-ground tip and robust carbide body deliver consistent diameters, clean hole entrances, and repeatable results across materials.
This combination of extended reach, coating durability, and solid carbide rigidity makes the OSG 5XD WD1 drill a dependable choice for professional shops, job sites, and DIY setups that require accurate, repeatable drilling with less downtime and rework.
Part Numbers
- Protool Part Number
- OSG-31200397
- Brand
- OSG
- Category
- Drill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Ask our technical team about this tool
Full Range: OSG Carbide Drill 5XD - WD1 Coated - Solid
View full collection →You are viewing OSG-31200397. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-31200100 | 1.00 | 9 | 38 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200110 | 1.10 | 9 | 38 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200120 | 1.20 | 11 | 38 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200130 | 1.30 | 11 | 38 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200140 | 1.40 | 12 | 38 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200150 | 1.50 | 12 | 45 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200160 | 1.60 | 14 | 45 | 3 | Coated | NO | £23.38 | 1-2 days | |
| OSG-31200170 | 1.70 | 14 | 45 | 3 | Coated | NO | £23.38 | 1-2 days | |
| OSG-31200180 | 1.80 | 16 | 45 | 3 | Coated | NO | £23.38 | 1-2 days | |
| OSG-31200190 | 1.90 | 16 | 45 | 3 | Coated | NO | £23.38 | 1-2 days | |
| OSG-31200200 | 2.00 | 18 | 50 | 3 | Coated | NO | £23.38 | 1-2 days | |
| OSG-31200210 | 2.10 | 18 | 50 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200220 | 2.20 | 20 | 52 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200230 | 2.30 | 20 | 52 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200240 | 2.40 | 22 | 52 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200250 | 2.50 | 22 | 56 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200260 | 2.60 | 22 | 56 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200270 | 2.70 | 23 | 56 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200280 | 2.80 | 23 | 56 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200290 | 2.90 | 23 | 56 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200300 | 3.00 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200310 | 3.10 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200317 | 3.17 (1/8) | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200320 | 3.20 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200330 | 3.30 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200340 | 3.40 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200350 | 3.50 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200357 | 3.57 (5/32) | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200360 | 3.60 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200370 | 3.70 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200380 | 3.80 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200390 | 3.90 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200397 Viewing | 3.97 (5/32) | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200400 | 4.00 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200410 | 4.10 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200420 | 4.20 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200430 | 4.30 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200437 | 4.37 (11/64) | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200440 | 4.40 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200450 | 4.50 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200460 | 4.60 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200470 | 4.70 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200476 | 4.76 (3/16) | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200480 | 4.80 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200490 | 4.90 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200500 | 5.00 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200510 | 5.10 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200516 | 5.16 (13/64) | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200520 | 5.20 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200530 | 5.30 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200540 | 5.40 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200550 | 5.50 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200556 | 5.56 (7/32) | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200560 | 5.60 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200570 | 5.70 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200580 | 5.80 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200590 | 5.90 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200595 | 5.95 (15/64) | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200600 | 6.00 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200610 | 6.10 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200620 | 6.20 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200630 | 6.30 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200635 | 6.35 (1/4) | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200640 | 6.40 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200650 | 6.50 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200660 | 6.60 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200670 | 6.70 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200675 | 6.75 (17/64) | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200680 | 6.80 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200690 | 6.90 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200700 | 7.00 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200710 | 7.10 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200714 | 7.14 (9/32) | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200720 | 7.20 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200730 | 7.30 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200740 | 7.40 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200750 | 7.50 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200754 | 7.54 (19/64) | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200760 | 7.60 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200770 | 7.70 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200780 | 7.80 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200790 | 7.90 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200794 | 7.94 (5/16) | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200800 | 8.00 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200810 | 8.10 | 61 | 103 | 8 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200820 | 8.20 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200830 | 8.30 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200833 | 8.33 (21/64) | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200840 | 8.40 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200850 | 8.50 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200860 | 8.60 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200870 | 8.70 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200873 | 8.73 (11/32) | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200880 | 8.80 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200890 | 8.90 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200900 | 9.00 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200910 | 9.10 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200913 | 9.13 (23/64) | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200920 | 9.20 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200930 | 9.30 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200940 | 9.40 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200950 | 9.50 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200952 | 9.52 (3/8) | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200960 | 9.60 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200970 | 9.70 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200980 | 9.80 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200990 | 9.90 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200992 | 9.92 (25/64) | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31201000 | 10.00 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31201010 | 10.10 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201020 | 10.20 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201030 | 10.30 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201032 | 10.32 (13/32) | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201040 | 10.40 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201050 | 10.50 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201060 | 10.60 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201070 | 10.70 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201072 | 10.72 (27/64) | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201080 | 10.80 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201090 | 10.90 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201100 | 11.00 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201110 | 11.10 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201111 | 11.11 (7/16) | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201120 | 11.20 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201130 | 11.30 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201140 | 11.40 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201150 | 11.50 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201151 | 11.51 (29/64) | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201160 | 11.60 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201170 | 11.70 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201180 | 11.80 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201190 | 11.90 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201191 | 11.91 (15/32) | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201200 | 12.00 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201230 | 12.3 (31/64) | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201250 | 12.50 | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201270 | 12.7 (1/2) | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201300 | 13.00 | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201350 | 13.50 | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201400 | 14.00 | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201429 | 14.29 (9/16) | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201450 | 14.50 | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201500 | 15.00 | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201550 | 15.50 | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201587 | 15.87 (/8) | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201600 | 16.00 | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201650 | 16.50 | 93 | 133 | 18 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201700 | 17.00 | 93 | 133 | 18 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201750 | 17.50 | 93 | 133 | 18 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201800 | 18.00 | 93 | 133 | 18 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201850 | 18.50 | 101 | 153 | 20 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201900 | 19.00 | 101 | 153 | 20 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201950 | 19.50 | 101 | 153 | 20 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31202000 | 20.00 | 101 | 153 | 20 | Coated | NO | £266.44 | 1-2 days |
No products match your filters.
