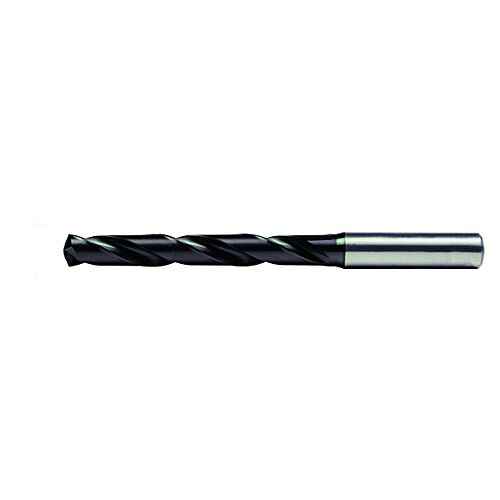

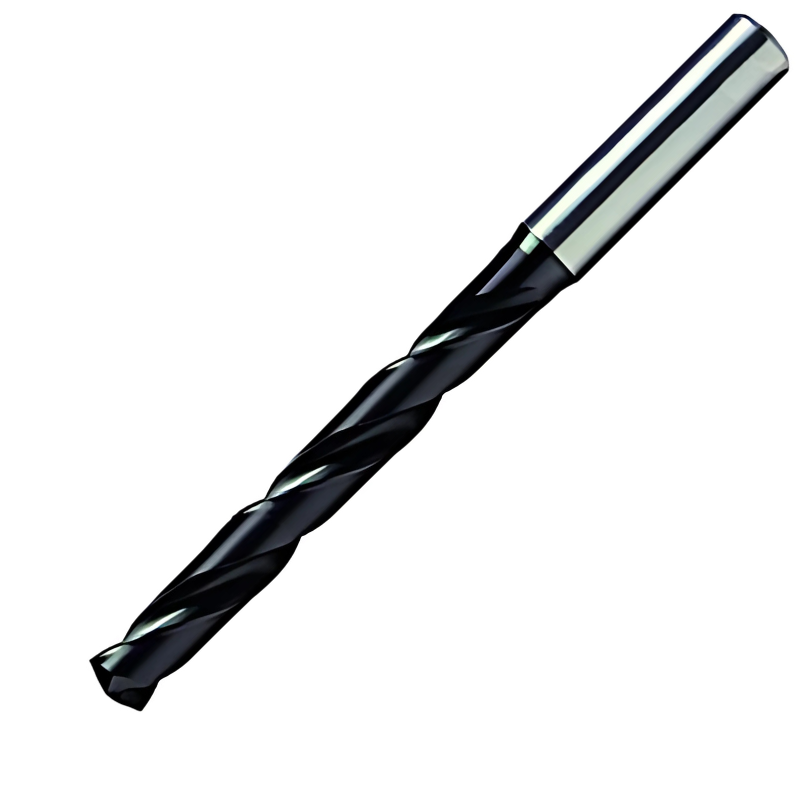

OSG Carbide Drill 5XD - WD1 Coated - Solid - 7.7mm
SKU:OSG-31200770
The OSG Carbide Drill 5XD, WD1 coated, is a high-performance solid cutting tool designed for precise drilling tasks across metals, composites, and other materials. Ideal for engineers, machinists...
Read more ↓
Material Compatibility
P
K
H
Specifications at a glance
View all specifications ↓
Download Cutting Data
| Drill Diameter | 7.70 |
| Flute Length | 53 |
| Overall Length | 91 |
| Shank Diameter | 8 |
£44.33
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Description
The OSG Carbide Drill 5XD, WD1 coated, is a high-performance solid cutting tool designed for precise drilling tasks across metals, composites, and other materials. Ideal for engineers, machinists, and shops seeking reliable hole quality, it delivers consistent results in a wide range of applications.
With a 5XD (five times diameter) length-to-diameter ratio and a 7.7 mm diameter, this drill excels at deeper holes and through-holes while maintaining rigidity and accuracy. The WD1 coating enhances wear resistance, extending tool life and allowing longer production runs between changes without compromising performance.
- WD1 coating for extended tool life: The WD1 coating boosts wear resistance, helping the drill stay sharp longer and resist scoring when drilling metals and composites, so you can complete more holes per tool.
- 5XD geometry for deep drilling versatility: The five-times diameter length provides extra reach for deep holes and through-holes while preserving rigidity and hole accuracy, reducing the need for additional tools or setups.
- Solid carbide construction for precision and durability: Rigid carbide core delivers consistent hole size, repeatable results, and better performance in challenging materials, with stable cutting action and less deflection.
This drill helps you streamline manufacturing and maintenance by delivering precise holes with fewer passes, fewer tool changes, and less rework. Its durable WD1 coating and solid carbide core stand up to demanding materials, ensuring reliable performance from the first hole to the last, so you can improve throughput and achieve professional results across your machining operations.
Part Numbers
- Protool Part Number
- OSG-31200770
- Brand
- OSG
- Category
- Drill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Ask our technical team about this tool
Full Range: OSG Carbide Drill 5XD - WD1 Coated - Solid
View full collection →You are viewing OSG-31200770. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-31200100 | 1.00 | 9 | 38 | 3 | Coated | NO | £21.51 | 1-2 days | |
| OSG-31200110 | 1.10 | 9 | 38 | 3 | Coated | NO | £21.51 | 1-2 days | |
| OSG-31200120 | 1.20 | 11 | 38 | 3 | Coated | NO | £21.51 | 1-2 days | |
| OSG-31200130 | 1.30 | 11 | 38 | 3 | Coated | NO | £21.51 | 1-2 days | |
| OSG-31200140 | 1.40 | 12 | 38 | 3 | Coated | NO | £21.51 | 1-2 days | |
| OSG-31200150 | 1.50 | 12 | 45 | 3 | Coated | NO | £21.51 | 1-2 days | |
| OSG-31200160 | 1.60 | 14 | 45 | 3 | Coated | NO | £20.79 | 1-2 days | |
| OSG-31200170 | 1.70 | 14 | 45 | 3 | Coated | NO | £20.79 | 1-2 days | |
| OSG-31200180 | 1.80 | 16 | 45 | 3 | Coated | NO | £20.79 | 1-2 days | |
| OSG-31200190 | 1.90 | 16 | 45 | 3 | Coated | NO | £20.79 | 1-2 days | |
| OSG-31200200 | 2.00 | 18 | 50 | 3 | Coated | NO | £20.79 | 1-2 days | |
| OSG-31200210 | 2.10 | 18 | 50 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200220 | 2.20 | 20 | 52 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200230 | 2.30 | 20 | 52 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200240 | 2.40 | 22 | 52 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200250 | 2.50 | 22 | 56 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200260 | 2.60 | 22 | 56 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200270 | 2.70 | 23 | 56 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200280 | 2.80 | 23 | 56 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200290 | 2.90 | 23 | 56 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200300 | 3.00 | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200310 | 3.10 | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200317 | 3.17 (1/8) | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200320 | 3.20 | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200330 | 3.30 | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200340 | 3.40 | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200350 | 3.50 | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200357 | 3.57 (5/32) | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200360 | 3.60 | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200370 | 3.70 | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200380 | 3.80 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200390 | 3.90 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200397 | 3.97 (5/32) | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200400 | 4.00 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200410 | 4.10 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200420 | 4.20 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200430 | 4.30 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200437 | 4.37 (11/64) | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200440 | 4.40 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200450 | 4.50 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200460 | 4.60 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200470 | 4.70 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200476 | 4.76 (3/16) | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200480 | 4.80 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200490 | 4.90 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200500 | 5.00 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200510 | 5.10 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200516 | 5.16 (13/64) | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200520 | 5.20 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200530 | 5.30 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200540 | 5.40 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200550 | 5.50 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200556 | 5.56 (7/32) | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200560 | 5.60 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200570 | 5.70 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200580 | 5.80 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200590 | 5.90 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200595 | 5.95 (15/64) | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200600 | 6.00 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200610 | 6.10 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200620 | 6.20 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200630 | 6.30 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200635 | 6.35 (1/4) | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200640 | 6.40 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200650 | 6.50 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200660 | 6.60 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200670 | 6.70 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200675 | 6.75 (17/64) | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200680 | 6.80 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200690 | 6.90 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200700 | 7.00 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200710 | 7.10 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200714 | 7.14 (9/32) | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200720 | 7.20 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200730 | 7.30 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200740 | 7.40 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200750 | 7.50 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200754 | 7.54 (19/64) | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200760 | 7.60 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200770 Viewing | 7.70 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200780 | 7.80 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200790 | 7.90 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200794 | 7.94 (5/16) | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200800 | 8.00 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200810 | 8.10 | 61 | 103 | 8 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200820 | 8.20 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200830 | 8.30 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200833 | 8.33 (21/64) | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200840 | 8.40 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200850 | 8.50 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200860 | 8.60 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200870 | 8.70 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200873 | 8.73 (11/32) | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200880 | 8.80 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200890 | 8.90 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200900 | 9.00 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200910 | 9.10 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200913 | 9.13 (23/64) | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200920 | 9.20 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200930 | 9.30 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200940 | 9.40 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200950 | 9.50 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200952 | 9.52 (3/8) | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200960 | 9.60 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200970 | 9.70 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200980 | 9.80 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200990 | 9.90 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200992 | 9.92 (25/64) | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31201000 | 10.00 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31201010 | 10.10 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201020 | 10.20 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201030 | 10.30 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201032 | 10.32 (13/32) | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201040 | 10.40 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201050 | 10.50 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201060 | 10.60 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201070 | 10.70 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201072 | 10.72 (27/64) | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201080 | 10.80 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201090 | 10.90 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201100 | 11.00 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201110 | 11.10 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201111 | 11.11 (7/16) | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201120 | 11.20 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201130 | 11.30 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201140 | 11.40 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201150 | 11.50 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201151 | 11.51 (29/64) | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201160 | 11.60 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201170 | 11.70 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201180 | 11.80 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201190 | 11.90 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201191 | 11.91 (15/32) | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201200 | 12.00 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201230 | 12.3 (31/64) | 77 | 124 | 14 | Coated | NO | £93.62 | 1-2 days | |
| OSG-31201250 | 12.50 | 77 | 124 | 14 | Coated | NO | £93.62 | 1-2 days | |
| OSG-31201270 | 12.7 (1/2) | 77 | 124 | 14 | Coated | NO | £93.62 | 1-2 days | |
| OSG-31201300 | 13.00 | 77 | 124 | 14 | Coated | NO | £93.62 | 1-2 days | |
| OSG-31201350 | 13.50 | 77 | 124 | 14 | Coated | NO | £93.62 | 1-2 days | |
| OSG-31201400 | 14.00 | 77 | 124 | 14 | Coated | NO | £93.62 | 1-2 days | |
| OSG-31201429 | 14.29 (9/16) | 83 | 133 | 16 | Coated | NO | £135.83 | 1-2 days | |
| OSG-31201450 | 14.50 | 83 | 133 | 16 | Coated | NO | £135.83 | 1-2 days | |
| OSG-31201500 | 15.00 | 83 | 133 | 16 | Coated | NO | £135.83 | 1-2 days | |
| OSG-31201550 | 15.50 | 83 | 133 | 16 | Coated | NO | £135.83 | 1-2 days | |
| OSG-31201587 | 15.87 (/8) | 83 | 133 | 16 | Coated | NO | £135.83 | 1-2 days | |
| OSG-31201600 | 16.00 | 83 | 133 | 16 | Coated | NO | £135.83 | 1-2 days | |
| OSG-31201650 | 16.50 | 93 | 133 | 18 | Coated | NO | £236.84 | 1-2 days | |
| OSG-31201700 | 17.00 | 93 | 133 | 18 | Coated | NO | £236.84 | 1-2 days | |
| OSG-31201750 | 17.50 | 93 | 133 | 18 | Coated | NO | £236.84 | 1-2 days | |
| OSG-31201800 | 18.00 | 93 | 133 | 18 | Coated | NO | £236.84 | 1-2 days | |
| OSG-31201850 | 18.50 | 101 | 153 | 20 | Coated | NO | £236.84 | 1-2 days | |
| OSG-31201900 | 19.00 | 101 | 153 | 20 | Coated | NO | £236.84 | 1-2 days | |
| OSG-31201950 | 19.50 | 101 | 153 | 20 | Coated | NO | £236.84 | 1-2 days | |
| OSG-31202000 | 20.00 | 101 | 153 | 20 | Coated | NO | £236.84 | 1-2 days |
No products match your filters.
