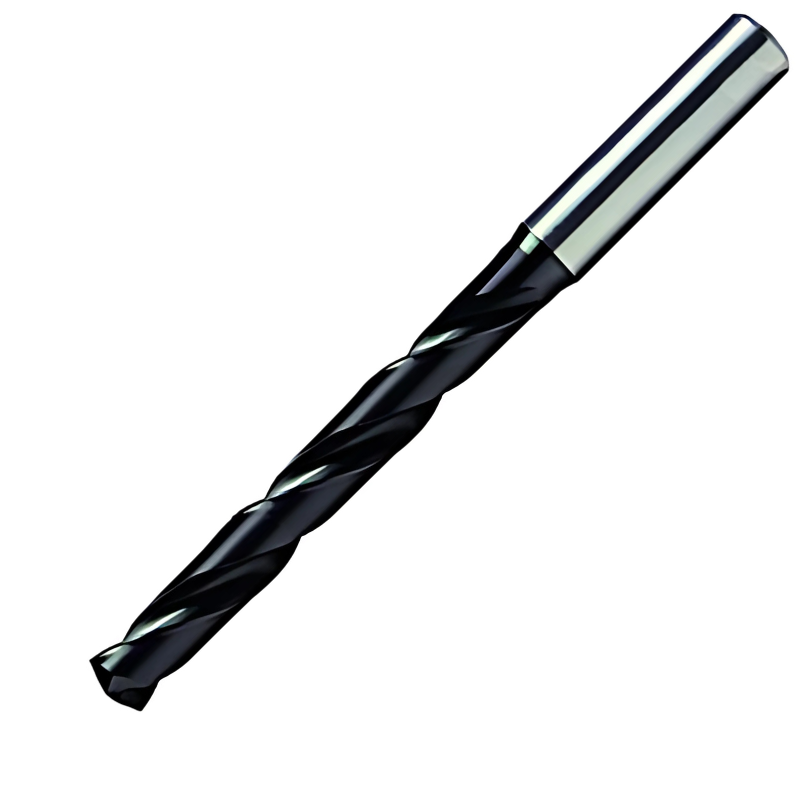

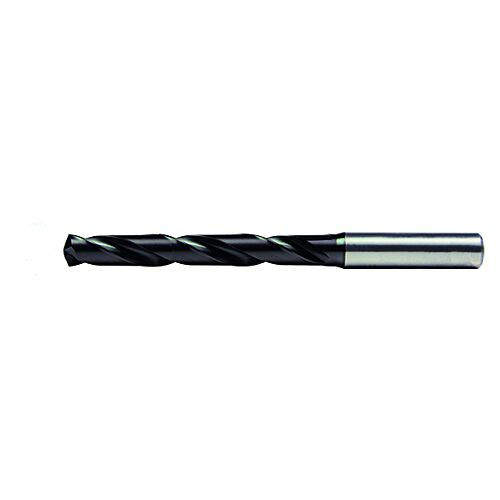

OSG Carbide Drill 5XD - WD1 Coated - Solid - 9.4mm
SKU:OSG-31200940
The OSG Carbide Drill 5XD, WD1 coated and built as a solid carbide tool, is designed for precision drilling across metals, composites, and other engineering materials. Sized at 9.4 mm diameter, i...
Read more ↓
Material Compatibility
P
K
H
Specifications at a glance
View all specifications ↓
Download Cutting Data
| Drill Diameter | 9.40 |
| Flute Length | 61 |
| Overall Length | 103 |
| Shank Diameter | 10 |
£55.78
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Description
The OSG Carbide Drill 5XD, WD1 coated and built as a solid carbide tool, is designed for precision drilling across metals, composites, and other engineering materials. Sized at 9.4 mm diameter, it delivers reliable hole quality in demanding everyday machining tasks and is suited for professionals and serious hobbyists alike.
With a 5XD (five times diameter) length-to-diameter ratio, this drill excels at deeper holes in a single setup, reducing tool changes and boosting productivity. The WD1 coating provides enhanced wear resistance and heat handling, helping the tool stay sharp longer and deliver consistent hole dimensions through repeated use.
- WD1-coated for extended tool life: The coating reduces wear and temperature buildup, delivering more holes between re-sharpening and maintaining consistent hole size and finish.
- 5XD length-to-diameter versatility: Deep-hole capability in a single setup lowers downtime from tool changes while preserving straight, true hole geometry for reliable results.
- Solid carbide construction: A stiff, heat-resistant core delivers consistent performance, reduced deflection, and improved surface finish in metals and composites.
This drill combines durability, precision, and efficiency to support faster workflows, tighter tolerances, and better overall results. Whether you’re producing tight pilot holes, through-holes, or deep features in steel, aluminum, or composite materials, the OSG 5XD drill delivers dependable performance that you can trust in production environments or shop floors.
Part Numbers
- Protool Part Number
- OSG-31200940
- Brand
- OSG
- Category
- Drill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Ask our technical team about this tool
Full Range: OSG Carbide Drill 5XD - WD1 Coated - Solid
View full collection →You are viewing OSG-31200940. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-31200100 | 1.00 | 9 | 38 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200110 | 1.10 | 9 | 38 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200120 | 1.20 | 11 | 38 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200130 | 1.30 | 11 | 38 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200140 | 1.40 | 12 | 38 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200150 | 1.50 | 12 | 45 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200160 | 1.60 | 14 | 45 | 3 | Coated | NO | £23.38 | 1-2 days | |
| OSG-31200170 | 1.70 | 14 | 45 | 3 | Coated | NO | £23.38 | 1-2 days | |
| OSG-31200180 | 1.80 | 16 | 45 | 3 | Coated | NO | £23.38 | 1-2 days | |
| OSG-31200190 | 1.90 | 16 | 45 | 3 | Coated | NO | £23.38 | 1-2 days | |
| OSG-31200200 | 2.00 | 18 | 50 | 3 | Coated | NO | £23.38 | 1-2 days | |
| OSG-31200210 | 2.10 | 18 | 50 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200220 | 2.20 | 20 | 52 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200230 | 2.30 | 20 | 52 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200240 | 2.40 | 22 | 52 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200250 | 2.50 | 22 | 56 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200260 | 2.60 | 22 | 56 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200270 | 2.70 | 23 | 56 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200280 | 2.80 | 23 | 56 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200290 | 2.90 | 23 | 56 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200300 | 3.00 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200310 | 3.10 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200317 | 3.17 (1/8) | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200320 | 3.20 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200330 | 3.30 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200340 | 3.40 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200350 | 3.50 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200357 | 3.57 (5/32) | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200360 | 3.60 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200370 | 3.70 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200380 | 3.80 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200390 | 3.90 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200397 | 3.97 (5/32) | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200400 | 4.00 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200410 | 4.10 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200420 | 4.20 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200430 | 4.30 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200437 | 4.37 (11/64) | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200440 | 4.40 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200450 | 4.50 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200460 | 4.60 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200470 | 4.70 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200476 | 4.76 (3/16) | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200480 | 4.80 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200490 | 4.90 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200500 | 5.00 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200510 | 5.10 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200516 | 5.16 (13/64) | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200520 | 5.20 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200530 | 5.30 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200540 | 5.40 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200550 | 5.50 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200556 | 5.56 (7/32) | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200560 | 5.60 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200570 | 5.70 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200580 | 5.80 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200590 | 5.90 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200595 | 5.95 (15/64) | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200600 | 6.00 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200610 | 6.10 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200620 | 6.20 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200630 | 6.30 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200635 | 6.35 (1/4) | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200640 | 6.40 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200650 | 6.50 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200660 | 6.60 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200670 | 6.70 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200675 | 6.75 (17/64) | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200680 | 6.80 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200690 | 6.90 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200700 | 7.00 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200710 | 7.10 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200714 | 7.14 (9/32) | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200720 | 7.20 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200730 | 7.30 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200740 | 7.40 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200750 | 7.50 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200754 | 7.54 (19/64) | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200760 | 7.60 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200770 | 7.70 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200780 | 7.80 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200790 | 7.90 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200794 | 7.94 (5/16) | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200800 | 8.00 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200810 | 8.10 | 61 | 103 | 8 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200820 | 8.20 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200830 | 8.30 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200833 | 8.33 (21/64) | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200840 | 8.40 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200850 | 8.50 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200860 | 8.60 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200870 | 8.70 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200873 | 8.73 (11/32) | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200880 | 8.80 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200890 | 8.90 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200900 | 9.00 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200910 | 9.10 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200913 | 9.13 (23/64) | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200920 | 9.20 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200930 | 9.30 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200940 Viewing | 9.40 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200950 | 9.50 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200952 | 9.52 (3/8) | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200960 | 9.60 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200970 | 9.70 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200980 | 9.80 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200990 | 9.90 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200992 | 9.92 (25/64) | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31201000 | 10.00 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31201010 | 10.10 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201020 | 10.20 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201030 | 10.30 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201032 | 10.32 (13/32) | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201040 | 10.40 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201050 | 10.50 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201060 | 10.60 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201070 | 10.70 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201072 | 10.72 (27/64) | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201080 | 10.80 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201090 | 10.90 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201100 | 11.00 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201110 | 11.10 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201111 | 11.11 (7/16) | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201120 | 11.20 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201130 | 11.30 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201140 | 11.40 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201150 | 11.50 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201151 | 11.51 (29/64) | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201160 | 11.60 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201170 | 11.70 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201180 | 11.80 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201190 | 11.90 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201191 | 11.91 (15/32) | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201200 | 12.00 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201230 | 12.3 (31/64) | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201250 | 12.50 | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201270 | 12.7 (1/2) | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201300 | 13.00 | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201350 | 13.50 | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201400 | 14.00 | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201429 | 14.29 (9/16) | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201450 | 14.50 | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201500 | 15.00 | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201550 | 15.50 | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201587 | 15.87 (/8) | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201600 | 16.00 | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201650 | 16.50 | 93 | 133 | 18 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201700 | 17.00 | 93 | 133 | 18 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201750 | 17.50 | 93 | 133 | 18 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201800 | 18.00 | 93 | 133 | 18 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201850 | 18.50 | 101 | 153 | 20 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201900 | 19.00 | 101 | 153 | 20 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201950 | 19.50 | 101 | 153 | 20 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31202000 | 20.00 | 101 | 153 | 20 | Coated | NO | £266.44 | 1-2 days |
No products match your filters.
