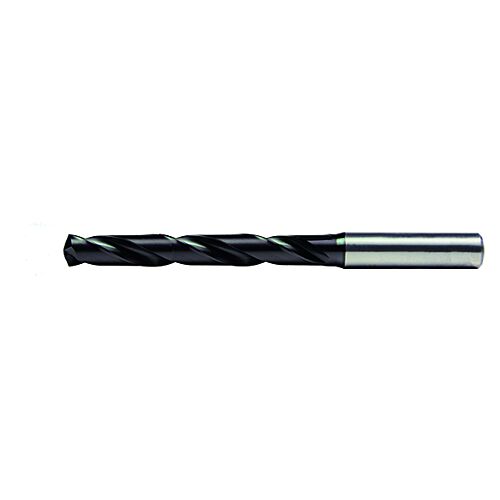

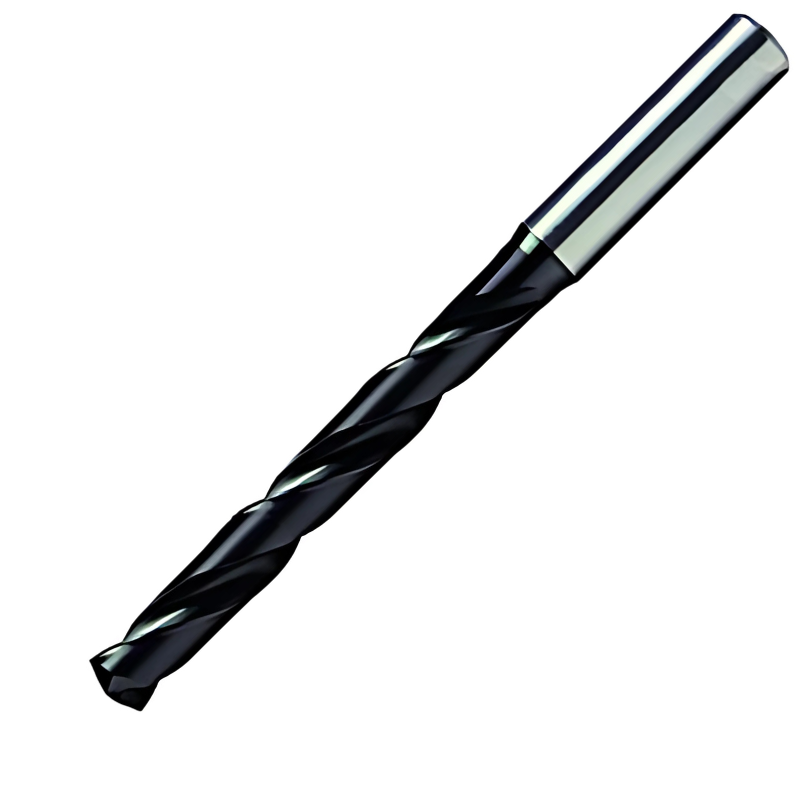

OSG Carbide Drill 5XD - WD1 Coated - Solid - 9.13 (23/64)
SKU:OSG-31200913
The OSG Carbide Drill 5XD, WD1 coated, is a solid carbide drilling tool built for precision and reliability. Designed for professional machining, it excels at creating clean, accurate holes in me...
Read more ↓
Material Compatibility
P
K
H
Specifications at a glance
View all specifications ↓
Download Cutting Data
| Drill Diameter | 9.13 (23/64) |
| Flute Length | 61 |
| Overall Length | 103 |
| Shank Diameter | 10 |
£49.59
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Description
The OSG Carbide Drill 5XD, WD1 coated, is a solid carbide drilling tool built for precision and reliability. Designed for professional machining, it excels at creating clean, accurate holes in metals and composites. With a 5XD (five times diameter) length-to-diameter ratio, it delivers deep-hole capability without sacrificing rigidity or hole quality, making it a versatile choice for a wide range of drilling tasks. The 23/64" (9.13 mm) diameter keeps your setups predictable while offering robust performance for demanding applications.
- 5XD length-to-diameter for deep, precise holes: Extended reach with minimal deflection protects hole accuracy and finish while accommodating deeper drilling work without compromising stability.
- WD1 coating for extended tool life: Diamond-like wear resistance reduces wear, lowers tooling costs, and minimizes downtime from frequent tool changes during long runs.
- Solid carbide construction for reliable performance: Hard, rigid material handles demanding materials and tough cuts, delivering consistent hole quality across metals and composites.
This drill helps you streamline workflows by delivering dependable, repeatable results from first run to the last. Its combination of deep-hole capability, durable coating, and solid carbide construction means fewer tool changes, fewer rework passes, and more predictable outcomes in everyday machining tasks.
Part Numbers
- Protool Part Number
- OSG-31200913
- Brand
- OSG
- Category
- Drill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Ask our technical team about this tool
Full Range: OSG Carbide Drill 5XD - WD1 Coated - Solid
View full collection →You are viewing OSG-31200913. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-31200100 | 1.00 | 9 | 38 | 3 | Coated | NO | £21.51 | 1-2 days | |
| OSG-31200110 | 1.10 | 9 | 38 | 3 | Coated | NO | £21.51 | 1-2 days | |
| OSG-31200120 | 1.20 | 11 | 38 | 3 | Coated | NO | £21.51 | 1-2 days | |
| OSG-31200130 | 1.30 | 11 | 38 | 3 | Coated | NO | £21.51 | 1-2 days | |
| OSG-31200140 | 1.40 | 12 | 38 | 3 | Coated | NO | £21.51 | 1-2 days | |
| OSG-31200150 | 1.50 | 12 | 45 | 3 | Coated | NO | £21.51 | 1-2 days | |
| OSG-31200160 | 1.60 | 14 | 45 | 3 | Coated | NO | £20.79 | 1-2 days | |
| OSG-31200170 | 1.70 | 14 | 45 | 3 | Coated | NO | £20.79 | 1-2 days | |
| OSG-31200180 | 1.80 | 16 | 45 | 3 | Coated | NO | £20.79 | 1-2 days | |
| OSG-31200190 | 1.90 | 16 | 45 | 3 | Coated | NO | £20.79 | 1-2 days | |
| OSG-31200200 | 2.00 | 18 | 50 | 3 | Coated | NO | £20.79 | 1-2 days | |
| OSG-31200210 | 2.10 | 18 | 50 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200220 | 2.20 | 20 | 52 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200230 | 2.30 | 20 | 52 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200240 | 2.40 | 22 | 52 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200250 | 2.50 | 22 | 56 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200260 | 2.60 | 22 | 56 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200270 | 2.70 | 23 | 56 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200280 | 2.80 | 23 | 56 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200290 | 2.90 | 23 | 56 | 3 | Coated | NO | £20.39 | 1-2 days | |
| OSG-31200300 | 3.00 | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200310 | 3.10 | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200317 | 3.17 (1/8) | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200320 | 3.20 | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200330 | 3.30 | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200340 | 3.40 | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200350 | 3.50 | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200357 | 3.57 (5/32) | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200360 | 3.60 | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200370 | 3.70 | 28 | 66 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200380 | 3.80 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200390 | 3.90 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200397 | 3.97 (5/32) | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200400 | 4.00 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200410 | 4.10 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200420 | 4.20 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200430 | 4.30 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200437 | 4.37 (11/64) | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200440 | 4.40 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200450 | 4.50 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200460 | 4.60 | 36 | 74 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200470 | 4.70 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200476 | 4.76 (3/16) | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200480 | 4.80 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200490 | 4.90 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200500 | 5.00 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200510 | 5.10 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200516 | 5.16 (13/64) | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200520 | 5.20 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200530 | 5.30 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200540 | 5.40 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200550 | 5.50 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200556 | 5.56 (7/32) | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200560 | 5.60 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200570 | 5.70 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200580 | 5.80 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200590 | 5.90 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200595 | 5.95 (15/64) | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200600 | 6.00 | 44 | 82 | 6 | Coated | NO | £39.88 | 1-2 days | |
| OSG-31200610 | 6.10 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200620 | 6.20 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200630 | 6.30 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200635 | 6.35 (1/4) | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200640 | 6.40 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200650 | 6.50 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200660 | 6.60 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200670 | 6.70 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200675 | 6.75 (17/64) | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200680 | 6.80 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200690 | 6.90 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200700 | 7.00 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200710 | 7.10 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200714 | 7.14 (9/32) | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200720 | 7.20 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200730 | 7.30 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200740 | 7.40 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200750 | 7.50 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200754 | 7.54 (19/64) | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200760 | 7.60 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200770 | 7.70 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200780 | 7.80 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200790 | 7.90 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200794 | 7.94 (5/16) | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200800 | 8.00 | 53 | 91 | 8 | Coated | NO | £44.33 | 1-2 days | |
| OSG-31200810 | 8.10 | 61 | 103 | 8 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200820 | 8.20 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200830 | 8.30 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200833 | 8.33 (21/64) | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200840 | 8.40 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200850 | 8.50 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200860 | 8.60 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200870 | 8.70 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200873 | 8.73 (11/32) | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200880 | 8.80 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200890 | 8.90 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200900 | 9.00 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200910 | 9.10 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200913 Viewing | 9.13 (23/64) | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200920 | 9.20 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200930 | 9.30 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200940 | 9.40 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200950 | 9.50 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200952 | 9.52 (3/8) | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200960 | 9.60 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200970 | 9.70 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200980 | 9.80 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200990 | 9.90 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31200992 | 9.92 (25/64) | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31201000 | 10.00 | 61 | 103 | 10 | Coated | NO | £49.59 | 1-2 days | |
| OSG-31201010 | 10.10 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201020 | 10.20 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201030 | 10.30 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201032 | 10.32 (13/32) | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201040 | 10.40 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201050 | 10.50 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201060 | 10.60 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201070 | 10.70 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201072 | 10.72 (27/64) | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201080 | 10.80 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201090 | 10.90 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201100 | 11.00 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201110 | 11.10 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201111 | 11.11 (7/16) | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201120 | 11.20 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201130 | 11.30 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201140 | 11.40 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201150 | 11.50 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201151 | 11.51 (29/64) | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201160 | 11.60 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201170 | 11.70 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201180 | 11.80 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201190 | 11.90 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201191 | 11.91 (15/32) | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201200 | 12.00 | 71 | 118 | 12 | Coated | NO | £73.04 | 1-2 days | |
| OSG-31201230 | 12.3 (31/64) | 77 | 124 | 14 | Coated | NO | £93.62 | 1-2 days | |
| OSG-31201250 | 12.50 | 77 | 124 | 14 | Coated | NO | £93.62 | 1-2 days | |
| OSG-31201270 | 12.7 (1/2) | 77 | 124 | 14 | Coated | NO | £93.62 | 1-2 days | |
| OSG-31201300 | 13.00 | 77 | 124 | 14 | Coated | NO | £93.62 | 1-2 days | |
| OSG-31201350 | 13.50 | 77 | 124 | 14 | Coated | NO | £93.62 | 1-2 days | |
| OSG-31201400 | 14.00 | 77 | 124 | 14 | Coated | NO | £93.62 | 1-2 days | |
| OSG-31201429 | 14.29 (9/16) | 83 | 133 | 16 | Coated | NO | £135.83 | 1-2 days | |
| OSG-31201450 | 14.50 | 83 | 133 | 16 | Coated | NO | £135.83 | 1-2 days | |
| OSG-31201500 | 15.00 | 83 | 133 | 16 | Coated | NO | £135.83 | 1-2 days | |
| OSG-31201550 | 15.50 | 83 | 133 | 16 | Coated | NO | £135.83 | 1-2 days | |
| OSG-31201587 | 15.87 (/8) | 83 | 133 | 16 | Coated | NO | £135.83 | 1-2 days | |
| OSG-31201600 | 16.00 | 83 | 133 | 16 | Coated | NO | £135.83 | 1-2 days | |
| OSG-31201650 | 16.50 | 93 | 133 | 18 | Coated | NO | £236.84 | 1-2 days | |
| OSG-31201700 | 17.00 | 93 | 133 | 18 | Coated | NO | £236.84 | 1-2 days | |
| OSG-31201750 | 17.50 | 93 | 133 | 18 | Coated | NO | £236.84 | 1-2 days | |
| OSG-31201800 | 18.00 | 93 | 133 | 18 | Coated | NO | £236.84 | 1-2 days | |
| OSG-31201850 | 18.50 | 101 | 153 | 20 | Coated | NO | £236.84 | 1-2 days | |
| OSG-31201900 | 19.00 | 101 | 153 | 20 | Coated | NO | £236.84 | 1-2 days | |
| OSG-31201950 | 19.50 | 101 | 153 | 20 | Coated | NO | £236.84 | 1-2 days | |
| OSG-31202000 | 20.00 | 101 | 153 | 20 | Coated | NO | £236.84 | 1-2 days |
No products match your filters.
