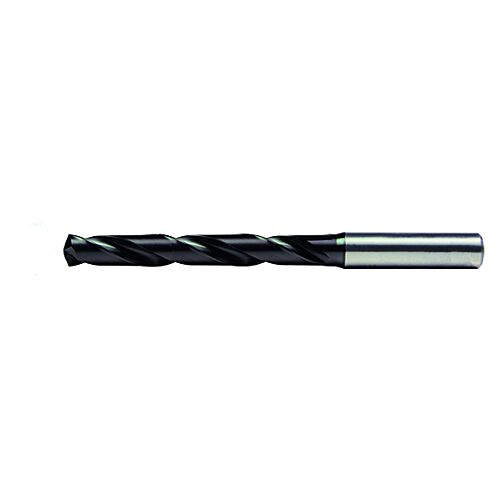

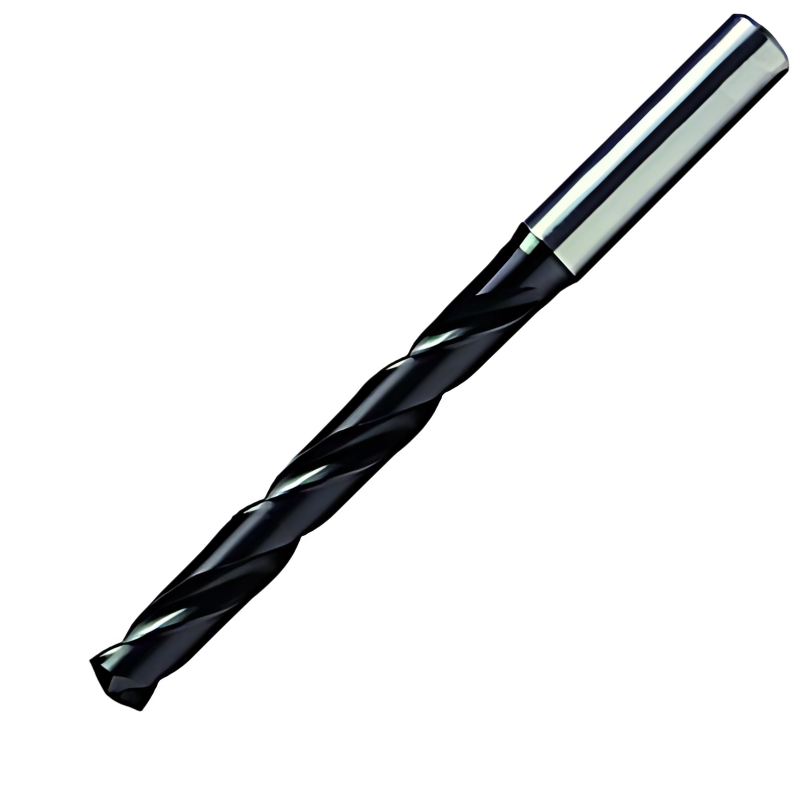

OSG Carbide Drill 5XD - WD1 Coated - Solid - 14.29 (9/16)
SKU:OSG-31201429
The OSG Carbide Drill 5XD, WD1 coated, is a solid carbide drill designed for precision drilling across metals, composites, and other materials. With a 5XD length-to-diameter ratio, it delivers ex...
Read more ↓
Material Compatibility
P
K
H
Specifications at a glance
View all specifications ↓
Download Cutting Data
| Drill Diameter | 14.29 (9/16) |
| Flute Length | 83 |
| Overall Length | 133 |
| Shank Diameter | 16 |
£152.81
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Description
The OSG Carbide Drill 5XD, WD1 coated, is a solid carbide drill designed for precision drilling across metals, composites, and other materials. With a 5XD length-to-diameter ratio, it delivers extended reach and stability for deep holes with clean starts. Diameter 14.29 mm (9/16 in) makes it suitable for a wide range of standard hole sizes.
Ideal for engineers, machinists, technicians, and hobbyists who require reliable, repeatable holes, this drill balances performance and durability. The WD1 coating extends tool life and reduces wear, helping you complete projects with fewer tool changes and downtime.
- 5XD geometry for deep-hole versatility: Extended reach and rigidity with a 5XD length-to-diameter ratio enables accurate, stable drilling in deep holes while minimizing deflection and chatter.
- WD1 coating for extended wear resistance: The WD1 coating reduces wear and heat buildup, delivering longer tool life and fewer replacements in demanding drilling jobs.
- Solid carbide construction for precision and durability: Provides a rigid core for clean starts, tight hole tolerances, and reliable performance across metals, composites, and other materials.
Designed to deliver consistent, precise results, the OSG Carbide Drill 5XD WD1 helps you streamline workflows, reduce cycle times, and improve hole quality across a range of materials. The combination of deep-hole capability, long tool life, and rigid performance means fewer tool changes, less rework, and more productive machining sessions.
Part Numbers
- Protool Part Number
- OSG-31201429
- Brand
- OSG
- Category
- Drill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Ask our technical team about this tool
Full Range: OSG Carbide Drill 5XD - WD1 Coated - Solid
View full collection →You are viewing OSG-31201429. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-31200100 | 1.00 | 9 | 38 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200110 | 1.10 | 9 | 38 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200120 | 1.20 | 11 | 38 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200130 | 1.30 | 11 | 38 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200140 | 1.40 | 12 | 38 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200150 | 1.50 | 12 | 45 | 3 | Coated | NO | £24.19 | 1-2 days | |
| OSG-31200160 | 1.60 | 14 | 45 | 3 | Coated | NO | £23.38 | 1-2 days | |
| OSG-31200170 | 1.70 | 14 | 45 | 3 | Coated | NO | £23.38 | 1-2 days | |
| OSG-31200180 | 1.80 | 16 | 45 | 3 | Coated | NO | £23.38 | 1-2 days | |
| OSG-31200190 | 1.90 | 16 | 45 | 3 | Coated | NO | £23.38 | 1-2 days | |
| OSG-31200200 | 2.00 | 18 | 50 | 3 | Coated | NO | £23.38 | 1-2 days | |
| OSG-31200210 | 2.10 | 18 | 50 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200220 | 2.20 | 20 | 52 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200230 | 2.30 | 20 | 52 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200240 | 2.40 | 22 | 52 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200250 | 2.50 | 22 | 56 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200260 | 2.60 | 22 | 56 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200270 | 2.70 | 23 | 56 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200280 | 2.80 | 23 | 56 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200290 | 2.90 | 23 | 56 | 3 | Coated | NO | £22.94 | 1-2 days | |
| OSG-31200300 | 3.00 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200310 | 3.10 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200317 | 3.17 (1/8) | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200320 | 3.20 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200330 | 3.30 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200340 | 3.40 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200350 | 3.50 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200357 | 3.57 (5/32) | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200360 | 3.60 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200370 | 3.70 | 28 | 66 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200380 | 3.80 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200390 | 3.90 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200397 | 3.97 (5/32) | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200400 | 4.00 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200410 | 4.10 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200420 | 4.20 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200430 | 4.30 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200437 | 4.37 (11/64) | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200440 | 4.40 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200450 | 4.50 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200460 | 4.60 | 36 | 74 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200470 | 4.70 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200476 | 4.76 (3/16) | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200480 | 4.80 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200490 | 4.90 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200500 | 5.00 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200510 | 5.10 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200516 | 5.16 (13/64) | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200520 | 5.20 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200530 | 5.30 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200540 | 5.40 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200550 | 5.50 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200556 | 5.56 (7/32) | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200560 | 5.60 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200570 | 5.70 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200580 | 5.80 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200590 | 5.90 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200595 | 5.95 (15/64) | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200600 | 6.00 | 44 | 82 | 6 | Coated | NO | £44.86 | 1-2 days | |
| OSG-31200610 | 6.10 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200620 | 6.20 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200630 | 6.30 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200635 | 6.35 (1/4) | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200640 | 6.40 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200650 | 6.50 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200660 | 6.60 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200670 | 6.70 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200675 | 6.75 (17/64) | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200680 | 6.80 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200690 | 6.90 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200700 | 7.00 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200710 | 7.10 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200714 | 7.14 (9/32) | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200720 | 7.20 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200730 | 7.30 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200740 | 7.40 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200750 | 7.50 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200754 | 7.54 (19/64) | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200760 | 7.60 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200770 | 7.70 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200780 | 7.80 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200790 | 7.90 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200794 | 7.94 (5/16) | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200800 | 8.00 | 53 | 91 | 8 | Coated | NO | £49.86 | 1-2 days | |
| OSG-31200810 | 8.10 | 61 | 103 | 8 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200820 | 8.20 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200830 | 8.30 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200833 | 8.33 (21/64) | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200840 | 8.40 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200850 | 8.50 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200860 | 8.60 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200870 | 8.70 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200873 | 8.73 (11/32) | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200880 | 8.80 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200890 | 8.90 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200900 | 9.00 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200910 | 9.10 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200913 | 9.13 (23/64) | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200920 | 9.20 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200930 | 9.30 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200940 | 9.40 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200950 | 9.50 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200952 | 9.52 (3/8) | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200960 | 9.60 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200970 | 9.70 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200980 | 9.80 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200990 | 9.90 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31200992 | 9.92 (25/64) | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31201000 | 10.00 | 61 | 103 | 10 | Coated | NO | £55.78 | 1-2 days | |
| OSG-31201010 | 10.10 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201020 | 10.20 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201030 | 10.30 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201032 | 10.32 (13/32) | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201040 | 10.40 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201050 | 10.50 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201060 | 10.60 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201070 | 10.70 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201072 | 10.72 (27/64) | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201080 | 10.80 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201090 | 10.90 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201100 | 11.00 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201110 | 11.10 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201111 | 11.11 (7/16) | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201120 | 11.20 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201130 | 11.30 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201140 | 11.40 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201150 | 11.50 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201151 | 11.51 (29/64) | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201160 | 11.60 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201170 | 11.70 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201180 | 11.80 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201190 | 11.90 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201191 | 11.91 (15/32) | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201200 | 12.00 | 71 | 118 | 12 | Coated | NO | £82.17 | 1-2 days | |
| OSG-31201230 | 12.3 (31/64) | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201250 | 12.50 | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201270 | 12.7 (1/2) | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201300 | 13.00 | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201350 | 13.50 | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201400 | 14.00 | 77 | 124 | 14 | Coated | NO | £105.33 | 1-2 days | |
| OSG-31201429 Viewing | 14.29 (9/16) | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201450 | 14.50 | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201500 | 15.00 | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201550 | 15.50 | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201587 | 15.87 (/8) | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201600 | 16.00 | 83 | 133 | 16 | Coated | NO | £152.81 | 1-2 days | |
| OSG-31201650 | 16.50 | 93 | 133 | 18 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201700 | 17.00 | 93 | 133 | 18 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201750 | 17.50 | 93 | 133 | 18 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201800 | 18.00 | 93 | 133 | 18 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201850 | 18.50 | 101 | 153 | 20 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201900 | 19.00 | 101 | 153 | 20 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31201950 | 19.50 | 101 | 153 | 20 | Coated | NO | £266.44 | 1-2 days | |
| OSG-31202000 | 20.00 | 101 | 153 | 20 | Coated | NO | £266.44 | 1-2 days |
No products match your filters.
