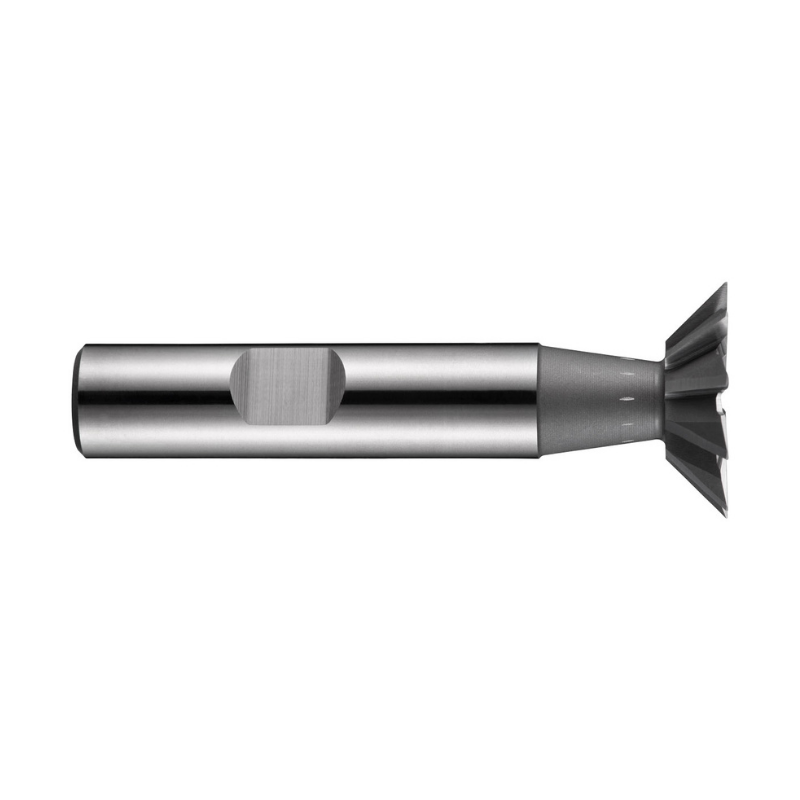

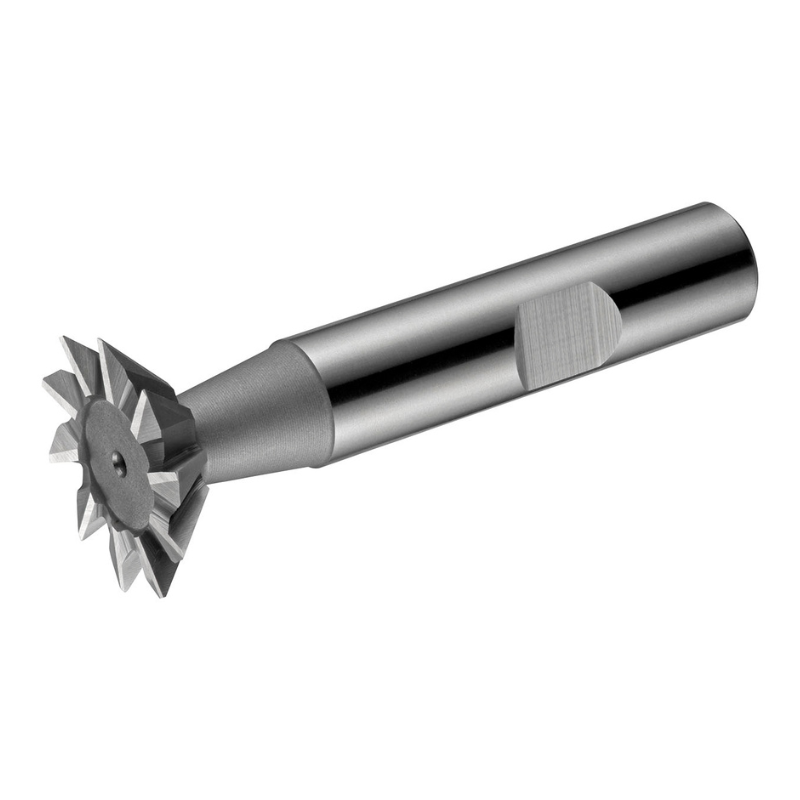

Dormer Pramet C83 12.0mm x 5.mm HSS-E Flatted Shank Dovetail CUTTER DIN 1833 C

Engineered for precision dovetail milling, the Dormer Pramet C83 12.0 mm dovetail cutter delivers clean, repeatable dovetail grooves in steel and alloy workpieces. Built with cobalt-based HSS-E and a robust DIN 1833 C specification, it’s tailored for toolmakers and machinists who demand reliable performance in demanding milling scenarios.

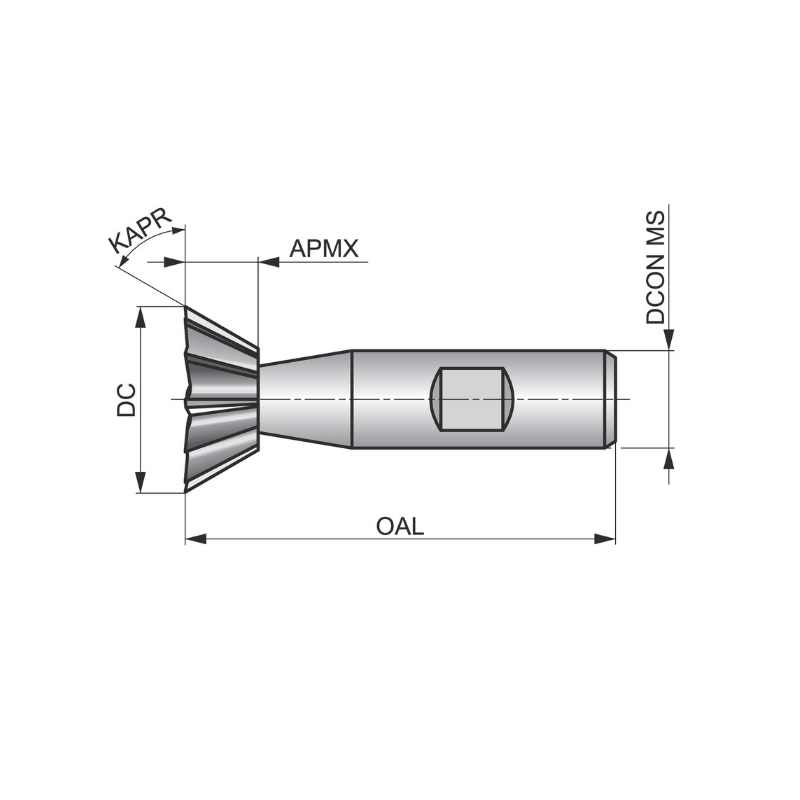

• Diameter: 12.0 mm
• Depth of cut: 5.0 mm
• Overall length: 54 mm
• Shank: Weldon 10 mm
• Material: Cobalt-based HSS-E with bright finish
• Standard: DIN 1833 C
• Angle: 60° dovetail cutter for dovetail grooves
• Teeth: 1 tooth
• Material compatibility: Suitable for milling dovetail grooves in steel, cast steel, stainless steel, cast iron, non-ferrous metals, and high-temperature alloys

This cutter excels at producing precise, strong dovetail joints with consistent geometry. The cobalt-based HSS-E composition delivers improved wear resistance in tough metals and high-temperature environments, while the bright finish aids chip evacuation and visibility during setup. The Weldon 10 mm shank provides secure seating in compatible holders, helping to minimize runout and chatter during mid-depth dovetail milling. With DIN 1833 C conformity, it fits seamlessly into standard dovetail milling workflows and tooling setups, making it a reliable choice for production or workshop settings that require repeatable dovetail grooves.
