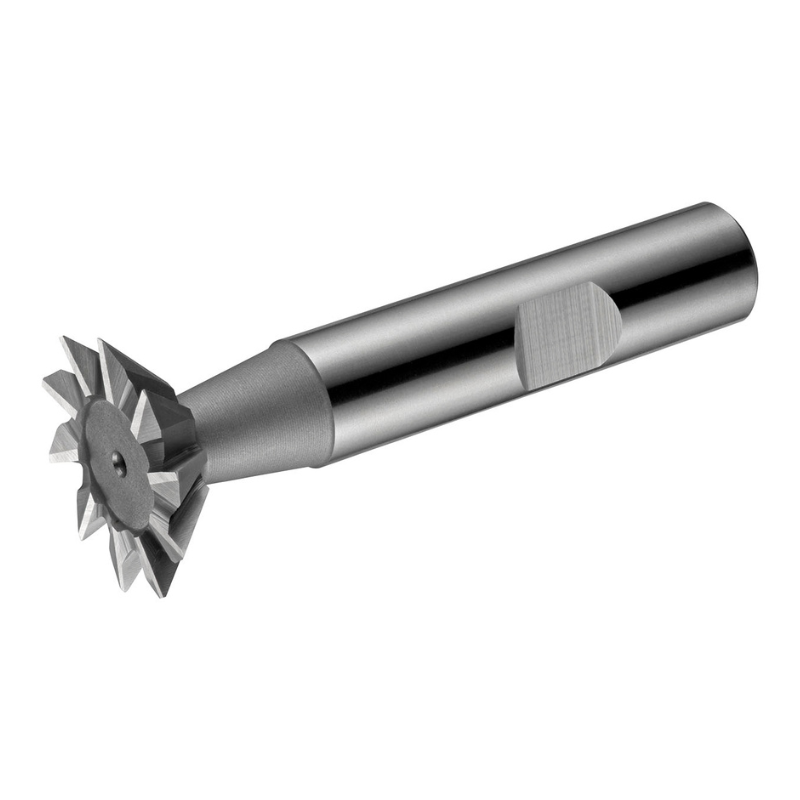

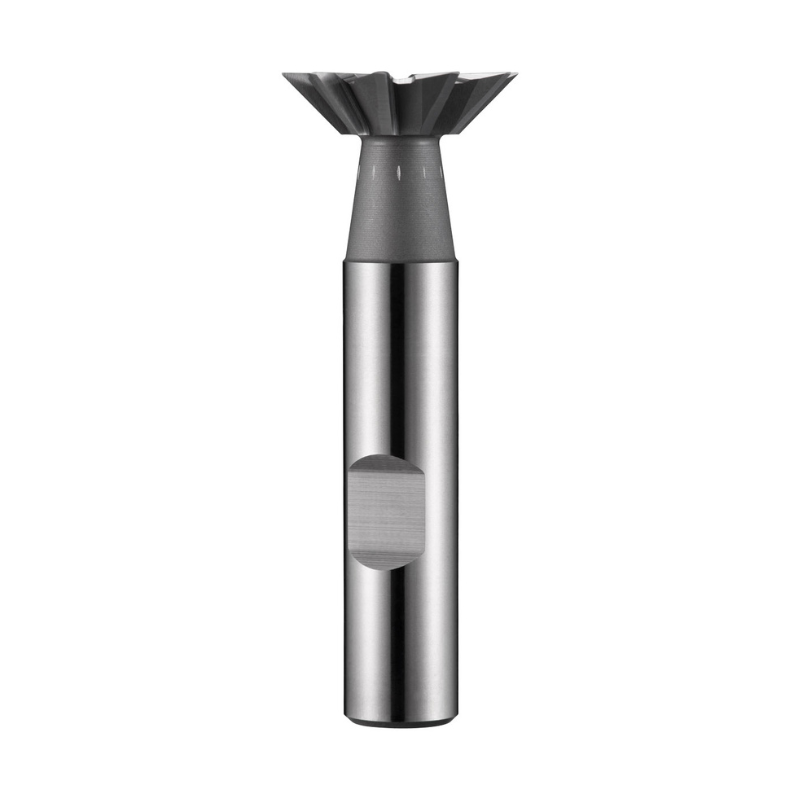

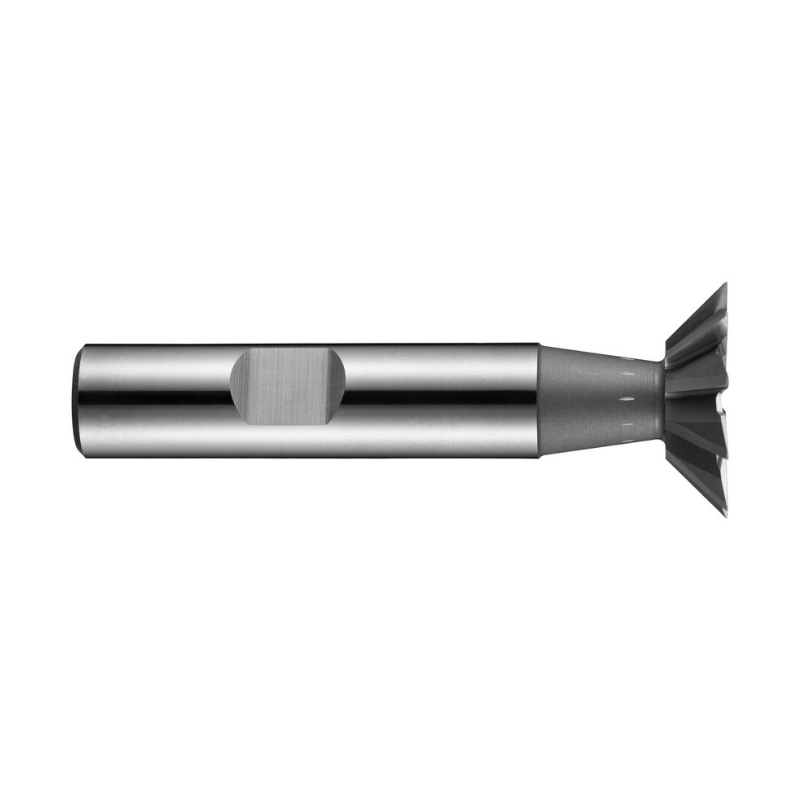

Dormer Pramet C83 32.0mm x 8.mm HSS-E Flatted Shank Dovetail CUTTER DIN 1833 C

The Dormer Pramet C83 32.0 mm dovetail cutter is a precision HSS-E tool designed for engineers and machinists who need reliable, accurate dovetail grooves in a range of metals. Built for durability and consistent performance, it delivers clean 45° dovetail profiles with every pass.

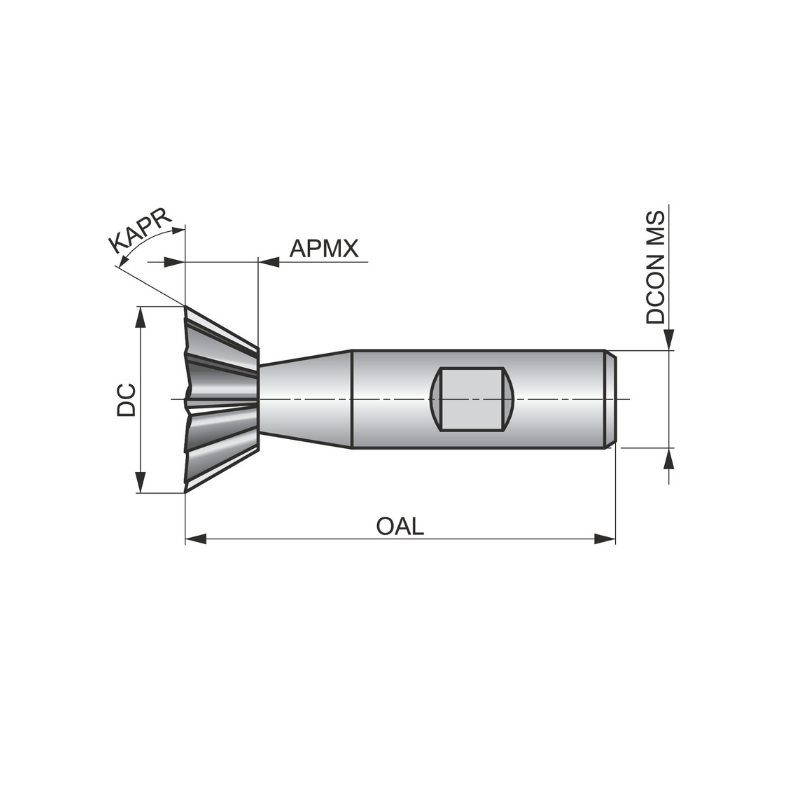

• Diameter: 32 mm
• Teeth: 12 cutting edges for efficient material removal and a smooth finish
• Depth of cut: 8 mm
• Overall length: 71 mm for added reach in recessed areas
• Shank: Weldon 16 mm with flatted shank for secure clamping and reduced rotation
• Material: HSS‑E (cobalt-based) with bright finish for enhanced wear resistance
• Standard: DIN 1833 C, ensuring compatibility with standard tool holders
• Cutting geometry: 45° dovetail form optimized for precise groove generation
• Scope of use: Suitable for milling dovetail grooves in steel, cast steel, stainless steel, cast-iron, non‑ferrous metals, and high‑temperature alloys

This cutter is ideal for production environments and precision workshops where repeatable dovetail joints are essential — from machine tool fixtures to sliding components and mounting grooves. The combination of a cobalt‑based HSS core and a robust 12‑tooth configuration delivers durable edge retention, reliable performance under higher cutting speeds, and consistent chip evacuation. The flatted Weldon shank enhances tool retention in the holder, helping minimize chatter and improve overall surface finish on dovetail profiles.
