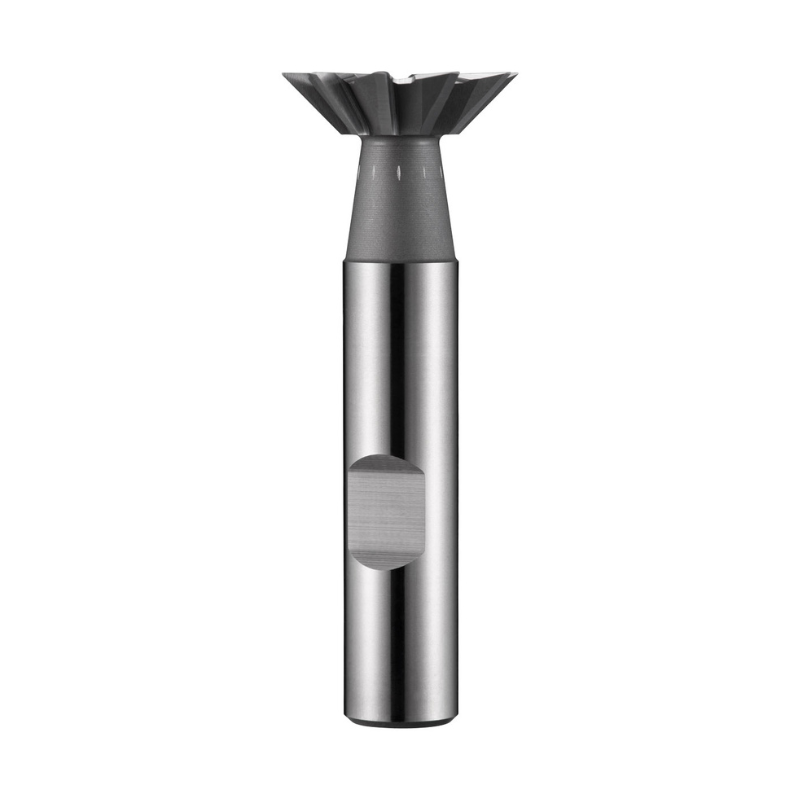

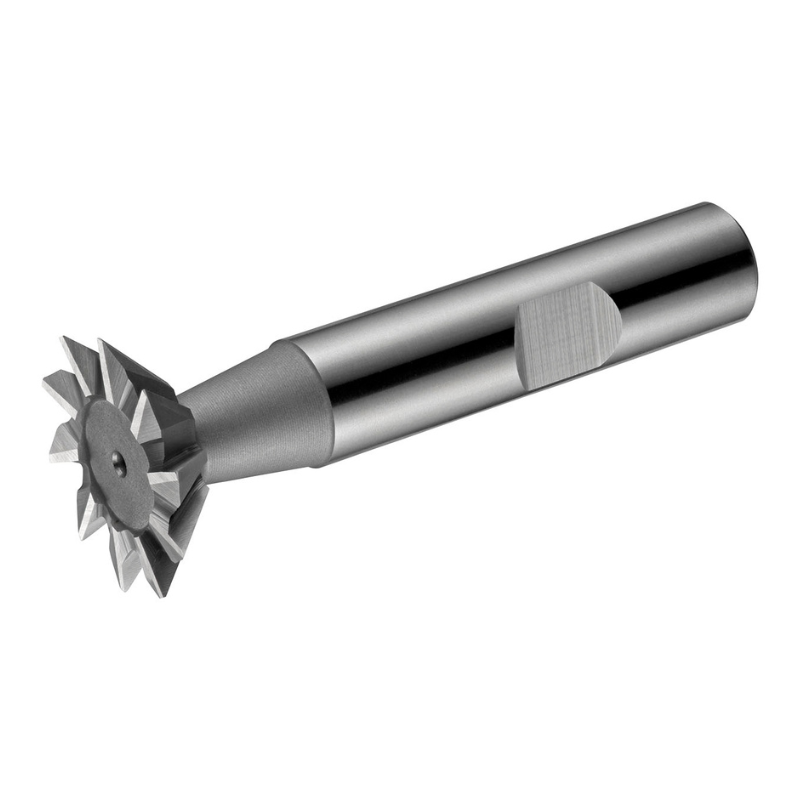

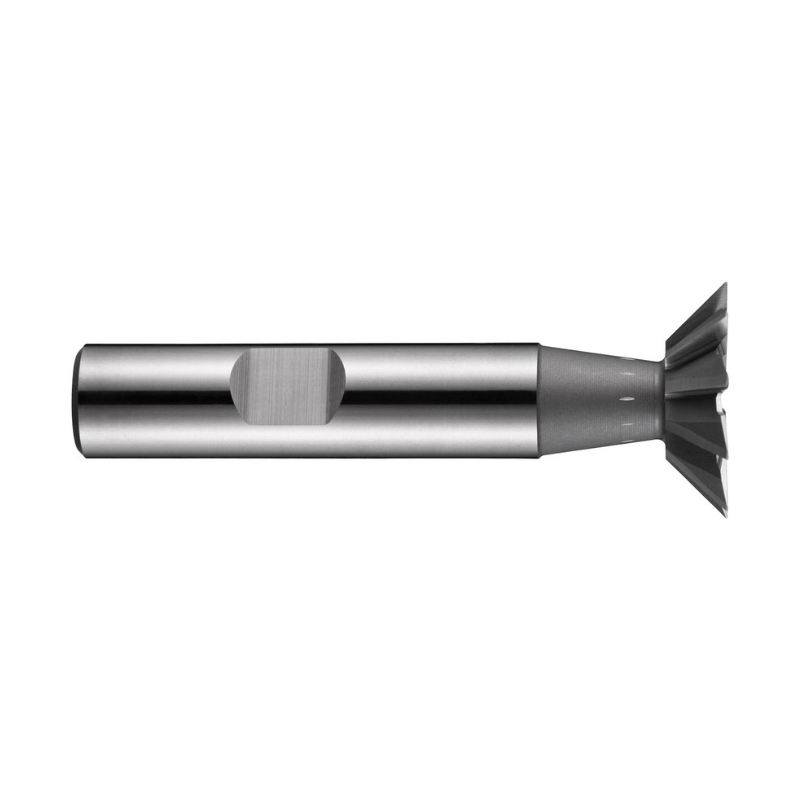

Dormer Pramet C83 16.0mm x 6.3 mm HSS-E Flatted Shank Dovetail CUTTER DIN 1833 C

The Dormer Pramet C83 16.0 mm x 6.3 mm HSS‑E flatted shank dovetail cutter is engineered to mill precise 60° dovetail grooves in a range of metals. Ideal for fixture builders, tool holders, and precision machinists, it delivers reliable performance on standard dovetail applications.

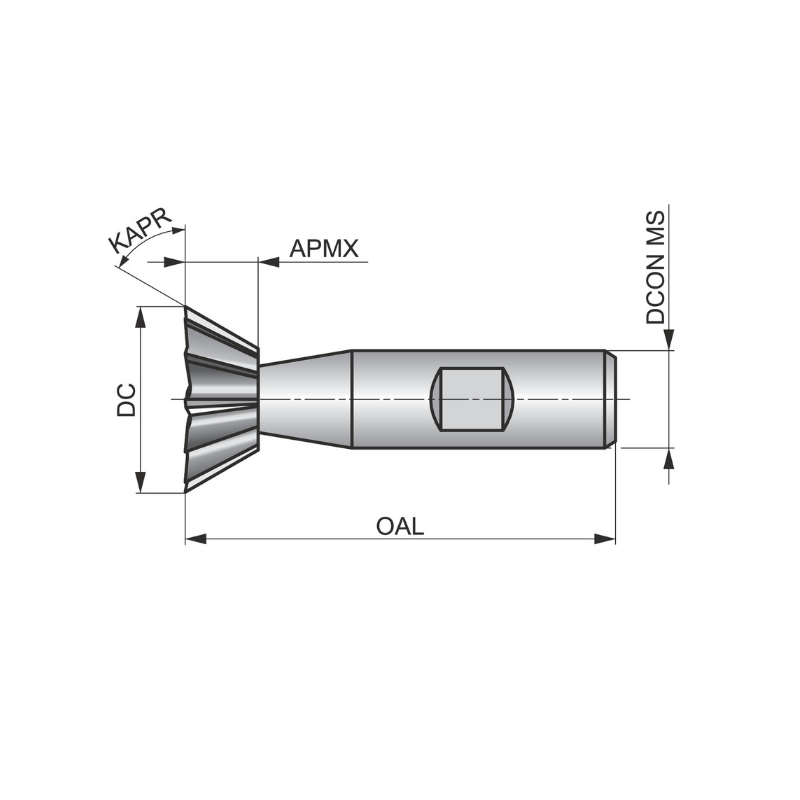

• Diameter: 16.0 mm
• Depth of Cut: 6.3 mm
• Overall Length: 60 mm
• Shank: 12 mm Weldon shank for secure mounting
• Material: HSS‑E cobalt‑based with bright finish
• Number of Teeth: 1 cutting edge
• Angle: 60° dovetail geometry
• DIN Standard: DIN 1833 C
• Applications: Milling dovetail grooves in steel, cast steel, stainless steel, cast iron, non‑ferrous metals, and high‑temperature alloys

Designed for robust performance, this cutter combines the wear resistance of cobalt‑based HSS‑E with a precise 60° dovetail angle to produce clean, repeatable grooves that meet DIN 1833 C specifications. The Weldon shank provides rigid clamping and minimizes runout, helping you achieve accurate fits in fixtures, pockets, and dovetail joints. Use in CNC milling centers or manual machines with appropriate speed and feed settings to maximize tool life and surface finish across a variety of metal substrates.
