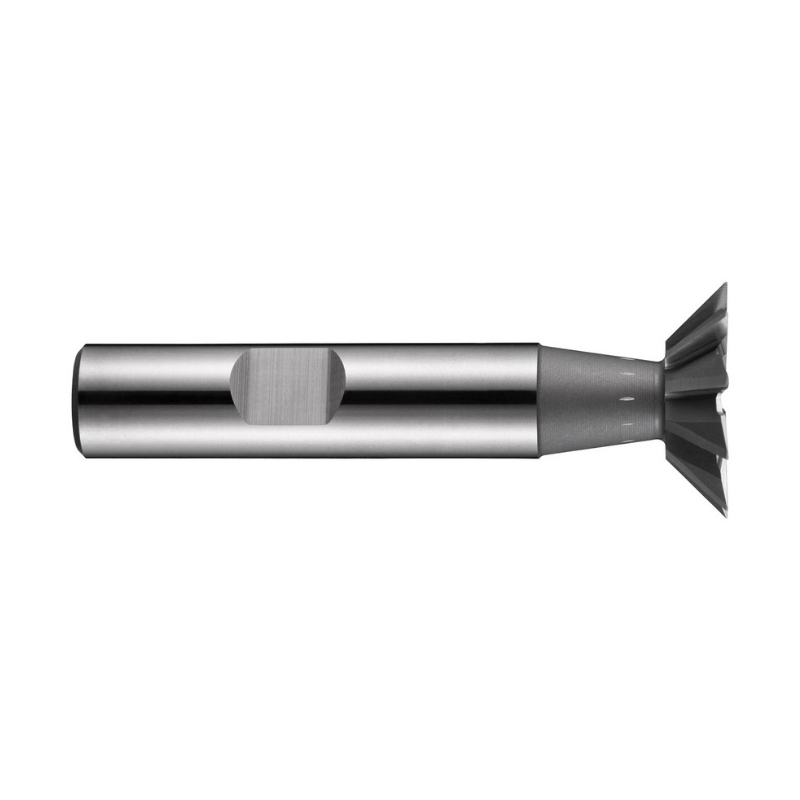

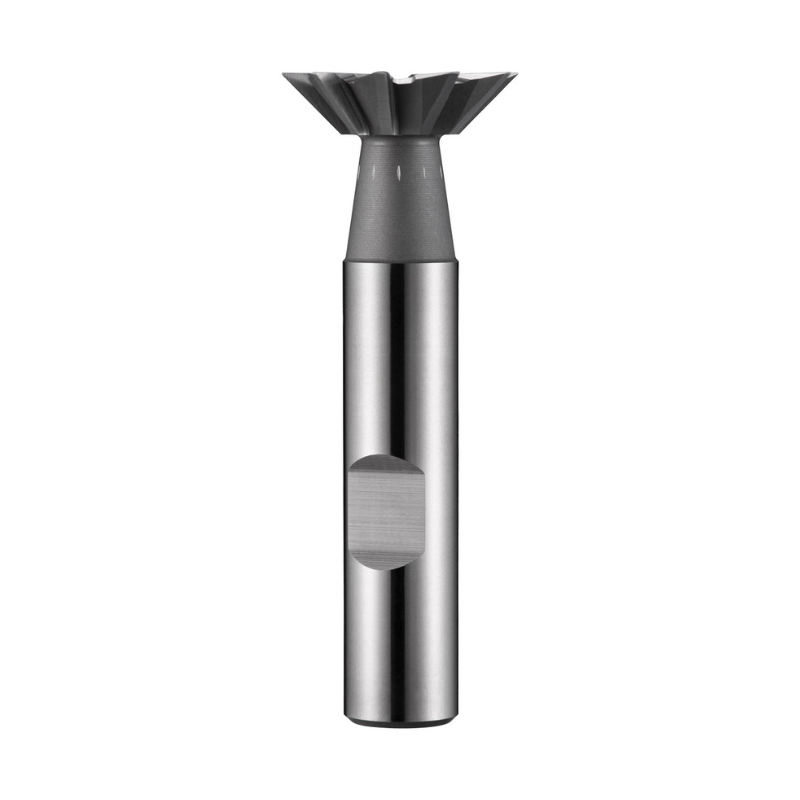

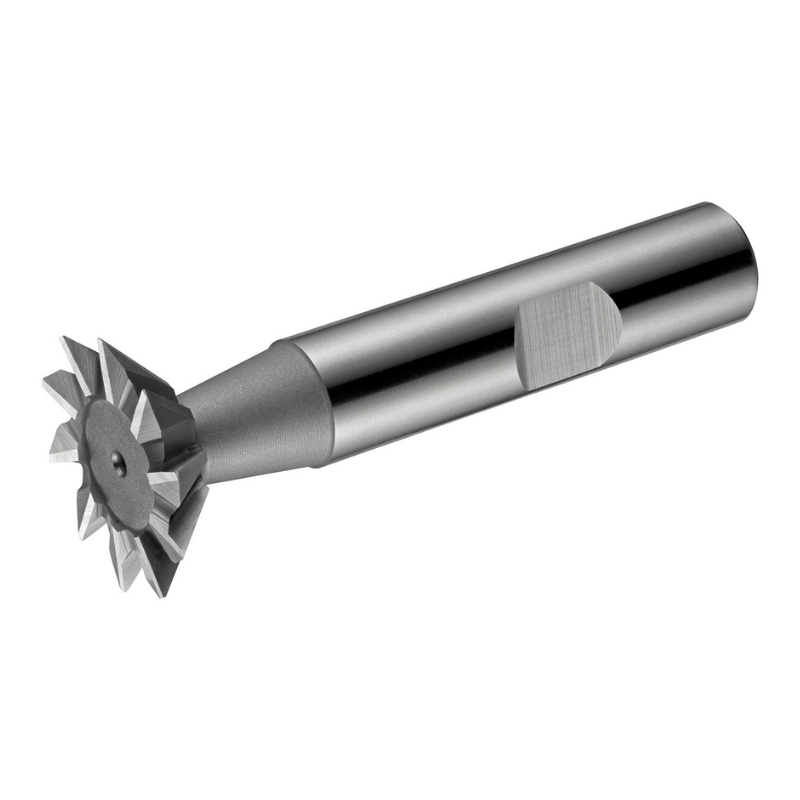

Dormer Pramet C83 25.0mm x 6.3 mm HSS-E Flatted Shank Dovetail CUTTER DIN 1833 C
| Cutter Diameter | 25 |
| Flute Length | 67 |
| Number of Flutes | 10 |
| Overall Length | 67 |
| Shank Diameter | 12 |
Learn more about Klarna
Engineered for precision dovetail milling, this Dormer Pramet C83 25 mm dovetail cutter delivers clean, accurate 45° grooves with a single flute. Designed for professional machinists, it handles steel, stainless steel, cast iron, non‑ferrous metals, and high‑temperature alloys with reliable performance.
- Diameter: 25 mm
- Cutting angle: 45° dovetail
- Number of flutes: 1
- Depth of cut: 6.3 mm
- Overall length: 67 mm
- Shank: Weldon, 12 mm
- Shank style: Flatted
- Material: HSS‑E (cobalt‑based) for enhanced wear resistance
- Finish: Bright finish
- Standard: DIN 1833 C
- Applications: Milling dovetail grooves in steel, cast steel, stainless steel, cast iron, non‑ferrous metals and high‑temperature alloys
This cutter is optimized for controlled, stable performance in demanding operations. The cobalt‑based HSS‑E construction provides improved wear resistance in hard materials and high‑temperature environments, while the flatted Weldon shank offers solid seating and reduced run‑out in compatible holders. The 67 mm overall length gives practical reach for shallow to moderately deep dovetail slots, making it a dependable choice for precise dovetail joints and related milling tasks.
| Cutter Diameter | 25 |
| Flute Length | 67 |
| Number of Flutes | 10 |
| Overall Length | 67 |
| Shank Diameter | 12 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Dormer Pramet C83 HSS-E Flatted Shank Dovetail Cutters DIN 1833 C
View full collection →You are viewing DOR-C83025.0X45. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Flute Length | Number of Flutes | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| DOR-C83012.0X45 | 12 | 54 | 10 | 54 | 10 | £89.54 | 2 days | |
| DOR-C83016.0X45 | 16 | 60 | 10 | 60 | 12 | £89.54 | 2 days | |
| DOR-C83020.0X45 | 20 | 63 | 10 | 63 | 12 | £114.38 | 2 days | |
| DOR-C83025.0X45 Viewing | 25 | 67 | 10 | 67 | 12 | £141.18 | 2 days | |
| DOR-C83032.0X45 | 32 | 71 | 12 | 71 | 16 | £199.35 | 2 days | |
| DOR-C83012.0X60 | 12 | 54 | 10 | 54 | 10 | £89.54 | 2 days | |
| DOR-C83016.0X60 | 16 | 60 | 10 | 60 | 12 | £89.54 | 2 days | |
| DOR-C83020.0X60 | 20 | 63 | 10 | 63 | 12 | £114.38 | 2 days | |
| DOR-C83025.0X60 | 25 | 67 | 10 | 67 | 12 | £141.18 | 2 days | |
| DOR-C83032.0X60 | 32 | 71 | 12 | 71 | 16 | £199.35 | 2 days |
