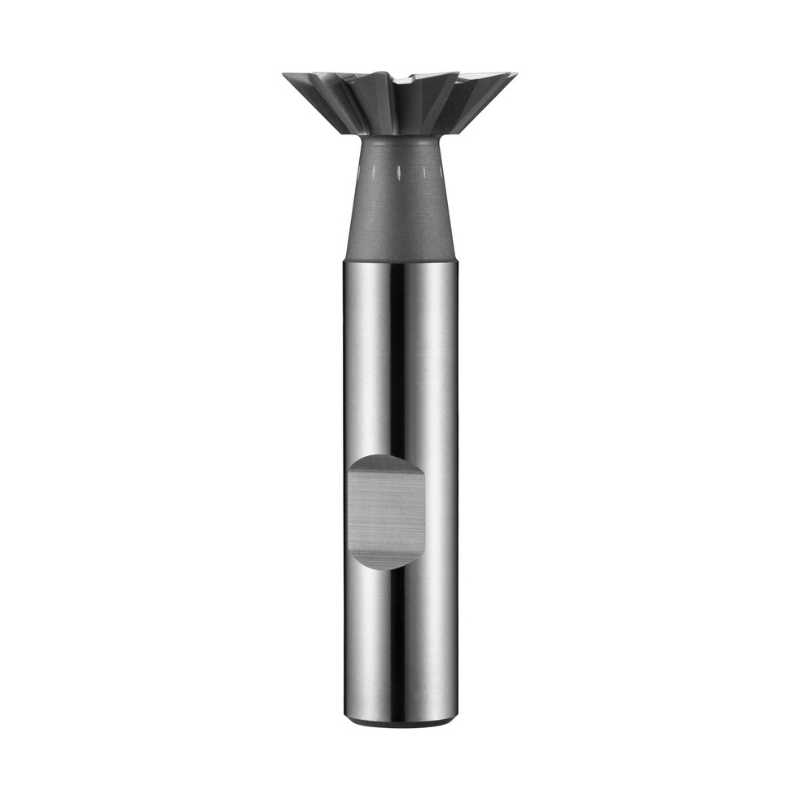

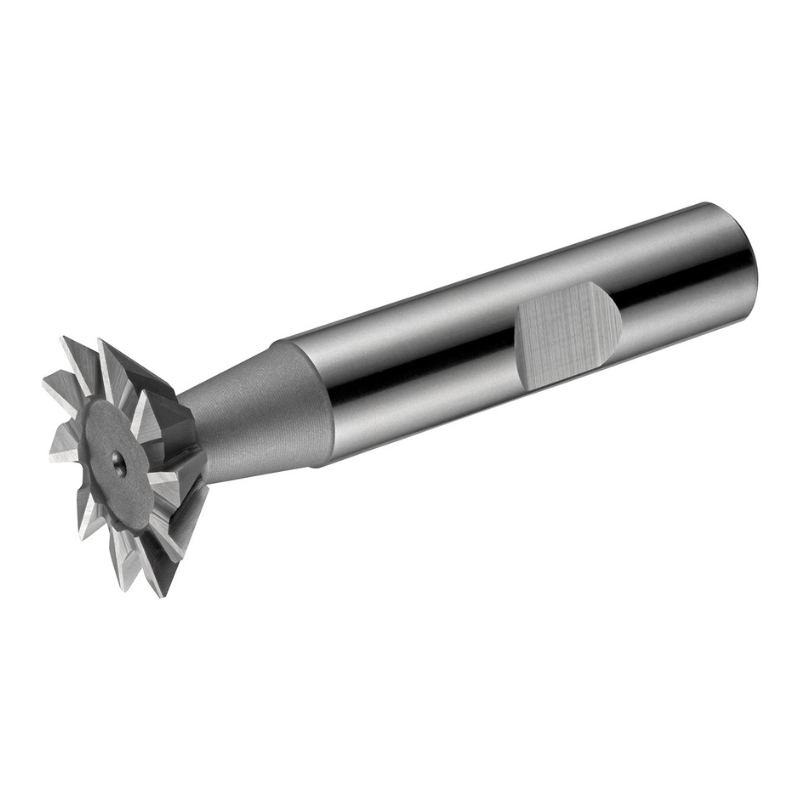

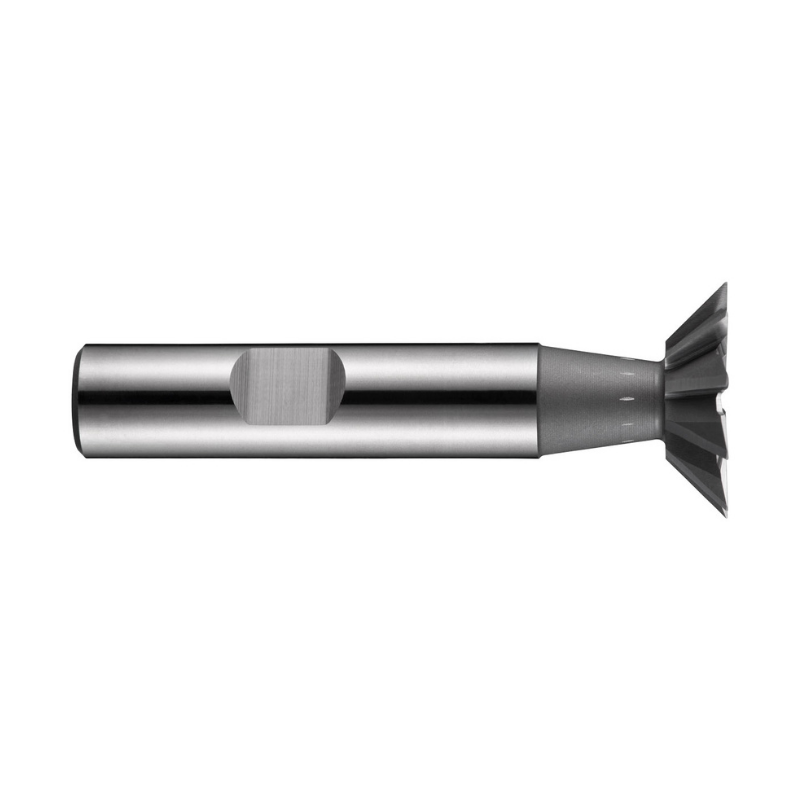

Dormer Pramet C83 32.0mm x 12.5 mm HSS-E Flatted Shank Dovetail CUTTER DIN 1833 C

The Dormer Pramet C83 is a precision 60° dovetail milling cutter designed for durable, repeatable dovetail grooves in a range of metals. Built for machinists and job shops, it delivers reliable performance on steel, cast steel, stainless steel, cast iron, non‑ferrous metals, and high‑temperature alloys while meeting DIN 1833 C standards.

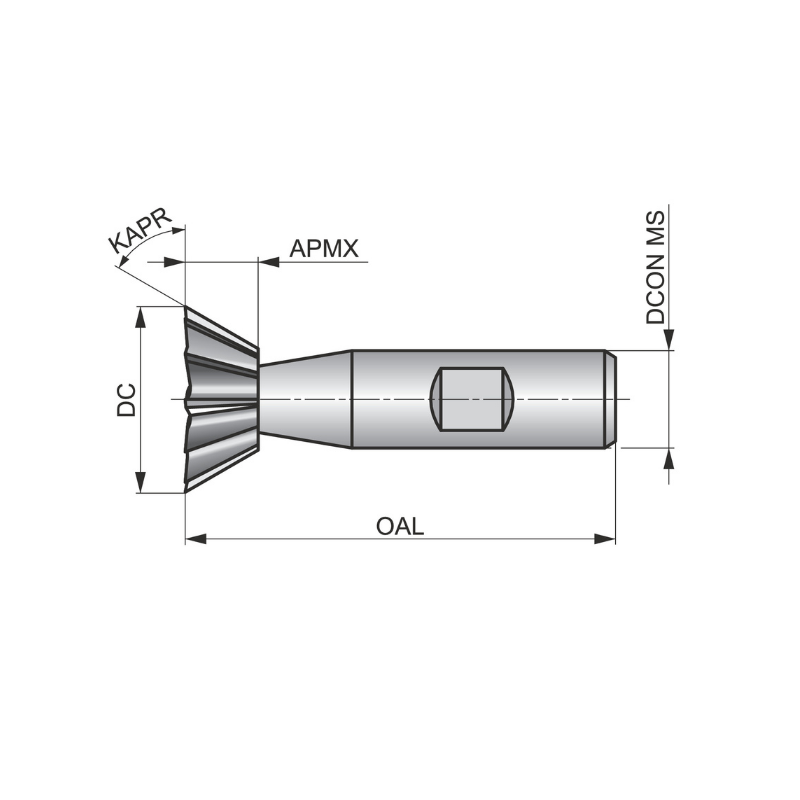

• Diameter: 32.0 mm
• Teeth: 12
• Depth of cut: 12.5 mm
• Overall length: 71 mm
• Shank: Weldon 16 mm, flatted
• Material & finish: HSS‑E, cobalt‑based with bright finish
• Angle: 60° dovetail geometry for precise groove profiles
• Standard: DIN 1833 C
• Applications: dovetail grooves in steel, stainless steel, cast iron, non‑ferrous metals, and high‑temperature alloys
• Brand: Dormer Pramet

Designed to deliver clean, accurate dovetail shoulders with robust edge retention, the C83’s cobalt‑based HSS‑E construction withstands demanding milling environments. The 12‑tooth configuration and optimized geometry promote smooth chip evacuation and stable cutting, reducing chatter and producing consistent groove widths across multiple passes. This makes it an ideal choice for forming dovetail joints in fixtures, clamps, and precision components where dependable fit and finish matter.
