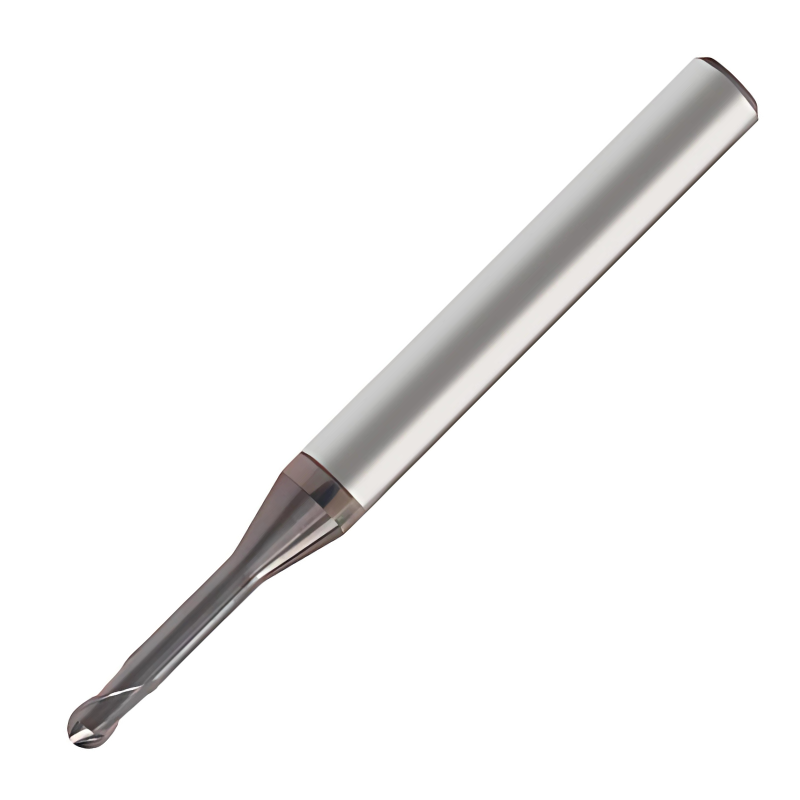

Europa Tools Carbide End Mill 2 Flute Ball Nose - Extended Neck - Pulsar DMX - 0.2mm x 1mm

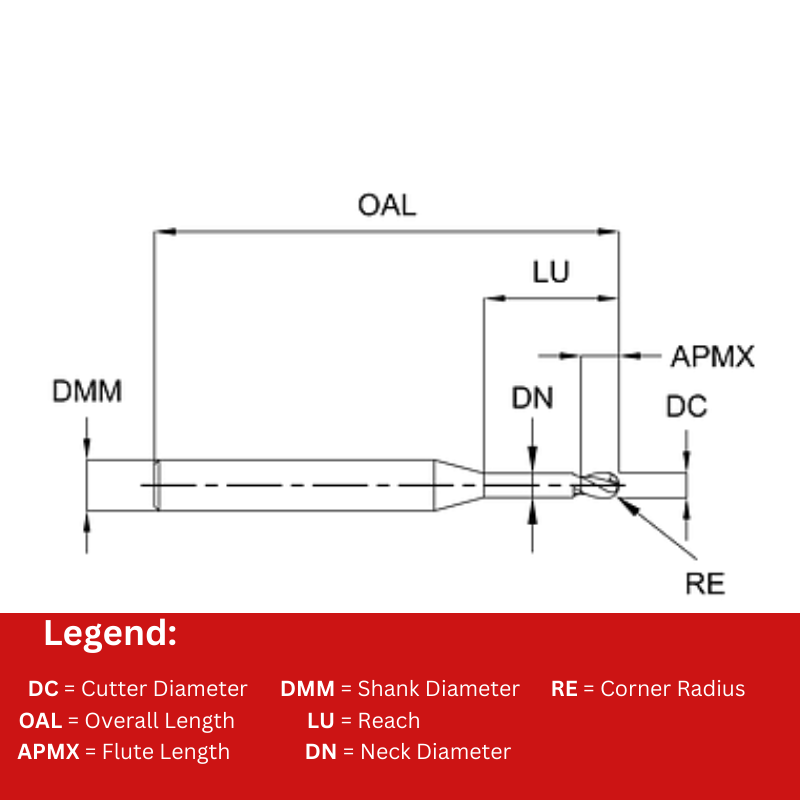

| Cutter Diameter (DC) | 0.2 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 0.2 |
| Overall Length (OAL) | 40 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | 1 |
Learn more about Klarna
The Europa Tools Carbide End Mill is a precision micro milling tool designed for deep‑reach contouring. With a 2‑flute ball nose geometry, extended neck, and a Pulsar DMX coating, it delivers smooth, accurate cuts in challenging profiles and hard materials.
- Diameter: 0.2 mm
- Cutting length: 1 mm
- Flutes: 2
- Geometry: Ball Nose for seamless 3D contouring
- Neck: Extended neck for access to deep or tight features
- Coating: Pulsar DMX for efficient dry cutting and heat resistance
- Material: Solid carbide end mill for rigidity and durability
- Recommended material: Pre-hardened steels up to HRc55 at high speeds
Designed for engineers and precision shops, this end mill enables high‑speed milling of complex surfaces and deep cavities with minimal tool changes. The extended neck reduces the need for multiple passes, while the ball nose preserves smooth radii on intricate contours. Pulsar DMX coating enhances insert life and maintains cutting efficiency during dry machining of hard metals, making it a reliable choice for demanding micro‑machining tasks.
| Cutter Diameter (DC) | 0.2 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 0.2 |
| Overall Length (OAL) | 40 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | 1 |
| Corner Radius (RE) | 0.1 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 2 Flute Ball Nose - Extended Neck - Pulsar DMX
View full collection →You are viewing EUR-1023650020. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1023650020 Viewing | 0.2 | 0.2 | 40 | 4 | 1 | 0.1 | £79.62 | 1-2 days | |
| EUR-1023650030 | 0.3 | 0.3 | 40 | 4 | 1 | 0.15 | £67.17 | 1-2 days | |
| EUR-1023650040 | 0.4 | 0.4 | 40 | 4 | 1 | 0.2 | £50.17 | 1-2 days | |
| EUR-1023650050 | 0.5 | 0.5 | 45 | 4 | 2 | 0.25 | £50.73 | 1-2 days | |
| EUR-1023650051 | 0.5 | 0.5 | 45 | 4 | 4 | 0.25 | £50.73 | 1-2 days | |
| EUR-1023650052 | 0.5 | 0.5 | 45 | 4 | 6 | 0.25 | £58.16 | 1-2 days | |
| EUR-1023650053 | 0.5 | 0.5 | 45 | 4 | 8 | 0.25 | £58.16 | 1-2 days | |
| EUR-1023650060 | 0.6 | 0.6 | 45 | 4 | 2 | 0.3 | £50.73 | 1-2 days | |
| EUR-1023650061 | 0.6 | 0.6 | 45 | 4 | 4 | 0.3 | £50.73 | 1-2 days | |
| EUR-1023650062 | 0.6 | 0.6 | 45 | 4 | 6 | 0.3 | £50.73 | 1-2 days | |
| EUR-1023650063 | 0.6 | 0.6 | 45 | 4 | 8 | 0.3 | £58.16 | 1-2 days | |
| EUR-1023650080 | 0.8 | 0.8 | 45 | 4 | 2 | 0.4 | £39.74 | 1-2 days | |
| EUR-1023650081 | 0.8 | 0.8 | 45 | 4 | 4 | 0.4 | £39.74 | 1-2 days | |
| EUR-1023650082 | 0.8 | 0.8 | 45 | 4 | 6 | 0.4 | £39.74 | 1-2 days | |
| EUR-1023650083 | 0.8 | 0.8 | 50 | 4 | 10 | 0.4 | £51.27 | 1-2 days | |
| EUR-1023650100 | 1 | 1 | 50 | 4 | 3 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650101 | 1 | 1 | 50 | 4 | 4 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650102 | 1 | 1 | 50 | 4 | 5 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650103 | 1 | 1 | 50 | 4 | 6 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650104 | 1 | 1 | 50 | 4 | 8 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650105 | 1 | 1 | 50 | 4 | 10 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650106 | 1 | 1 | 50 | 4 | 12 | 0.5 | £39.06 | 1-2 days | |
| EUR-1023650107 | 1 | 1 | 50 | 4 | 16 | 0.5 | £41.25 | 1-2 days | |
| EUR-1023650108 | 1 | 1 | 50 | 4 | 20 | 0.5 | £42.91 | 1-2 days | |
| EUR-1023650120 | 1.2 | 1.2 | 50 | 4 | 8 | 0.6 | £36.74 | 1-2 days | |
| EUR-1023650150 | 1.5 | 1.5 | 50 | 4 | 6 | 0.75 | £36.74 | 1-2 days | |
| EUR-1023650151 | 1.5 | 1.5 | 50 | 4 | 8 | 0.75 | £36.74 | 1-2 days | |
| EUR-1023650152 | 1.5 | 1.5 | 50 | 4 | 10 | 0.75 | £36.74 | 1-2 days | |
| EUR-1023650153 | 1.5 | 1.5 | 50 | 4 | 12 | 0.75 | £39.06 | 1-2 days | |
| EUR-1023650154 | 1.5 | 1.5 | 50 | 4 | 16 | 0.75 | £41.25 | 1-2 days | |
| EUR-1023650155 | 1.5 | 1.5 | 50 | 4 | 20 | 0.75 | £42.91 | 1-2 days | |
| EUR-1023650200 | 2 | 2 | 50 | 4 | 6 | 1 | £34.51 | 1-2 days | |
| EUR-1023650201 | 2 | 2 | 50 | 4 | 8 | 1 | £34.51 | 1-2 days | |
| EUR-1023650202 | 2 | 2 | 50 | 4 | 10 | 1 | £34.51 | 1-2 days | |
| EUR-1023650203 | 2 | 2 | 50 | 4 | 12 | 1 | £34.51 | 1-2 days | |
| EUR-1023650204 | 2 | 2 | 50 | 4 | 14 | 1 | £36.34 | 1-2 days | |
| EUR-1023650205 | 2 | 2 | 50 | 4 | 16 | 1 | £36.34 | 1-2 days | |
| EUR-1023650206 | 2 | 2 | 50 | 4 | 20 | 1 | £39.06 | 1-2 days | |
| EUR-1023650207 | 2 | 2 | 70 | 4 | 30 | 1 | £44.75 | 1-2 days | |
| EUR-1023650300 | 3 | 3 | 50 | 6 | 8 | 1.5 | £42.14 | 1-2 days | |
| EUR-1023650301 | 3 | 3 | 50 | 6 | 10 | 1.5 | £42.14 | 1-2 days | |
| EUR-1023650302 | 3 | 3 | 50 | 6 | 12 | 1.5 | £42.14 | 1-2 days | |
| EUR-1023650303 | 3 | 3 | 60 | 6 | 16 | 1.5 | £50.89 | 1-2 days | |
| EUR-1023650304 | 3 | 3 | 60 | 6 | 20 | 1.5 | £54.51 | 1-2 days | |
| EUR-1023650305 | 3 | 3 | 70 | 6 | 30 | 1.5 | £59.09 | 1-2 days | |
| EUR-1023650306 | 3 | 3 | 70 | 6 | 35 | 1.5 | £64.40 | 1-2 days | |
| EUR-1023650400 | 4 | 4 | 50 | 6 | 10 | 2 | £42.14 | 1-2 days | |
| EUR-1023650401 | 4 | 4 | 50 | 6 | 12 | 2 | £42.14 | 1-2 days | |
| EUR-1023650402 | 4 | 4 | 60 | 6 | 16 | 2 | £50.89 | 1-2 days | |
| EUR-1023650403 | 4 | 4 | 60 | 6 | 20 | 2 | £54.51 | 1-2 days | |
| EUR-1023650404 | 4 | 4 | 70 | 6 | 30 | 2 | £59.09 | 1-2 days | |
| EUR-1023650405 | 4 | 4 | 70 | 6 | 35 | 2 | £64.40 | 1-2 days | |
| EUR-1023650500 | 5 | 6 | 70 | 6 | 30 | 2.5 | £59.09 | 1-2 days | |
| EUR-1023650600 | 6 | 8 | 60 | 6 | 20 | 3 | £54.51 | 1-2 days | |
| EUR-1023650601 | 6 | 8 | 60 | 6 | 30 | 3 | £54.51 | 1-2 days | |
| EUR-1023650800 | 8 | 10 | 70 | 8 | 25 | 4 | £68.67 | 1-2 days | |
| EUR-1023651000 | 10 | 12 | 75 | 10 | 30 | 5 | £105.56 | 1-2 days | |
| EUR-1023651001 | 10 | 18 | 100 | 10 | 30 | 5 | £115.06 | 1-2 days | |
| EUR-1023651200 | 12 | 14 | 80 | 12 | 32 | 6 | £125.12 | 1-2 days | |
| EUR-1023651201 | 12 | 22 | 100 | 12 | 32 | 6 | £151.16 | 1-2 days |
