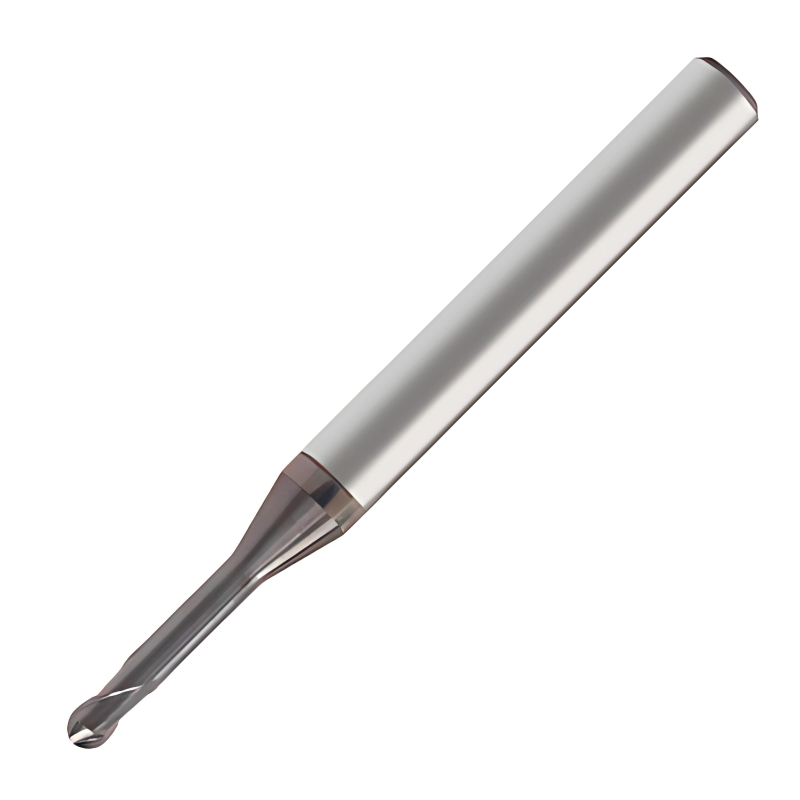

Europa Tools Carbide End Mill 2 Flute Ball Nose - Extended Neck - Pulsar DMX - 1mm x 5mm

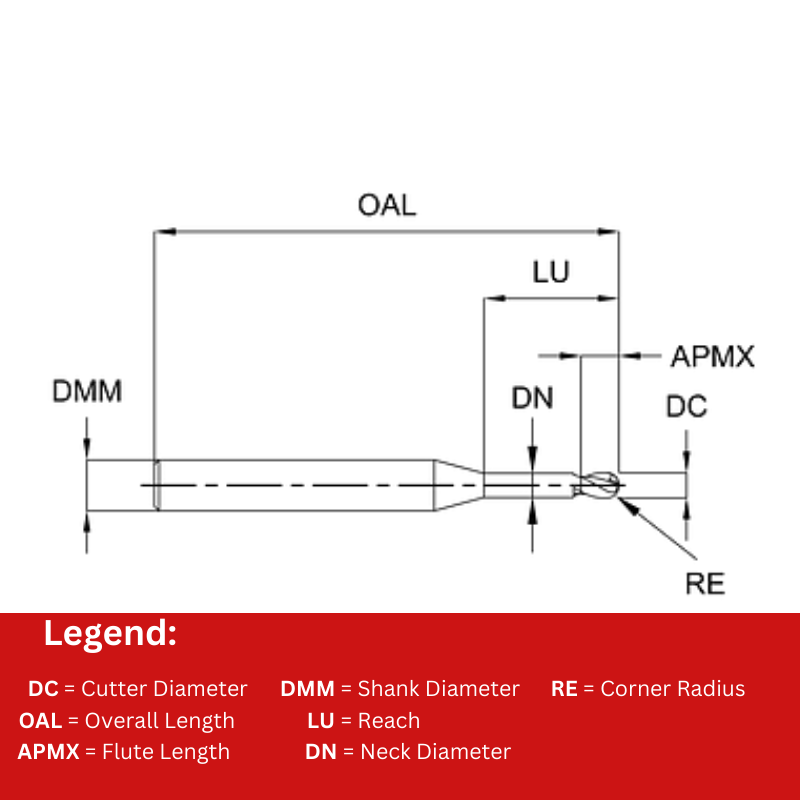

| Cutter Diameter (DC) | 1 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 1 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | 5 |
Learn more about Klarna
Meet the Europa Tools Carbide End Mill: a 1 mm diameter, 5 mm length-of-cut, 2-flute ball-nose tool designed for precise contouring in deep-reach work. Its extended neck and Pulsar DMX coating deliver reliable dry-cut performance on pre-hardened steels up to HRc55.
- Diameter: 1 mm
- Length of cut: 5 mm
- Flute count: 2 flutes
- Geometry: Ball Nose for smooth, accurate 3D contouring
- Neck design: Extended neck for deep-reach access to tight pockets and complex features
- Coating: Pulsar DMX for efficient dry cutting and enhanced wear resistance
- Material: Carbide for high hardness, heat resistance, and long tool life
- Machining capability: Optimized for high-speed machining of pre-hardened steels up to HRc55
This end mill is ideal for engineers and machinists tackling intricate 3D profiles in hard materials. The ball-nose geometry ensures gentle, continuous contact with curved surfaces, producing smooth finishes on complex contours. The extended neck provides necessary reach in deep pockets without sacrificing rigidity, while the Pulsar DMX coating supports dry cutting and reduces wear during demanding, high-speed operations. Perfect for mold and die work, aerospace components, and automotive parts where precise 3D geometry and durable performance matter most.
| Cutter Diameter (DC) | 1 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 1 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | 5 |
| Corner Radius (RE) | 0.5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 2 Flute Ball Nose - Extended Neck - Pulsar DMX
View full collection →You are viewing EUR-1023650102. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1023650020 | 0.2 | 0.2 | 40 | 4 | 1 | 0.1 | £79.62 | 1-2 days | |
| EUR-1023650030 | 0.3 | 0.3 | 40 | 4 | 1 | 0.15 | £67.17 | 1-2 days | |
| EUR-1023650040 | 0.4 | 0.4 | 40 | 4 | 1 | 0.2 | £50.17 | 1-2 days | |
| EUR-1023650050 | 0.5 | 0.5 | 45 | 4 | 2 | 0.25 | £50.73 | 1-2 days | |
| EUR-1023650051 | 0.5 | 0.5 | 45 | 4 | 4 | 0.25 | £50.73 | 1-2 days | |
| EUR-1023650052 | 0.5 | 0.5 | 45 | 4 | 6 | 0.25 | £58.16 | 1-2 days | |
| EUR-1023650053 | 0.5 | 0.5 | 45 | 4 | 8 | 0.25 | £58.16 | 1-2 days | |
| EUR-1023650060 | 0.6 | 0.6 | 45 | 4 | 2 | 0.3 | £50.73 | 1-2 days | |
| EUR-1023650061 | 0.6 | 0.6 | 45 | 4 | 4 | 0.3 | £50.73 | 1-2 days | |
| EUR-1023650062 | 0.6 | 0.6 | 45 | 4 | 6 | 0.3 | £50.73 | 1-2 days | |
| EUR-1023650063 | 0.6 | 0.6 | 45 | 4 | 8 | 0.3 | £58.16 | 1-2 days | |
| EUR-1023650080 | 0.8 | 0.8 | 45 | 4 | 2 | 0.4 | £39.74 | 1-2 days | |
| EUR-1023650081 | 0.8 | 0.8 | 45 | 4 | 4 | 0.4 | £39.74 | 1-2 days | |
| EUR-1023650082 | 0.8 | 0.8 | 45 | 4 | 6 | 0.4 | £39.74 | 1-2 days | |
| EUR-1023650083 | 0.8 | 0.8 | 50 | 4 | 10 | 0.4 | £51.27 | 1-2 days | |
| EUR-1023650100 | 1 | 1 | 50 | 4 | 3 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650101 | 1 | 1 | 50 | 4 | 4 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650102 Viewing | 1 | 1 | 50 | 4 | 5 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650103 | 1 | 1 | 50 | 4 | 6 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650104 | 1 | 1 | 50 | 4 | 8 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650105 | 1 | 1 | 50 | 4 | 10 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650106 | 1 | 1 | 50 | 4 | 12 | 0.5 | £39.06 | 1-2 days | |
| EUR-1023650107 | 1 | 1 | 50 | 4 | 16 | 0.5 | £41.25 | 1-2 days | |
| EUR-1023650108 | 1 | 1 | 50 | 4 | 20 | 0.5 | £42.91 | 1-2 days | |
| EUR-1023650120 | 1.2 | 1.2 | 50 | 4 | 8 | 0.6 | £36.74 | 1-2 days | |
| EUR-1023650150 | 1.5 | 1.5 | 50 | 4 | 6 | 0.75 | £36.74 | 1-2 days | |
| EUR-1023650151 | 1.5 | 1.5 | 50 | 4 | 8 | 0.75 | £36.74 | 1-2 days | |
| EUR-1023650152 | 1.5 | 1.5 | 50 | 4 | 10 | 0.75 | £36.74 | 1-2 days | |
| EUR-1023650153 | 1.5 | 1.5 | 50 | 4 | 12 | 0.75 | £39.06 | 1-2 days | |
| EUR-1023650154 | 1.5 | 1.5 | 50 | 4 | 16 | 0.75 | £41.25 | 1-2 days | |
| EUR-1023650155 | 1.5 | 1.5 | 50 | 4 | 20 | 0.75 | £42.91 | 1-2 days | |
| EUR-1023650200 | 2 | 2 | 50 | 4 | 6 | 1 | £34.51 | 1-2 days | |
| EUR-1023650201 | 2 | 2 | 50 | 4 | 8 | 1 | £34.51 | 1-2 days | |
| EUR-1023650202 | 2 | 2 | 50 | 4 | 10 | 1 | £34.51 | 1-2 days | |
| EUR-1023650203 | 2 | 2 | 50 | 4 | 12 | 1 | £34.51 | 1-2 days | |
| EUR-1023650204 | 2 | 2 | 50 | 4 | 14 | 1 | £36.34 | 1-2 days | |
| EUR-1023650205 | 2 | 2 | 50 | 4 | 16 | 1 | £36.34 | 1-2 days | |
| EUR-1023650206 | 2 | 2 | 50 | 4 | 20 | 1 | £39.06 | 1-2 days | |
| EUR-1023650207 | 2 | 2 | 70 | 4 | 30 | 1 | £44.75 | 1-2 days | |
| EUR-1023650300 | 3 | 3 | 50 | 6 | 8 | 1.5 | £42.14 | 1-2 days | |
| EUR-1023650301 | 3 | 3 | 50 | 6 | 10 | 1.5 | £42.14 | 1-2 days | |
| EUR-1023650302 | 3 | 3 | 50 | 6 | 12 | 1.5 | £42.14 | 1-2 days | |
| EUR-1023650303 | 3 | 3 | 60 | 6 | 16 | 1.5 | £50.89 | 1-2 days | |
| EUR-1023650304 | 3 | 3 | 60 | 6 | 20 | 1.5 | £54.51 | 1-2 days | |
| EUR-1023650305 | 3 | 3 | 70 | 6 | 30 | 1.5 | £59.09 | 1-2 days | |
| EUR-1023650306 | 3 | 3 | 70 | 6 | 35 | 1.5 | £64.40 | 1-2 days | |
| EUR-1023650400 | 4 | 4 | 50 | 6 | 10 | 2 | £42.14 | 1-2 days | |
| EUR-1023650401 | 4 | 4 | 50 | 6 | 12 | 2 | £42.14 | 1-2 days | |
| EUR-1023650402 | 4 | 4 | 60 | 6 | 16 | 2 | £50.89 | 1-2 days | |
| EUR-1023650403 | 4 | 4 | 60 | 6 | 20 | 2 | £54.51 | 1-2 days | |
| EUR-1023650404 | 4 | 4 | 70 | 6 | 30 | 2 | £59.09 | 1-2 days | |
| EUR-1023650405 | 4 | 4 | 70 | 6 | 35 | 2 | £64.40 | 1-2 days | |
| EUR-1023650500 | 5 | 6 | 70 | 6 | 30 | 2.5 | £59.09 | 1-2 days | |
| EUR-1023650600 | 6 | 8 | 60 | 6 | 20 | 3 | £54.51 | 1-2 days | |
| EUR-1023650601 | 6 | 8 | 60 | 6 | 30 | 3 | £54.51 | 1-2 days | |
| EUR-1023650800 | 8 | 10 | 70 | 8 | 25 | 4 | £68.67 | 1-2 days | |
| EUR-1023651000 | 10 | 12 | 75 | 10 | 30 | 5 | £105.56 | 1-2 days | |
| EUR-1023651001 | 10 | 18 | 100 | 10 | 30 | 5 | £115.06 | 1-2 days | |
| EUR-1023651200 | 12 | 14 | 80 | 12 | 32 | 6 | £125.12 | 1-2 days | |
| EUR-1023651201 | 12 | 22 | 100 | 12 | 32 | 6 | £151.16 | 1-2 days |
