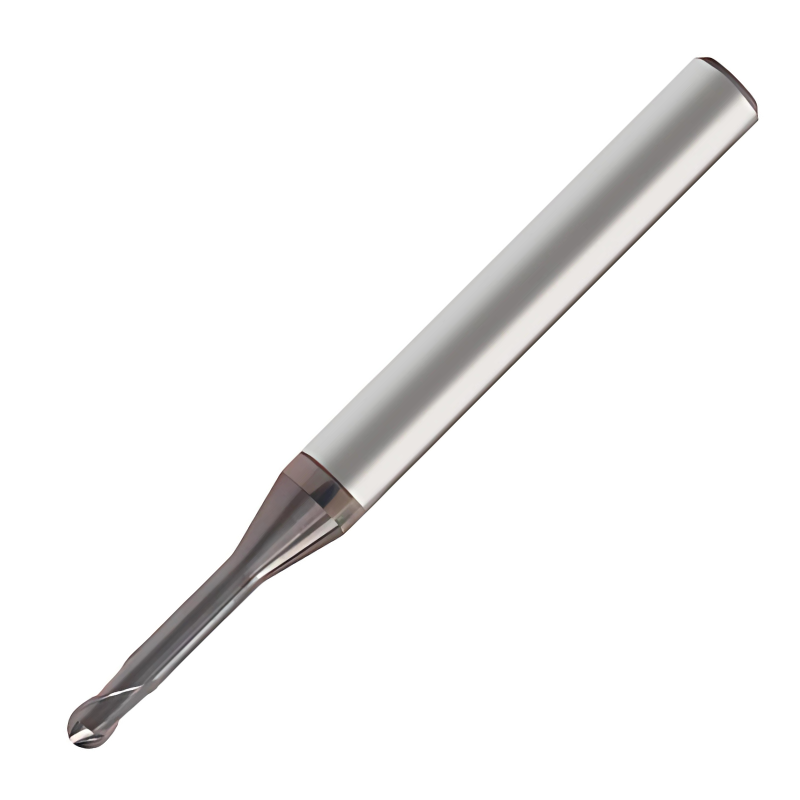

Europa Tools Carbide End Mill 2 Flute Ball Nose - Extended Neck - Pulsar DMX - 1mm x 6mm
| Cutter Diameter (DC) | 1 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 1 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | 6 |
Learn more about Klarna
Engineers and machinists needing micro-scale precision will appreciate the Europa Tools Carbide End Mill, a 2-flute ball nose with an extended neck. This 1 mm diameter, 6 mm length-of-cut tool is built for smooth radii on tight 3D contours and deep-reaching pockets.
- Diameter: 1 mm
- Length of cut: 6 mm
- Geometry: Ball Nose for smooth, accurate 3D contouring
- Extended Neck: Increased reach to access deep or hard-to-reach areas
- Material: Solid carbide for rigidity and wear resistance
- Coating: Pulsar DMX optimized for efficient dry cutting
- Working range: Designed for high-speed machining of pre-hardened steels up to HRc55
- Flute count: 2-flute configuration for effective chip evacuation
This end mill combines a precise ball-nose profile with a long reach, enabling accurate radii and smooth surface finishes in challenging geometries. The extended neck unlocks access to deep cavities, undercuts, and tight radii without repositioning the workpiece. Pulsar DMX coating reduces friction and heat during dry cutting, helping sustain tool life and maintain tight tolerances when machining hardened steels. Ideal for mold making, micro-precision components, and intricate parts where deep access and reliable performance are essential.
| Cutter Diameter (DC) | 1 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 1 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | 6 |
| Corner Radius (RE) | 0.5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 2 Flute Ball Nose - Extended Neck - Pulsar DMX
View full collection →You are viewing EUR-1023650103. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1023650020 | 0.2 | 0.2 | 40 | 4 | 1 | 0.1 | £79.62 | 1-2 days | |
| EUR-1023650030 | 0.3 | 0.3 | 40 | 4 | 1 | 0.15 | £67.17 | 1-2 days | |
| EUR-1023650040 | 0.4 | 0.4 | 40 | 4 | 1 | 0.2 | £50.17 | 1-2 days | |
| EUR-1023650050 | 0.5 | 0.5 | 45 | 4 | 2 | 0.25 | £50.73 | 1-2 days | |
| EUR-1023650051 | 0.5 | 0.5 | 45 | 4 | 4 | 0.25 | £50.73 | 1-2 days | |
| EUR-1023650052 | 0.5 | 0.5 | 45 | 4 | 6 | 0.25 | £58.16 | 1-2 days | |
| EUR-1023650053 | 0.5 | 0.5 | 45 | 4 | 8 | 0.25 | £58.16 | 1-2 days | |
| EUR-1023650060 | 0.6 | 0.6 | 45 | 4 | 2 | 0.3 | £50.73 | 1-2 days | |
| EUR-1023650061 | 0.6 | 0.6 | 45 | 4 | 4 | 0.3 | £50.73 | 1-2 days | |
| EUR-1023650062 | 0.6 | 0.6 | 45 | 4 | 6 | 0.3 | £50.73 | 1-2 days | |
| EUR-1023650063 | 0.6 | 0.6 | 45 | 4 | 8 | 0.3 | £58.16 | 1-2 days | |
| EUR-1023650080 | 0.8 | 0.8 | 45 | 4 | 2 | 0.4 | £39.74 | 1-2 days | |
| EUR-1023650081 | 0.8 | 0.8 | 45 | 4 | 4 | 0.4 | £39.74 | 1-2 days | |
| EUR-1023650082 | 0.8 | 0.8 | 45 | 4 | 6 | 0.4 | £39.74 | 1-2 days | |
| EUR-1023650083 | 0.8 | 0.8 | 50 | 4 | 10 | 0.4 | £51.27 | 1-2 days | |
| EUR-1023650100 | 1 | 1 | 50 | 4 | 3 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650101 | 1 | 1 | 50 | 4 | 4 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650102 | 1 | 1 | 50 | 4 | 5 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650103 Viewing | 1 | 1 | 50 | 4 | 6 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650104 | 1 | 1 | 50 | 4 | 8 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650105 | 1 | 1 | 50 | 4 | 10 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650106 | 1 | 1 | 50 | 4 | 12 | 0.5 | £39.06 | 1-2 days | |
| EUR-1023650107 | 1 | 1 | 50 | 4 | 16 | 0.5 | £41.25 | 1-2 days | |
| EUR-1023650108 | 1 | 1 | 50 | 4 | 20 | 0.5 | £42.91 | 1-2 days | |
| EUR-1023650120 | 1.2 | 1.2 | 50 | 4 | 8 | 0.6 | £36.74 | 1-2 days | |
| EUR-1023650150 | 1.5 | 1.5 | 50 | 4 | 6 | 0.75 | £36.74 | 1-2 days | |
| EUR-1023650151 | 1.5 | 1.5 | 50 | 4 | 8 | 0.75 | £36.74 | 1-2 days | |
| EUR-1023650152 | 1.5 | 1.5 | 50 | 4 | 10 | 0.75 | £36.74 | 1-2 days | |
| EUR-1023650153 | 1.5 | 1.5 | 50 | 4 | 12 | 0.75 | £39.06 | 1-2 days | |
| EUR-1023650154 | 1.5 | 1.5 | 50 | 4 | 16 | 0.75 | £41.25 | 1-2 days | |
| EUR-1023650155 | 1.5 | 1.5 | 50 | 4 | 20 | 0.75 | £42.91 | 1-2 days | |
| EUR-1023650200 | 2 | 2 | 50 | 4 | 6 | 1 | £34.51 | 1-2 days | |
| EUR-1023650201 | 2 | 2 | 50 | 4 | 8 | 1 | £34.51 | 1-2 days | |
| EUR-1023650202 | 2 | 2 | 50 | 4 | 10 | 1 | £34.51 | 1-2 days | |
| EUR-1023650203 | 2 | 2 | 50 | 4 | 12 | 1 | £34.51 | 1-2 days | |
| EUR-1023650204 | 2 | 2 | 50 | 4 | 14 | 1 | £36.34 | 1-2 days | |
| EUR-1023650205 | 2 | 2 | 50 | 4 | 16 | 1 | £36.34 | 1-2 days | |
| EUR-1023650206 | 2 | 2 | 50 | 4 | 20 | 1 | £39.06 | 1-2 days | |
| EUR-1023650207 | 2 | 2 | 70 | 4 | 30 | 1 | £44.75 | 1-2 days | |
| EUR-1023650300 | 3 | 3 | 50 | 6 | 8 | 1.5 | £42.14 | 1-2 days | |
| EUR-1023650301 | 3 | 3 | 50 | 6 | 10 | 1.5 | £42.14 | 1-2 days | |
| EUR-1023650302 | 3 | 3 | 50 | 6 | 12 | 1.5 | £42.14 | 1-2 days | |
| EUR-1023650303 | 3 | 3 | 60 | 6 | 16 | 1.5 | £50.89 | 1-2 days | |
| EUR-1023650304 | 3 | 3 | 60 | 6 | 20 | 1.5 | £54.51 | 1-2 days | |
| EUR-1023650305 | 3 | 3 | 70 | 6 | 30 | 1.5 | £59.09 | 1-2 days | |
| EUR-1023650306 | 3 | 3 | 70 | 6 | 35 | 1.5 | £64.40 | 1-2 days | |
| EUR-1023650400 | 4 | 4 | 50 | 6 | 10 | 2 | £42.14 | 1-2 days | |
| EUR-1023650401 | 4 | 4 | 50 | 6 | 12 | 2 | £42.14 | 1-2 days | |
| EUR-1023650402 | 4 | 4 | 60 | 6 | 16 | 2 | £50.89 | 1-2 days | |
| EUR-1023650403 | 4 | 4 | 60 | 6 | 20 | 2 | £54.51 | 1-2 days | |
| EUR-1023650404 | 4 | 4 | 70 | 6 | 30 | 2 | £59.09 | 1-2 days | |
| EUR-1023650405 | 4 | 4 | 70 | 6 | 35 | 2 | £64.40 | 1-2 days | |
| EUR-1023650500 | 5 | 6 | 70 | 6 | 30 | 2.5 | £59.09 | 1-2 days | |
| EUR-1023650600 | 6 | 8 | 60 | 6 | 20 | 3 | £54.51 | 1-2 days | |
| EUR-1023650601 | 6 | 8 | 60 | 6 | 30 | 3 | £54.51 | 1-2 days | |
| EUR-1023650800 | 8 | 10 | 70 | 8 | 25 | 4 | £68.67 | 1-2 days | |
| EUR-1023651000 | 10 | 12 | 75 | 10 | 30 | 5 | £105.56 | 1-2 days | |
| EUR-1023651001 | 10 | 18 | 100 | 10 | 30 | 5 | £115.06 | 1-2 days | |
| EUR-1023651200 | 12 | 14 | 80 | 12 | 32 | 6 | £125.12 | 1-2 days | |
| EUR-1023651201 | 12 | 22 | 100 | 12 | 32 | 6 | £151.16 | 1-2 days |
