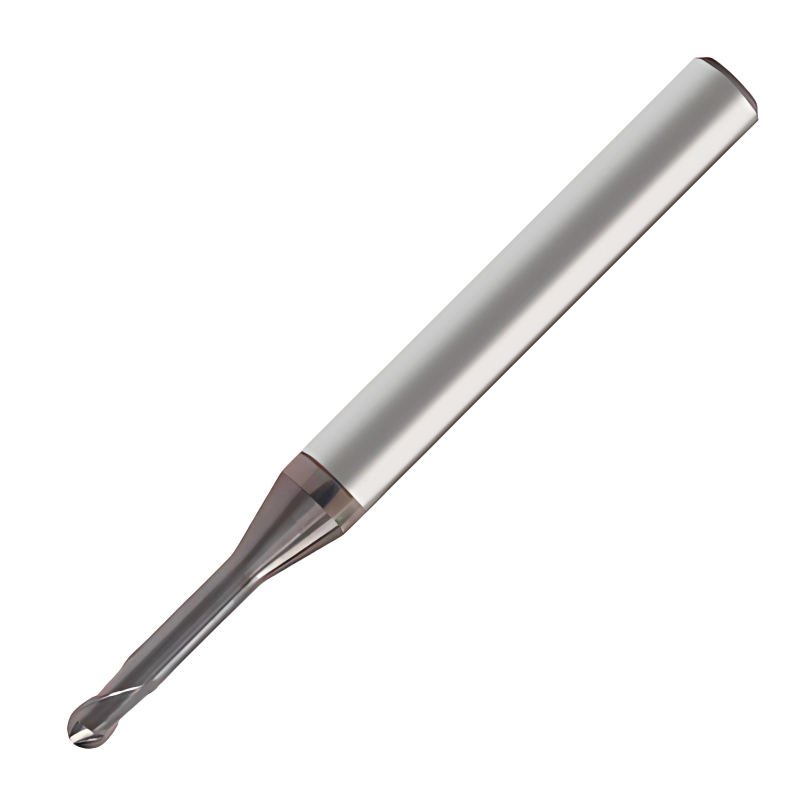

Europa Tools Carbide End Mill 2 Flute Ball Nose - Extended Neck - Pulsar DMX - 4mm x 10mm

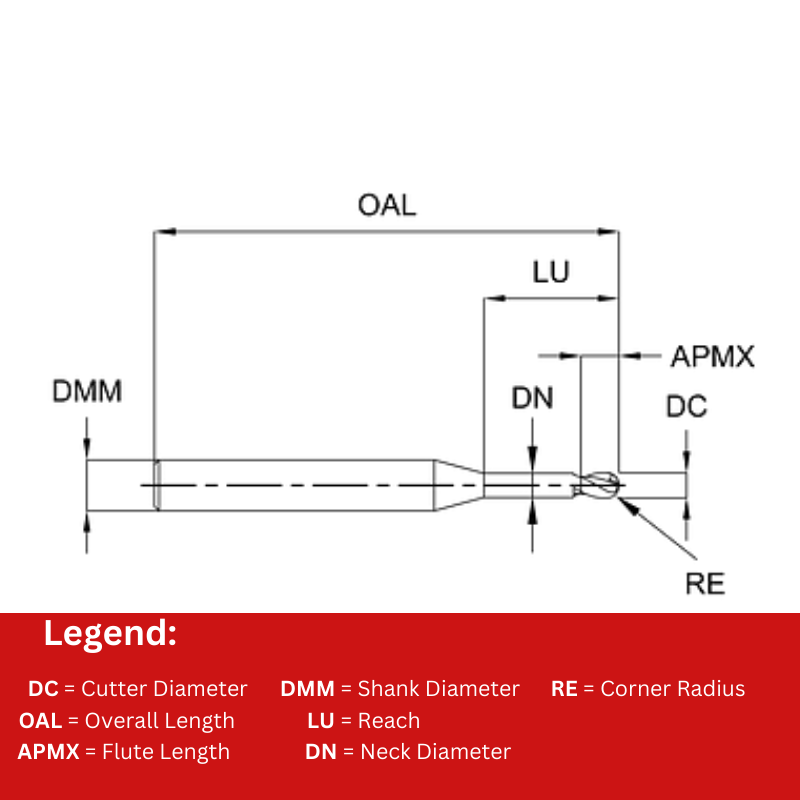

| Cutter Diameter (DC) | 4 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 4 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 10 |
Learn more about Klarna
Meet the Europa Tools Pulsar DMX 2-Flute Ball Nose Extended-Neck End Mill. Built for precision contouring in deep-reach areas, it’s ideal for engineers and machinists who demand smooth 3D profile finishing in challenging materials.
- Size: 4 mm diameter, 10 mm length of cut
- Flute configuration: 2-flute design for efficient chip evacuation and rigidity
- Geometry: Ball Nose tip delivers smooth, accurate cutting of complex 3D profiles
- Extended Neck: Extended neck geometry allows access to deep, tight cavities and pockets
- Coating: Pulsar DMX coating for efficient dry cutting and enhanced wear resistance
- Material: Solid carbide for high stiffness and long tool life
- Machining capability: Optimized for high-speed machining of pre-hardened steels up to HRc55
This end mill combines deep-reach accessibility with precise ball-nose geometry to deliver consistent radii and surface finishes on complex parts. The 2-flute design maintains stable cutting at high speeds, while the Pulsar DMX coating reduces wear and enables productive dry machining. Ideal for aerospace components, molds, and automotive hardware that require tight tolerances in deep features, it’s a durable, reliable choice for demanding manufacturing environments.
| Cutter Diameter (DC) | 4 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 4 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 10 |
| Corner Radius (RE) | 2 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 2 Flute Ball Nose - Extended Neck - Pulsar DMX
View full collection →You are viewing EUR-1023650400. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1023650020 | 0.2 | 0.2 | 40 | 4 | 1 | 0.1 | £79.62 | 1-2 days | |
| EUR-1023650030 | 0.3 | 0.3 | 40 | 4 | 1 | 0.15 | £67.17 | 1-2 days | |
| EUR-1023650040 | 0.4 | 0.4 | 40 | 4 | 1 | 0.2 | £50.17 | 1-2 days | |
| EUR-1023650050 | 0.5 | 0.5 | 45 | 4 | 2 | 0.25 | £50.73 | 1-2 days | |
| EUR-1023650051 | 0.5 | 0.5 | 45 | 4 | 4 | 0.25 | £50.73 | 1-2 days | |
| EUR-1023650052 | 0.5 | 0.5 | 45 | 4 | 6 | 0.25 | £58.16 | 1-2 days | |
| EUR-1023650053 | 0.5 | 0.5 | 45 | 4 | 8 | 0.25 | £58.16 | 1-2 days | |
| EUR-1023650060 | 0.6 | 0.6 | 45 | 4 | 2 | 0.3 | £50.73 | 1-2 days | |
| EUR-1023650061 | 0.6 | 0.6 | 45 | 4 | 4 | 0.3 | £50.73 | 1-2 days | |
| EUR-1023650062 | 0.6 | 0.6 | 45 | 4 | 6 | 0.3 | £50.73 | 1-2 days | |
| EUR-1023650063 | 0.6 | 0.6 | 45 | 4 | 8 | 0.3 | £58.16 | 1-2 days | |
| EUR-1023650080 | 0.8 | 0.8 | 45 | 4 | 2 | 0.4 | £39.74 | 1-2 days | |
| EUR-1023650081 | 0.8 | 0.8 | 45 | 4 | 4 | 0.4 | £39.74 | 1-2 days | |
| EUR-1023650082 | 0.8 | 0.8 | 45 | 4 | 6 | 0.4 | £39.74 | 1-2 days | |
| EUR-1023650083 | 0.8 | 0.8 | 50 | 4 | 10 | 0.4 | £51.27 | 1-2 days | |
| EUR-1023650100 | 1 | 1 | 50 | 4 | 3 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650101 | 1 | 1 | 50 | 4 | 4 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650102 | 1 | 1 | 50 | 4 | 5 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650103 | 1 | 1 | 50 | 4 | 6 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650104 | 1 | 1 | 50 | 4 | 8 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650105 | 1 | 1 | 50 | 4 | 10 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650106 | 1 | 1 | 50 | 4 | 12 | 0.5 | £39.06 | 1-2 days | |
| EUR-1023650107 | 1 | 1 | 50 | 4 | 16 | 0.5 | £41.25 | 1-2 days | |
| EUR-1023650108 | 1 | 1 | 50 | 4 | 20 | 0.5 | £42.91 | 1-2 days | |
| EUR-1023650120 | 1.2 | 1.2 | 50 | 4 | 8 | 0.6 | £36.74 | 1-2 days | |
| EUR-1023650150 | 1.5 | 1.5 | 50 | 4 | 6 | 0.75 | £36.74 | 1-2 days | |
| EUR-1023650151 | 1.5 | 1.5 | 50 | 4 | 8 | 0.75 | £36.74 | 1-2 days | |
| EUR-1023650152 | 1.5 | 1.5 | 50 | 4 | 10 | 0.75 | £36.74 | 1-2 days | |
| EUR-1023650153 | 1.5 | 1.5 | 50 | 4 | 12 | 0.75 | £39.06 | 1-2 days | |
| EUR-1023650154 | 1.5 | 1.5 | 50 | 4 | 16 | 0.75 | £41.25 | 1-2 days | |
| EUR-1023650155 | 1.5 | 1.5 | 50 | 4 | 20 | 0.75 | £42.91 | 1-2 days | |
| EUR-1023650200 | 2 | 2 | 50 | 4 | 6 | 1 | £34.51 | 1-2 days | |
| EUR-1023650201 | 2 | 2 | 50 | 4 | 8 | 1 | £34.51 | 1-2 days | |
| EUR-1023650202 | 2 | 2 | 50 | 4 | 10 | 1 | £34.51 | 1-2 days | |
| EUR-1023650203 | 2 | 2 | 50 | 4 | 12 | 1 | £34.51 | 1-2 days | |
| EUR-1023650204 | 2 | 2 | 50 | 4 | 14 | 1 | £36.34 | 1-2 days | |
| EUR-1023650205 | 2 | 2 | 50 | 4 | 16 | 1 | £36.34 | 1-2 days | |
| EUR-1023650206 | 2 | 2 | 50 | 4 | 20 | 1 | £39.06 | 1-2 days | |
| EUR-1023650207 | 2 | 2 | 70 | 4 | 30 | 1 | £44.75 | 1-2 days | |
| EUR-1023650300 | 3 | 3 | 50 | 6 | 8 | 1.5 | £42.14 | 1-2 days | |
| EUR-1023650301 | 3 | 3 | 50 | 6 | 10 | 1.5 | £42.14 | 1-2 days | |
| EUR-1023650302 | 3 | 3 | 50 | 6 | 12 | 1.5 | £42.14 | 1-2 days | |
| EUR-1023650303 | 3 | 3 | 60 | 6 | 16 | 1.5 | £50.89 | 1-2 days | |
| EUR-1023650304 | 3 | 3 | 60 | 6 | 20 | 1.5 | £54.51 | 1-2 days | |
| EUR-1023650305 | 3 | 3 | 70 | 6 | 30 | 1.5 | £59.09 | 1-2 days | |
| EUR-1023650306 | 3 | 3 | 70 | 6 | 35 | 1.5 | £64.40 | 1-2 days | |
| EUR-1023650400 Viewing | 4 | 4 | 50 | 6 | 10 | 2 | £42.14 | 1-2 days | |
| EUR-1023650401 | 4 | 4 | 50 | 6 | 12 | 2 | £42.14 | 1-2 days | |
| EUR-1023650402 | 4 | 4 | 60 | 6 | 16 | 2 | £50.89 | 1-2 days | |
| EUR-1023650403 | 4 | 4 | 60 | 6 | 20 | 2 | £54.51 | 1-2 days | |
| EUR-1023650404 | 4 | 4 | 70 | 6 | 30 | 2 | £59.09 | 1-2 days | |
| EUR-1023650405 | 4 | 4 | 70 | 6 | 35 | 2 | £64.40 | 1-2 days | |
| EUR-1023650500 | 5 | 6 | 70 | 6 | 30 | 2.5 | £59.09 | 1-2 days | |
| EUR-1023650600 | 6 | 8 | 60 | 6 | 20 | 3 | £54.51 | 1-2 days | |
| EUR-1023650601 | 6 | 8 | 60 | 6 | 30 | 3 | £54.51 | 1-2 days | |
| EUR-1023650800 | 8 | 10 | 70 | 8 | 25 | 4 | £68.67 | 1-2 days | |
| EUR-1023651000 | 10 | 12 | 75 | 10 | 30 | 5 | £105.56 | 1-2 days | |
| EUR-1023651001 | 10 | 18 | 100 | 10 | 30 | 5 | £115.06 | 1-2 days | |
| EUR-1023651200 | 12 | 14 | 80 | 12 | 32 | 6 | £125.12 | 1-2 days | |
| EUR-1023651201 | 12 | 22 | 100 | 12 | 32 | 6 | £151.16 | 1-2 days |
