Europa Tools Carbide End Mill 2 Flute Ball Nose - Extended Neck - Pulsar DMX - 0.5mm x 8mm

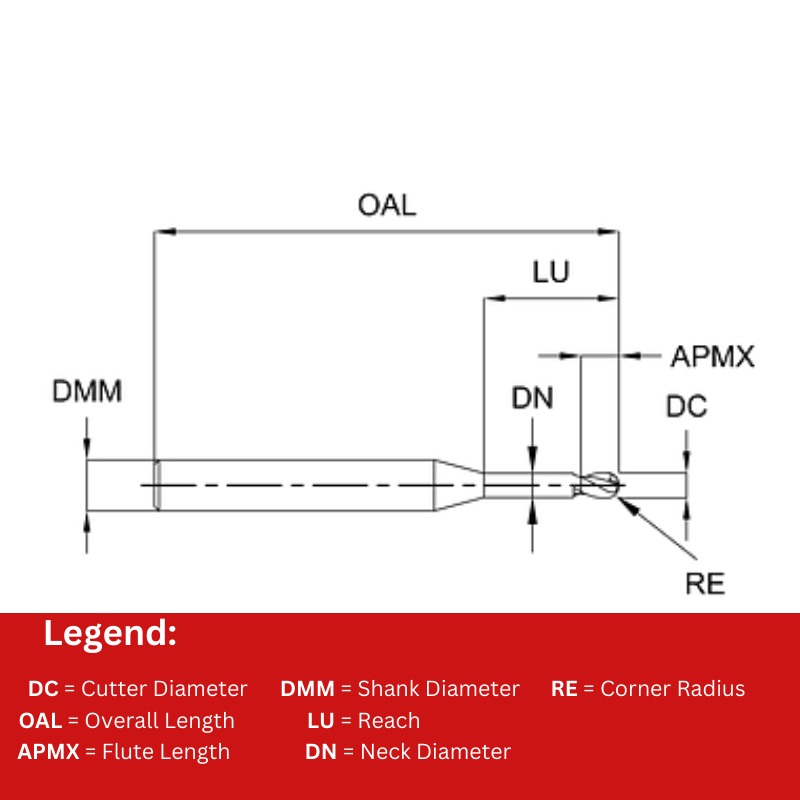

| Cutter Diameter (DC) | 0.5 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 0.5 |
| Overall Length (OAL) | 45 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | 8 |
Learn more about Klarna

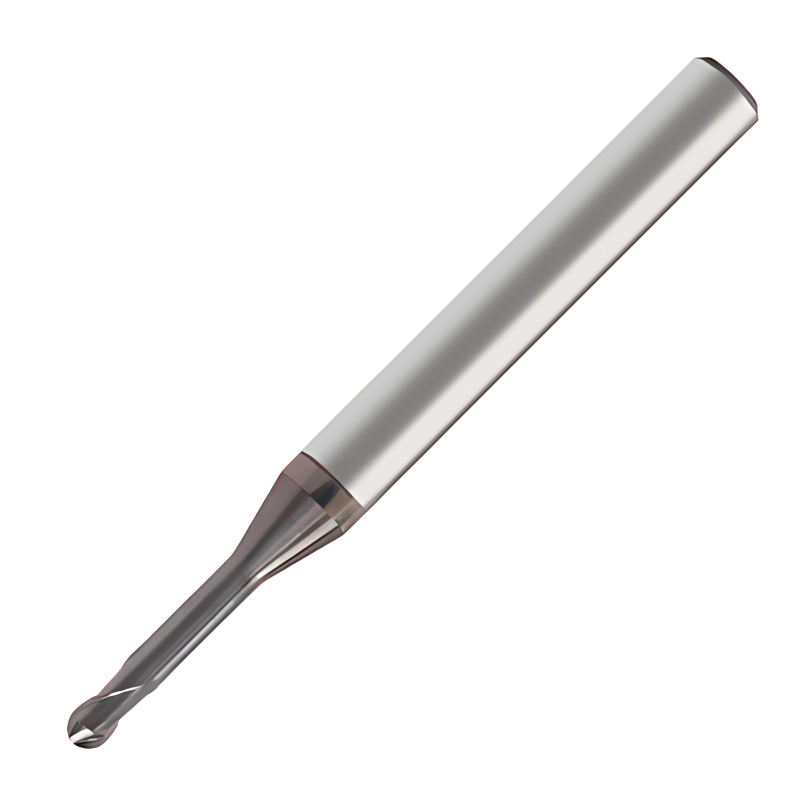

The Europa Tools Carbide End Mill 2 Flute Ball Nose - Extended Neck - Pulsar DMX is a precision micro cutting tool designed for deep-reach contouring and complex 3D profiles. Built for engineers and machinists working with hard materials, it delivers smooth, accurate finishes in hard-to-access features.
- Diameter: 0.5 mm
- Length of cut: 8 mm
- Flute configuration: 2-flute ball nose for precise, curved transitions
- Extended neck: Long reach to access deep pockets and tight contours
- Coating: Pulsar DMX for efficient dry cutting and reduced wear
- Material: Solid carbide for rigidity and wear resistance
- Application: Optimized for high-speed machining of pre-hardened steels up to HRc55
This end mill excels in producing high-quality finishes on intricate geometries where space is limited. The 0.5 mm ball nose creates smooth radii on complex surfaces, while the extended neck minimizes tool interference in deep or narrow features. The Pulsar DMX coating supports reliable dry cutting, helping reduce coolant handling and enabling stable performance at higher speeds. Ideal for precision components in sectors like aerospace, medical devices, and micro tooling, as well as rapid prototyping where durability and accuracy matter most.
| Cutter Diameter (DC) | 0.5 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 0.5 |
| Overall Length (OAL) | 45 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | 8 |
| Corner Radius (RE) | 0.25 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 2 Flute Ball Nose - Extended Neck - Pulsar DMX
View full collection →You are viewing EUR-1023650053. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1023650020 | 0.2 | 0.2 | 40 | 4 | 1 | 0.1 | £79.62 | 1-2 days | |
| EUR-1023650030 | 0.3 | 0.3 | 40 | 4 | 1 | 0.15 | £67.17 | 1-2 days | |
| EUR-1023650040 | 0.4 | 0.4 | 40 | 4 | 1 | 0.2 | £50.17 | 1-2 days | |
| EUR-1023650050 | 0.5 | 0.5 | 45 | 4 | 2 | 0.25 | £50.73 | 1-2 days | |
| EUR-1023650051 | 0.5 | 0.5 | 45 | 4 | 4 | 0.25 | £50.73 | 1-2 days | |
| EUR-1023650052 | 0.5 | 0.5 | 45 | 4 | 6 | 0.25 | £58.16 | 1-2 days | |
| EUR-1023650053 Viewing | 0.5 | 0.5 | 45 | 4 | 8 | 0.25 | £58.16 | 1-2 days | |
| EUR-1023650060 | 0.6 | 0.6 | 45 | 4 | 2 | 0.3 | £50.73 | 1-2 days | |
| EUR-1023650061 | 0.6 | 0.6 | 45 | 4 | 4 | 0.3 | £50.73 | 1-2 days | |
| EUR-1023650062 | 0.6 | 0.6 | 45 | 4 | 6 | 0.3 | £50.73 | 1-2 days | |
| EUR-1023650063 | 0.6 | 0.6 | 45 | 4 | 8 | 0.3 | £58.16 | 1-2 days | |
| EUR-1023650080 | 0.8 | 0.8 | 45 | 4 | 2 | 0.4 | £39.74 | 1-2 days | |
| EUR-1023650081 | 0.8 | 0.8 | 45 | 4 | 4 | 0.4 | £39.74 | 1-2 days | |
| EUR-1023650082 | 0.8 | 0.8 | 45 | 4 | 6 | 0.4 | £39.74 | 1-2 days | |
| EUR-1023650083 | 0.8 | 0.8 | 50 | 4 | 10 | 0.4 | £51.27 | 1-2 days | |
| EUR-1023650100 | 1 | 1 | 50 | 4 | 3 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650101 | 1 | 1 | 50 | 4 | 4 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650102 | 1 | 1 | 50 | 4 | 5 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650103 | 1 | 1 | 50 | 4 | 6 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650104 | 1 | 1 | 50 | 4 | 8 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650105 | 1 | 1 | 50 | 4 | 10 | 0.5 | £36.74 | 1-2 days | |
| EUR-1023650106 | 1 | 1 | 50 | 4 | 12 | 0.5 | £39.06 | 1-2 days | |
| EUR-1023650107 | 1 | 1 | 50 | 4 | 16 | 0.5 | £41.25 | 1-2 days | |
| EUR-1023650108 | 1 | 1 | 50 | 4 | 20 | 0.5 | £42.91 | 1-2 days | |
| EUR-1023650120 | 1.2 | 1.2 | 50 | 4 | 8 | 0.6 | £36.74 | 1-2 days | |
| EUR-1023650150 | 1.5 | 1.5 | 50 | 4 | 6 | 0.75 | £36.74 | 1-2 days | |
| EUR-1023650151 | 1.5 | 1.5 | 50 | 4 | 8 | 0.75 | £36.74 | 1-2 days | |
| EUR-1023650152 | 1.5 | 1.5 | 50 | 4 | 10 | 0.75 | £36.74 | 1-2 days | |
| EUR-1023650153 | 1.5 | 1.5 | 50 | 4 | 12 | 0.75 | £39.06 | 1-2 days | |
| EUR-1023650154 | 1.5 | 1.5 | 50 | 4 | 16 | 0.75 | £41.25 | 1-2 days | |
| EUR-1023650155 | 1.5 | 1.5 | 50 | 4 | 20 | 0.75 | £42.91 | 1-2 days | |
| EUR-1023650200 | 2 | 2 | 50 | 4 | 6 | 1 | £34.51 | 1-2 days | |
| EUR-1023650201 | 2 | 2 | 50 | 4 | 8 | 1 | £34.51 | 1-2 days | |
| EUR-1023650202 | 2 | 2 | 50 | 4 | 10 | 1 | £34.51 | 1-2 days | |
| EUR-1023650203 | 2 | 2 | 50 | 4 | 12 | 1 | £34.51 | 1-2 days | |
| EUR-1023650204 | 2 | 2 | 50 | 4 | 14 | 1 | £36.34 | 1-2 days | |
| EUR-1023650205 | 2 | 2 | 50 | 4 | 16 | 1 | £36.34 | 1-2 days | |
| EUR-1023650206 | 2 | 2 | 50 | 4 | 20 | 1 | £39.06 | 1-2 days | |
| EUR-1023650207 | 2 | 2 | 70 | 4 | 30 | 1 | £44.75 | 1-2 days | |
| EUR-1023650300 | 3 | 3 | 50 | 6 | 8 | 1.5 | £42.14 | 1-2 days | |
| EUR-1023650301 | 3 | 3 | 50 | 6 | 10 | 1.5 | £42.14 | 1-2 days | |
| EUR-1023650302 | 3 | 3 | 50 | 6 | 12 | 1.5 | £42.14 | 1-2 days | |
| EUR-1023650303 | 3 | 3 | 60 | 6 | 16 | 1.5 | £50.89 | 1-2 days | |
| EUR-1023650304 | 3 | 3 | 60 | 6 | 20 | 1.5 | £54.51 | 1-2 days | |
| EUR-1023650305 | 3 | 3 | 70 | 6 | 30 | 1.5 | £59.09 | 1-2 days | |
| EUR-1023650306 | 3 | 3 | 70 | 6 | 35 | 1.5 | £64.40 | 1-2 days | |
| EUR-1023650400 | 4 | 4 | 50 | 6 | 10 | 2 | £42.14 | 1-2 days | |
| EUR-1023650401 | 4 | 4 | 50 | 6 | 12 | 2 | £42.14 | 1-2 days | |
| EUR-1023650402 | 4 | 4 | 60 | 6 | 16 | 2 | £50.89 | 1-2 days | |
| EUR-1023650403 | 4 | 4 | 60 | 6 | 20 | 2 | £54.51 | 1-2 days | |
| EUR-1023650404 | 4 | 4 | 70 | 6 | 30 | 2 | £59.09 | 1-2 days | |
| EUR-1023650405 | 4 | 4 | 70 | 6 | 35 | 2 | £64.40 | 1-2 days | |
| EUR-1023650500 | 5 | 6 | 70 | 6 | 30 | 2.5 | £59.09 | 1-2 days | |
| EUR-1023650600 | 6 | 8 | 60 | 6 | 20 | 3 | £54.51 | 1-2 days | |
| EUR-1023650601 | 6 | 8 | 60 | 6 | 30 | 3 | £54.51 | 1-2 days | |
| EUR-1023650800 | 8 | 10 | 70 | 8 | 25 | 4 | £68.67 | 1-2 days | |
| EUR-1023651000 | 10 | 12 | 75 | 10 | 30 | 5 | £105.56 | 1-2 days | |
| EUR-1023651001 | 10 | 18 | 100 | 10 | 30 | 5 | £115.06 | 1-2 days | |
| EUR-1023651200 | 12 | 14 | 80 | 12 | 32 | 6 | £125.12 | 1-2 days | |
| EUR-1023651201 | 12 | 22 | 100 | 12 | 32 | 6 | £151.16 | 1-2 days |
