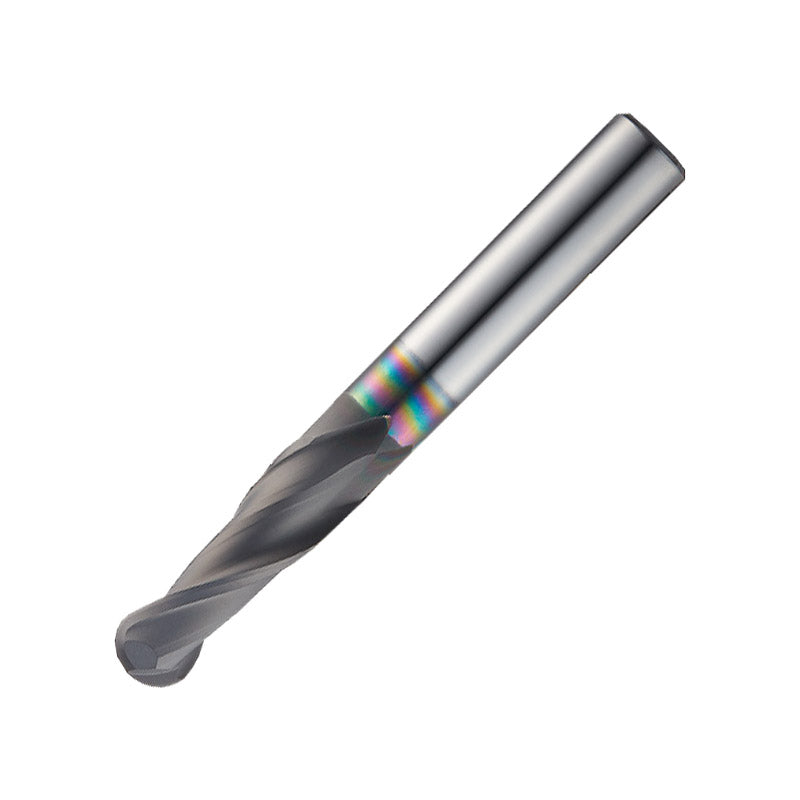

Widin Carbide End Mill For Graphite - 2 Flute Neck Type Ball Nose - 0.8mm x 8mm x50mm

The Widin Carbide End Mill for Graphite is a precision cutting tool designed specifically for graphite machining. With a 0.8 mm diameter, an 8 mm neck length, and a 50 mm overall length, this 2-flute neck-type ball nose provides clean contours and smooth surface finishes for parts used in aerospace, automotive, and electronics applications.

Engineered to leverage graphite’s low friction and high thermal conductivity, the carbide construction delivers durable, reliable performance at higher speeds. The compact 2-flute design promotes efficient chip evacuation, helping maintain steady cuts and reducing downtime on detailed graphite profiles.

• Efficient Chip Evacuation: The 2-flute neck-type design promotes quick chip clearance, reducing clogging and allowing consistent feeds for fine-detail graphite work.
• Neck-Type Ball Nose for Precise Contouring: Neck length of 8 mm supports stable radii and smooth, accurate profiling across complex graphite geometry.
• Durable Carbide for High-Speed Performance: Carbide construction delivers long tool life and reliable cutting even at higher speeds and continuous cycles.

This end mill helps you achieve precise graphite contours with consistent surface finishes, reducing the need for rework and enabling faster prototype-to-part cycles. The combination of a small-diameter 0.8 mm tool and a 50 mm length provides access to tight pockets and deeper profiles, while the carbide material stands up to repetitive passes, delivering dependable results across aerospace, automotive, and electronics projects. Whether you're prototyping, finishing complex graphite surfaces, or performing detail passes, this tool reduces downtime, improves surface quality, and supports reliable, repeatable performance.
