Widin Carbide End Mill For Graphite - 2 Flute Neck Type Ball Nose - 3mm x 20mm x70mm
| Cutter Diameter | 3 |
| Number of Flutes | 2 |
| Flute Length | 12 |
| Overall Length | 70 |
Learn more about Klarna
Description

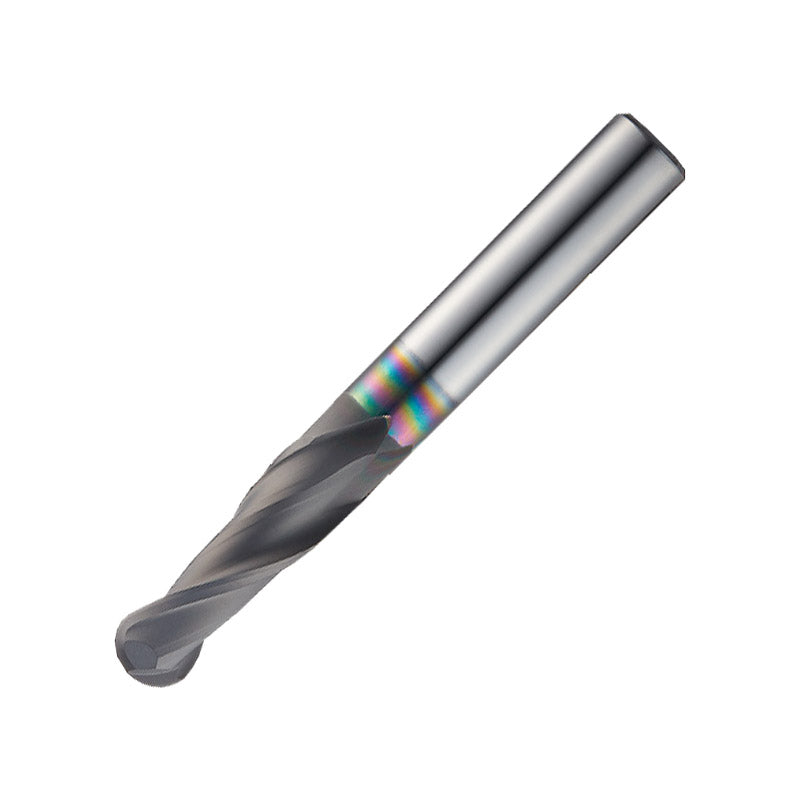

The Widin Carbide End Mill for Graphite is a precision cutting tool engineered specifically for graphite machining. It features a 3 mm diameter, 20 mm flute length, and 70 mm overall length, offering a 2-flute neck-type ball nose design that delivers smooth contours and reliable performance across aerospace, automotive, and electronics projects.
- 2-Flute Neck-Type Design for Efficient Chip Evacuation: The two-flute configuration provides rapid chip evacuation, minimizes clogging, and supports stable cutting at higher speeds, helping you maintain a clean, consistent finish on graphite.
- Ball Nose Geometry for Smooth Contours and Precise Profiling: The ball end creates gentle radii on curved graphite surfaces, enabling intricate contours and profiles with minimal finishing and improved dimensional accuracy.
- Carbide Construction for Longevity and Consistent Performance: Hardened carbide delivers long tool life, superior wear resistance, and reliable performance in high-speed machining, reducing tool changes and downtime.
With its durable carbide build and specialized geometry, this end mill helps you achieve precision graphite parts with excellent surface finish, streamline your workflow, and extend tool life across multiple projects.
Part Numbers
- Protool Part Number
- G0301220
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide End Mill For Graphite - 2 Flute Neck Type Ball Nose (G)
View full collection →You are viewing G0301220. Click any other SKU to view its full details.

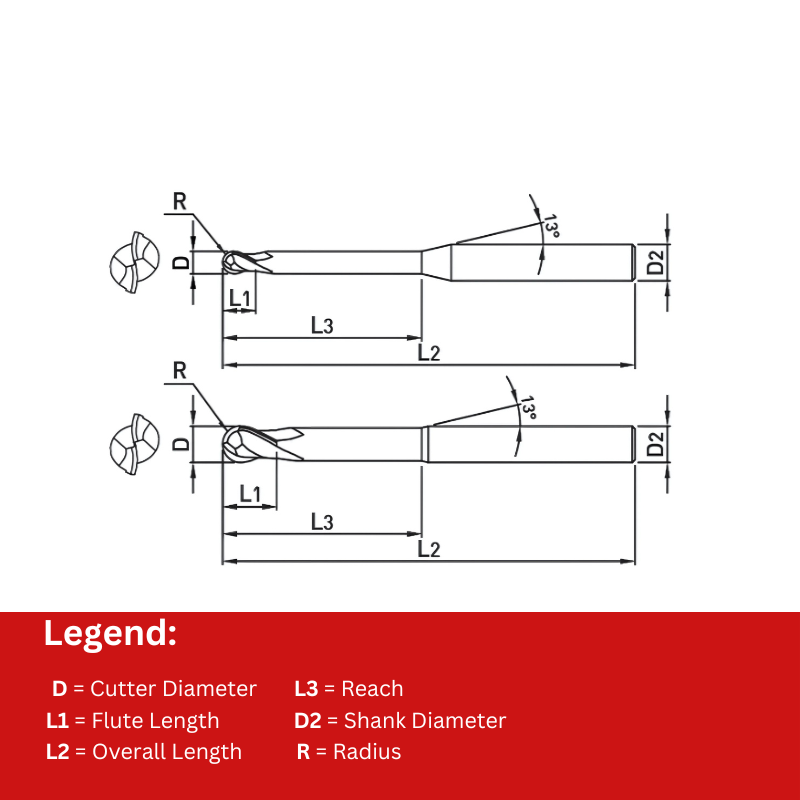

| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| G00601203 | 0.6 | 2 | 1.2 | 50 | 4 | 3 | 0.3 | £57.05 | 5 days | |
| G00501003 | 0.5 | 2 | 1 | 50 | 4 | 3 | 0.25 | £58.35 | 5 days | |
| G00501010 | 0.5 | 2 | 1 | 50 | 4 | 10 | 0.25 | £59.35 | 5 days | |
| G00501006 | 0.5 | 2 | 1 | 50 | 4 | 6 | 0.25 | £59.35 | 5 days | |
| G00601210 | 0.6 | 2 | 1.2 | 50 | 4 | 10 | 0.3 | £57.95 | 5 days | |
| G00601206 | 0.6 | 2 | 1.2 | 50 | 4 | 6 | 0.3 | £57.95 | 5 days | |
| G00601208 | 0.6 | 2 | 1.2 | 50 | 4 | 8 | 0.3 | £57.95 | 5 days | |
| G00601212 | 0.6 | 2 | 1.2 | 50 | 4 | 12 | 0.3 | £57.95 | 5 days | |
| G0100308 | 1 | 2 | 3 | 60 | 4 | 8 | 0.5 | £46.45 | 5 days | |
| G0080166 | 0.8 | 2 | 1.6 | 50 | 4 | 6 | 0.4 | £55.80 | 5 days | |
| G0080168 | 0.8 | 2 | 1.6 | 50 | 4 | 8 | 0.4 | £55.80 | 5 days | |
| G0080164 | 0.8 | 2 | 1.6 | 50 | 4 | 4 | 0.4 | £55.80 | 5 days | |
| G0100310 | 1 | 2 | 3 | 60 | 4 | 10 | 0.5 | £46.45 | 5 days | |
| G0100306 | 1 | 2 | 3 | 60 | 4 | 6 | 0.5 | £46.45 | 5 days | |
| G0100312 | 1 | 2 | 3 | 60 | 4 | 12 | 0.5 | £46.45 | 5 days | |
| G0150512 | 1.5 | 2 | 5 | 60 | 4 | 12 | 0.75 | £46.45 | 5 days | |
| G0100316 | 1 | 2 | 3 | 60 | 4 | 16 | 0.5 | £46.45 | 5 days | |
| G0120410 | 1.2 | 2 | 4 | 70 | 4 | 10 | 0.6 | £46.45 | 5 days | |
| G0100318 | 1 | 2 | 3 | 60 | 4 | 18 | 0.5 | £46.45 | 5 days | |
| G0150510 | 1.5 | 2 | 5 | 60 | 4 | 10 | 0.75 | £46.45 | 5 days | |
| G0100314 | 1 | 2 | 3 | 60 | 4 | 14 | 0.5 | £46.45 | 5 days | |
| G0150520 | 1.5 | 2 | 5 | 60 | 4 | 20 | 0.75 | £46.45 | 5 days | |
| G0100320 | 1 | 2 | 3 | 60 | 4 | 20 | 0.5 | £46.45 | 5 days | |
| G0150525 | 1.5 | 2 | 5 | 70 | 4 | 25 | 0.75 | £50.80 | 5 days | |
| G0150530 | 1.5 | 2 | 5 | 70 | 4 | 30 | 0.75 | £50.80 | 5 days | |
| G0150516 | 1.5 | 2 | 5 | 60 | 4 | 16 | 0.75 | £46.45 | 5 days | |
| G0200816 | 2 | 2 | 8 | 60 | 4 | 16 | 1 | £46.45 | 5 days | |
| G0200812 | 2 | 2 | 8 | 60 | 4 | 12 | 1 | £46.45 | 5 days | |
| G0200820 | 2 | 2 | 8 | 60 | 4 | 20 | 1 | £46.45 | 5 days | |
| G0251020 | 2.5 | 2 | 10 | 80 | 4 | 20 | 1.25 | £54.13 | 5 days | |
| G0200835 | 2 | 2 | 8 | 80 | 4 | 35 | 1 | £54.13 | 5 days | |
| G0201020 | 2 | 2 | 10 | 80 | 4 | 20 | 1 | £50.80 | 5 days | |
| G0301235 | 3 | 2 | 12 | 80 | 6 | 35 | 1.5 | £54.18 | 5 days | |
| G0200825 | 2 | 2 | 8 | 70 | 4 | 25 | 1 | £50.80 | 5 days | |
| G0301245 | 3 | 2 | 12 | 90 | 6 | 45 | 1.5 | £57.73 | 5 days | |
| G0201020L | 2 | 2 | 10 | 100 | 4 | 20 | 1 | £54.13 | 5 days | |
| G0200840 | 2 | 2 | 8 | 80 | 4 | 40 | 1 | £54.13 | 5 days | |
| G0301525 | 3 | 2 | 15 | 80 | 4 | 25 | 1.5 | £54.13 | 5 days | |
| G0200830 | 2 | 2 | 8 | 70 | 4 | 30 | 1 | £50.80 | 5 days | |
| G0301225 | 3 | 2 | 12 | 70 | 6 | 25 | 1.5 | £54.18 | 5 days | |
| G0301216 | 3 | 2 | 12 | 60 | 6 | 16 | 1.5 | £54.18 | 5 days | |
| G0301230 | 3 | 2 | 12 | 80 | 6 | 30 | 1.5 | £54.18 | 5 days | |
| G0401530 | 4 | 2 | 15 | 80 | 6 | 30 | 2 | £51.03 | 5 days | |
| G0301240 | 3 | 2 | 12 | 90 | 6 | 40 | 1.5 | £57.73 | 5 days | |
| G0301220 Viewing | 3 | 2 | 12 | 70 | 6 | 20 | 1.5 | £54.18 | 5 days | |
| G0401520 | 4 | 2 | 15 | 60 | 6 | 20 | 2 | £51.03 | 5 days | |
| G0503050L | 5 | 2 | 30 | 150 | 6 | 50 | 2.5 | £84.60 | 5 days | |
| G0401545 | 4 | 2 | 15 | 90 | 6 | 45 | 2 | £54.18 | 5 days | |
| G0401525 | 4 | 2 | 15 | 70 | 6 | 25 | 2 | £51.03 | 5 days | |
| G04015L | 4 | 2 | 15 | 120 | 4 | N/A | 2 | £57.70 | 5 days | |
| G06020M | 6 | 2 | 20 | 100 | 6 | N/A | 3 | £72.60 | 5 days | |
| G0401550 | 4 | 2 | 15 | 100 | 6 | 50 | 2 | £57.18 | 5 days | |
| G04015S | 4 | 2 | 15 | 50 | 4 | N/A | 2 | £44.13 | 5 days | |
| G0401540 | 4 | 2 | 15 | 90 | 6 | 40 | 2 | £54.18 | 5 days | |
| G0503050 | 5 | 2 | 30 | 100 | 6 | 50 | 2.5 | £72.60 | 5 days | |
| G06020S | 6 | 2 | 20 | 70 | 6 | N/A | 3 | £67.30 | 5 days | |
| G04015M | 4 | 2 | 15 | 80 | 4 | N/A | 2 | £46.45 | 5 days | |
| G0603050 | 6 | 2 | 30 | 100 | 6 | 50 | 3 | £72.60 | 5 days | |
| G06020L | 6 | 2 | 20 | 150 | 6 | N/A | 3 | £84.60 | 5 days | |
| G08025S | 8 | 2 | 25 | 70 | 8 | N/A | 4 | £93.20 | 5 days | |
| G0401535 | 4 | 2 | 15 | 80 | 6 | 35 | 2 | £51.03 | 5 days | |
| G0804060L | 8 | 2 | 40 | 200 | 8 | 60 | 4 | £146.48 | 5 days | |
| G08025M | 8 | 2 | 25 | 110 | 8 | N/A | 4 | £96.48 | 5 days | |
| G08025L | 8 | 2 | 25 | 160 | 8 | N/A | 4 | £112.45 | 5 days | |
| G0402030 | 4 | 2 | 20 | 80 | 4 | 30 | 2 | £47.85 | 5 days | |
| G10030L | 10 | 2 | 30 | 170 | 10 | N/A | 5 | £166.30 | 5 days | |
| G0804060 | 8 | 2 | 40 | 110 | 8 | 60 | 4 | £96.48 | 5 days | |
| G0603050L | 6 | 2 | 30 | 150 | 6 | 50 | 3 | £84.60 | 5 days | |
| G12035L | 12 | 2 | 35 | 180 | 12 | N/A | 6 | £256.85 | 5 days | |
| G1205575L | 12 | 2 | 55 | 200 | 12 | 75 | 6 | £309.63 | 5 days | |
| G1005070L | 10 | 2 | 50 | 200 | 10 | 70 | 5 | £215.93 | 5 days | |
| G10030S | 10 | 2 | 30 | 80 | 10 | N/A | 5 | £140.63 | 5 days | |
| G1205575 | 12 | 2 | 55 | 130 | 12 | 75 | 6 | £250.58 | 5 days | |
| G12035S | 12 | 2 | 35 | 80 | 12 | N/A | 6 | £196.55 | 5 days | |
| G1005070 | 10 | 2 | 50 | 120 | 10 | 70 | 5 | £148.38 | 5 days | |
| G10030M | 10 | 2 | 30 | 120 | 10 | N/A | 5 | £148.38 | 5 days | |
| G12035M | 12 | 2 | 35 | 130 | 12 | N/A | 6 | £209.30 | 5 days |
