Widin Carbide End Mill For Graphite - 2 Flute Neck Type Ball Nose - 1mm x 14mm x60mm
| Cutter Diameter | 1 |
| Number of Flutes | 2 |
| Flute Length | 3 |
| Overall Length | 60 |
Learn more about Klarna
Description

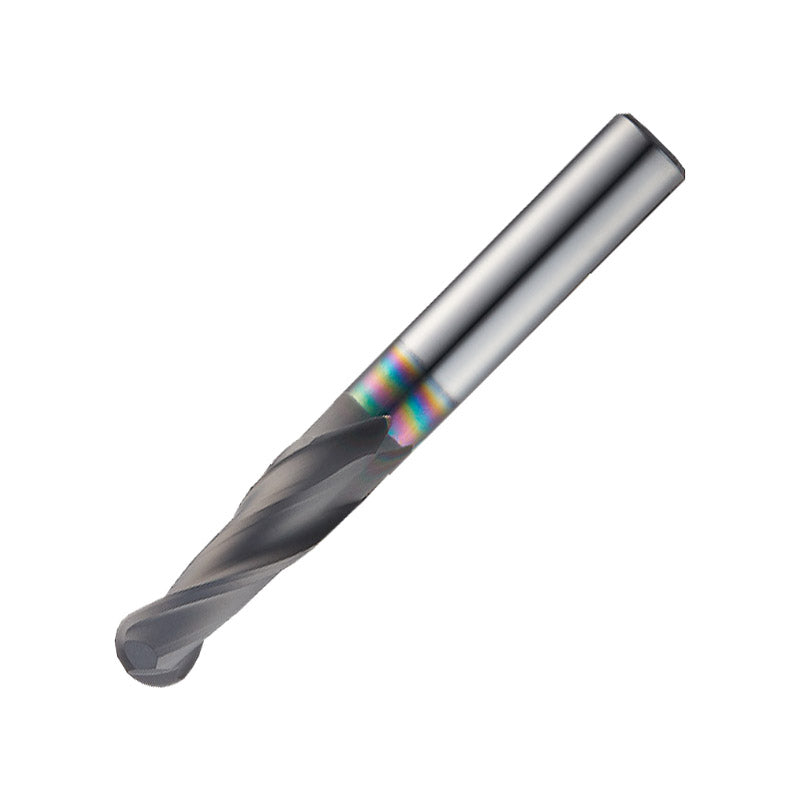

The Widin Carbide End Mill for Graphite with a 2 Flute Neck Type Ball Nose is a precision cutting tool designed specifically for graphite workpieces. It features a compact 1 mm cutting diameter, 14 mm flute length, and 60 mm overall length, making it ideal for fine-detail work and precise contouring.
Engineered to match graphite's unique characteristics—high thermal conductivity and low friction—this end mill delivers clean edges and an exceptional surface finish. The 2-flute neck-type ball nose enables smooth profiling and contouring, while the carbide construction provides long tool life and dependable performance even during high-speed machining.
- 1 mm Cutting Diameter for Fine Detail: Enables precise pockets, slots, and fillets on graphite with tight tolerances and smooth edges.
- 2 Flute Neck-Type Ball Nose: Promotes efficient chip evacuation and accurate contouring across complex geometries with reduced clogging.
- Carbide Construction for Long Tool Life: Delivers durable performance in demanding, high-speed milling, reducing tool changes and downtime.
This end mill helps you achieve accurate graphite contours, cleaner finishes, and reliable performance across aerospace, automotive, and electronics applications. Its combination of precise geometry, efficient chip control, and rugged carbide tooling supports faster setups, fewer reworks, and consistent results throughout your machining workflow.
Part Numbers
- Protool Part Number
- G0100314
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide End Mill For Graphite - 2 Flute Neck Type Ball Nose (G)
View full collection →You are viewing G0100314. Click any other SKU to view its full details.

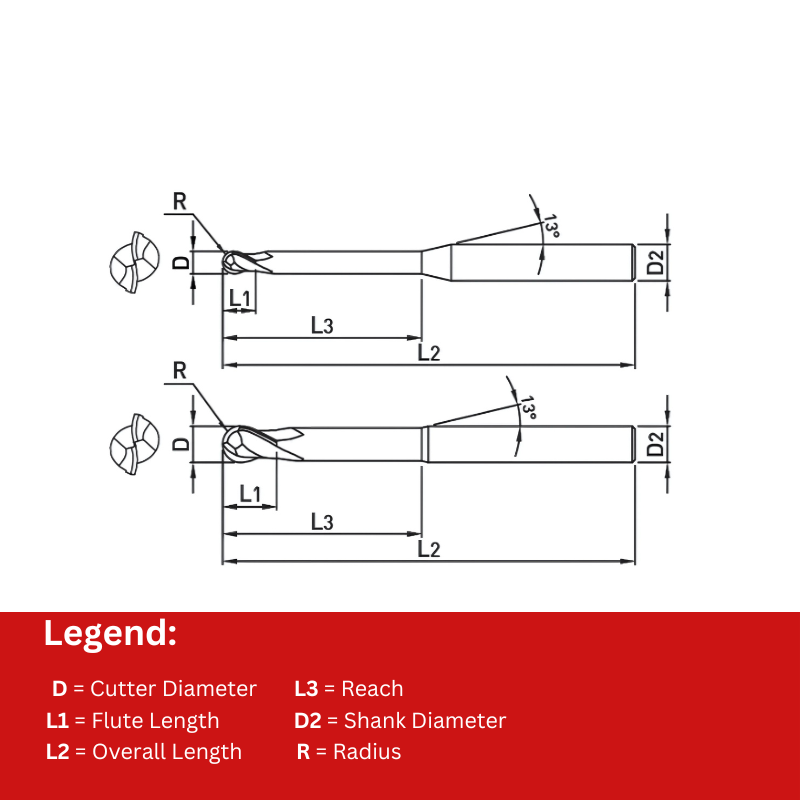

| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| G00601203 | 0.6 | 2 | 1.2 | 50 | 4 | 3 | 0.3 | £57.05 | 5 days | |
| G00501003 | 0.5 | 2 | 1 | 50 | 4 | 3 | 0.25 | £58.35 | 5 days | |
| G00501010 | 0.5 | 2 | 1 | 50 | 4 | 10 | 0.25 | £59.35 | 5 days | |
| G00501006 | 0.5 | 2 | 1 | 50 | 4 | 6 | 0.25 | £59.35 | 5 days | |
| G00601210 | 0.6 | 2 | 1.2 | 50 | 4 | 10 | 0.3 | £57.95 | 5 days | |
| G00601206 | 0.6 | 2 | 1.2 | 50 | 4 | 6 | 0.3 | £57.95 | 5 days | |
| G00601208 | 0.6 | 2 | 1.2 | 50 | 4 | 8 | 0.3 | £57.95 | 5 days | |
| G00601212 | 0.6 | 2 | 1.2 | 50 | 4 | 12 | 0.3 | £57.95 | 5 days | |
| G0100308 | 1 | 2 | 3 | 60 | 4 | 8 | 0.5 | £46.45 | 5 days | |
| G0080166 | 0.8 | 2 | 1.6 | 50 | 4 | 6 | 0.4 | £55.80 | 5 days | |
| G0080168 | 0.8 | 2 | 1.6 | 50 | 4 | 8 | 0.4 | £55.80 | 5 days | |
| G0080164 | 0.8 | 2 | 1.6 | 50 | 4 | 4 | 0.4 | £55.80 | 5 days | |
| G0100310 | 1 | 2 | 3 | 60 | 4 | 10 | 0.5 | £46.45 | 5 days | |
| G0100306 | 1 | 2 | 3 | 60 | 4 | 6 | 0.5 | £46.45 | 5 days | |
| G0100312 | 1 | 2 | 3 | 60 | 4 | 12 | 0.5 | £46.45 | 5 days | |
| G0150512 | 1.5 | 2 | 5 | 60 | 4 | 12 | 0.75 | £46.45 | 5 days | |
| G0100316 | 1 | 2 | 3 | 60 | 4 | 16 | 0.5 | £46.45 | 5 days | |
| G0120410 | 1.2 | 2 | 4 | 70 | 4 | 10 | 0.6 | £46.45 | 5 days | |
| G0100318 | 1 | 2 | 3 | 60 | 4 | 18 | 0.5 | £46.45 | 5 days | |
| G0150510 | 1.5 | 2 | 5 | 60 | 4 | 10 | 0.75 | £46.45 | 5 days | |
| G0100314 Viewing | 1 | 2 | 3 | 60 | 4 | 14 | 0.5 | £46.45 | 5 days | |
| G0150520 | 1.5 | 2 | 5 | 60 | 4 | 20 | 0.75 | £46.45 | 5 days | |
| G0100320 | 1 | 2 | 3 | 60 | 4 | 20 | 0.5 | £46.45 | 5 days | |
| G0150525 | 1.5 | 2 | 5 | 70 | 4 | 25 | 0.75 | £50.80 | 5 days | |
| G0150530 | 1.5 | 2 | 5 | 70 | 4 | 30 | 0.75 | £50.80 | 5 days | |
| G0150516 | 1.5 | 2 | 5 | 60 | 4 | 16 | 0.75 | £46.45 | 5 days | |
| G0200816 | 2 | 2 | 8 | 60 | 4 | 16 | 1 | £46.45 | 5 days | |
| G0200812 | 2 | 2 | 8 | 60 | 4 | 12 | 1 | £46.45 | 5 days | |
| G0200820 | 2 | 2 | 8 | 60 | 4 | 20 | 1 | £46.45 | 5 days | |
| G0251020 | 2.5 | 2 | 10 | 80 | 4 | 20 | 1.25 | £54.13 | 5 days | |
| G0200835 | 2 | 2 | 8 | 80 | 4 | 35 | 1 | £54.13 | 5 days | |
| G0201020 | 2 | 2 | 10 | 80 | 4 | 20 | 1 | £50.80 | 5 days | |
| G0301235 | 3 | 2 | 12 | 80 | 6 | 35 | 1.5 | £54.18 | 5 days | |
| G0200825 | 2 | 2 | 8 | 70 | 4 | 25 | 1 | £50.80 | 5 days | |
| G0301245 | 3 | 2 | 12 | 90 | 6 | 45 | 1.5 | £57.73 | 5 days | |
| G0201020L | 2 | 2 | 10 | 100 | 4 | 20 | 1 | £54.13 | 5 days | |
| G0200840 | 2 | 2 | 8 | 80 | 4 | 40 | 1 | £54.13 | 5 days | |
| G0301525 | 3 | 2 | 15 | 80 | 4 | 25 | 1.5 | £54.13 | 5 days | |
| G0200830 | 2 | 2 | 8 | 70 | 4 | 30 | 1 | £50.80 | 5 days | |
| G0301225 | 3 | 2 | 12 | 70 | 6 | 25 | 1.5 | £54.18 | 5 days | |
| G0301216 | 3 | 2 | 12 | 60 | 6 | 16 | 1.5 | £54.18 | 5 days | |
| G0301230 | 3 | 2 | 12 | 80 | 6 | 30 | 1.5 | £54.18 | 5 days | |
| G0401530 | 4 | 2 | 15 | 80 | 6 | 30 | 2 | £51.03 | 5 days | |
| G0301240 | 3 | 2 | 12 | 90 | 6 | 40 | 1.5 | £57.73 | 5 days | |
| G0301220 | 3 | 2 | 12 | 70 | 6 | 20 | 1.5 | £54.18 | 5 days | |
| G0401520 | 4 | 2 | 15 | 60 | 6 | 20 | 2 | £51.03 | 5 days | |
| G0503050L | 5 | 2 | 30 | 150 | 6 | 50 | 2.5 | £84.60 | 5 days | |
| G0401545 | 4 | 2 | 15 | 90 | 6 | 45 | 2 | £54.18 | 5 days | |
| G0401525 | 4 | 2 | 15 | 70 | 6 | 25 | 2 | £51.03 | 5 days | |
| G04015L | 4 | 2 | 15 | 120 | 4 | N/A | 2 | £57.70 | 5 days | |
| G06020M | 6 | 2 | 20 | 100 | 6 | N/A | 3 | £72.60 | 5 days | |
| G0401550 | 4 | 2 | 15 | 100 | 6 | 50 | 2 | £57.18 | 5 days | |
| G04015S | 4 | 2 | 15 | 50 | 4 | N/A | 2 | £44.13 | 5 days | |
| G0401540 | 4 | 2 | 15 | 90 | 6 | 40 | 2 | £54.18 | 5 days | |
| G0503050 | 5 | 2 | 30 | 100 | 6 | 50 | 2.5 | £72.60 | 5 days | |
| G06020S | 6 | 2 | 20 | 70 | 6 | N/A | 3 | £67.30 | 5 days | |
| G04015M | 4 | 2 | 15 | 80 | 4 | N/A | 2 | £46.45 | 5 days | |
| G0603050 | 6 | 2 | 30 | 100 | 6 | 50 | 3 | £72.60 | 5 days | |
| G06020L | 6 | 2 | 20 | 150 | 6 | N/A | 3 | £84.60 | 5 days | |
| G08025S | 8 | 2 | 25 | 70 | 8 | N/A | 4 | £93.20 | 5 days | |
| G0401535 | 4 | 2 | 15 | 80 | 6 | 35 | 2 | £51.03 | 5 days | |
| G0804060L | 8 | 2 | 40 | 200 | 8 | 60 | 4 | £146.48 | 5 days | |
| G08025M | 8 | 2 | 25 | 110 | 8 | N/A | 4 | £96.48 | 5 days | |
| G08025L | 8 | 2 | 25 | 160 | 8 | N/A | 4 | £112.45 | 5 days | |
| G0402030 | 4 | 2 | 20 | 80 | 4 | 30 | 2 | £47.85 | 5 days | |
| G10030L | 10 | 2 | 30 | 170 | 10 | N/A | 5 | £166.30 | 5 days | |
| G0804060 | 8 | 2 | 40 | 110 | 8 | 60 | 4 | £96.48 | 5 days | |
| G0603050L | 6 | 2 | 30 | 150 | 6 | 50 | 3 | £84.60 | 5 days | |
| G12035L | 12 | 2 | 35 | 180 | 12 | N/A | 6 | £256.85 | 5 days | |
| G1205575L | 12 | 2 | 55 | 200 | 12 | 75 | 6 | £309.63 | 5 days | |
| G1005070L | 10 | 2 | 50 | 200 | 10 | 70 | 5 | £215.93 | 5 days | |
| G10030S | 10 | 2 | 30 | 80 | 10 | N/A | 5 | £140.63 | 5 days | |
| G1205575 | 12 | 2 | 55 | 130 | 12 | 75 | 6 | £250.58 | 5 days | |
| G12035S | 12 | 2 | 35 | 80 | 12 | N/A | 6 | £196.55 | 5 days | |
| G1005070 | 10 | 2 | 50 | 120 | 10 | 70 | 5 | £148.38 | 5 days | |
| G10030M | 10 | 2 | 30 | 120 | 10 | N/A | 5 | £148.38 | 5 days | |
| G12035M | 12 | 2 | 35 | 130 | 12 | N/A | 6 | £209.30 | 5 days |
