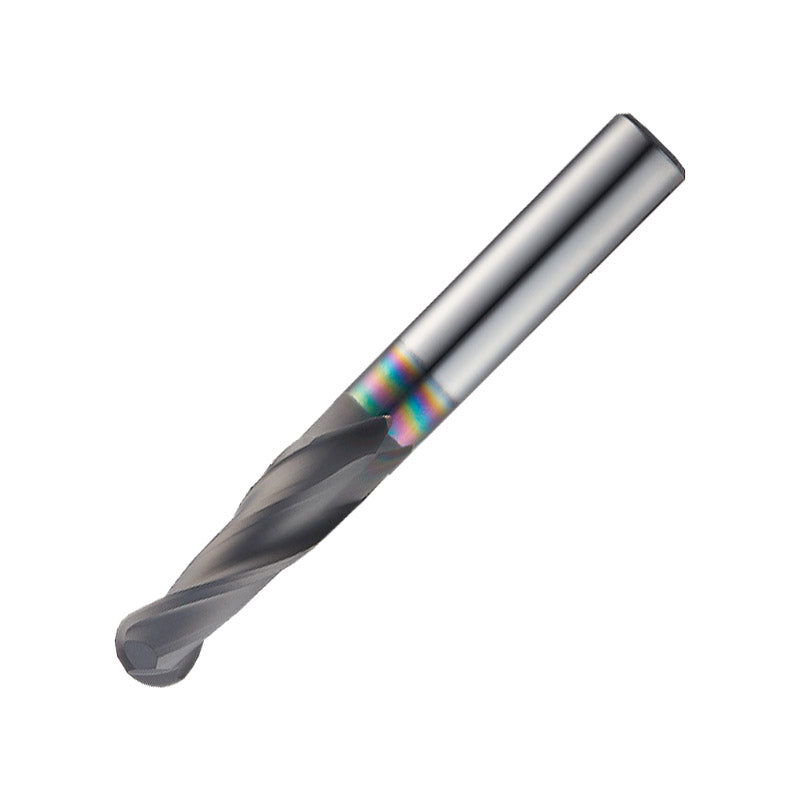

Widin Carbide End Mill For Graphite - 2 Flute Neck Type Ball Nose - 2mm x 25mm x70mm
| Cutter Diameter | 2 |
| Number of Flutes | 2 |
| Flute Length | 8 |
| Overall Length | 70 |
Learn more about Klarna
Description
The Widin Carbide End Mill for Graphite is a precision cutting tool engineered for clean, accurate milling of graphite parts. With a cutting diameter of 2 mm, a 25 mm neck length, and a 70 mm overall length, this 2-flute neck-type ball nose cutter is ideal for professionals and hobbyists tackling graphite in aerospace, automotive, and electronics projects.
Built to withstand the unique demands of graphite machining, it combines fast chip evacuation with a smooth surface finish. The neck design keeps the flute away from the workpiece during deeper contouring, enabling confident profiling and accurate radii along complex curves.
- Efficient chip evacuation with 2 flutes: The two-flute geometry moves chips away from the cutting edge quickly, reducing clogging and enabling steady cutting at higher feed rates for a cleaner surface.
- Neck Type Ball Nose for precise contouring: The neck portion maintains stiffness while allowing smooth profiling and accurate radii along complex curves, improving part accuracy and finish in graphite features.
- Carbide construction for long tool life: Carbide delivers exceptional hardness and wear resistance, maintaining sharpness at high speeds for graphite milling and reducing tool changes and downtime.
This end mill helps you finish graphite parts faster with fewer reworks and less downtime. Its geometry and carbide construction enable reliable, high-quality results in demanding graphite applications, improving workflow and overall production efficiency.
Part Numbers
- Protool Part Number
- G0200825
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide End Mill For Graphite - 2 Flute Neck Type Ball Nose (G)
View full collection →You are viewing G0200825. Click any other SKU to view its full details.

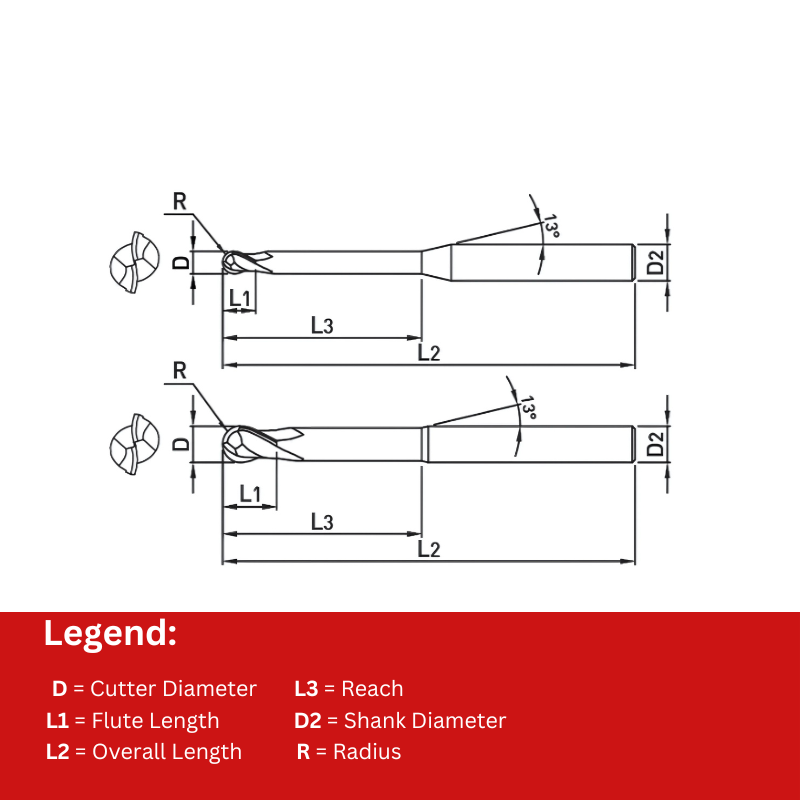

| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| G00601203 | 0.6 | 2 | 1.2 | 50 | 4 | 3 | 0.3 | £57.05 | 5 days | |
| G00501003 | 0.5 | 2 | 1 | 50 | 4 | 3 | 0.25 | £58.35 | 5 days | |
| G00501010 | 0.5 | 2 | 1 | 50 | 4 | 10 | 0.25 | £59.35 | 5 days | |
| G00501006 | 0.5 | 2 | 1 | 50 | 4 | 6 | 0.25 | £59.35 | 5 days | |
| G00601210 | 0.6 | 2 | 1.2 | 50 | 4 | 10 | 0.3 | £57.95 | 5 days | |
| G00601206 | 0.6 | 2 | 1.2 | 50 | 4 | 6 | 0.3 | £57.95 | 5 days | |
| G00601208 | 0.6 | 2 | 1.2 | 50 | 4 | 8 | 0.3 | £57.95 | 5 days | |
| G00601212 | 0.6 | 2 | 1.2 | 50 | 4 | 12 | 0.3 | £57.95 | 5 days | |
| G0100308 | 1 | 2 | 3 | 60 | 4 | 8 | 0.5 | £46.45 | 5 days | |
| G0080166 | 0.8 | 2 | 1.6 | 50 | 4 | 6 | 0.4 | £55.80 | 5 days | |
| G0080168 | 0.8 | 2 | 1.6 | 50 | 4 | 8 | 0.4 | £55.80 | 5 days | |
| G0080164 | 0.8 | 2 | 1.6 | 50 | 4 | 4 | 0.4 | £55.80 | 5 days | |
| G0100310 | 1 | 2 | 3 | 60 | 4 | 10 | 0.5 | £46.45 | 5 days | |
| G0100306 | 1 | 2 | 3 | 60 | 4 | 6 | 0.5 | £46.45 | 5 days | |
| G0100312 | 1 | 2 | 3 | 60 | 4 | 12 | 0.5 | £46.45 | 5 days | |
| G0150512 | 1.5 | 2 | 5 | 60 | 4 | 12 | 0.75 | £46.45 | 5 days | |
| G0100316 | 1 | 2 | 3 | 60 | 4 | 16 | 0.5 | £46.45 | 5 days | |
| G0120410 | 1.2 | 2 | 4 | 70 | 4 | 10 | 0.6 | £46.45 | 5 days | |
| G0100318 | 1 | 2 | 3 | 60 | 4 | 18 | 0.5 | £46.45 | 5 days | |
| G0150510 | 1.5 | 2 | 5 | 60 | 4 | 10 | 0.75 | £46.45 | 5 days | |
| G0100314 | 1 | 2 | 3 | 60 | 4 | 14 | 0.5 | £46.45 | 5 days | |
| G0150520 | 1.5 | 2 | 5 | 60 | 4 | 20 | 0.75 | £46.45 | 5 days | |
| G0100320 | 1 | 2 | 3 | 60 | 4 | 20 | 0.5 | £46.45 | 5 days | |
| G0150525 | 1.5 | 2 | 5 | 70 | 4 | 25 | 0.75 | £50.80 | 5 days | |
| G0150530 | 1.5 | 2 | 5 | 70 | 4 | 30 | 0.75 | £50.80 | 5 days | |
| G0150516 | 1.5 | 2 | 5 | 60 | 4 | 16 | 0.75 | £46.45 | 5 days | |
| G0200816 | 2 | 2 | 8 | 60 | 4 | 16 | 1 | £46.45 | 5 days | |
| G0200812 | 2 | 2 | 8 | 60 | 4 | 12 | 1 | £46.45 | 5 days | |
| G0200820 | 2 | 2 | 8 | 60 | 4 | 20 | 1 | £46.45 | 5 days | |
| G0251020 | 2.5 | 2 | 10 | 80 | 4 | 20 | 1.25 | £54.13 | 5 days | |
| G0200835 | 2 | 2 | 8 | 80 | 4 | 35 | 1 | £54.13 | 5 days | |
| G0201020 | 2 | 2 | 10 | 80 | 4 | 20 | 1 | £50.80 | 5 days | |
| G0301235 | 3 | 2 | 12 | 80 | 6 | 35 | 1.5 | £54.18 | 5 days | |
| G0200825 Viewing | 2 | 2 | 8 | 70 | 4 | 25 | 1 | £50.80 | 5 days | |
| G0301245 | 3 | 2 | 12 | 90 | 6 | 45 | 1.5 | £57.73 | 5 days | |
| G0201020L | 2 | 2 | 10 | 100 | 4 | 20 | 1 | £54.13 | 5 days | |
| G0200840 | 2 | 2 | 8 | 80 | 4 | 40 | 1 | £54.13 | 5 days | |
| G0301525 | 3 | 2 | 15 | 80 | 4 | 25 | 1.5 | £54.13 | 5 days | |
| G0200830 | 2 | 2 | 8 | 70 | 4 | 30 | 1 | £50.80 | 5 days | |
| G0301225 | 3 | 2 | 12 | 70 | 6 | 25 | 1.5 | £54.18 | 5 days | |
| G0301216 | 3 | 2 | 12 | 60 | 6 | 16 | 1.5 | £54.18 | 5 days | |
| G0301230 | 3 | 2 | 12 | 80 | 6 | 30 | 1.5 | £54.18 | 5 days | |
| G0401530 | 4 | 2 | 15 | 80 | 6 | 30 | 2 | £51.03 | 5 days | |
| G0301240 | 3 | 2 | 12 | 90 | 6 | 40 | 1.5 | £57.73 | 5 days | |
| G0301220 | 3 | 2 | 12 | 70 | 6 | 20 | 1.5 | £54.18 | 5 days | |
| G0401520 | 4 | 2 | 15 | 60 | 6 | 20 | 2 | £51.03 | 5 days | |
| G0503050L | 5 | 2 | 30 | 150 | 6 | 50 | 2.5 | £84.60 | 5 days | |
| G0401545 | 4 | 2 | 15 | 90 | 6 | 45 | 2 | £54.18 | 5 days | |
| G0401525 | 4 | 2 | 15 | 70 | 6 | 25 | 2 | £51.03 | 5 days | |
| G04015L | 4 | 2 | 15 | 120 | 4 | N/A | 2 | £57.70 | 5 days | |
| G06020M | 6 | 2 | 20 | 100 | 6 | N/A | 3 | £72.60 | 5 days | |
| G0401550 | 4 | 2 | 15 | 100 | 6 | 50 | 2 | £57.18 | 5 days | |
| G04015S | 4 | 2 | 15 | 50 | 4 | N/A | 2 | £44.13 | 5 days | |
| G0401540 | 4 | 2 | 15 | 90 | 6 | 40 | 2 | £54.18 | 5 days | |
| G0503050 | 5 | 2 | 30 | 100 | 6 | 50 | 2.5 | £72.60 | 5 days | |
| G06020S | 6 | 2 | 20 | 70 | 6 | N/A | 3 | £67.30 | 5 days | |
| G04015M | 4 | 2 | 15 | 80 | 4 | N/A | 2 | £46.45 | 5 days | |
| G0603050 | 6 | 2 | 30 | 100 | 6 | 50 | 3 | £72.60 | 5 days | |
| G06020L | 6 | 2 | 20 | 150 | 6 | N/A | 3 | £84.60 | 5 days | |
| G08025S | 8 | 2 | 25 | 70 | 8 | N/A | 4 | £93.20 | 5 days | |
| G0401535 | 4 | 2 | 15 | 80 | 6 | 35 | 2 | £51.03 | 5 days | |
| G0804060L | 8 | 2 | 40 | 200 | 8 | 60 | 4 | £146.48 | 5 days | |
| G08025M | 8 | 2 | 25 | 110 | 8 | N/A | 4 | £96.48 | 5 days | |
| G08025L | 8 | 2 | 25 | 160 | 8 | N/A | 4 | £112.45 | 5 days | |
| G0402030 | 4 | 2 | 20 | 80 | 4 | 30 | 2 | £47.85 | 5 days | |
| G10030L | 10 | 2 | 30 | 170 | 10 | N/A | 5 | £166.30 | 5 days | |
| G0804060 | 8 | 2 | 40 | 110 | 8 | 60 | 4 | £96.48 | 5 days | |
| G0603050L | 6 | 2 | 30 | 150 | 6 | 50 | 3 | £84.60 | 5 days | |
| G12035L | 12 | 2 | 35 | 180 | 12 | N/A | 6 | £256.85 | 5 days | |
| G1205575L | 12 | 2 | 55 | 200 | 12 | 75 | 6 | £309.63 | 5 days | |
| G1005070L | 10 | 2 | 50 | 200 | 10 | 70 | 5 | £215.93 | 5 days | |
| G10030S | 10 | 2 | 30 | 80 | 10 | N/A | 5 | £140.63 | 5 days | |
| G1205575 | 12 | 2 | 55 | 130 | 12 | 75 | 6 | £250.58 | 5 days | |
| G12035S | 12 | 2 | 35 | 80 | 12 | N/A | 6 | £196.55 | 5 days | |
| G1005070 | 10 | 2 | 50 | 120 | 10 | 70 | 5 | £148.38 | 5 days | |
| G10030M | 10 | 2 | 30 | 120 | 10 | N/A | 5 | £148.38 | 5 days | |
| G12035M | 12 | 2 | 35 | 130 | 12 | N/A | 6 | £209.30 | 5 days |
