Carmex Carbide Tiny Tool - Full Radius Grooving - MKR - BXC Grade - 6.1mm Minimum Diameter x 1.5mm Groove Width - 15mm Reach
| Application | Full Radius Grooving (MKR) |
| Minimum Diameter | 6.1 |
| Groove Width (W) | 1.5 |
| Groove Depth (H) | 1.6 |
| Reach (L1) | 15 |
| L | 51 |
Learn more about Klarna

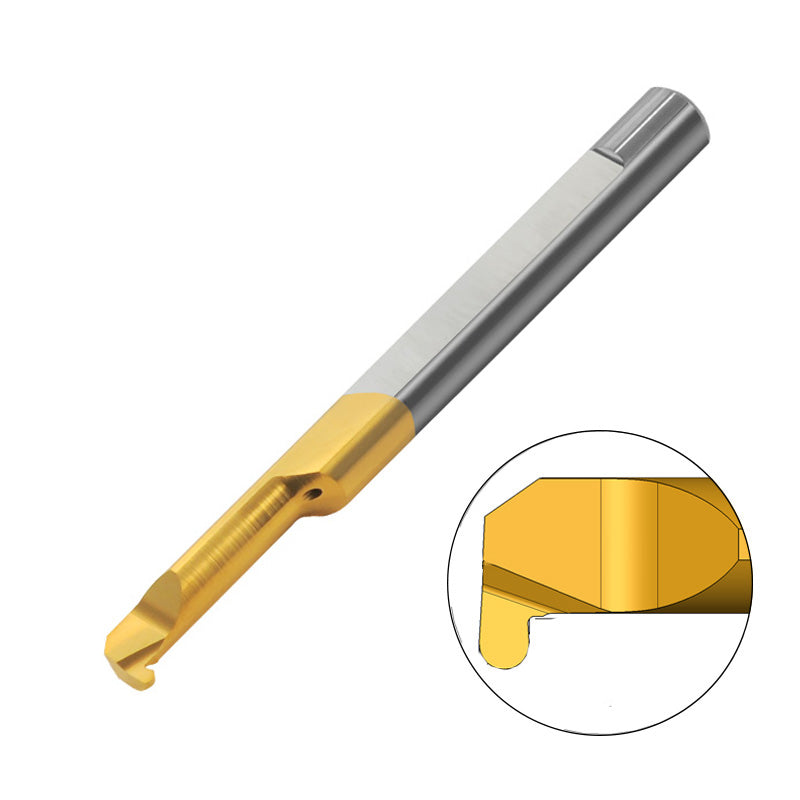

The Carmex Carbide Tiny Tool is a solid carbide bar designed for full-radius grooving on small-diameter workpieces. Its compact form and precise geometry deliver accurate internal grooves and dependable performance in tight spaces, making it a practical choice for engineers, shop-floor technicians, and hobbyists alike. It also handles general turning jobs with smooth, stable cuts.
Part of the MKR family, this tool is offered with coated grades to match different materials and speeds. BXC is a PVD TiN coating optimized for low cutting speeds and works well with a wide range of stainless steels (ISO P30-P50 / K25-K40). BMK is a sub-micron grade with an advanced PVD triple coating, providing extremely high heat resistance for maximum performance and smooth cutting across materials. With a 6.1 mm minimum diameter, 1.5 mm groove width, and a 15 mm reach, it fits compact pockets and tight radii without compromising rigidity.
- Full-radius grooving in a tiny form factor: 6.1 mm minimum diameter and 1.5 mm groove width enable precise, consistent internal grooves on small-diameter parts, reducing the need for secondary operations.
- Two coating options for versatile material compatibility: BXC TiN coating excels at low-speed cutting of stainless steels, while BMK’s advanced triple coating delivers high heat resistance for general-purpose use across materials.
- Long reach with a rigid design for deep pockets: 15 mm reach allows cutting deeper grooves or reaching recessed features without retooling, boosting setup efficiency and reducing cycle times.
By choosing the Carmex Tiny Tool, you gain a reliable solution that delivers consistent groove geometry and smooth cutting across materials. The right coating option helps optimize performance for your material, while the compact reach enables deeper grooves in tight spaces—saving time on setups and improving overall workflow for prototyping, production, or repair tasks.

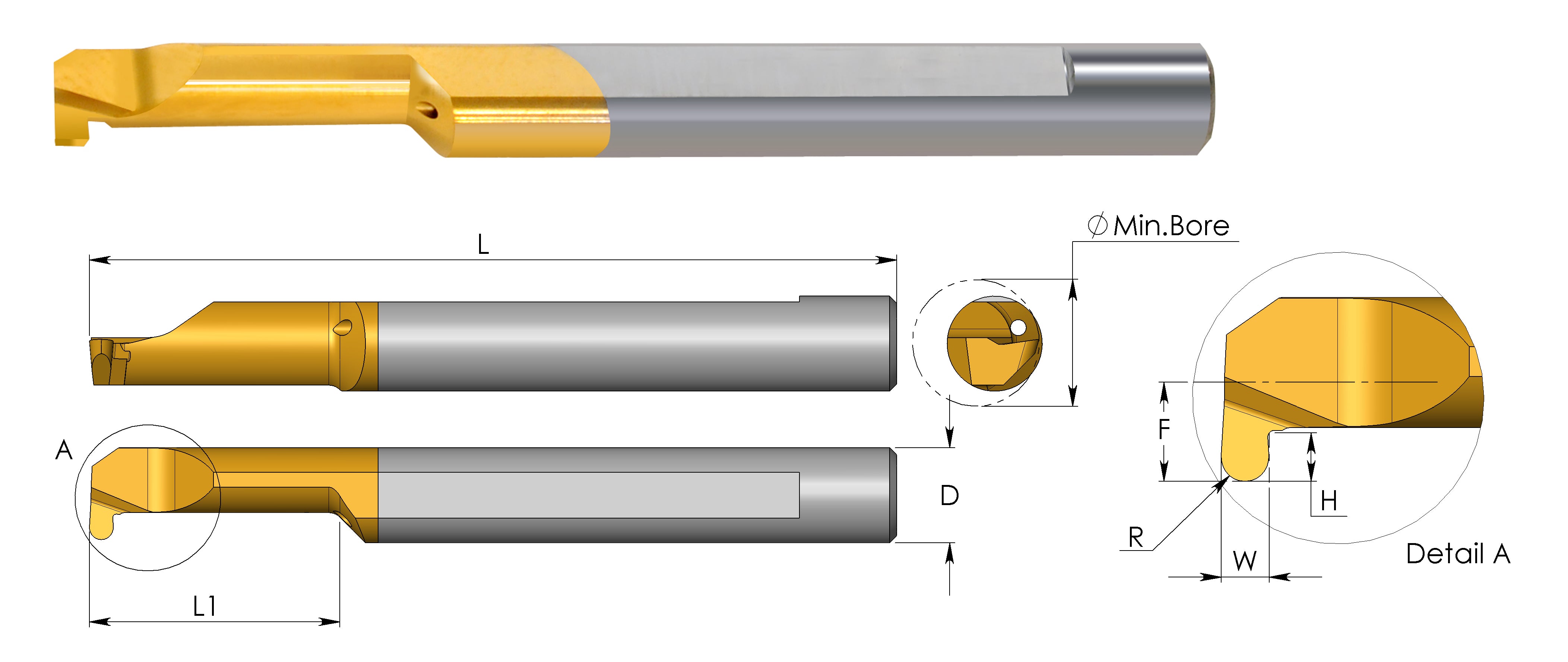

| Application | Full Radius Grooving (MKR) |
| Minimum Diameter | 6.1 |
| Groove Width (W) | 1.5 |
| Groove Depth (H) | 1.6 |
| Reach (L1) | 15 |
| L | 51 |
| R | 0.75 |
| F | 2.8 |
| D | 6.0 |
| Grade | BXC |
| Holder | SIM****H6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Full Radius Grooving - Grade BXC (MKR)
View full collection →You are viewing MKR6R0.75L15BXC. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Groove Width | Groove Depth | Reach | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MKR4R0.5L10BXC | 4.1 | 1 | 1 | 10 | BXC | SIM****H4 | £24.43 | 5 days | |
| MKR4R0.75L10BXC | 4.1 | 1.5 | 1 | 10 | BXC | SIM****H4 | £24.43 | In Stock | |
| MKR5R0.5L15BXC | 5.1 | 1 | 1.2 | 15 | BXC | SIM****H5 | £24.93 | 5 days | |
| MKR5R0.75L15BXC | 5.1 | 1.5 | 1.2 | 15 | BXC | SIM****H5 | £24.93 | In Stock | |
| MKR5R1.0L15BXC | 5.1 | 2 | 1.2 | 15 | BXC | SIM****H5 | £24.93 | 5 days | |
| MKR6R0.5L15BXC | 6.1 | 1 | 1.6 | 15 | BXC | SIM****H6 | £25.48 | In Stock | |
| MKR6R0.75L15BXC Viewing | 6.1 | 1.5 | 1.6 | 15 | BXC | SIM****H6 | £25.48 | In Stock | |
| MKR6R1.0L15BXC | 6.1 | 2 | 1.8 | 15 | BXC | SIM****H6 | £25.48 | In Stock | |
| MKR7R0.5L22BXC | 7.1 | 1 | 2.5 | 22 | BXC | SIM****H7 | £29.88 | 5 days | |
| MKR7R0.75L22BXC | 7.1 | 1.5 | 2.5 | 22 | BXC | SIM****H7 | £29.88 | 5 days | |
| MKR7R1.0L22BXC | 7.1 | 2 | 2.5 | 22 | BXC | SIM****H7 | £29.88 | 5 days | |
| MKR6R0.3L10BXC | 6.1 | 0.6 | 1.2 | 10 | BXC | SIM****H6 | £29.28 | 5 days | |
| MKR7R0.5L30BXC | 7.1 | 1 | 2.5 | 30 | BXC | SIM****H7 | £32.85 | In Stock | |
| MKL4R0.5L10BXC | 4.1 | 1 | 1 | 10 | BXC | SIM****H4 | £24.43 | 5 days | |
| MKL4R0.75L10BXC | 4.1 | 1.5 | 1 | 10 | BXC | SIM****H4 | £24.43 | 5 days | |
| MKL5R0.5L15BXC | 5.1 | 1 | 1.2 | 15 | BXC | SIM****H5 | £24.93 | 5 days | |
| MKL5R0.75L15BXC | 5.1 | 1.5 | 1.2 | 15 | BXC | SIM****H5 | £24.93 | 5 days | |
| MKL5R1.0L15BXC | 5.1 | 2 | 1.2 | 15 | BXC | SIM****H5 | £24.93 | 5 days | |
| MKL6R0.3L10BXC | 6.1 | 0.6 | 1.2 | 10 | BXC | SIM****H6 | £24.75 | 5 days | |
| MKL6R0.5L15BXC | 6.1 | 1 | 1.6 | 15 | BXC | SIM****H6 | £25.48 | 5 days | |
| MKL6R0.75L15BXC | 6.1 | 1.5 | 1.6 | 15 | BXC | SIM****H6 | £24.43 | 5 days | |
| MKL6R1.0L15BXC | 6.1 | 2 | 1.8 | 15 | BXC | SIM****H6 | £25.48 | In Stock | |
| MKL7R0.5L22BXC | 7.1 | 1 | 2.5 | 22 | BXC | SIM****H7 | £29.88 | 5 days | |
| MKL7R0.5L30BXC | 7.1 | 1 | 2.5 | 30 | BXC | SIM****H7 | £27.78 | 5 days | |
| MKL7R0.75L22BXC | 7.1 | 1.5 | 2.5 | 22 | BXC | SIM****H7 | £29.88 | 5 days | |
| MKL7R1.0L22BXC | 7.1 | 2 | 2.5 | 22 | BXC | SIM****H7 | £29.88 | 5 days |
