Carmex Carbide Tiny Tool - Full Radius Grooving - MKR - BXC Grade - 5.1mm Minimum Diameter x 2mm Groove Width - 15mm Reach

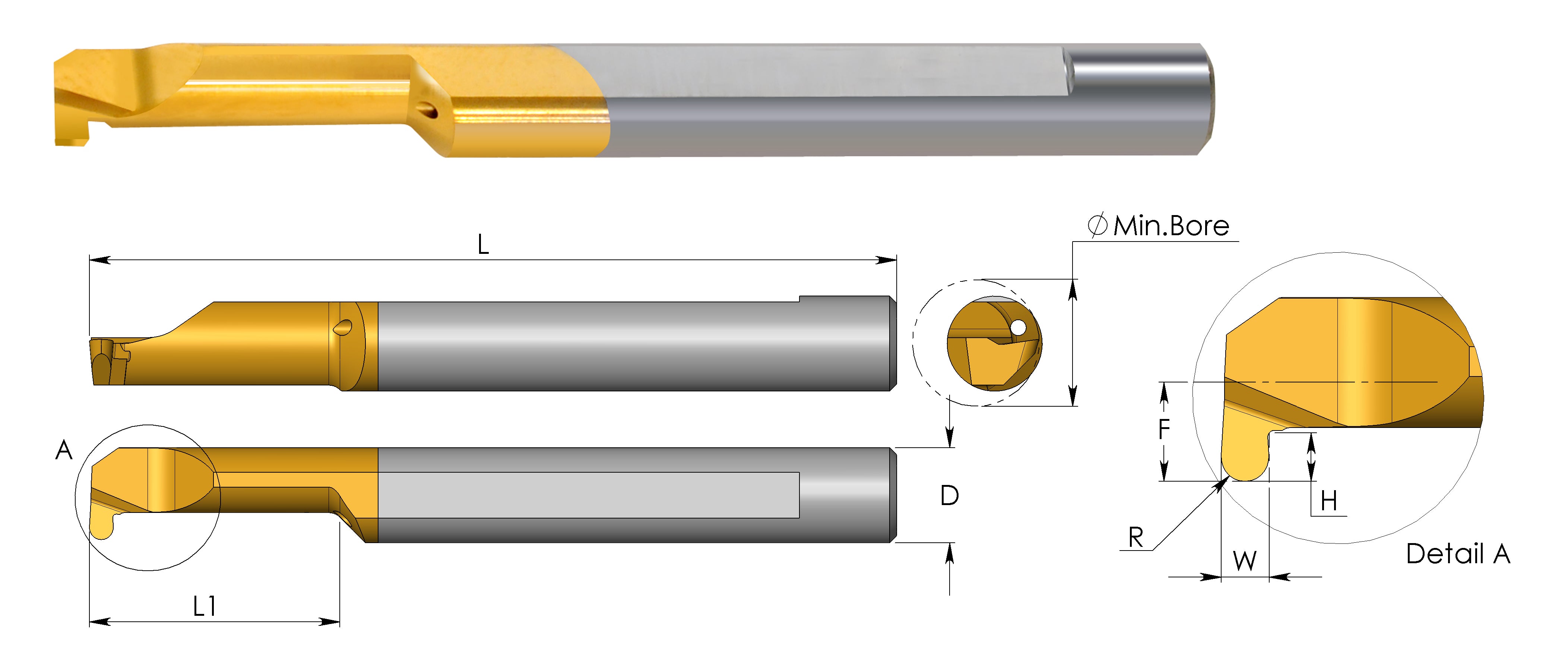

| Application | Full Radius Grooving (MKR) |
| Minimum Diameter | 5.1 |
| Groove Width (W) | 2 |
| Groove Depth (H) | 1.2 |
| Reach (L1) | 15 |
| L | 51 |
Learn more about Klarna

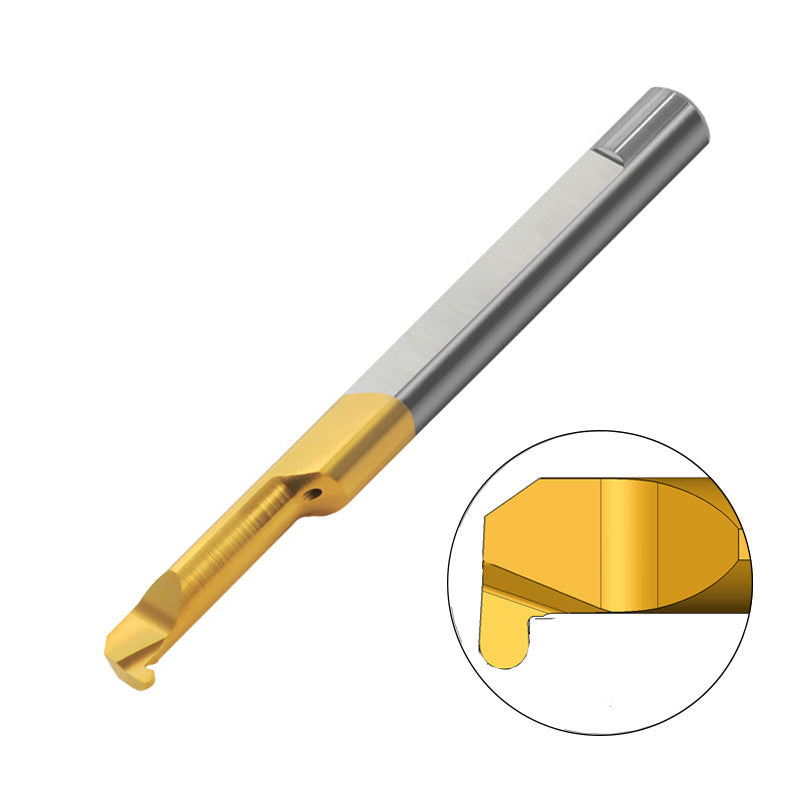

The Carmex Carbide Tiny Tool is a compact solid carbide bar designed for full-radius grooving and general turning. Its small footprint and precise geometry let you tackle tight radii and deep grooves with confidence.
Two coating grades, BXC and BMK, enable optimized performance across stainless steels and other materials, making it a versatile choice for shop-floor reliability and long-term value.
- Full-radius grooving precision: Delivers accurate, consistent grooves in a single pass, reducing setup time and secondary finishing.
- Two coating grades for versatile performance: BXC TiN-coated grade excels at low cutting speeds and stainless steels; BMK sub-micron grade with triple PVD coating provides exceptional heat resistance and smooth cutting across a broad range of materials.
- Compact, deep-reach geometry: With a 5.1 mm minimum diameter, 2 mm groove width, and 15 mm reach, it fits tight pockets and deep grooves without compromising edge life or accuracy.
Whether you're setting up a precision grooving operation or performing routine turning, the Carmex Carbide Tiny Tool delivers dependable performance across materials. The combination of compact geometry, specialized coatings, and proven carbide toughness helps you finish parts to spec faster, with less rework and cleaner surface finishes.
| Application | Full Radius Grooving (MKR) |
| Minimum Diameter | 5.1 |
| Groove Width (W) | 2 |
| Groove Depth (H) | 1.2 |
| Reach (L1) | 15 |
| L | 51 |
| R | 1.00 |
| F | 2.3 |
| D | 5.0 |
| Grade | BXC |
| Holder | SIM****H5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Full Radius Grooving - Grade BXC (MKR)
View full collection →You are viewing MKR5R1.0L15BXC. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Groove Width | Groove Depth | Reach | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MKR4R0.5L10BXC | 4.1 | 1 | 1 | 10 | BXC | SIM****H4 | £24.43 | 5 days | |
| MKR4R0.75L10BXC | 4.1 | 1.5 | 1 | 10 | BXC | SIM****H4 | £24.43 | In Stock | |
| MKR5R0.5L15BXC | 5.1 | 1 | 1.2 | 15 | BXC | SIM****H5 | £24.93 | 5 days | |
| MKR5R0.75L15BXC | 5.1 | 1.5 | 1.2 | 15 | BXC | SIM****H5 | £24.93 | In Stock | |
| MKR5R1.0L15BXC Viewing | 5.1 | 2 | 1.2 | 15 | BXC | SIM****H5 | £24.93 | 5 days | |
| MKR6R0.5L15BXC | 6.1 | 1 | 1.6 | 15 | BXC | SIM****H6 | £25.48 | In Stock | |
| MKR6R0.75L15BXC | 6.1 | 1.5 | 1.6 | 15 | BXC | SIM****H6 | £25.48 | In Stock | |
| MKR6R1.0L15BXC | 6.1 | 2 | 1.8 | 15 | BXC | SIM****H6 | £25.48 | In Stock | |
| MKR7R0.5L22BXC | 7.1 | 1 | 2.5 | 22 | BXC | SIM****H7 | £29.88 | 5 days | |
| MKR7R0.75L22BXC | 7.1 | 1.5 | 2.5 | 22 | BXC | SIM****H7 | £29.88 | 5 days | |
| MKR7R1.0L22BXC | 7.1 | 2 | 2.5 | 22 | BXC | SIM****H7 | £29.88 | 5 days | |
| MKR6R0.3L10BXC | 6.1 | 0.6 | 1.2 | 10 | BXC | SIM****H6 | £29.28 | 5 days | |
| MKR7R0.5L30BXC | 7.1 | 1 | 2.5 | 30 | BXC | SIM****H7 | £32.85 | In Stock | |
| MKL4R0.5L10BXC | 4.1 | 1 | 1 | 10 | BXC | SIM****H4 | £24.43 | 5 days | |
| MKL4R0.75L10BXC | 4.1 | 1.5 | 1 | 10 | BXC | SIM****H4 | £24.43 | 5 days | |
| MKL5R0.5L15BXC | 5.1 | 1 | 1.2 | 15 | BXC | SIM****H5 | £24.93 | 5 days | |
| MKL5R0.75L15BXC | 5.1 | 1.5 | 1.2 | 15 | BXC | SIM****H5 | £24.93 | 5 days | |
| MKL5R1.0L15BXC | 5.1 | 2 | 1.2 | 15 | BXC | SIM****H5 | £24.93 | 5 days | |
| MKL6R0.3L10BXC | 6.1 | 0.6 | 1.2 | 10 | BXC | SIM****H6 | £24.75 | 5 days | |
| MKL6R0.5L15BXC | 6.1 | 1 | 1.6 | 15 | BXC | SIM****H6 | £25.48 | 5 days | |
| MKL6R0.75L15BXC | 6.1 | 1.5 | 1.6 | 15 | BXC | SIM****H6 | £24.43 | 5 days | |
| MKL6R1.0L15BXC | 6.1 | 2 | 1.8 | 15 | BXC | SIM****H6 | £25.48 | In Stock | |
| MKL7R0.5L22BXC | 7.1 | 1 | 2.5 | 22 | BXC | SIM****H7 | £29.88 | 5 days | |
| MKL7R0.5L30BXC | 7.1 | 1 | 2.5 | 30 | BXC | SIM****H7 | £27.78 | 5 days | |
| MKL7R0.75L22BXC | 7.1 | 1.5 | 2.5 | 22 | BXC | SIM****H7 | £29.88 | 5 days | |
| MKL7R1.0L22BXC | 7.1 | 2 | 2.5 | 22 | BXC | SIM****H7 | £29.88 | 5 days |
