Carmex Thread Mills Solid Carbide - Internal Thread - UN (UNC UNF UNEF UNS) - 1/4 x 28 - MT7

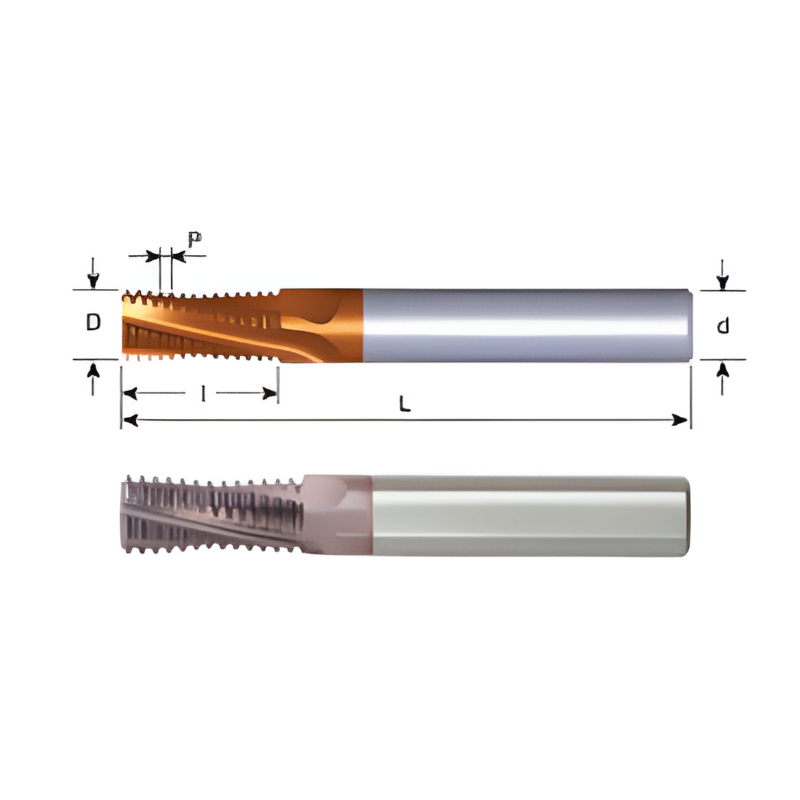

| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 1/4 |
| Pitch | 28 |
| Diameter (D) | 4 |
| Flute Length (l) | 11.3 |
| Shank Diameter (d) | 6 |
Learn more about Klarna

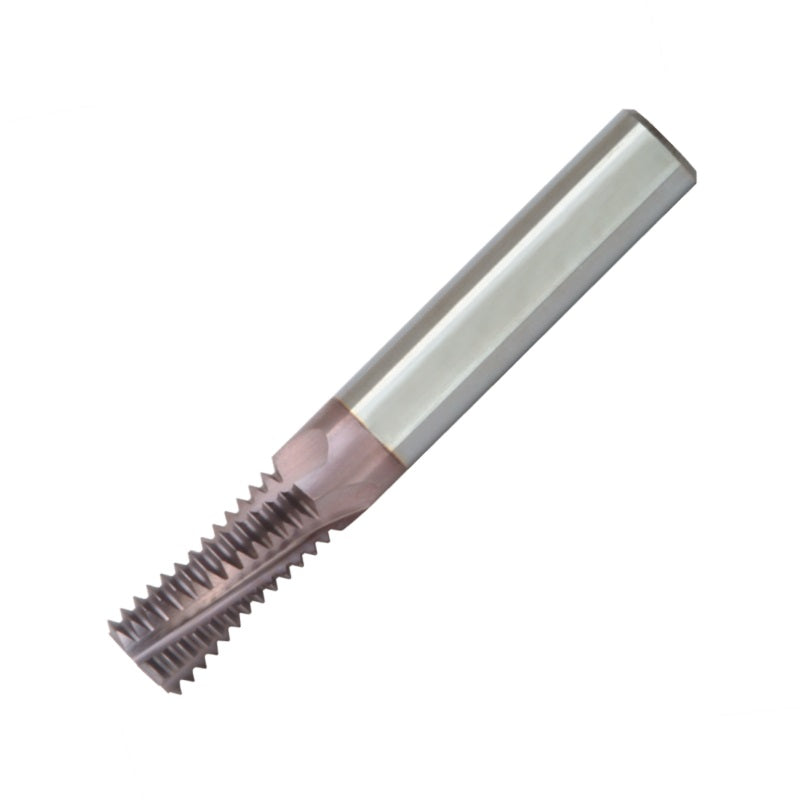

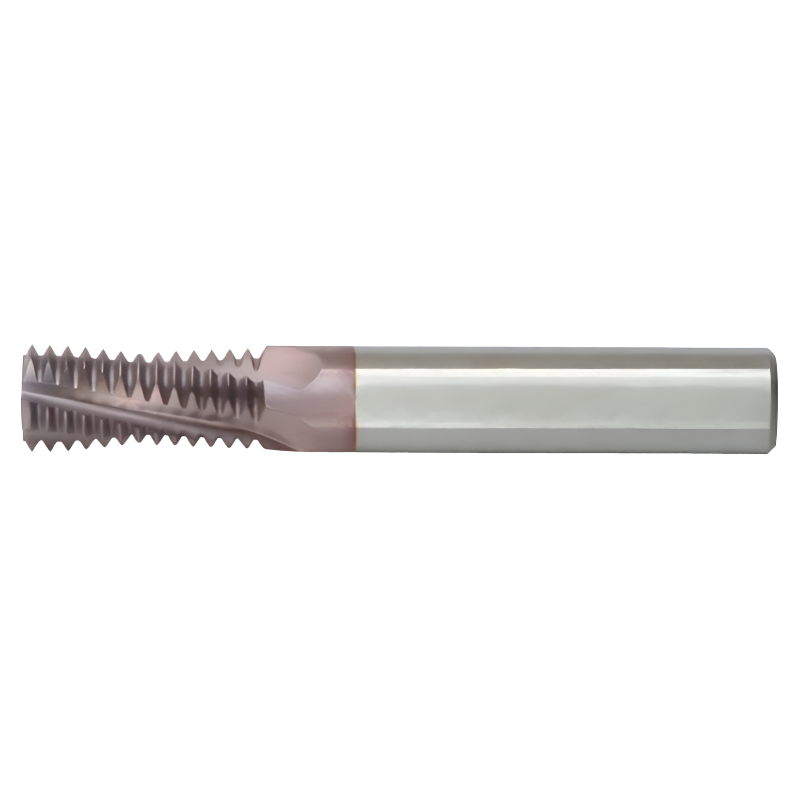

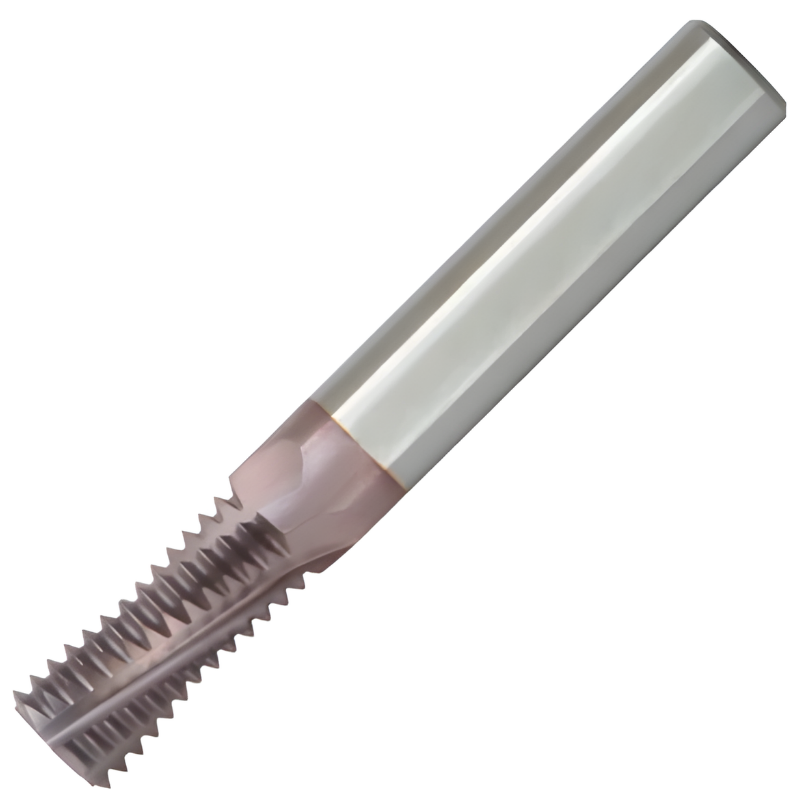

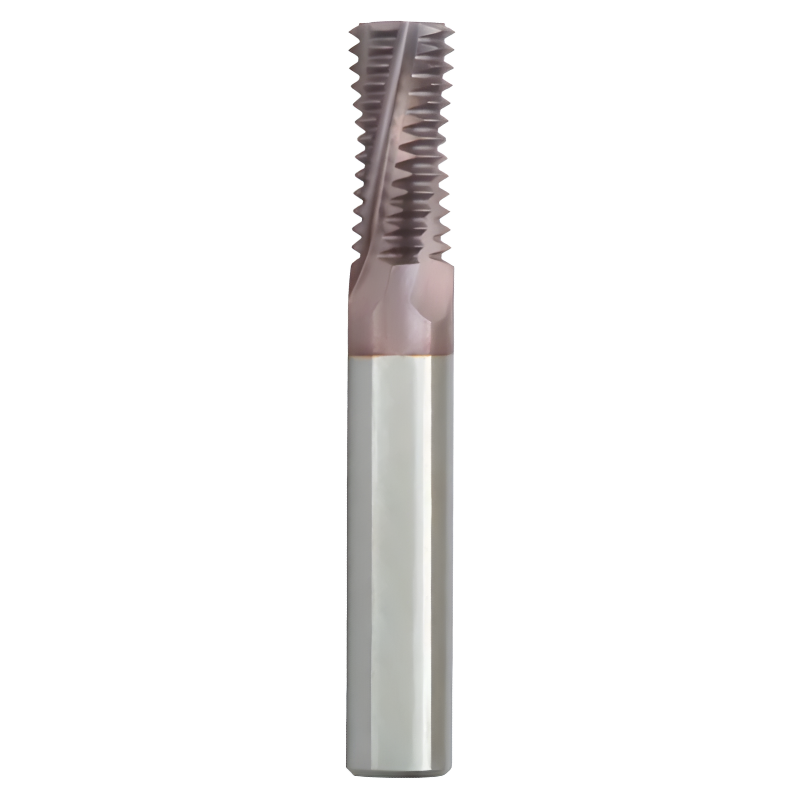

Carmex MT7 Solid Carbide Internal Thread Mills are engineered for precise, efficient internal threading in UN forms (UNC, UNF, UNEF, UNS). Designed for professional machinists and job shops, this tool delivers reliable 1/4"-28 threads with a focus on performance and value.
- Tool type: Solid carbide internal thread mill designed specifically for milling internal threads rather than tapping.
- Thread forms: Compatible with UN threading standards—UNC, UNF, UNEF, and UNS—covering common metric and imperial configurations.
- Thread size: Internal 1/4"-28 thread capability, ideal for common fastener specifications in small to medium holes.
- Shank: MT7 (Morse Taper 7) shank for secure seating in compatible spindles andTooling systems.
- Flute configuration: 3–5 flutes designed to optimize chip evacuation, rigidity, and thread quality during deep or blind-hole milling.
- Material: Premium solid carbide construction for stiffness, heat resistance, and long-term cutting performance in a variety of metals.
- Geometry and efficiency: Optimized threading geometry minimizes cutting forces and improves finish while reducing cycle times.
Whether upgrading from tapping or preparing for high-volume production, these thread mills provide a dependable internal threading solution. The combination of a robust carbide core, multi-flute design, and MT7 shank delivers consistent thread profiles, better surface finish, and repeatable results across applications that require UNC/UNF/UNEF/UNS threads at 1/4-28. This makes the Carmex MT7 internal thread mills well-suited for machine shops, manufacturing cells, and repair operations that demand precise, economical threading without compromising reliability.
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 1/4 |
| Pitch | 28 |
| Diameter (D) | 4 |
| Flute Length (l) | 11.3 |
| Shank Diameter (d) | 6 |
| No of Flutes | 3 |
| Overall Length (L) | 58 |
| Thread Mill Style | Standard |
| Internal or External | Internal |
| Coating | MT7 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Solid Carbide Thread Mills - UN (UNC UNF UNEF) - For Internal Thread (MT)
View full collection →You are viewing MT0604C1128UNMT7. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MT06025C640UNMT7 | No.5 | 40 | 6 | 6 | 58 | £86.80 | 5 days | |
| MT06032C632UNMT7 | No. 8 No. 10 No. 12 | 32 | 6.8 | 6.8 | 58 | £86.80 | In Stock | |
| MT06045C1220UNMT7 | 1/4 | 20 | 12.1 | 12.1 | 58 | £86.80 | 5 days | |
| MT0604C1128UNMT7 Viewing | 1/4 | 28 | 11.3 | 11.3 | 58 | £86.80 | 5 days | |
| MT06052C1528UNMT7 | 1/4 | 28 | 15 | 15 | 58 | £86.80 | In Stock | |
| MT0605C1418UNMT7 | 5/16 | 18 | 14.8 | 14.8 | 58 | £86.80 | 5 days | |
| MT0605C1424UNMT7 | 5/16 | 24 | 14.3 | 14.3 | 58 | £86.80 | 5 days | |
| MT0606C1428UNMT7 | 7/16 1/2 | 28 | 14.1 | 14.1 | 58 | £86.80 | 5 days | |
| MT0606C1616UNMT7 | 3/8 | 16 | 16.7 | 16.7 | 58 | £86.80 | 5 days | |
| MT0606C2018UNMT7 | 5/16 | 18 | 20.5 | 20.5 | 58 | £104.16 | 5 days | |
| MT08074C2416UNMT7 | 3/8 | 16 | 24.6 | 24.6 | 64 | £115.62 | In Stock | |
| MT0807C2014UNMT7 | 7/16 | 14 | 20.9 | 20.9 | 64 | £115.62 | 5 days | |
| MT0807C2120UNMT7 | 7/16 1/2 | 20 | 21 | 21 | 64 | £115.62 | In Stock | |
| MT0807C2124UNMT7 | 3/8 | 24 | 24 | 24 | 64 | £115.62 | In Stock | |
| MT0808C2213UNMT7 | 1/2 | 13 | 22.5 | 22.5 | 64 | £115.62 | 5 days | |
| MT10085C2814UNMT7 | 7/16 | 14 | 28.1 | 28.1 | 73 | £133.36 | 5 days | |
| MT10098D3213UNMT7 | 1/2 | 13 | 32.2 | 32.2 | 73 | £133.36 | In Stock | |
| MT1010C2612UNMT7 | 9/16 | 12 | 26.5 | 26.5 | 73 | £133.36 | 5 days | |
| MT1010C2811UNMT7 | 5/8 | 11 | 28.9 | 28.9 | 73 | £133.36 | 5 days | |
| MT1010D2618UNMT7 | 9/16 5/8 - 1 1/8 1 5/8 | 18 | 26.1 | 26.1 | 73 | £133.36 | In Stock | |
| MT12116D3712UNMT7 | 9/16 | 12 | 37 | 37 | 84 | £166.90 | 5 days | |
| MT1212C3410UNMT7 | 3/4 | 10 | 34.3 | 34.3 | 84 | £166.90 | 5 days | |
| MT1212D3116UNMT7 | 3/4 | 16 | 31 | 31 | 84 | £166.90 | In Stock | |
| MT1212D3811UNMT7 | 5/8 | 11 | 38.1 | 38.1 | 84 | £166.90 | 5 days | |
| MT1212E2720UNMT7 | 3/4 - 1 | 20 | 27.3 | 27.3 | 84 | £166.90 | In Stock | |
| MT16147E4910UNMT7 | 3/4 | 10 | 49.5 | 49.5 | 105 | £196.90 | 5 days | |
| MT1615C389UNMT7 | 7/8 | 9 | 38.1 | 38.1 | 105 | £196.90 | In Stock | |
| MT1615E3714UNMT7 | 7/8 | 14 | 37.2 | 37.2 | 105 | £196.90 | 5 days | |
| MT1616C428UNMT7 | 1 | 8 | 42.9 | 42.9 | 105 | £196.90 | 5 days | |
| MT1616E4112UNMT7 | 1 - 1 1/2 | 12 | 41.3 | 41.3 | 105 | £196.90 | 5 days | |
| MT2020D457UNMT7 | 1 1/8 - 1 1/4 | 7 | 45.3 | 45.3 | 105 | £237.79 | 5 days |
