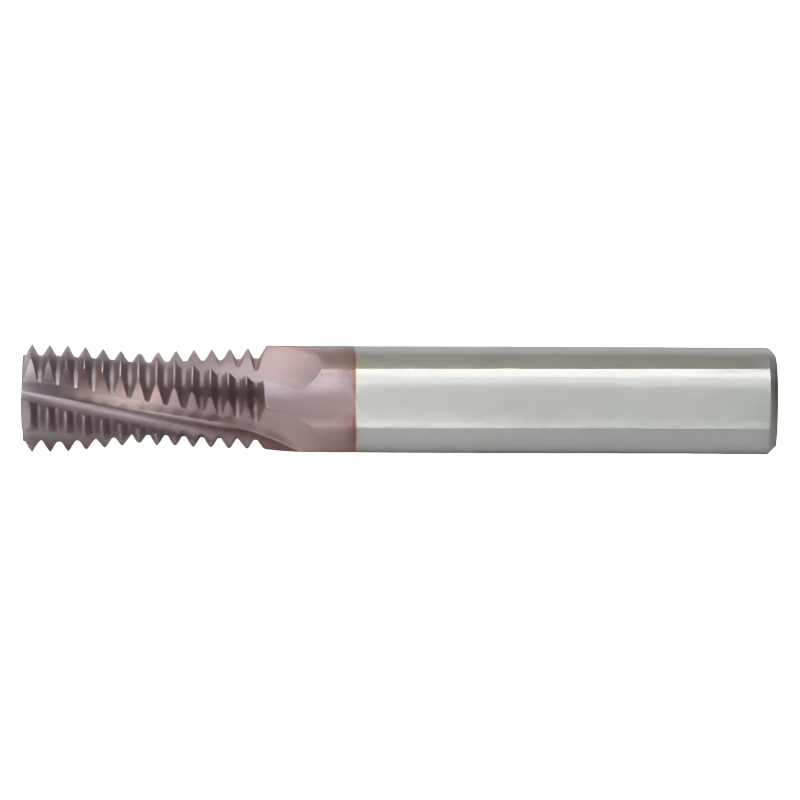

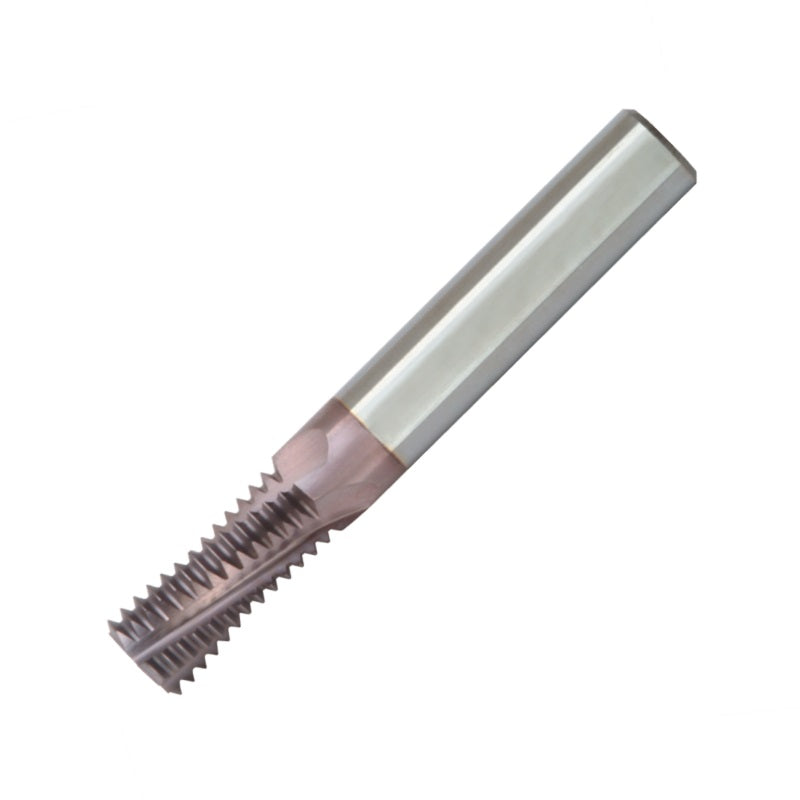

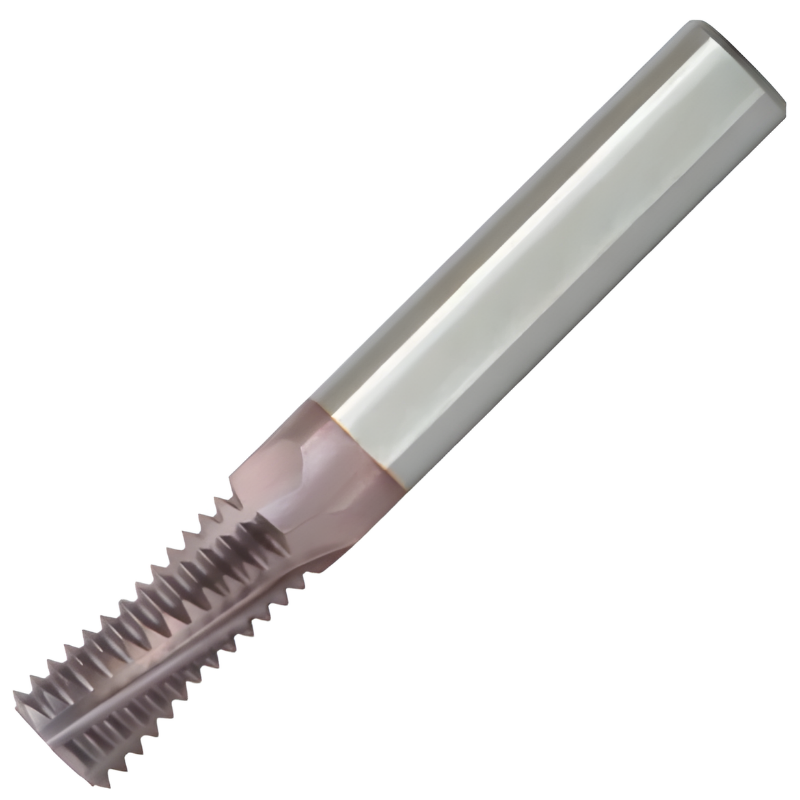

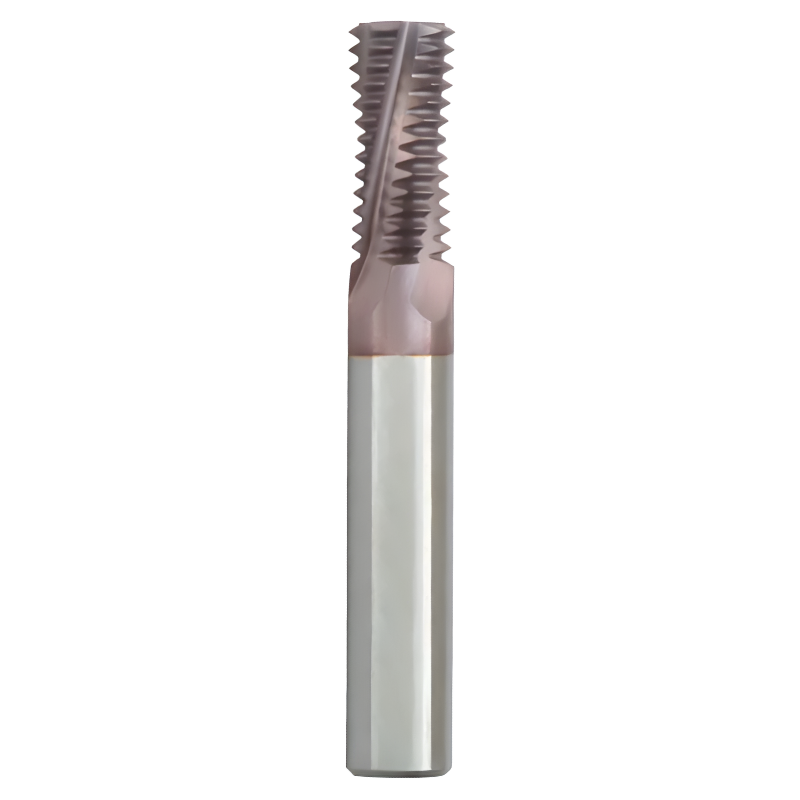

Carmex Thread Mills Solid Carbide - Internal Thread - UN (UNC UNF UNEF UNS) - 9/16 x 12 - MT7
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 9/16 |
| Pitch | 12 |

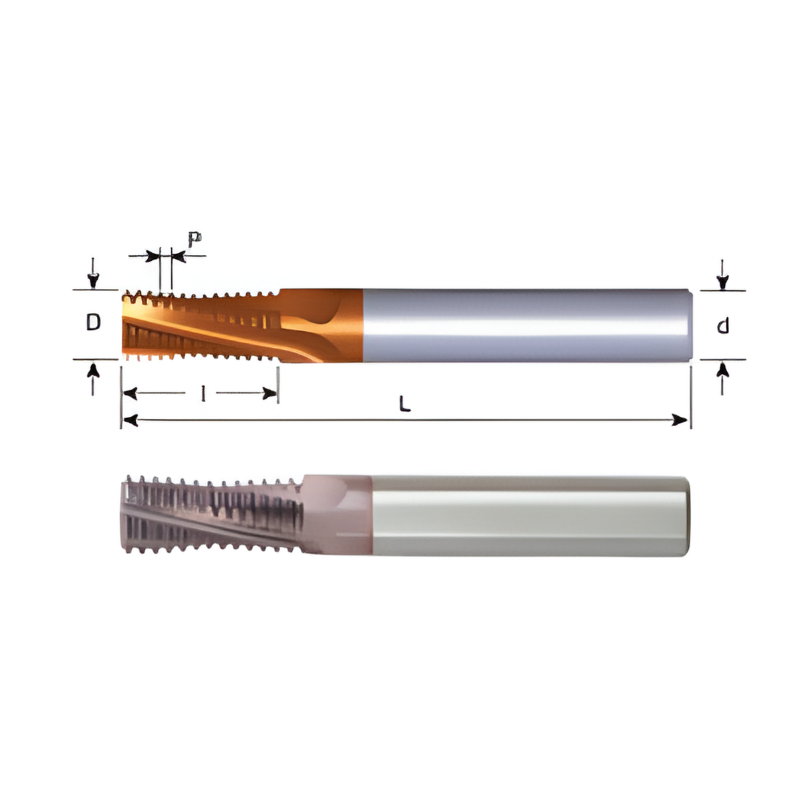

| Diameter (D) | 11.6 |
| Flute Length (l) | 37 |
| Shank Diameter (d) | 12 |
Learn more about Klarna
The Carmex solid carbide thread mill delivers precise internal UN thread cutting for machinists working with UNC, UNF, UNEF, and UNS standards in the 9/16 x 12 size. Its MT7 grade construction supports consistent results in demanding production environments.
- Material: Solid carbide body maintains edge strength and dimensional stability during extended threading cycles.
- Thread Standard: Compatible with internal UN thread forms including UNC, UNF, UNEF, and UNS profiles.
- Size and Pitch: 9/16 x 12 thread dimensions allow direct machining of common fastener and fitting sizes without secondary operations.
- Flute Configuration: Three to five flutes promote efficient chip removal and smoother cutting action in blind and through holes.
- MT7 Grade: Specialized grade developed to balance wear resistance with cost-effective performance in general threading applications.
This tool streamlines internal threading by combining multiple flutes with a rigid carbide body, helping shops achieve accurate thread geometry while keeping tooling costs manageable. The design reduces the need for frequent tool changes and supports reliable results across a wide range of workpiece materials.
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 9/16 |
| Pitch | 12 |
| Diameter (D) | 11.6 |
| Flute Length (l) | 37 |
| Shank Diameter (d) | 12 |
| No of Flutes | 4 |
| Overall Length (L) | 84 |
| Thread Mill Style | Standard |
| Internal or External | Internal |
| Coating | MT7 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Solid Carbide Thread Mills - UN (UNC UNF UNEF) - For Internal Thread (MT)
View full collection →You are viewing MT12116D3712UNMT7. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MT06025C640UNMT7 | No.5 | 40 | 6 | 6 | 58 | £86.80 | 5 days | |
| MT06032C632UNMT7 | No. 8 No. 10 No. 12 | 32 | 6.8 | 6.8 | 58 | £86.80 | In Stock | |
| MT06045C1220UNMT7 | 1/4 | 20 | 12.1 | 12.1 | 58 | £86.80 | 5 days | |
| MT0604C1128UNMT7 | 1/4 | 28 | 11.3 | 11.3 | 58 | £86.80 | 5 days | |
| MT06052C1528UNMT7 | 1/4 | 28 | 15 | 15 | 58 | £86.80 | In Stock | |
| MT0605C1418UNMT7 | 5/16 | 18 | 14.8 | 14.8 | 58 | £86.80 | 5 days | |
| MT0605C1424UNMT7 | 5/16 | 24 | 14.3 | 14.3 | 58 | £86.80 | 5 days | |
| MT0606C1428UNMT7 | 7/16 1/2 | 28 | 14.1 | 14.1 | 58 | £86.80 | 5 days | |
| MT0606C1616UNMT7 | 3/8 | 16 | 16.7 | 16.7 | 58 | £86.80 | 5 days | |
| MT0606C2018UNMT7 | 5/16 | 18 | 20.5 | 20.5 | 58 | £104.16 | 5 days | |
| MT08074C2416UNMT7 | 3/8 | 16 | 24.6 | 24.6 | 64 | £115.62 | In Stock | |
| MT0807C2014UNMT7 | 7/16 | 14 | 20.9 | 20.9 | 64 | £115.62 | 5 days | |
| MT0807C2120UNMT7 | 7/16 1/2 | 20 | 21 | 21 | 64 | £115.62 | In Stock | |
| MT0807C2124UNMT7 | 3/8 | 24 | 24 | 24 | 64 | £115.62 | In Stock | |
| MT0808C2213UNMT7 | 1/2 | 13 | 22.5 | 22.5 | 64 | £115.62 | 5 days | |
| MT10085C2814UNMT7 | 7/16 | 14 | 28.1 | 28.1 | 73 | £133.36 | 5 days | |
| MT10098D3213UNMT7 | 1/2 | 13 | 32.2 | 32.2 | 73 | £133.36 | In Stock | |
| MT1010C2612UNMT7 | 9/16 | 12 | 26.5 | 26.5 | 73 | £133.36 | 5 days | |
| MT1010C2811UNMT7 | 5/8 | 11 | 28.9 | 28.9 | 73 | £133.36 | 5 days | |
| MT1010D2618UNMT7 | 9/16 5/8 - 1 1/8 1 5/8 | 18 | 26.1 | 26.1 | 73 | £133.36 | In Stock | |
| MT12116D3712UNMT7 Viewing | 9/16 | 12 | 37 | 37 | 84 | £166.90 | 5 days | |
| MT1212C3410UNMT7 | 3/4 | 10 | 34.3 | 34.3 | 84 | £166.90 | 5 days | |
| MT1212D3116UNMT7 | 3/4 | 16 | 31 | 31 | 84 | £166.90 | In Stock | |
| MT1212D3811UNMT7 | 5/8 | 11 | 38.1 | 38.1 | 84 | £166.90 | 5 days | |
| MT1212E2720UNMT7 | 3/4 - 1 | 20 | 27.3 | 27.3 | 84 | £166.90 | In Stock | |
| MT16147E4910UNMT7 | 3/4 | 10 | 49.5 | 49.5 | 105 | £196.90 | 5 days | |
| MT1615C389UNMT7 | 7/8 | 9 | 38.1 | 38.1 | 105 | £196.90 | In Stock | |
| MT1615E3714UNMT7 | 7/8 | 14 | 37.2 | 37.2 | 105 | £196.90 | 5 days | |
| MT1616C428UNMT7 | 1 | 8 | 42.9 | 42.9 | 105 | £196.90 | 5 days | |
| MT1616E4112UNMT7 | 1 - 1 1/2 | 12 | 41.3 | 41.3 | 105 | £196.90 | 5 days | |
| MT2020D457UNMT7 | 1 1/8 - 1 1/4 | 7 | 45.3 | 45.3 | 105 | £237.79 | 5 days |
