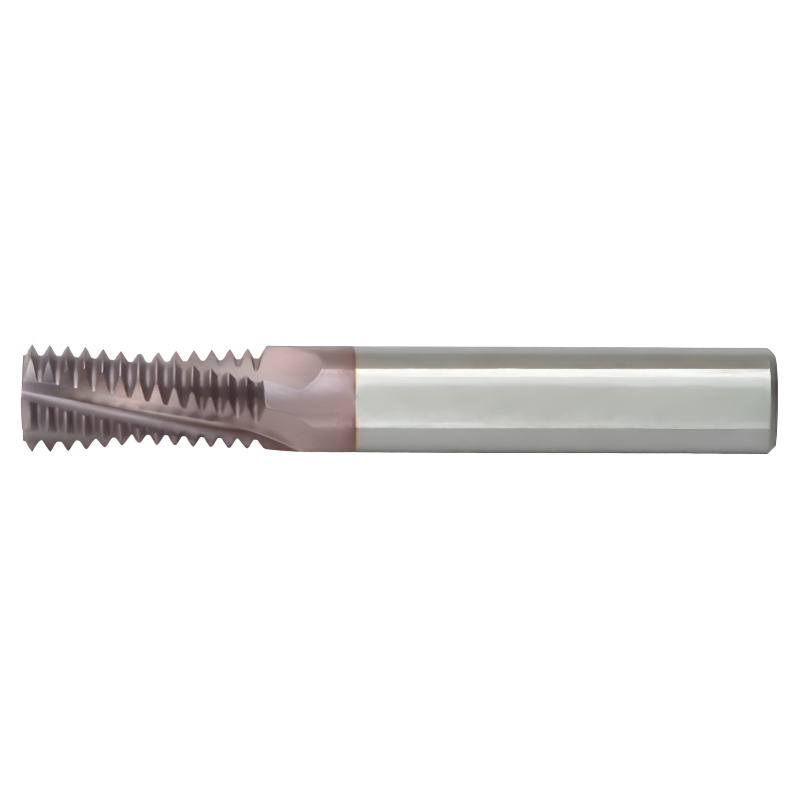

Carmex Thread Mills Solid Carbide - Internal Thread - UN (UNC UNF UNEF UNS) - 7/16 x 14 - MT7
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 7/16 |
| Pitch | 14 |
| Diameter (D) | 8.5 |
| Flute Length (l) | 28.1 |
| Shank Diameter (d) | 10 |
Learn more about Klarna
Carmex MT7 Solid Carbide Internal Thread Mills are designed for precise UN/UNC/UNF/UNEF/ UNS internal threading in a single, efficient operation. Built for reliability and cost-effectiveness, this tool excels in demanding milling environments where consistent thread quality matters.
- Threading capability: Internal thread milling for UN, UNC, UNF, UNEF, and UNS threads in one operation.
- Flute configuration: 3–5 flutes optimized for stable cutting and efficient chip evacuation.
- Material: Solid carbide construction delivers high rigidity, wear resistance, and long tool life.
- Size and thread pitch: 7/16 x 14 thread with precise geometry for clean, accurate threads.
- Shank: MT7 Morse taper shank for secure mounting in compatible milling centers.
- MT line advantage: Part of Carmex’s MT line, engineered for efficient and affordable threading solutions without sacrificing performance.
By integrating internal thread milling into the machining workflow, this tool helps reduce setup steps and improves thread integrity across materials. The 3–5 flute design enhances cutting stability and chip clearance, supporting consistent thread profiles and better surface finish. The MT7 shank provides robust rigidity, enabling reliable performance at higher speeds while keeping tooling costs predictable.
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 7/16 |
| Pitch | 14 |
| Diameter (D) | 8.5 |
| Flute Length (l) | 28.1 |
| Shank Diameter (d) | 10 |
| No of Flutes | 3 |
| Overall Length (L) | 73 |
| Thread Mill Style | Standard |
| Internal or External | Internal |
| Coating | MT7 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Solid Carbide Thread Mills - UN (UNC UNF UNEF) - For Internal Thread (MT)
View full collection →You are viewing MT10085C2814UNMT7. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MT06025C640UNMT7 | No.5 | 40 | 6 | 6 | 58 | £86.80 | 5 days | |
| MT06032C632UNMT7 | No. 8 No. 10 No. 12 | 32 | 6.8 | 6.8 | 58 | £86.80 | In Stock | |
| MT06045C1220UNMT7 | 1/4 | 20 | 12.1 | 12.1 | 58 | £86.80 | 5 days | |
| MT0604C1128UNMT7 | 1/4 | 28 | 11.3 | 11.3 | 58 | £86.80 | 5 days | |
| MT06052C1528UNMT7 | 1/4 | 28 | 15 | 15 | 58 | £86.80 | In Stock | |
| MT0605C1418UNMT7 | 5/16 | 18 | 14.8 | 14.8 | 58 | £86.80 | 5 days | |
| MT0605C1424UNMT7 | 5/16 | 24 | 14.3 | 14.3 | 58 | £86.80 | 5 days | |
| MT0606C1428UNMT7 | 7/16 1/2 | 28 | 14.1 | 14.1 | 58 | £86.80 | 5 days | |
| MT0606C1616UNMT7 | 3/8 | 16 | 16.7 | 16.7 | 58 | £86.80 | 5 days | |
| MT0606C2018UNMT7 | 5/16 | 18 | 20.5 | 20.5 | 58 | £104.16 | 5 days | |
| MT08074C2416UNMT7 | 3/8 | 16 | 24.6 | 24.6 | 64 | £115.62 | In Stock | |
| MT0807C2014UNMT7 | 7/16 | 14 | 20.9 | 20.9 | 64 | £115.62 | 5 days | |
| MT0807C2120UNMT7 | 7/16 1/2 | 20 | 21 | 21 | 64 | £115.62 | In Stock | |
| MT0807C2124UNMT7 | 3/8 | 24 | 24 | 24 | 64 | £115.62 | In Stock | |
| MT0808C2213UNMT7 | 1/2 | 13 | 22.5 | 22.5 | 64 | £115.62 | 5 days | |
| MT10085C2814UNMT7 Viewing | 7/16 | 14 | 28.1 | 28.1 | 73 | £133.36 | 5 days | |
| MT10098D3213UNMT7 | 1/2 | 13 | 32.2 | 32.2 | 73 | £133.36 | In Stock | |
| MT1010C2612UNMT7 | 9/16 | 12 | 26.5 | 26.5 | 73 | £133.36 | 5 days | |
| MT1010C2811UNMT7 | 5/8 | 11 | 28.9 | 28.9 | 73 | £133.36 | 5 days | |
| MT1010D2618UNMT7 | 9/16 5/8 - 1 1/8 1 5/8 | 18 | 26.1 | 26.1 | 73 | £133.36 | In Stock | |
| MT12116D3712UNMT7 | 9/16 | 12 | 37 | 37 | 84 | £166.90 | 5 days | |
| MT1212C3410UNMT7 | 3/4 | 10 | 34.3 | 34.3 | 84 | £166.90 | 5 days | |
| MT1212D3116UNMT7 | 3/4 | 16 | 31 | 31 | 84 | £166.90 | In Stock | |
| MT1212D3811UNMT7 | 5/8 | 11 | 38.1 | 38.1 | 84 | £166.90 | 5 days | |
| MT1212E2720UNMT7 | 3/4 - 1 | 20 | 27.3 | 27.3 | 84 | £166.90 | In Stock | |
| MT16147E4910UNMT7 | 3/4 | 10 | 49.5 | 49.5 | 105 | £196.90 | 5 days | |
| MT1615C389UNMT7 | 7/8 | 9 | 38.1 | 38.1 | 105 | £196.90 | In Stock | |
| MT1615E3714UNMT7 | 7/8 | 14 | 37.2 | 37.2 | 105 | £196.90 | 5 days | |
| MT1616C428UNMT7 | 1 | 8 | 42.9 | 42.9 | 105 | £196.90 | 5 days | |
| MT1616E4112UNMT7 | 1 - 1 1/2 | 12 | 41.3 | 41.3 | 105 | £196.90 | 5 days | |
| MT2020D457UNMT7 | 1 1/8 - 1 1/4 | 7 | 45.3 | 45.3 | 105 | £237.79 | 5 days |
