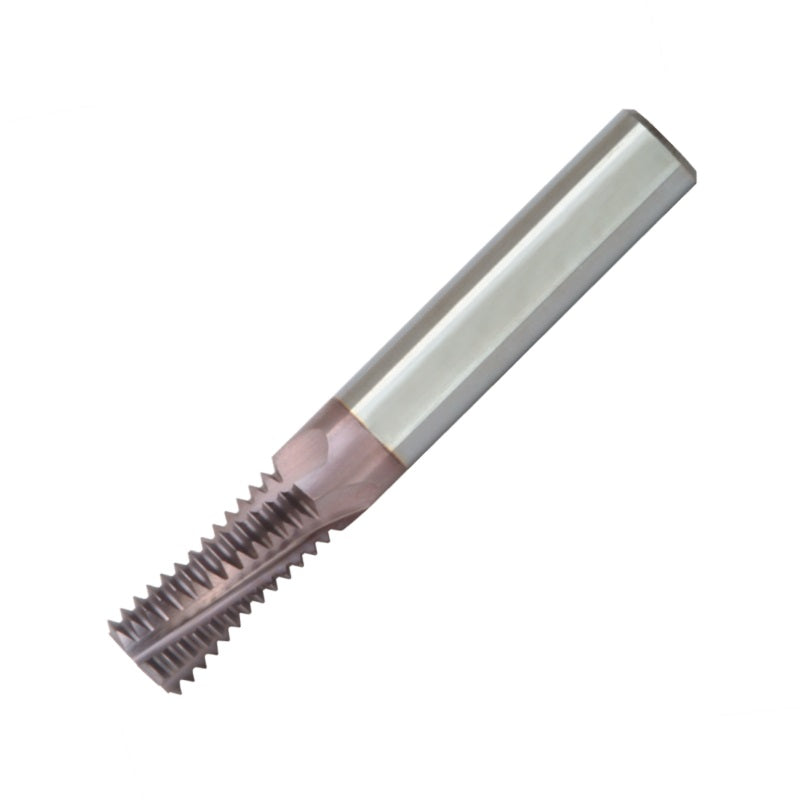

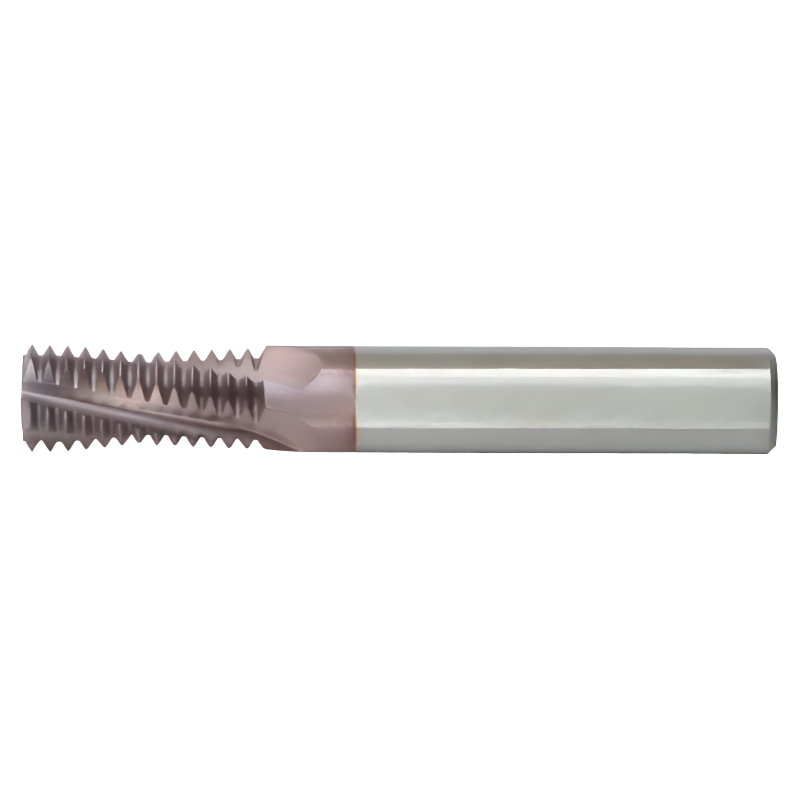

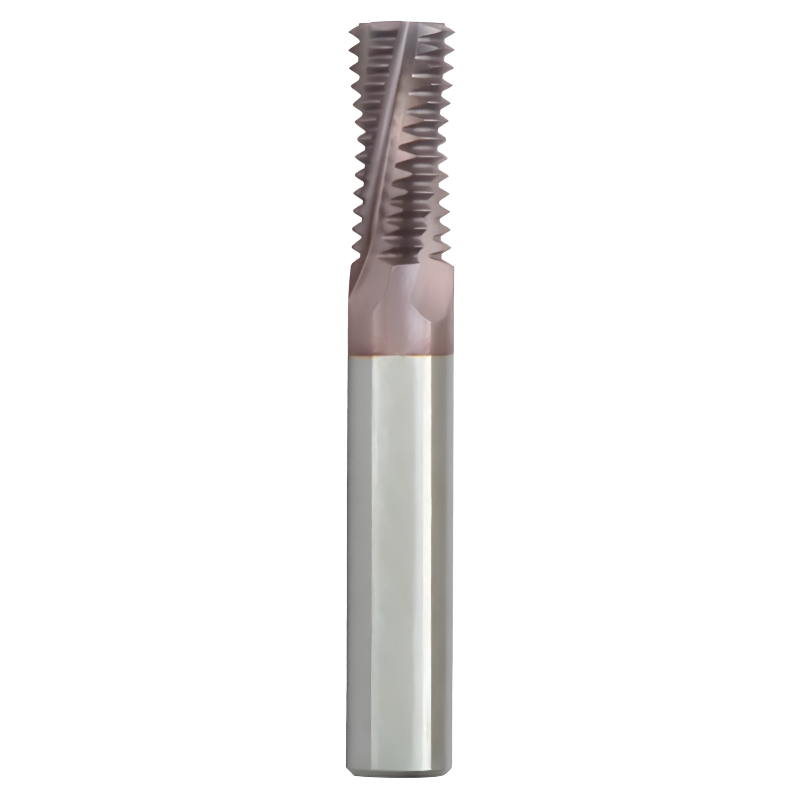

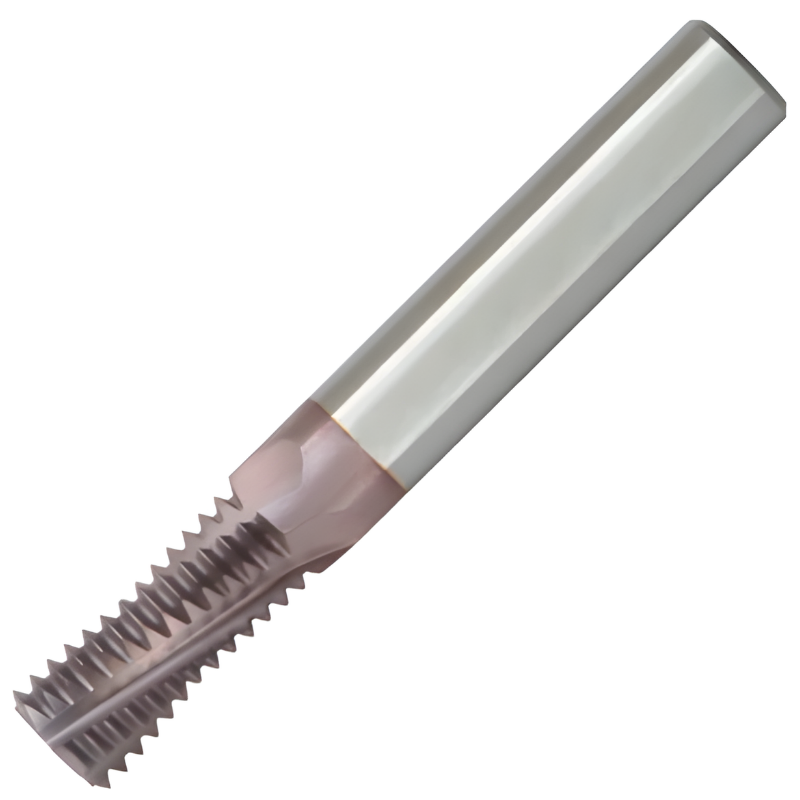

Carmex Thread Mills Solid Carbide - Internal Thread - UN (UNC UNF UNEF UNS) - 5/16 x 24 - MT7

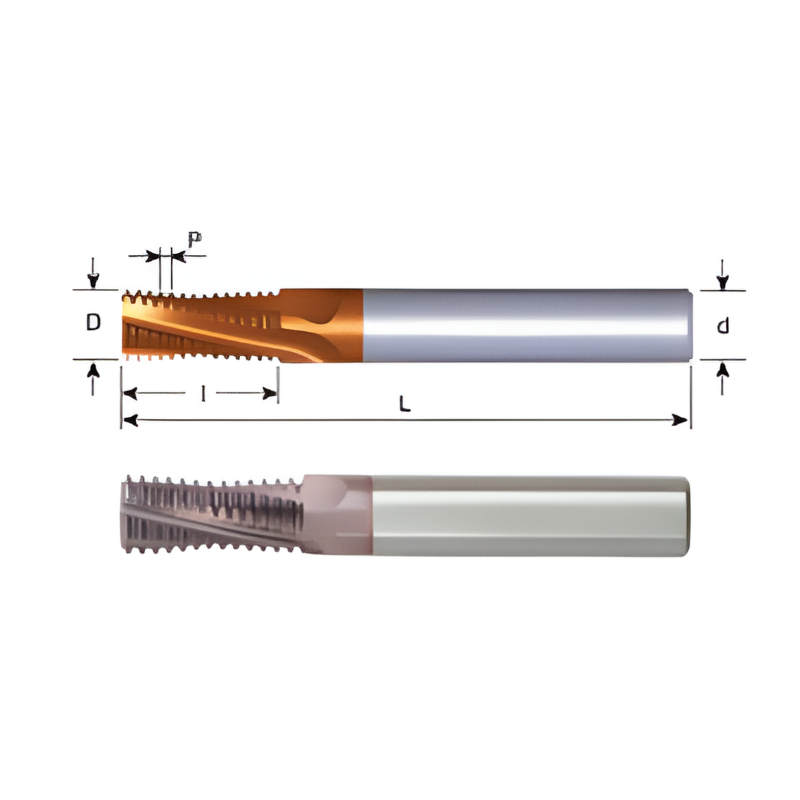

| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 5/16 |
| Pitch | 24 |
| Diameter (D) | 5 |
| Flute Length (l) | 14.3 |
| Shank Diameter (d) | 6 |
Learn more about Klarna
The Carmex MT line solid carbide internal thread mill delivers precise, efficient internal threading for UNC/UNF/UNEF/UNS threads. Designed for a 5/16" major diameter with 24 TPI and MT7 tooling, it’s built for shops that demand reliable, cost-effective thread milling.
- Tool Type: Solid carbide internal thread mill engineered for clean, consistent internal threading in holes.
- Threading Standards: Supports internal threads in UNC, UNF, UNEF, and UNS configurations.
- Size and Pitch: 5/16" diameter with 24 threads per inch (5/16 x 24).
- Flute Count: Multi-flute design (3–5 flutes) to enhance cutting efficiency and chip evacuation.
- Shank/Tool Holder: MT7 Morse taper shank for rigid, precise mounting on compatible machines.
- Material and Construction: Solid carbide construction for rigidity, wear resistance, and long tool life.
- Application Focus: Ideal for internal threading in through-holes and blind-hole scenarios across common metalworking materials.
This internal thread mill is built to deliver repeatable, high-quality threads with fewer passes compared with traditional tapping, helping minimize cycle times and tooling costs. The combination of a robust carbide body, smart flute geometry, and a stable MT7 shank translates to smoother finishes, better hole tolerance, and extended tool life in production environments. Whether you're manufacturing fasteners, housings, or specialty components, this tool provides dependable performance for standard UNC/UNF/UNEF/UNS threads at 5/16" x 24.
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 5/16 |
| Pitch | 24 |
| Diameter (D) | 5 |
| Flute Length (l) | 14.3 |
| Shank Diameter (d) | 6 |
| No of Flutes | 3 |
| Overall Length (L) | 58 |
| Thread Mill Style | Standard |
| Internal or External | Internal |
| Coating | MT7 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Solid Carbide Thread Mills - UN (UNC UNF UNEF) - For Internal Thread (MT)
View full collection →You are viewing MT0605C1424UNMT7. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MT06025C640UNMT7 | No.5 | 40 | 6 | 6 | 58 | £86.80 | 5 days | |
| MT06032C632UNMT7 | No. 8 No. 10 No. 12 | 32 | 6.8 | 6.8 | 58 | £86.80 | In Stock | |
| MT06045C1220UNMT7 | 1/4 | 20 | 12.1 | 12.1 | 58 | £86.80 | 5 days | |
| MT0604C1128UNMT7 | 1/4 | 28 | 11.3 | 11.3 | 58 | £86.80 | 5 days | |
| MT06052C1528UNMT7 | 1/4 | 28 | 15 | 15 | 58 | £86.80 | In Stock | |
| MT0605C1418UNMT7 | 5/16 | 18 | 14.8 | 14.8 | 58 | £86.80 | 5 days | |
| MT0605C1424UNMT7 Viewing | 5/16 | 24 | 14.3 | 14.3 | 58 | £86.80 | 5 days | |
| MT0606C1428UNMT7 | 7/16 1/2 | 28 | 14.1 | 14.1 | 58 | £86.80 | 5 days | |
| MT0606C1616UNMT7 | 3/8 | 16 | 16.7 | 16.7 | 58 | £86.80 | 5 days | |
| MT0606C2018UNMT7 | 5/16 | 18 | 20.5 | 20.5 | 58 | £104.16 | 5 days | |
| MT08074C2416UNMT7 | 3/8 | 16 | 24.6 | 24.6 | 64 | £115.62 | In Stock | |
| MT0807C2014UNMT7 | 7/16 | 14 | 20.9 | 20.9 | 64 | £115.62 | 5 days | |
| MT0807C2120UNMT7 | 7/16 1/2 | 20 | 21 | 21 | 64 | £115.62 | In Stock | |
| MT0807C2124UNMT7 | 3/8 | 24 | 24 | 24 | 64 | £115.62 | In Stock | |
| MT0808C2213UNMT7 | 1/2 | 13 | 22.5 | 22.5 | 64 | £115.62 | 5 days | |
| MT10085C2814UNMT7 | 7/16 | 14 | 28.1 | 28.1 | 73 | £133.36 | 5 days | |
| MT10098D3213UNMT7 | 1/2 | 13 | 32.2 | 32.2 | 73 | £133.36 | In Stock | |
| MT1010C2612UNMT7 | 9/16 | 12 | 26.5 | 26.5 | 73 | £133.36 | 5 days | |
| MT1010C2811UNMT7 | 5/8 | 11 | 28.9 | 28.9 | 73 | £133.36 | 5 days | |
| MT1010D2618UNMT7 | 9/16 5/8 - 1 1/8 1 5/8 | 18 | 26.1 | 26.1 | 73 | £133.36 | In Stock | |
| MT12116D3712UNMT7 | 9/16 | 12 | 37 | 37 | 84 | £166.90 | 5 days | |
| MT1212C3410UNMT7 | 3/4 | 10 | 34.3 | 34.3 | 84 | £166.90 | 5 days | |
| MT1212D3116UNMT7 | 3/4 | 16 | 31 | 31 | 84 | £166.90 | In Stock | |
| MT1212D3811UNMT7 | 5/8 | 11 | 38.1 | 38.1 | 84 | £166.90 | 5 days | |
| MT1212E2720UNMT7 | 3/4 - 1 | 20 | 27.3 | 27.3 | 84 | £166.90 | In Stock | |
| MT16147E4910UNMT7 | 3/4 | 10 | 49.5 | 49.5 | 105 | £196.90 | 5 days | |
| MT1615C389UNMT7 | 7/8 | 9 | 38.1 | 38.1 | 105 | £196.90 | In Stock | |
| MT1615E3714UNMT7 | 7/8 | 14 | 37.2 | 37.2 | 105 | £196.90 | 5 days | |
| MT1616C428UNMT7 | 1 | 8 | 42.9 | 42.9 | 105 | £196.90 | 5 days | |
| MT1616E4112UNMT7 | 1 - 1 1/2 | 12 | 41.3 | 41.3 | 105 | £196.90 | 5 days | |
| MT2020D457UNMT7 | 1 1/8 - 1 1/4 | 7 | 45.3 | 45.3 | 105 | £237.79 | 5 days |
