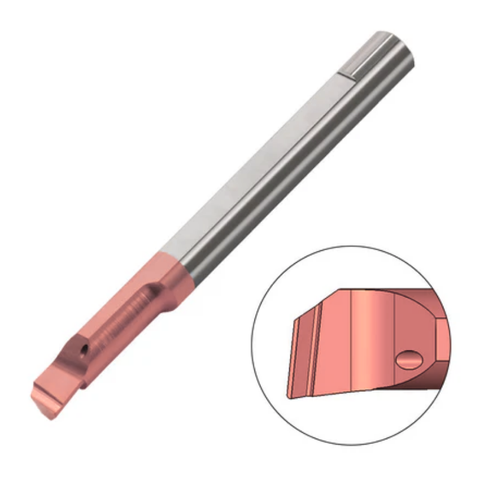

Carmex Carbide Tiny Tool - Boring Bar - MTL - TNX Grade - 2.1mm Minimum Diameter x 10mm Reach x R0.05 (Left Hand)
SKU:MTL2R0.05L10TNX
Carmex Carbide Tiny Tool is a compact, solid carbide boring bar designed for tight bore work and light turning tasks. It features a 2.1 mm minimum diameter, 10 mm reach, and a left-hand geometry ...
Read more ↓
Material Compatibility
P
M
K
N
S
H
Specification
View all specifications ↓
Download Cutting Data
| Application | Boring (MTL) |
| Minimum Diameter | 2.1 |
| Reach (L1) | 10 |
| Radius (R) | 0.05 |
| Grade | TNX |
| Holder | SIM****H3 |
£22.78
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Carmex Carbide Tiny Tool is a compact, solid carbide boring bar designed for tight bore work and light turning tasks. It features a 2.1 mm minimum diameter, 10 mm reach, and a left-hand geometry to help you complete precise internal features in small parts. Available in two coating configurations—BXC TiN for stainless steels and BMK triple PVD for high-heat, general-purpose use—these bars offer tailored wear resistance and reliable performance across materials.
- Ultra-compact, tight-bore capability: Access confined holes with a 2.1 mm minimum diameter and 10 mm reach for precise internal features and clean finishes.
- Dual coating options for versatility: Choose BXC TiN for stainless steels at low cutting speeds, or BMK with triple PVD for high heat resistance and smooth cutting across a broad material range.
- Left-hand geometry for efficient boring: Left-handed configuration supports productive machining sequences and reduces setup time in common boring and turning tasks.
These features come together to deliver consistent bore quality, extended tool life, and reduced downtime. The Carmex Tiny Tool is designed to fit into constrained setups while still delivering reliable performance, making it a dependable choice for engineers, machinists, and hobbyists alike.
| Application | Boring (MTL) |
| Minimum Diameter | 2.1 |
| Reach (L1) | 10 |
| Radius (R) | 0.05 |
| Grade | TNX |
| Holder | SIM****H3 |
| L | 39 |
| F | 0.8 |
| D | 3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Carmex Carbide Tiny Tools - Boring Bars - TNX Grade (MTR)
View full collection →You are viewing MTL2R0.05L10TNX. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MTR7R0.2L22TNX | 7.1 | 22 | 0.2 | TNX | SIM****H7 | £30.43 | 5 days | |
| MTR5R0.2L15TNX | 5.1 | 15 | 0.2 | TNX | SIM****H5 | £24.55 | 5 days | |
| MTR4R0.2L22TNX | 4.1 | 22 | 0.2 | TNX | SIM****H4 | £25.25 | 5 days | |
| MTR4R0.2L30TNX | 4.1 | 30 | 0.2 | TNX | SIM****H4 | £28.60 | 5 days | |
| MTR3R0.1L10TNX | 3.1 | 10 | 0.1 | TNX | SIM****H3 | £23.58 | 5 days | |
| MTR6R0.2L35TNX | 6.1 | 35 | 0.2 | TNX | SIM****H6 | £34.68 | 5 days | |
| MTR8R0.2L35TNX | 8.1 | 35 | 0.2 | TNX | SIM****H8 | £36.45 | 5 days | |
| MTR2.5R0L10TNX | 2.5 | 10 | 0 | TNX | SIM****H4 | £21.70 | 5 days | |
| MTR2R0.05L5TNX | 2.1 | 5 | 0.05 | TNX | SIM****H3 | £22.78 | 5 days | |
| MTR5R0.1L22TNX | 5.1 | 22 | 0.1 | TNX | SIM****H5 | £28.00 | 5 days | |
| MTR5R0.2L30TNX | 5.1 | 30 | 0.2 | TNX | SIM****H5 | £31.80 | 5 days | |
| MTR3R0.05L15TNX | 3.1 | 15 | 0.05 | TNX | SIM****H3 | £23.58 | 5 days | |
| MTR3R0.1L15TNX | 3.1 | 15 | 0.1 | TNX | SIM****H3 | £23.58 | 5 days | |
| MTR4R0.2L15TNX | 4.1 | 15 | 0.2 | TNX | SIM****H4 | £24.05 | 5 days | |
| MTR5R0.2L22TNX | 5.1 | 22 | 0.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MTR7R0.2L30TNX | 7.1 | 30 | 0.2 | TNX | SIM****H7 | £33.73 | 5 days | |
| MTR3R0.05L10TNX | 3.1 | 10 | 0.05 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTR6R0.2L30TNX | 6.1 | 30 | 0.2 | TNX | SIM****H6 | £32.25 | 5 days | |
| MTR6R0.2L15TNX | 6.1 | 15 | 0.2 | TNX | SIM****H6 | £25.30 | 5 days | |
| MTR8R0.2L15TNX | 8.1 | 15 | 0.2 | TNX | SIM****H8 | £30.33 | 5 days | |
| MTR8R0.2L22TNX | 8.1 | 22 | 0.2 | TNX | SIM****H8 | £34.25 | 5 days | |
| MTR2R0.05L10TNX | 2.1 | 10 | 0.05 | TNX | SIM****H3 | £22.78 | 5 days | |
| MTR6R0.2L22TNX | 6.1 | 22 | 0.2 | TNX | SIM****H6 | £28.60 | 5 days | |
| MTR5R0.1L15TNX | 5.1 | 15 | 0.1 | TNX | SIM****H5 | £24.58 | 5 days | |
| MTR1R0.05L4TNX | 1 | 4 | 0.05 | TNX | SIM****H3 | £23.90 | 5 days | |
| MTR2R0.15L5TNX | 2.1 | 5 | 0.15 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTR4R0.05L15TNX | 4.1 | 15 | 0.05 | TNX | SIM****H4 | £24.05 | 5 days | |
| MTR4R0.1L22TNX | 4.1 | 22 | 0.1 | TNX | SIM****H4 | £25.25 | 5 days | |
| MTR2R0.15L10TNX | 2.1 | 10 | 0.15 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTR4R0.2L10TNX | 4.1 | 10 | 0.2 | TNX | SIM****H4 | £22.23 | 5 days | |
| MTR2R0.1L15TNX | 2.1 | 15 | 0.1 | TNX | SIM****H3 | £22.78 | 5 days | |
| MTR3R0.2L15TNX | 3.1 | 15 | 0.2 | TNX | SIM****H3 | £23.58 | 5 days | |
| MTR6R0.1L15TNX | 6.1 | 15 | 0.1 | TNX | SIM****H6 | £25.30 | 5 days | |
| MTR3R0.2L10TNX | 3.1 | 10 | 0.2 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTR4R0.1L15TNX | 4.1 | 15 | 0.1 | TNX | SIM****H4 | £24.05 | 5 days | |
| MTR1.5R0.1L6TNX | 1.5 | 6 | 0.1 | TNX | SIM****H3 | £23.90 | 5 days | |
| MTL1.5R0.1L6TNX | 1.5 | 6 | 0.1 | TNX | SIM****H3 | £23.90 | 5 days | |
| MTL1R0.05L4TNX | 1 | 4 | 0.05 | TNX | SIM****H3 | £23.90 | 5 days | |
| MTL2.5R0L10TNX | 2.5 | 10 | 0 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTL2R0.05L10TNX Viewing | 2.1 | 10 | 0.05 | TNX | SIM****H3 | £22.78 | 5 days | |
| MTL2R0.05L5TNX | 2.1 | 5 | 0.05 | TNX | SIM****H3 | £22.78 | 5 days | |
| MTL2R0.15L10TNX | 2.1 | 10 | 0.15 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTL2R0.15L5TNX | 2.1 | 5 | 0.15 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTL2R0.1L15TNX | 2.1 | 15 | 0.1 | TNX | SIM****H3 | £22.78 | 5 days | |
| MTL3R0.05L10TNX | 3.1 | 10 | 0.05 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTL3R0.05L15TNX | 3.1 | 15 | 0.05 | TNX | SIM****H3 | £23.58 | 5 days | |
| MTL3R0.1L10TNX | 3.1 | 10 | 0.1 | TNX | SIM****H3 | £23.58 | 5 days | |
| MTL3R0.1L15TNX | 3.1 | 15 | 0.1 | TNX | SIM****H3 | £23.58 | 5 days | |
| MTL3R0.2L10TNX | 3.1 | 10 | 0.2 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTL3R0.2L15TNX | 3.1 | 15 | 0.2 | TNX | SIM****H3 | £23.58 | 5 days | |
| MTL4R0.05L15TNX | 4.1 | 15 | 0.05 | TNX | SIM****H4 | £24.08 | 5 days | |
| MTL4R0.1L15TNX | 4.1 | 15 | 0.1 | TNX | SIM****H4 | £24.08 | 5 days | |
| MTL4R0.1L22TNX | 4.1 | 22 | 0.1 | TNX | SIM****H4 | £25.25 | 5 days | |
| MTL4R0.2L10TNX | 4.1 | 10 | 0.2 | TNX | SIM****H4 | £22.23 | 5 days | |
| MTL4R0.2L15TNX | 4.1 | 15 | 0.2 | TNX | SIM****H4 | £24.08 | 5 days | |
| MTL4R0.2L22TNX | 4.1 | 22 | 0.2 | TNX | SIM****H4 | £25.25 | 5 days | |
| MTL4R0.2L30TNX | 4.1 | 30 | 0.2 | TNX | SIM****H4 | £28.60 | 5 days | |
| MTL5R0.1L15TNX | 5.1 | 15 | 0.1 | TNX | SIM****H5 | £24.58 | 5 days | |
| MTL5R0.1L22TNX | 5.1 | 22 | 0.1 | TNX | SIM****H5 | £28.00 | 5 days | |
| MTL5R0.2L15TNX | 5.1 | 15 | 0.2 | TNX | SIM****H5 | £24.53 | 5 days | |
| MTL5R0.2L22TNX | 5.1 | 22 | 0.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MTL5R0.2L30TNX | 5.1 | 30 | 0.2 | TNX | SIM****H5 | £31.80 | 5 days | |
| MTL6R0.1L15TNX | 6.1 | 15 | 0.1 | TNX | SIM****H6 | £25.30 | 5 days | |
| MTL6R0.2L15TNX | 6.1 | 15 | 0.2 | TNX | SIM****H6 | £25.30 | 5 days | |
| MTL6R0.2L22TNX | 6.1 | 22 | 0.2 | TNX | SIM****H6 | £28.60 | 5 days | |
| MTL6R0.2L30TNX | 6.1 | 30 | 0.2 | TNX | SIM****H6 | £32.25 | 5 days | |
| MTL6R0.2L35TNX | 6.1 | 35 | 0.2 | TNX | SIM****H6 | £34.68 | 5 days | |
| MTL7R0.2L22TNX | 7.1 | 22 | 0.2 | TNX | SIM****H7 | £30.43 | 5 days | |
| MTL7R0.2L30TNX | 7.1 | 30 | 0.2 | TNX | SIM****H7 | £33.73 | 5 days | |
| MTL8R0.2L15TNX | 8.1 | 15 | 0.2 | TNX | SIM****H8 | £30.33 | 5 days | |
| MTL8R0.2L22TNX | 8.1 | 22 | 0.2 | TNX | SIM****H8 | £34.25 | 5 days | |
| MTL8R0.2L35TNX | 8.1 | 35 | 0.2 | TNX | SIM****H8 | £36.45 | 5 days |
