Carmex Carbide Tiny Tool - Boring Bar - MTR - TNX Grade - 1mm Minimum Diameter x 4mm Reach x R0.05
| Application | Boring (MTR) |
| Minimum Diameter | 1 |
| Reach (L1) | 4 |
| Radius (R) | 0.05 |
| Grade | TNX |
| Holder | SIM****H3 |
Learn more about Klarna

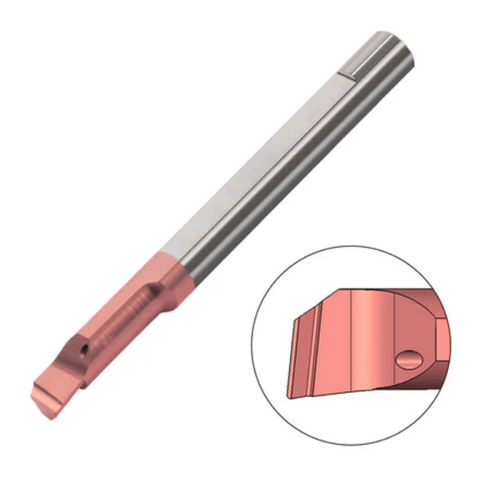

Carmex Carbide Tiny Tool is a compact, solid carbide boring bar designed for internal holes in small parts. With a 1 mm minimum diameter, 4 mm reach, and a precise nose radius of R0.05, it delivers accurate, repeatable results in tight bores while remaining versatile enough for general turning tasks. This tiny tool is ideal for engineers, machinists, hobbyists, and job shops working on miniature components where precision and reliability matter.
Two advanced coating grades are available to match material and cutting conditions:
- BXC TiN coated grade: optimized for low cutting speeds and stainless steels, aligned with ISO P30-P50 / K25-K40 ranges, delivering stable performance on standard stainless applications.
- BMK sub-micron grade with triple PVD coating: engineered for extremely high heat resistance and smooth cutting across a broad material spectrum (ISO K10-K20), making it a reliable all-material option.
This tiny boring bar combines a rigid carbide core with specialized coatings to provide long edge life, consistent finishes, and dependable performance even in demanding small-diameter machining. The result is fewer tool changes, steadier cuts, and improved surface quality on miniature bores and tight-pocket turning tasks.
| Application | Boring (MTR) |
| Minimum Diameter | 1 |
| Reach (L1) | 4 |
| Radius (R) | 0.05 |
| Grade | TNX |
| Holder | SIM****H3 |
| L | 39 |
| F | 0.5 |
| D | 3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Boring Bars - TNX Grade (MTR)
View full collection →You are viewing MTR1R0.05L4TNX. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MTR7R0.2L22TNX | 7.1 | 22 | 0.2 | TNX | SIM****H7 | £30.43 | 5 days | |
| MTR5R0.2L15TNX | 5.1 | 15 | 0.2 | TNX | SIM****H5 | £24.55 | 5 days | |
| MTR4R0.2L22TNX | 4.1 | 22 | 0.2 | TNX | SIM****H4 | £25.25 | 5 days | |
| MTR4R0.2L30TNX | 4.1 | 30 | 0.2 | TNX | SIM****H4 | £28.60 | 5 days | |
| MTR3R0.1L10TNX | 3.1 | 10 | 0.1 | TNX | SIM****H3 | £23.58 | 5 days | |
| MTR6R0.2L35TNX | 6.1 | 35 | 0.2 | TNX | SIM****H6 | £34.68 | 5 days | |
| MTR8R0.2L35TNX | 8.1 | 35 | 0.2 | TNX | SIM****H8 | £36.45 | 5 days | |
| MTR2.5R0L10TNX | 2.5 | 10 | 0 | TNX | SIM****H4 | £21.70 | 5 days | |
| MTR2R0.05L5TNX | 2.1 | 5 | 0.05 | TNX | SIM****H3 | £22.78 | 5 days | |
| MTR5R0.1L22TNX | 5.1 | 22 | 0.1 | TNX | SIM****H5 | £28.00 | 5 days | |
| MTR5R0.2L30TNX | 5.1 | 30 | 0.2 | TNX | SIM****H5 | £31.80 | 5 days | |
| MTR3R0.05L15TNX | 3.1 | 15 | 0.05 | TNX | SIM****H3 | £23.58 | 5 days | |
| MTR3R0.1L15TNX | 3.1 | 15 | 0.1 | TNX | SIM****H3 | £23.58 | 5 days | |
| MTR4R0.2L15TNX | 4.1 | 15 | 0.2 | TNX | SIM****H4 | £24.05 | 5 days | |
| MTR5R0.2L22TNX | 5.1 | 22 | 0.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MTR7R0.2L30TNX | 7.1 | 30 | 0.2 | TNX | SIM****H7 | £33.73 | 5 days | |
| MTR3R0.05L10TNX | 3.1 | 10 | 0.05 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTR6R0.2L30TNX | 6.1 | 30 | 0.2 | TNX | SIM****H6 | £32.25 | 5 days | |
| MTR6R0.2L15TNX | 6.1 | 15 | 0.2 | TNX | SIM****H6 | £25.30 | 5 days | |
| MTR8R0.2L15TNX | 8.1 | 15 | 0.2 | TNX | SIM****H8 | £30.33 | 5 days | |
| MTR8R0.2L22TNX | 8.1 | 22 | 0.2 | TNX | SIM****H8 | £34.25 | 5 days | |
| MTR2R0.05L10TNX | 2.1 | 10 | 0.05 | TNX | SIM****H3 | £22.78 | 5 days | |
| MTR6R0.2L22TNX | 6.1 | 22 | 0.2 | TNX | SIM****H6 | £28.60 | 5 days | |
| MTR5R0.1L15TNX | 5.1 | 15 | 0.1 | TNX | SIM****H5 | £24.58 | 5 days | |
| MTR1R0.05L4TNX Viewing | 1 | 4 | 0.05 | TNX | SIM****H3 | £23.90 | 5 days | |
| MTR2R0.15L5TNX | 2.1 | 5 | 0.15 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTR4R0.05L15TNX | 4.1 | 15 | 0.05 | TNX | SIM****H4 | £24.05 | 5 days | |
| MTR4R0.1L22TNX | 4.1 | 22 | 0.1 | TNX | SIM****H4 | £25.25 | 5 days | |
| MTR2R0.15L10TNX | 2.1 | 10 | 0.15 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTR4R0.2L10TNX | 4.1 | 10 | 0.2 | TNX | SIM****H4 | £22.23 | 5 days | |
| MTR2R0.1L15TNX | 2.1 | 15 | 0.1 | TNX | SIM****H3 | £22.78 | 5 days | |
| MTR3R0.2L15TNX | 3.1 | 15 | 0.2 | TNX | SIM****H3 | £23.58 | 5 days | |
| MTR6R0.1L15TNX | 6.1 | 15 | 0.1 | TNX | SIM****H6 | £25.30 | 5 days | |
| MTR3R0.2L10TNX | 3.1 | 10 | 0.2 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTR4R0.1L15TNX | 4.1 | 15 | 0.1 | TNX | SIM****H4 | £24.05 | 5 days | |
| MTR1.5R0.1L6TNX | 1.5 | 6 | 0.1 | TNX | SIM****H3 | £23.90 | 5 days | |
| MTL1.5R0.1L6TNX | 1.5 | 6 | 0.1 | TNX | SIM****H3 | £23.90 | 5 days | |
| MTL1R0.05L4TNX | 1 | 4 | 0.05 | TNX | SIM****H3 | £23.90 | 5 days | |
| MTL2.5R0L10TNX | 2.5 | 10 | 0 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTL2R0.05L10TNX | 2.1 | 10 | 0.05 | TNX | SIM****H3 | £22.78 | 5 days | |
| MTL2R0.05L5TNX | 2.1 | 5 | 0.05 | TNX | SIM****H3 | £22.78 | 5 days | |
| MTL2R0.15L10TNX | 2.1 | 10 | 0.15 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTL2R0.15L5TNX | 2.1 | 5 | 0.15 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTL2R0.1L15TNX | 2.1 | 15 | 0.1 | TNX | SIM****H3 | £22.78 | 5 days | |
| MTL3R0.05L10TNX | 3.1 | 10 | 0.05 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTL3R0.05L15TNX | 3.1 | 15 | 0.05 | TNX | SIM****H3 | £23.58 | 5 days | |
| MTL3R0.1L10TNX | 3.1 | 10 | 0.1 | TNX | SIM****H3 | £23.58 | 5 days | |
| MTL3R0.1L15TNX | 3.1 | 15 | 0.1 | TNX | SIM****H3 | £23.58 | 5 days | |
| MTL3R0.2L10TNX | 3.1 | 10 | 0.2 | TNX | SIM****H3 | £21.70 | 5 days | |
| MTL3R0.2L15TNX | 3.1 | 15 | 0.2 | TNX | SIM****H3 | £23.58 | 5 days | |
| MTL4R0.05L15TNX | 4.1 | 15 | 0.05 | TNX | SIM****H4 | £24.08 | 5 days | |
| MTL4R0.1L15TNX | 4.1 | 15 | 0.1 | TNX | SIM****H4 | £24.08 | 5 days | |
| MTL4R0.1L22TNX | 4.1 | 22 | 0.1 | TNX | SIM****H4 | £25.25 | 5 days | |
| MTL4R0.2L10TNX | 4.1 | 10 | 0.2 | TNX | SIM****H4 | £22.23 | 5 days | |
| MTL4R0.2L15TNX | 4.1 | 15 | 0.2 | TNX | SIM****H4 | £24.08 | 5 days | |
| MTL4R0.2L22TNX | 4.1 | 22 | 0.2 | TNX | SIM****H4 | £25.25 | 5 days | |
| MTL4R0.2L30TNX | 4.1 | 30 | 0.2 | TNX | SIM****H4 | £28.60 | 5 days | |
| MTL5R0.1L15TNX | 5.1 | 15 | 0.1 | TNX | SIM****H5 | £24.58 | 5 days | |
| MTL5R0.1L22TNX | 5.1 | 22 | 0.1 | TNX | SIM****H5 | £28.00 | 5 days | |
| MTL5R0.2L15TNX | 5.1 | 15 | 0.2 | TNX | SIM****H5 | £24.53 | 5 days | |
| MTL5R0.2L22TNX | 5.1 | 22 | 0.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MTL5R0.2L30TNX | 5.1 | 30 | 0.2 | TNX | SIM****H5 | £31.80 | 5 days | |
| MTL6R0.1L15TNX | 6.1 | 15 | 0.1 | TNX | SIM****H6 | £25.30 | 5 days | |
| MTL6R0.2L15TNX | 6.1 | 15 | 0.2 | TNX | SIM****H6 | £25.30 | 5 days | |
| MTL6R0.2L22TNX | 6.1 | 22 | 0.2 | TNX | SIM****H6 | £28.60 | 5 days | |
| MTL6R0.2L30TNX | 6.1 | 30 | 0.2 | TNX | SIM****H6 | £32.25 | 5 days | |
| MTL6R0.2L35TNX | 6.1 | 35 | 0.2 | TNX | SIM****H6 | £34.68 | 5 days | |
| MTL7R0.2L22TNX | 7.1 | 22 | 0.2 | TNX | SIM****H7 | £30.43 | 5 days | |
| MTL7R0.2L30TNX | 7.1 | 30 | 0.2 | TNX | SIM****H7 | £33.73 | 5 days | |
| MTL8R0.2L15TNX | 8.1 | 15 | 0.2 | TNX | SIM****H8 | £30.33 | 5 days | |
| MTL8R0.2L22TNX | 8.1 | 22 | 0.2 | TNX | SIM****H8 | £34.25 | 5 days | |
| MTL8R0.2L35TNX | 8.1 | 35 | 0.2 | TNX | SIM****H8 | £36.45 | 5 days |
