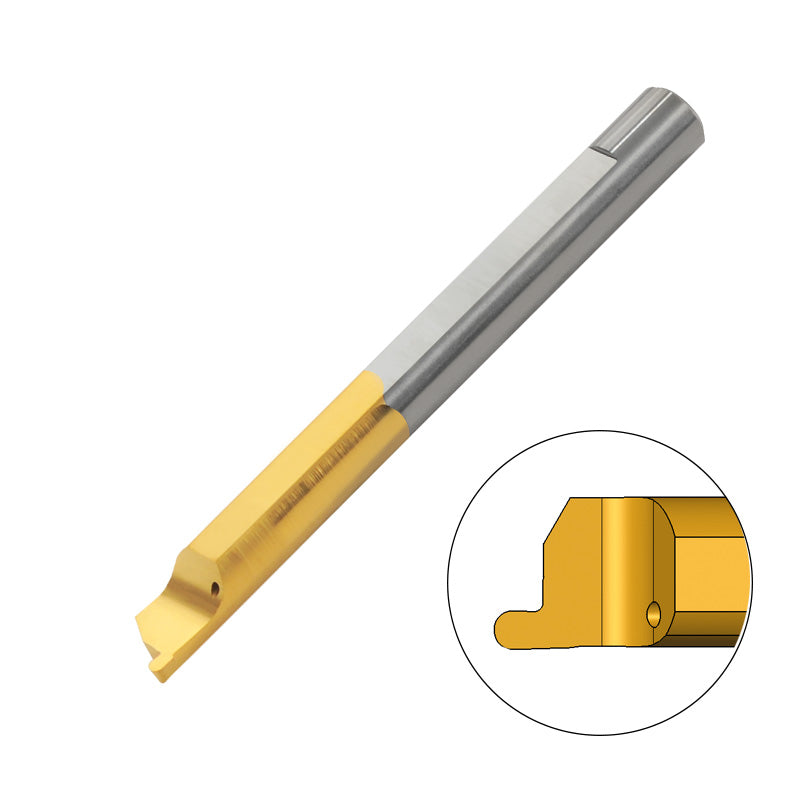

Carmex Carbide Tiny Tool - Full Radius Face Grooving - MZR - BXC Grade - 8mm Minimum Diameter x 1mm Groove Width
| Application | Full Radius Face Grooving (MZR) |
| Minimum Diameter | 8 |
| Groove Width (W) | 1 |
| Groove Depth (T) | 1.2 |
| Reach (L1) | 22 |
| L | 51 |
Learn more about Klarna
The Carmex Carbide Tiny Tool is a solid carbide bar engineered specifically for face grooving. It’s built for engineers, machinists, and shop teams who need precise, rounded groove profiles rather than straight slots, delivering smoother transitions and stronger groove geometry in a variety of materials.
With right-hand cutting geometry and targeted sizing, this tool supports an 8 mm minimum diameter and yields a 1 mm wide groove. Crafted from MZR - BXC grade carbide, it delivers consistent performance and long tool life in demanding face-grooving applications.
- Full-radius face grooving: Produces rounded grooves with smooth transitions that improve seating, finish quality, and structural integrity of the groove area.
- 8 mm minimum diameter x 1 mm groove width: Precisely sized for small-diameter grooving tasks, enabling tight, repeatable radii with minimal material removal.
- MZR - BXC grade carbide: High wear resistance and stable cutting performance for longer tool life and dependable results across materials.
Designed for reliable, repeatable results, the Carmex Tiny Tool helps you streamline setups, reduce rework, and maintain consistent groove quality across production runs. Its durable carbide, compact geometry, and right-hand orientation deliver confidence in every pass, supporting faster production and better overall groove performance.

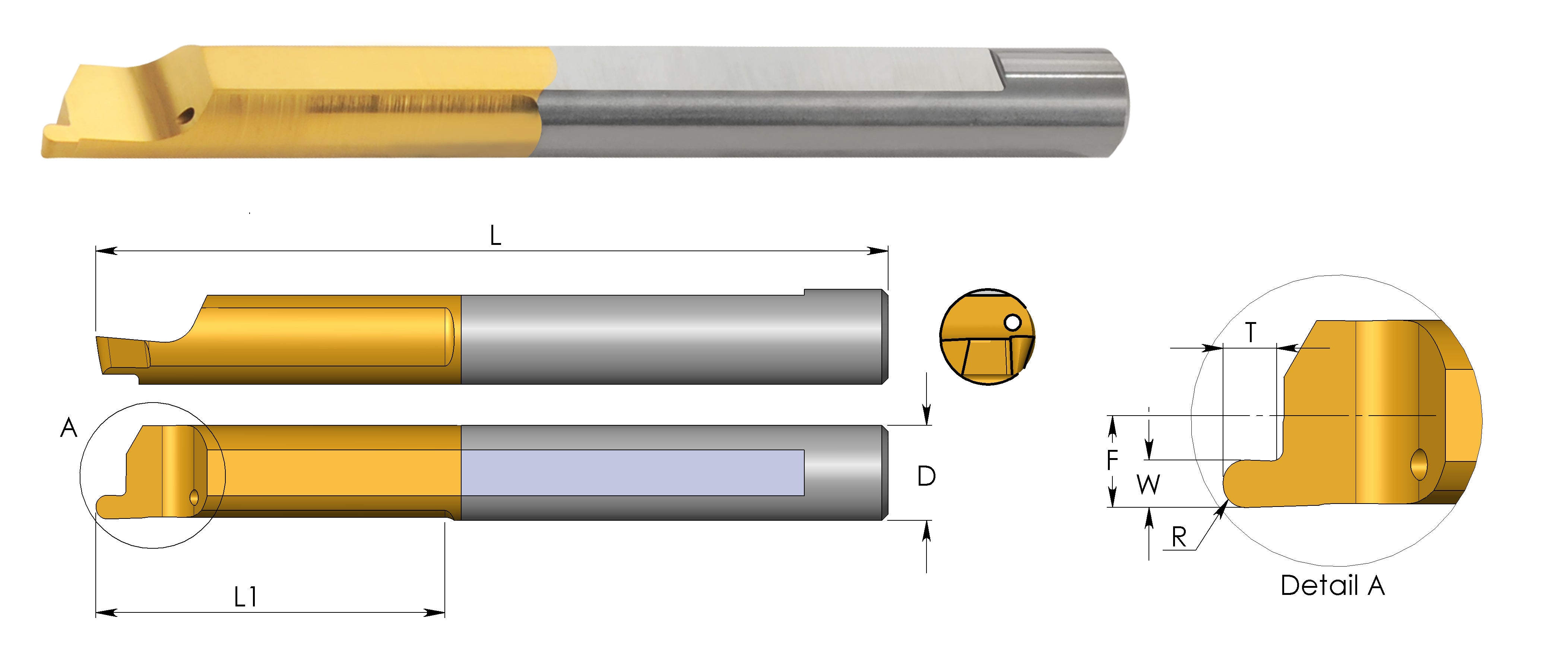

| Application | Full Radius Face Grooving (MZR) |
| Minimum Diameter | 8 |
| Groove Width (W) | 1 |
| Groove Depth (T) | 1.2 |
| Reach (L1) | 22 |
| L | 51 |
| R | 0.5 |
| F | 2.95 |
| D | 6.0 |
| Grade | BXC |
| Holder | SIM****H6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Full Radius Face Grooving - Grade BXC (MZR)
View full collection →You are viewing MZR6R0.5L22BXC. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Groove Width | Groove Depth | Reach | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MZR4R0.5L15BXC | 5 | 1 | 1.2 | 15 | BXC | SIM****H4 | £24.43 | In Stock | |
| MZR4R0.75L15BXC | 5 | 1.5 | 1.5 | 15 | BXC | SIM****H4 | £24.43 | 5 days | |
| MZR5R0.5L22BXC | 6 | 1 | 1.2 | 22 | BXC | SIM****H5 | £27.60 | 5 days | |
| MZR5R0.75L22BXC | 6 | 1.5 | 1.5 | 22 | BXC | SIM****H5 | £27.60 | 5 days | |
| MZR5R1.0L22BXC | 6 | 2 | 2.5 | 22 | BXC | SIM****H5 | £27.60 | 5 days | |
| MZR6R0.5L22BXC Viewing | 8 | 1 | 1.2 | 22 | BXC | SIM****H6 | £28.18 | In Stock | |
| MZR6R0.75L22BXC | 8 | 1.5 | 1.5 | 22 | BXC | SIM****H6 | £28.18 | In Stock | |
| MZR6R1.0L22BXC | 8 | 2 | 2.5 | 22 | BXC | SIM****H6 | £28.18 | In Stock |
