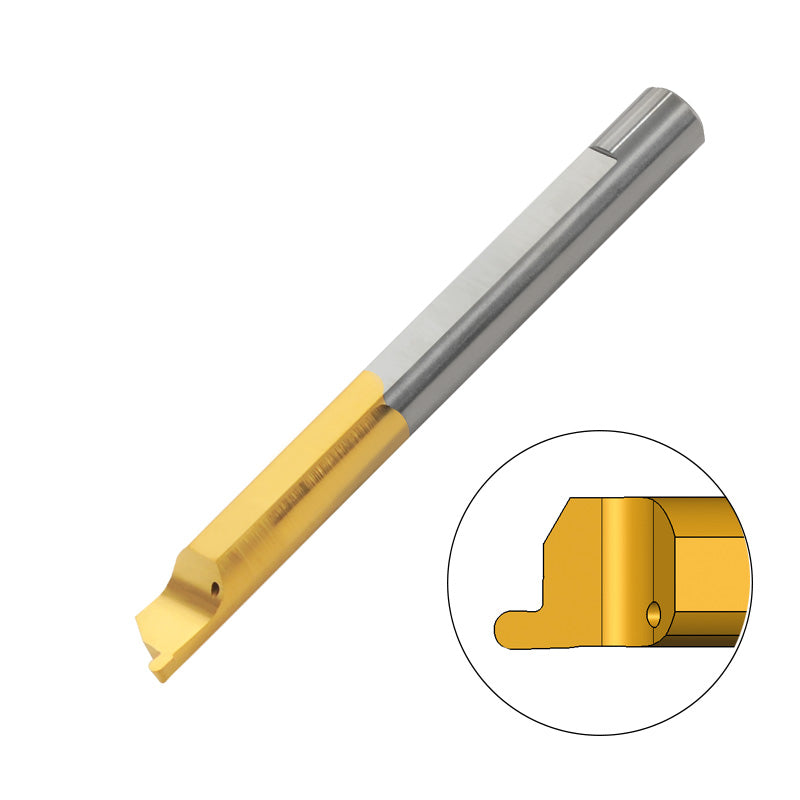

Carmex Carbide Tiny Tool - Full Radius Face Grooving - MZR - BXC Grade - 6mm Minimum Diameter x 2mm Groove Width
| Application | Full Radius Face Grooving (MZR) |
| Minimum Diameter | 6 |
| Groove Width (W) | 2 |
| Groove Depth (T) | 2.5 |
| Reach (L1) | 22 |
| L | 51 |
Learn more about Klarna
The Carmex Carbide Tiny Tool is a solid carbide bar engineered specifically for machining face grooving on small-diameter workpieces. It delivers true full-radius, rounded grooves rather than straight cuts, providing a smooth groove wall and reliable engagement for seals and retaining features. Built for precision and consistency, it’s ideal for engineers, machinists, and hobbyists who need repeatable results in tight spaces.
- Full-radius groove geometry: Produces true rounded grooves with a consistent radius, resulting in smoother walls and improved sealing surfaces for reliable assembly.
- Small-diameter readiness: Designed for tight spaces with a 6 mm minimum diameter and 2 mm groove width, enabling one-pass machining and reduced setup time.
- MZR-BXC carbide grade for durability: Uses a tough, wear-resistant carbide grade that delivers long tool life and stable performance across multiple cuts.
This tool pairings its precise geometry with robust carbide composition to help you achieve consistent groove quality, minimize deburring, and keep production running smoothly. Whether you’re refacing connectors, sleeves, or small components, the Carmex Tiny Tool supports efficient, repeatable results across a range of materials.

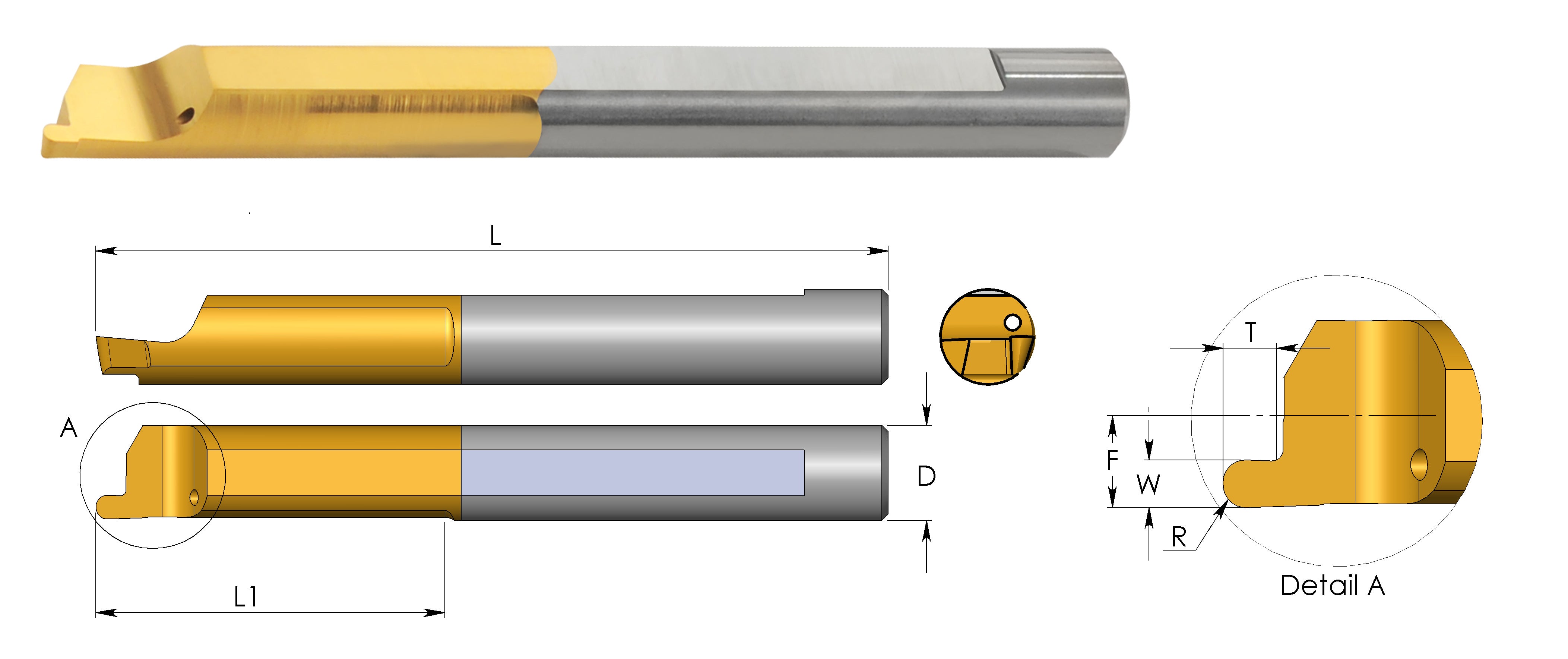

| Application | Full Radius Face Grooving (MZR) |
| Minimum Diameter | 6 |
| Groove Width (W) | 2 |
| Groove Depth (T) | 2.5 |
| Reach (L1) | 22 |
| L | 51 |
| R | 1.0 |
| F | 2.45 |
| D | 5.0 |
| Grade | BXC |
| Holder | SIM****H5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Full Radius Face Grooving - Grade BXC (MZR)
View full collection →You are viewing MZR5R1.0L22BXC. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Groove Width | Groove Depth | Reach | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MZR4R0.5L15BXC | 5 | 1 | 1.2 | 15 | BXC | SIM****H4 | £24.43 | In Stock | |
| MZR4R0.75L15BXC | 5 | 1.5 | 1.5 | 15 | BXC | SIM****H4 | £24.43 | 5 days | |
| MZR5R0.5L22BXC | 6 | 1 | 1.2 | 22 | BXC | SIM****H5 | £27.60 | 5 days | |
| MZR5R0.75L22BXC | 6 | 1.5 | 1.5 | 22 | BXC | SIM****H5 | £27.60 | 5 days | |
| MZR5R1.0L22BXC Viewing | 6 | 2 | 2.5 | 22 | BXC | SIM****H5 | £27.60 | 5 days | |
| MZR6R0.5L22BXC | 8 | 1 | 1.2 | 22 | BXC | SIM****H6 | £28.18 | In Stock | |
| MZR6R0.75L22BXC | 8 | 1.5 | 1.5 | 22 | BXC | SIM****H6 | £28.18 | In Stock | |
| MZR6R1.0L22BXC | 8 | 2 | 2.5 | 22 | BXC | SIM****H6 | £28.18 | In Stock |
