Carmex Carbide Tiny Tool - Full Radius Face Grooving - MZR - BXC Grade - 6mm Minimum Diameter x 1mm Groove Width
| Application | Full Radius Face Grooving (MZR) |
| Minimum Diameter | 6 |
| Groove Width (W) | 1 |
| Groove Depth (T) | 1.2 |
| Reach (L1) | 22 |
| L | 51 |
Learn more about Klarna

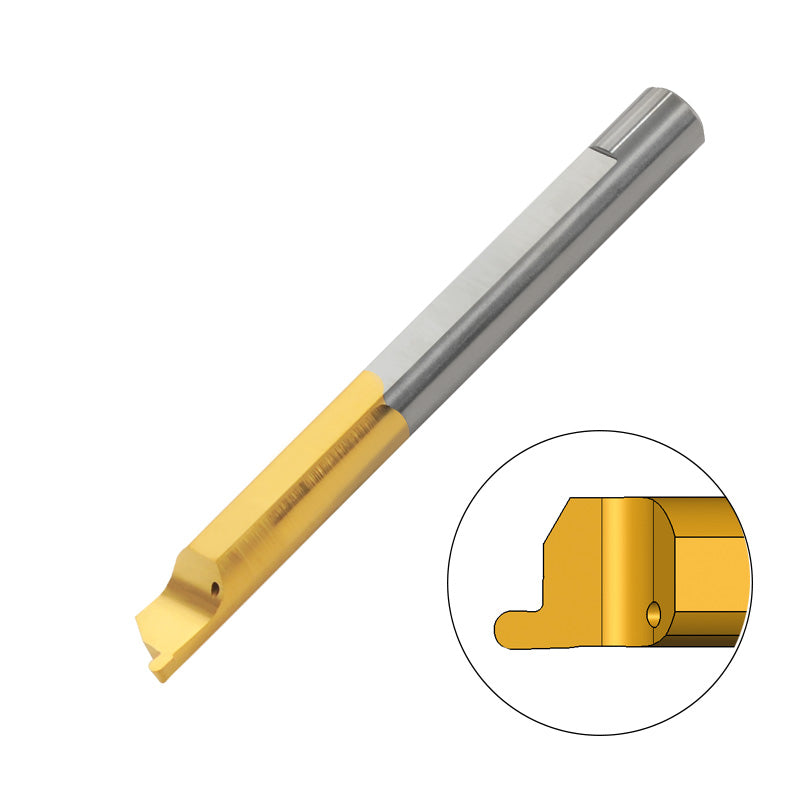

The Carmex Carbide Tiny Tool is a solid carbide bar designed specifically for face grooving, delivering a precise full-radius edge that creates rounded grooves instead of straight cuts. Built for right-hand cutting, it’s ideal for tight setups and when you need consistent groove geometry in your turning or milling work.
This tool uses MZR - BXC Grade carbide to provide dependable wear resistance and long edge life at higher cutting speeds. With a 6 mm minimum diameter and a 1 mm groove width, it’s engineered for small-feature applications where precision and repeatability matter.
- Full-radius groove geometry: Produces rounded grooves for smoother seating surfaces and reliable sealing fits, reducing the need for rework and finishing touches.
- Durable MZR-BXC carbide grade: Delivers lasting hardness and wear resistance, keeping edges sharp longer for consistent performance across multiple jobs.
- Right-hand, compact design with defined cut width: Specifically configured for right-hand cutting in tight spaces; 6 mm minimum diameter and 1 mm groove width enable precise, repeatable grooves in restricted features.
By choosing the Carmex Carbide Tiny Tool, you gain reliable, repeatable rounded grooves that enhance part fit and seal performance, shorten setup and changeover times, and improve overall workflow efficiency in your face grooving operations.

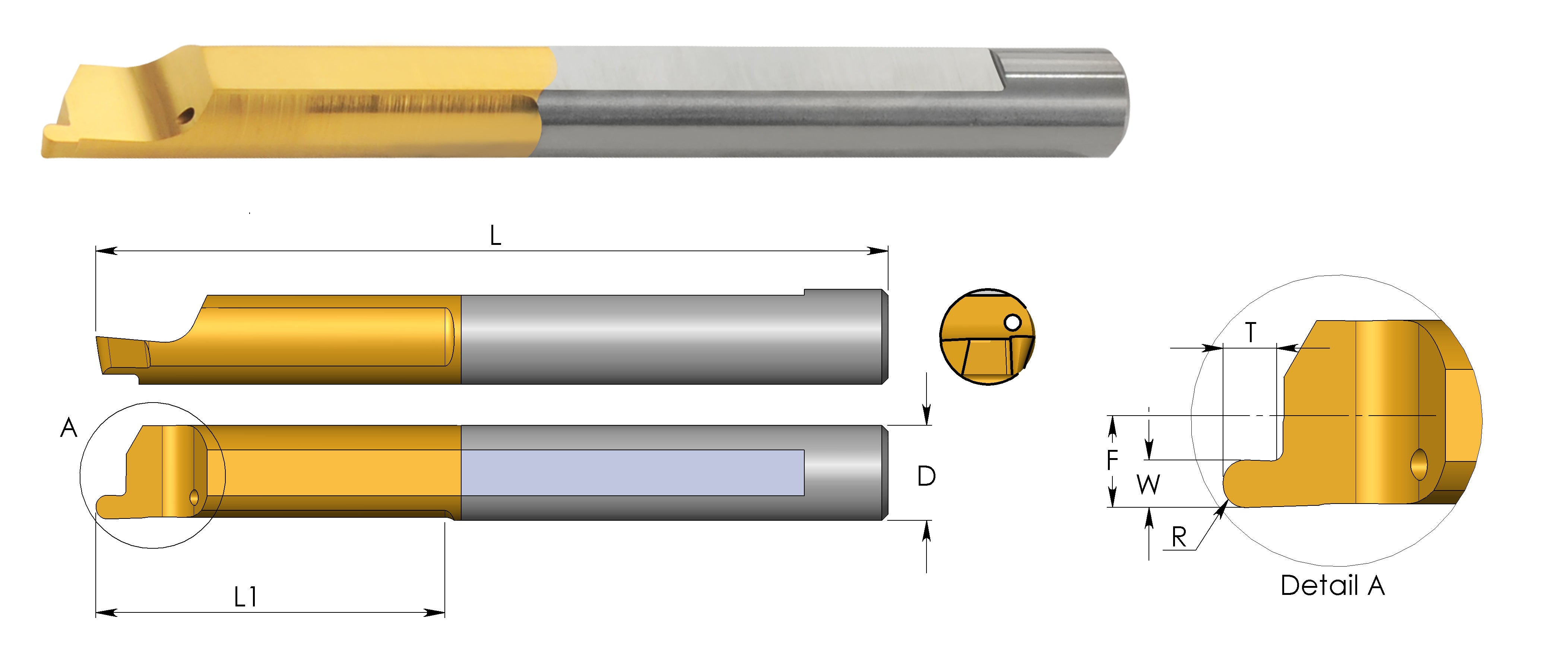

| Application | Full Radius Face Grooving (MZR) |
| Minimum Diameter | 6 |
| Groove Width (W) | 1 |
| Groove Depth (T) | 1.2 |
| Reach (L1) | 22 |
| L | 51 |
| R | 0.50 |
| F | 2.45 |
| D | 5.0 |
| Grade | BXC |
| Holder | SIM****H5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Full Radius Face Grooving - Grade BXC (MZR)
View full collection →You are viewing MZR5R0.5L22BXC. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Groove Width | Groove Depth | Reach | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MZR4R0.5L15BXC | 5 | 1 | 1.2 | 15 | BXC | SIM****H4 | £24.43 | In Stock | |
| MZR4R0.75L15BXC | 5 | 1.5 | 1.5 | 15 | BXC | SIM****H4 | £24.43 | 5 days | |
| MZR5R0.5L22BXC Viewing | 6 | 1 | 1.2 | 22 | BXC | SIM****H5 | £27.60 | 5 days | |
| MZR5R0.75L22BXC | 6 | 1.5 | 1.5 | 22 | BXC | SIM****H5 | £27.60 | 5 days | |
| MZR5R1.0L22BXC | 6 | 2 | 2.5 | 22 | BXC | SIM****H5 | £27.60 | 5 days | |
| MZR6R0.5L22BXC | 8 | 1 | 1.2 | 22 | BXC | SIM****H6 | £28.18 | In Stock | |
| MZR6R0.75L22BXC | 8 | 1.5 | 1.5 | 22 | BXC | SIM****H6 | £28.18 | In Stock | |
| MZR6R1.0L22BXC | 8 | 2 | 2.5 | 22 | BXC | SIM****H6 | £28.18 | In Stock |
