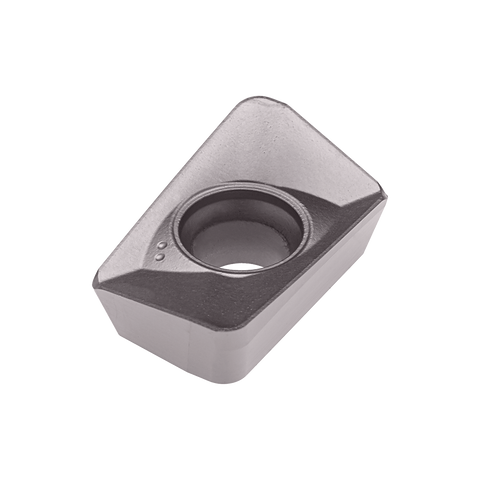

Palbit Indexable Milling Insert - for Shoulder Milling - XPET 170608 PDER-LP PH7740
SKU:PAL-1111986G6
Engineered for high-precision shoulder milling, the Palbit XPET indexable milling insert delivers exceptional edge stability and superior surface finishes in demanding machining environments.
...
Read more ↓
Material Compatibility
P
M
K
S
Specification
View all specifications ↓
| ISO Code | XPET 170608 PDER-LP PH7740 |
| Insert Size and Shape | XP1706 |
| Product Line | LINEPRO 20290;HELIPRO 20290 |
| Grade | PH7740 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 2 |
£13.80
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Engineered for high-precision shoulder milling, the Palbit XPET indexable milling insert delivers exceptional edge stability and superior surface finishes in demanding machining environments.
- Material: Robust carbide construction provides rigidity, wear resistance, and long edge life.
- Geometry: Optimized shape and cutting edge geometry designed to produce precise 90° shoulders with controlled chip formation.
- Type: XPET indexable milling insert enabling fast edge indexing and effortless edge replacement.
- Application: Ideal for high-precision shoulder milling in demanding machining environments.
- Edge Stability: Delivers consistent edge stability to produce smooth, high-quality surface finishes.
With its robust build and thoughtful design, this insert helps maintain tight shoulder dimensions and repeatable results across production runs. Its reliable performance supports shops that require exact degrees and micron-level tolerances in every part, while quick edge indexing minimizes downtime during tool changes.
| ISO Code | XPET 170608 PDER-LP PH7740 |
| Insert Size and Shape | XP1706 |
| Product Line | LINEPRO 20290;HELIPRO 20290 |
| Grade | PH7740 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 2 |
| Operation Type (CTPT) | Shoulder Milling |
| Tolerance Class Insert (TCINS) | E |
| Insert Shape Code (SC) | X |
| Inscribed Circle Diameter (IC) | 5 |
| Insert Thickness (S) | 3.96 |
| Corner Radius (RE) | 0.8 |
| Cutting Edge Effective Length (LE) | 17.5 |
| Fixing Hole Diameter (D1) | 5 |
| Chip Breaker (CBMD) | LP |
| Wiper Edge Length (BS) | 1.8 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Palbit XPET Inserts
View full collection →You are viewing PAL-1111986G6. Click any other SKU to view its full details.
| Product SKU | ISO Code | Insert Size & Shape | Product Line | Insert Shape Code (SC) | Insert Thickness (S) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-1111983T1 | XPET 100308 PDSR-MP PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111987T1 | XPET 170616 PDER-LP PHP920 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | In Stock | |
| PAL-1113366T1 | XPET 100316 PDER-LS PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | In Stock | |
| PAL-1111982P4 | XPET 100304 PDSR-MP PHP930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-11122234H | XPET 170608 PDER-LS PHF530 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £25.05 | 5 days | |
| PAL-1113363X9 | XPET 170632 PDER-LS PHH930 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | 5 days | |
| PAL-1113362X9 | XPET 170620 PDER-LS PHH930 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | 5 days | |
| PAL-1113361X9 | XPET 170616 PDER-LS PHH930 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | 5 days | |
| PAL-1111988T9 | XPET 170608 PDSR-MP PHS740 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | 5 days | |
| PAL-1111989L5 | XPET 170616 PDSR-MP PH5705 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1111988G6 | XPET 170608 PDSR-MP PH7740 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1111989L9 | XPET 170616 PDSR-MP PH5740 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1111988L5 | XPET 170608 PDSR-MP PH5705 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1111989G6 | XPET 170616 PDSR-MP PH7740 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1111988L9 | XPET 170608 PDSR-MP PH5740 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1112223G6 | XPET 170608 PDER-LS PH7740 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1111986G6 Viewing | XPET 170608 PDER-LP PH7740 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1111987G6 | XPET 170616 PDER-LP PH7740 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1112223X9 | XPET 170608 PDER-LS PHH930 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | 5 days | |
| PAL-1111986T1 | XPET 170608 PDER-LP PHP920 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | 5 days | |
| PAL-1111988T1 | XPET 170608 PDSR-MP PHP920 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | 5 days | |
| PAL-1111989T1 | XPET 170616 PDSR-MP PHP920 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | 5 days | |
| PAL-11121974H | XPET 100308 PDER-LS PHF530 | XP1003 | LINEPRO 20190 | X | 3.96 | £17.08 | 5 days | |
| PAL-1113366X9 | XPET 100316 PDER-LS PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113365X9 | XPET 100304 PDER-LS PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113365T1 | XPET 100304 PDER-LS PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113360X9 | XPET 100332 PDER-LS PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113360T1 | XPET 100332 PDER-LS PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113359X9 | XPET 100320 PDER-LS PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113359T1 | XPET 100320 PDER-LS PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113358X9 | XPET 100312 PDER-LS PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1112197X9 | XPET 100308 PDER-LS PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113358T1 | XPET 100312 PDER-LS PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1112197T1 | XPET 100308 PDER-LS PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111981X9 | XPET 100308 PDER-LP PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | In Stock | |
| PAL-1111983P4 | XPET 100308 PDSR-MP PHP930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111981P4 | XPET 100308 PDER-LP PHP930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1112376P4 | XPET 100312 ZDR-HF PHP930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111982T1 | XPET 100304 PDSR-MP PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111981T1 | XPET 100308 PDER-LP PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | In Stock | |
| PAL-1112376X5 | XPET 100312 ZDR-HF PHP910 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1112022T1 | XPET 100316 PDER-LP PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1112376T1 | XPET 100312 ZDR-HF PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111980P4 | XPET 100304 PDER-LP PHP930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113132X9 | XPET 100302 PDER-LP PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111980T1 | XPET 100304 PDER-LP PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | In Stock | |
| PAL-1112022P4 | XPET 100316 PDER-LP PHP930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111980X9 | XPET 100304 PDER-LP PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1112022X9 | XPET 100316 PDER-LP PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111983L5 | XPET 100308 PDSR-MP PH5705 | XP1003 | LINEPRO 20190 | X | 3.96 | £12.50 | 5 days | |
| PAL-1111982L5 | XPET 100304 PDSR-MP PH5705 | XP1003 | LINEPRO 20190 | X | 3.96 | £12.50 | 5 days | |
| PAL-1111983L9 | XPET 100308 PDSR-MP PH5740 | XP1003 | LINEPRO 20190 | X | 3.96 | £12.50 | 5 days | |
| PAL-1111982L9 | XPET 100304 PDSR-MP PH5740 | XP1003 | LINEPRO 20190 | X | 3.96 | £12.50 | 5 days | |
| PAL-1112376X9 | XPET 100312 ZDR-HF PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111983T9 | XPET 100308 PDSR-MP PHS740 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111981T9 | XPET 100308 PDER-LP PHS740 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | In Stock | |
| PAL-1112500X4 | XPHW 100308 ZER-MH PHH603 | XP1003 | LINEPRO 20190 | X | 3.6 | £14.46 | 5 days | |
| PAL-1112500X6 | XPHW 100308 ZER-MH PHH910 | XP1003 | LINEPRO 20190 | X | 3.6 | £14.46 | 5 days | |
| PAL-1112735X4 | XPHW 100320 ZER-MH PHH603 | XP1003 | LINEPRO 20190 | X | 3.6 | £14.46 | 5 days | |
| PAL-1112736X4 | XPHW 100310 ZER-MH PHH603 | XP1003 | LINEPRO 20190 | X | 3.6 | £14.46 | 5 days | |
| PAL-1112002X9 | XPET 060204 PDER-LP PHH930 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112002P4 | XPET 060204 PDER-LP PHP930 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112004P4 | XPET 060216 PDER-LP PHP930 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112003P4 | XPET 060208 PDER-LP PHP930 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112049T1 | XPET 060210 ZER-HF PHP920 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112003T1 | XPET 060208 PDER-LP PHP920 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112002T1 | XPET 060204 PDER-LP PHP920 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | In Stock | |
| PAL-1112049X9 | XPET 060210 ZER-HF PHH930 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112003X9 | XPET 060208 PDER-LP PHH930 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112004T1 | XPET 060216 PDER-LP PHP920 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112049P4 | XPET 060210 ZER-HF PHP930 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days |
