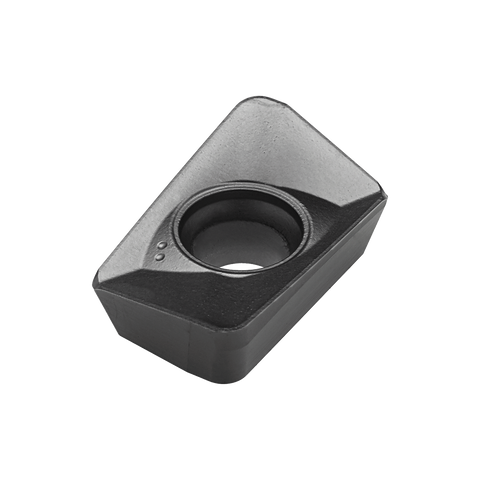

Palbit Indexable Milling Insert - for Shoulder Milling - XPET 170616 PDSR-MP PH7740
SKU:PAL-1111989G6
The Palbit XPET 170616 PDSR-MP PH7740 indexable milling insert is engineered for high-precision shoulder milling, delivering stable edge quality and superior surface finishes in demanding environ...
Read more ↓
Material Compatibility
P
M
K
S
Specification
View all specifications ↓
| ISO Code | XPET 170616 PDSR-MP PH7740 |
| Insert Size and Shape | XP1706 |
| Product Line | LINEPRO 20290;HELIPRO 20290 |
| Grade | PH7740 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 2 |
£13.80
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Palbit XPET 170616 PDSR-MP PH7740 indexable milling insert is engineered for high-precision shoulder milling, delivering stable edge quality and superior surface finishes in demanding environments. It ensures accurate 90° shoulders with reliable performance across long production runs.
- Material: Robust carbide construction for rigidity and wear resistance.
- Geometry: Optimized profile tailored for precise 90° shoulder milling.
- Edge stability: Maintains consistent edge geometry under challenging cutting conditions.
- Surface finish: Delivers superior surface quality on machined parts.
- Indexable design: Enables quick insert changes to minimize downtime.
- Tool life consistency: Provides predictable tool life and consistent shoulder accuracy.
With this insert, you gain predictable tool life and consistent shoulder accuracy, reducing rework and improving overall part quality. The carbide composition resists wear in demanding materials, while the optimized geometry lowers cutting forces to promote smoother operation and better surface integrity over longer runs. The indexable design minimizes downtime by enabling fast insert changes, helping maintain steady throughput in precision milling applications.
| ISO Code | XPET 170616 PDSR-MP PH7740 |
| Insert Size and Shape | XP1706 |
| Product Line | LINEPRO 20290;HELIPRO 20290 |
| Grade | PH7740 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 2 |
| Operation Type (CTPT) | Shoulder Milling |
| Tolerance Class Insert (TCINS) | E |
| Insert Shape Code (SC) | X |
| Inscribed Circle Diameter (IC) | 5 |
| Insert Thickness (S) | 3.96 |
| Corner Radius (RE) | 1.6 |
| Cutting Edge Effective Length (LE) | 17.5 |
| Fixing Hole Diameter (D1) | 5 |
| Chip Breaker (CBMD) | MP |
| Wiper Edge Length (BS) | 1.6 |
