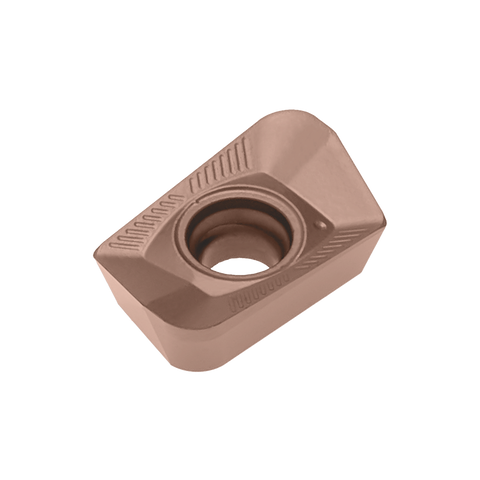

Palbit Indexable Milling Insert - for Shoulder Milling - XPET 100304 PDER-LP PHH930
SKU:PAL-1111980X9
The Palbit XPET indexable milling insert is engineered for high-precision 90° shoulder milling, delivering repeatable shoulders and a superior surface finish in demanding production environments....
Read more ↓
Material Compatibility
M
S
Specification
View all specifications ↓
| ISO Code | XPET 100304 PDER-LP PHH930 |
| Insert Size and Shape | XP1003 |
| Product Line | LINEPRO 20190 |
| Grade | PHH930 |
| Hand | Right |
| Operation Type (CTPT) | Shoulder Milling |
£13.36
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Palbit XPET indexable milling insert is engineered for high-precision 90° shoulder milling, delivering repeatable shoulders and a superior surface finish in demanding production environments. As part of Palbit’s XPET family, it integrates reliably with standard tool holders for consistent setup and performance.
- Part number: XPET 100304 PDER-LP PHH930
- Material: Carbide construction for rigidity and long tool life in shoulder milling tasks
- Geometry: Optimized profile to produce accurate 90° shoulders with consistent chip control and surface finish
- Edge stability: Sharp, wear-resistant cutting edge that resists wear and micro-chipping at higher feed rates
- Application focus: Specifically optimized for 90° shoulder features where precision is critical
- Compatibility: Part of Palbit’s XPET indexable milling insert lineup, designed for reliable fit with standard tool holders
This insert helps manufacturers achieve repeatable 90° shoulders with minimal rework, delivering a high-quality surface finish and predictable tool life in demanding production environments. The robust carbide body enhances rigidity, while the optimized geometry and stable edge work together to maintain consistent performance across varied feeds and depths of cut.
| ISO Code | XPET 100304 PDER-LP PHH930 |
| Insert Size and Shape | XP1003 |
| Product Line | LINEPRO 20190 |
| Grade | PHH930 |
| Hand | Right |
| Operation Type (CTPT) | Shoulder Milling |
| Tolerance Class Insert (TCINS) | E |
| Insert Shape Code (SC) | X |
| Insert Thickness (S) | 3.96 |
| Corner Radius (RE) | 0.4 |
| Cutting Edge Effective Length (LE) | 10.5 |
| Insert Length (INSL) | 0 |
| Fixing Hole Diameter (D1) | 2.9 |
| Chip Breaker (CBMD) | LP |
| Wiper Edge Length (BS) | 1.3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Palbit XPET Inserts
View full collection →You are viewing PAL-1111980X9. Click any other SKU to view its full details.
| Product SKU | ISO Code | Insert Size & Shape | Product Line | Insert Shape Code (SC) | Insert Thickness (S) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-1111983T1 | XPET 100308 PDSR-MP PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111987T1 | XPET 170616 PDER-LP PHP920 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | In Stock | |
| PAL-1113366T1 | XPET 100316 PDER-LS PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | In Stock | |
| PAL-1111982P4 | XPET 100304 PDSR-MP PHP930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-11122234H | XPET 170608 PDER-LS PHF530 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £25.05 | 5 days | |
| PAL-1113363X9 | XPET 170632 PDER-LS PHH930 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | 5 days | |
| PAL-1113362X9 | XPET 170620 PDER-LS PHH930 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | 5 days | |
| PAL-1113361X9 | XPET 170616 PDER-LS PHH930 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | 5 days | |
| PAL-1111988T9 | XPET 170608 PDSR-MP PHS740 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | 5 days | |
| PAL-1111989L5 | XPET 170616 PDSR-MP PH5705 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1111988G6 | XPET 170608 PDSR-MP PH7740 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1111989L9 | XPET 170616 PDSR-MP PH5740 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1111988L5 | XPET 170608 PDSR-MP PH5705 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1111989G6 | XPET 170616 PDSR-MP PH7740 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1111988L9 | XPET 170608 PDSR-MP PH5740 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1112223G6 | XPET 170608 PDER-LS PH7740 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1111986G6 | XPET 170608 PDER-LP PH7740 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1111987G6 | XPET 170616 PDER-LP PH7740 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £13.80 | 5 days | |
| PAL-1112223X9 | XPET 170608 PDER-LS PHH930 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | 5 days | |
| PAL-1111986T1 | XPET 170608 PDER-LP PHP920 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | 5 days | |
| PAL-1111988T1 | XPET 170608 PDSR-MP PHP920 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | 5 days | |
| PAL-1111989T1 | XPET 170616 PDSR-MP PHP920 | XP1706 | LINEPRO 20290;HELIPRO 20290 | X | 3.96 | £15.12 | 5 days | |
| PAL-11121974H | XPET 100308 PDER-LS PHF530 | XP1003 | LINEPRO 20190 | X | 3.96 | £17.08 | 5 days | |
| PAL-1113366X9 | XPET 100316 PDER-LS PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113365X9 | XPET 100304 PDER-LS PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113365T1 | XPET 100304 PDER-LS PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113360X9 | XPET 100332 PDER-LS PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113360T1 | XPET 100332 PDER-LS PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113359X9 | XPET 100320 PDER-LS PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113359T1 | XPET 100320 PDER-LS PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113358X9 | XPET 100312 PDER-LS PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1112197X9 | XPET 100308 PDER-LS PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113358T1 | XPET 100312 PDER-LS PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1112197T1 | XPET 100308 PDER-LS PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111981X9 | XPET 100308 PDER-LP PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | In Stock | |
| PAL-1111983P4 | XPET 100308 PDSR-MP PHP930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111981P4 | XPET 100308 PDER-LP PHP930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1112376P4 | XPET 100312 ZDR-HF PHP930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111982T1 | XPET 100304 PDSR-MP PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111981T1 | XPET 100308 PDER-LP PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | In Stock | |
| PAL-1112376X5 | XPET 100312 ZDR-HF PHP910 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1112022T1 | XPET 100316 PDER-LP PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1112376T1 | XPET 100312 ZDR-HF PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111980P4 | XPET 100304 PDER-LP PHP930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1113132X9 | XPET 100302 PDER-LP PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111980T1 | XPET 100304 PDER-LP PHP920 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | In Stock | |
| PAL-1112022P4 | XPET 100316 PDER-LP PHP930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111980X9 Viewing | XPET 100304 PDER-LP PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1112022X9 | XPET 100316 PDER-LP PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111983L5 | XPET 100308 PDSR-MP PH5705 | XP1003 | LINEPRO 20190 | X | 3.96 | £12.50 | 5 days | |
| PAL-1111982L5 | XPET 100304 PDSR-MP PH5705 | XP1003 | LINEPRO 20190 | X | 3.96 | £12.50 | 5 days | |
| PAL-1111983L9 | XPET 100308 PDSR-MP PH5740 | XP1003 | LINEPRO 20190 | X | 3.96 | £12.50 | 5 days | |
| PAL-1111982L9 | XPET 100304 PDSR-MP PH5740 | XP1003 | LINEPRO 20190 | X | 3.96 | £12.50 | 5 days | |
| PAL-1112376X9 | XPET 100312 ZDR-HF PHH930 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111983T9 | XPET 100308 PDSR-MP PHS740 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | 5 days | |
| PAL-1111981T9 | XPET 100308 PDER-LP PHS740 | XP1003 | LINEPRO 20190 | X | 3.96 | £13.36 | In Stock | |
| PAL-1112500X4 | XPHW 100308 ZER-MH PHH603 | XP1003 | LINEPRO 20190 | X | 3.6 | £14.46 | 5 days | |
| PAL-1112500X6 | XPHW 100308 ZER-MH PHH910 | XP1003 | LINEPRO 20190 | X | 3.6 | £14.46 | 5 days | |
| PAL-1112735X4 | XPHW 100320 ZER-MH PHH603 | XP1003 | LINEPRO 20190 | X | 3.6 | £14.46 | 5 days | |
| PAL-1112736X4 | XPHW 100310 ZER-MH PHH603 | XP1003 | LINEPRO 20190 | X | 3.6 | £14.46 | 5 days | |
| PAL-1112002X9 | XPET 060204 PDER-LP PHH930 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112002P4 | XPET 060204 PDER-LP PHP930 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112004P4 | XPET 060216 PDER-LP PHP930 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112003P4 | XPET 060208 PDER-LP PHP930 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112049T1 | XPET 060210 ZER-HF PHP920 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112003T1 | XPET 060208 PDER-LP PHP920 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112002T1 | XPET 060204 PDER-LP PHP920 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | In Stock | |
| PAL-1112049X9 | XPET 060210 ZER-HF PHH930 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112003X9 | XPET 060208 PDER-LP PHH930 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112004T1 | XPET 060216 PDER-LP PHP920 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days | |
| PAL-1112049P4 | XPET 060210 ZER-HF PHP930 | XP0602 | LINEPRO 20090 | X | 2.4 | £12.31 | 5 days |
