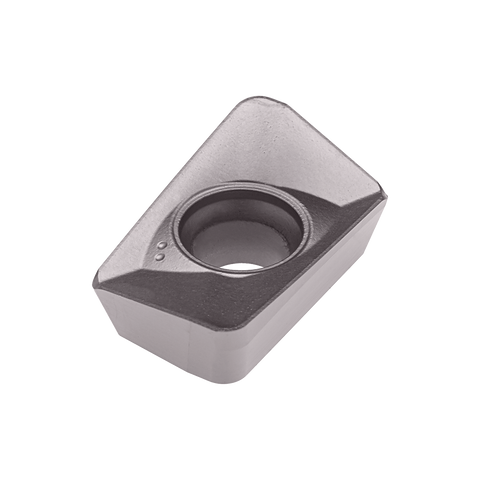

Palbit Indexable Milling Insert - for Shoulder Milling - XPET 170608 PDSR-MP PH7740
Palbit Vendor Logo

Palbit Indexable Milling Insert - for Shoulder Milling - XPET 170608 PDSR-MP PH7740

PAL-1111988G6

Availability: 5 days Estimated lead time, subject to availability

The Palbit XPET indexable milling insert is engineered for high-precision shoulder milling, delivering excellent edge stability and superior surface finishes. Its robust carbide construction and... Read more

View Other Sizes Suitable Holders
Specification Value
ISO Code XPET 170608 PDSR-MP PH7740
Insert Size and Shape XP1706
Product Line LINEPRO 20290;HELIPRO 20290
Grade PH7740
Hand Right
Cutting Edge Count (CEDC) 2
Operation Type (CTPT) Shoulder Milling
Tolerance Class Insert (TCINS) E
Insert Shape Code (SC) X
Inscribed Circle Diameter (IC) 5
Insert Thickness (S) 3.96
Corner Radius (RE) 0.8
Cutting Edge Effective Length (LE) 17.5
Fixing Hole Diameter (D1) 5
Chip Breaker (CBMD) MP
Wiper Edge Length (BS) 1.8
Steel
Stainless Steel
Cast Iron
Exotics

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

The Palbit XPET indexable milling insert is engineered for high-precision shoulder milling, delivering excellent edge stability and superior surface finishes. Its robust carbide construction and optimized geometry make it ideal for demanding machining environments where accurate 90° shoulders are essential.
